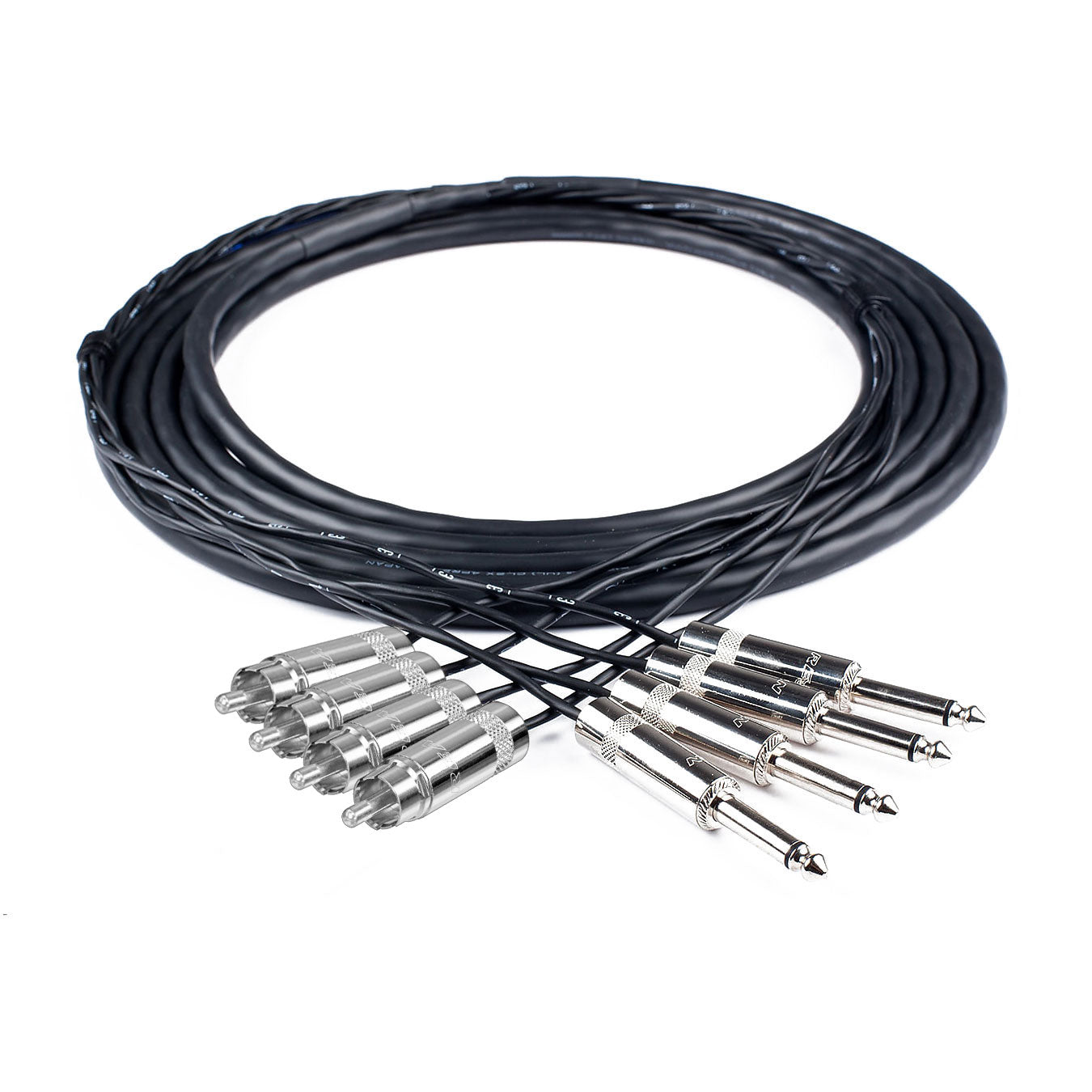

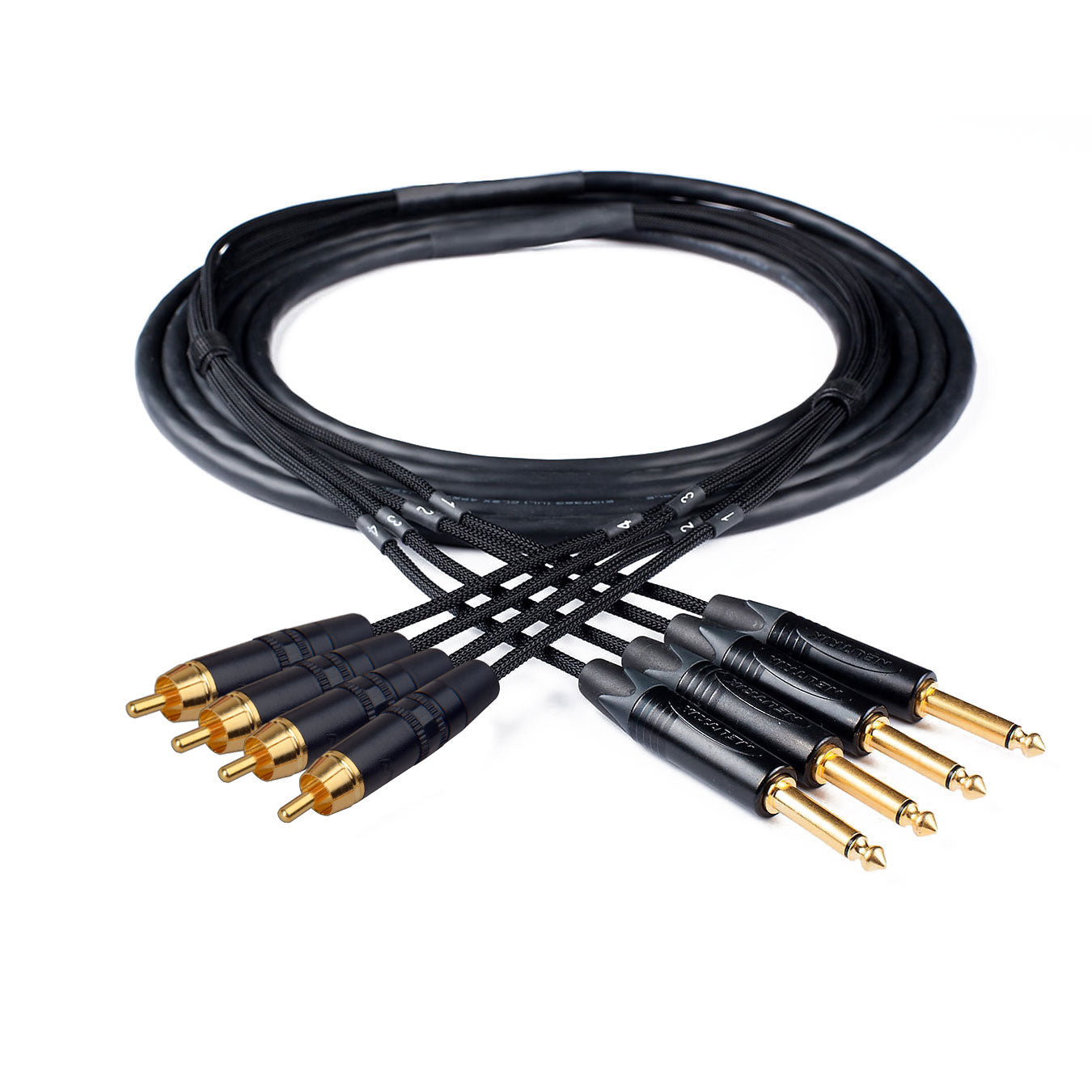

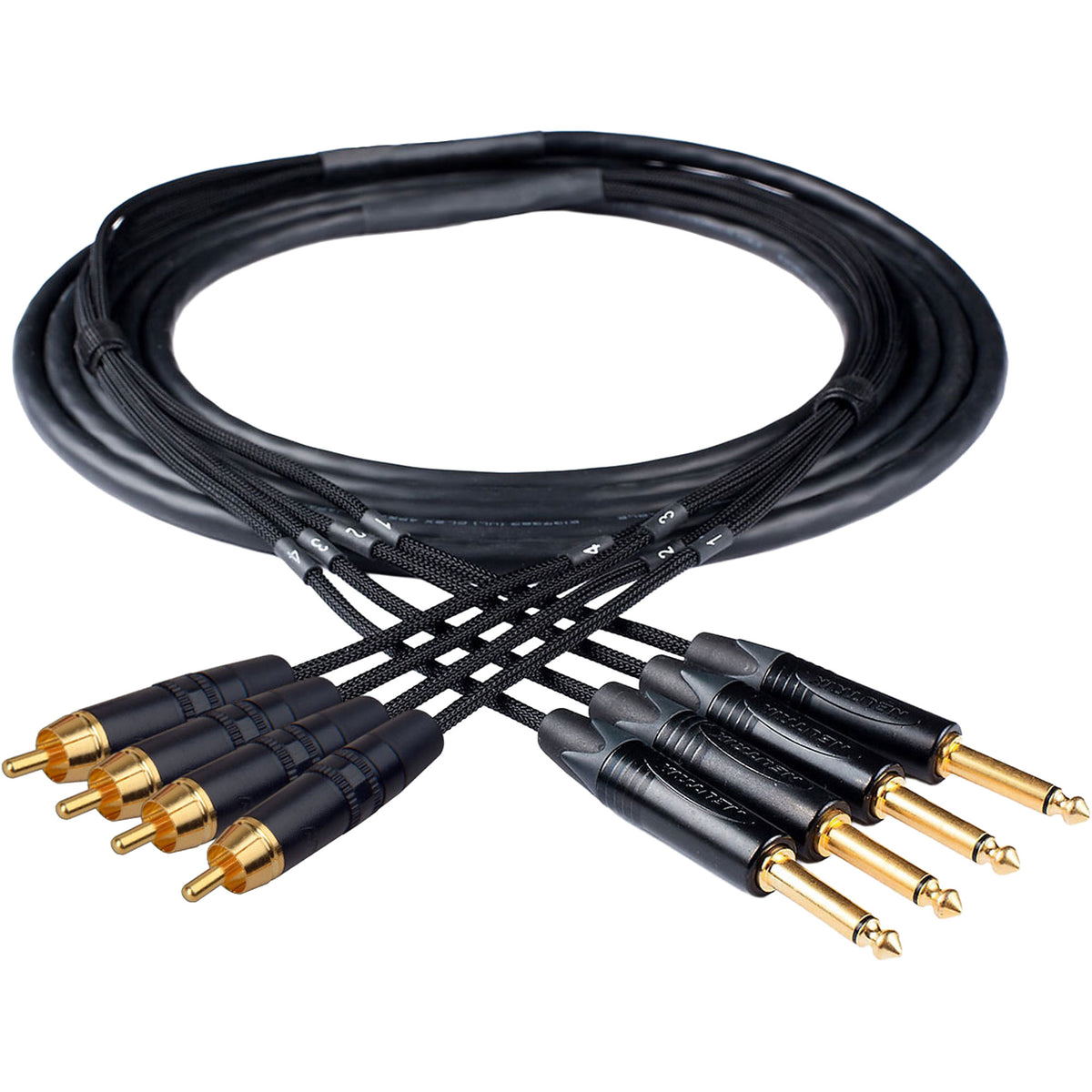

Custom Cables 4-Channel Audio Snake Made from Mogami W2931 & Pro Connectors (RCA to 1/4" TS)

Custom Mogami W2931 4-Channel RCA-to-1/4" TS Audio Snake

Keep four unbalanced analog audio connections together in one organized cable run. Custom built to order by Performance Audio using Mogami W2931 audio snake cable and professional connectors, this assembly helps tidy connections between compatible equipment with RCA and 1/4" TS audio sockets in your studio, rack, or playback setup.

Built for Your Connections

• Cable: Mogami W2931 4-channel audio snake cable.
• Connection format: Four separate RCA-to-1/4" TS paths for compatible unbalanced mono analog audio connections.
• Connector selection: Choose from the professional connector options available for this build. Check connector clearance at both ends.
• Custom build: Finished cable assembly made to order, not unterminated W2931 bulk cable.
• Identification and finishing: Custom labeling and finishing options available. Ask about channel color coding for your build.
• Warranty: Lifetime warranty.

Four Separate Unbalanced Audio Paths

Use each channel between a compatible analog audio output and input. Each RCA-to-TS path carries one unbalanced mono signal. A stereo connection uses two snake channels, one for left and one for right; four channels can organize two stereo pairs or four independent mono connections.

The four paths remain separate. This snake does not mix, sum, or split signals. Adapting between RCA and TS connectors does not balance the signal, convert signal levels, provide microphone preamplification, or replace a DI box or isolation transformer.

Match the Inputs and Signal Levels

Confirm that the source output level and destination input requirements match. Suitable applications include compatible line-level connections between playback equipment, mixers, interfaces, and amplifiers with line inputs. A 1/4" socket is not automatically a line input, and connector fit alone does not establish compatibility.

Use suitable RCA line connections, not phono inputs intended for turntable cartridges. This cable does not provide phono preamplification or equalization. It also does not convert analog audio to coaxial S/PDIF or video, even when those formats use similar RCA connectors.

The TS connections carry unbalanced mono audio, not balanced TRS audio, stereo headphones, or an insert send/return pair. If connecting to a balanced socket or using adapters, confirm that the equipment supports the required unbalanced wiring. Balanced output designs can have different wiring requirements; check the equipment manufacturer's instructions before ordering. This is an audio signal snake, not a speaker cable; never use it between a power amplifier's speaker outputs and passive speakers.

Plan Your Length and Breakout Reach

Measure the complete routing path with room for bends, service slack, and access behind equipment. Check how far apart the four connections are at both ends and allow enough breakout reach to connect them without strain, especially when patching across several devices.

Keep unbalanced runs as short as practical and route away from power supplies and AC cabling where possible to help reduce noise pickup. Check clearance around recessed or closely spaced RCA and TS sockets when selecting connector styles. Confirm any special breakout lengths, connector orientation, channel mapping, or wiring requirements with our custom cable specialists before the build.

Custom Labels and Channel Identification

Label channels by number, left and right, connected equipment, or destination to make setup and troubleshooting easier. Ask about channel color-coding options and provide your preferred label text and channel assignments when discussing the configuration. Keep a record of each channel's source and destination.

Installation and Handling

Support the main cable and breakouts so equipment sockets do not carry the cable's weight. Avoid tight bends, pinching, and tension at breakout points. Leave enough access for connection and removal, and disconnect by the connector body rather than pulling on the cable. Check every channel's routing and operation before putting the system into service.

Customization Help

If the website's configuration options do not cover your needs, call or email Performance Audio's custom cable specialists. Provide your equipment models, signal levels, cable length, breakout reach, connector-clearance needs, and any special mapping, labeling, finishing, or wiring requests so we can confirm the build details. Confirm pricing and the build timeline before ordering if you have a deadline.
