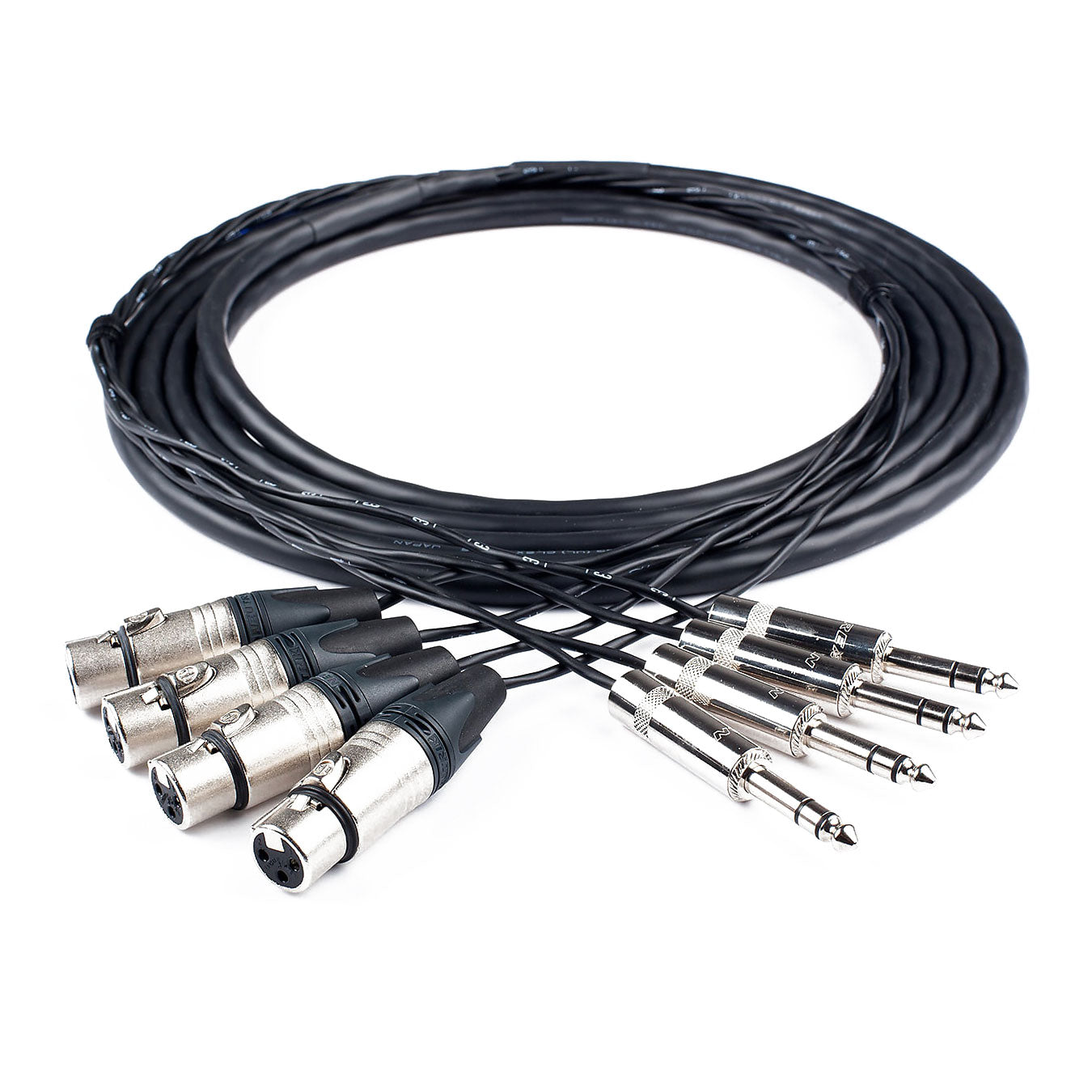

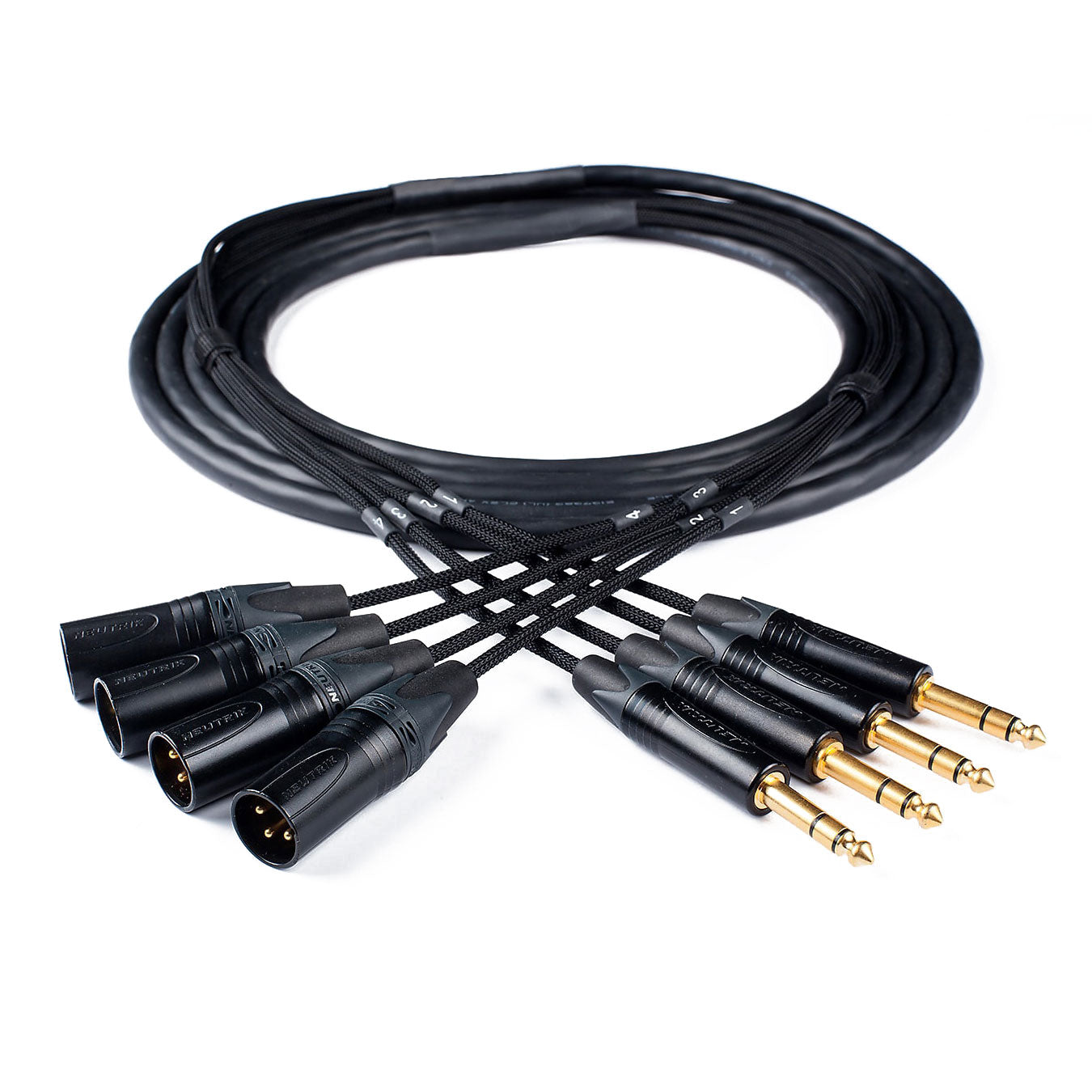

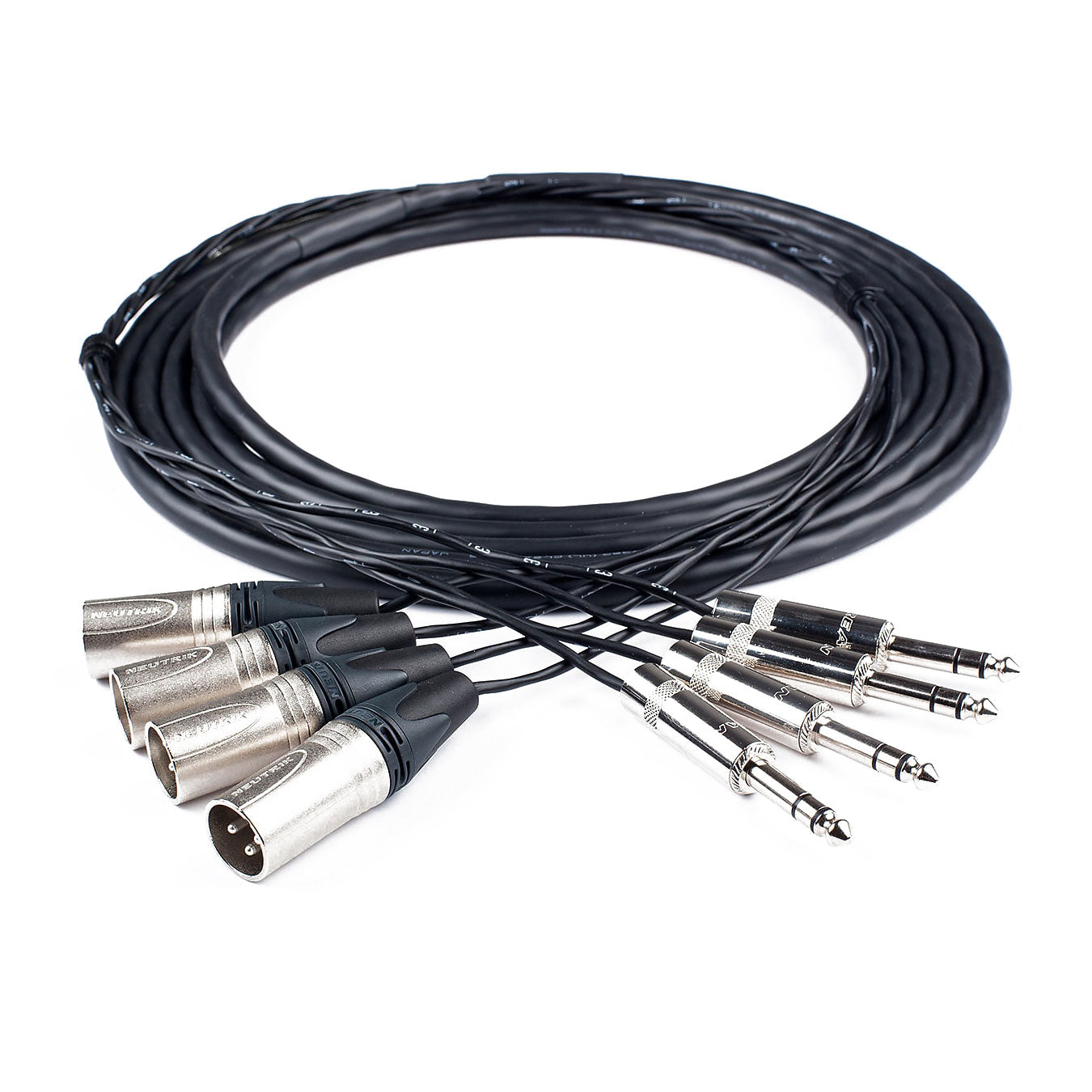

Custom Cables 4-Channel Audio Snake Made from Mogami W2931 & Neutrik Connectors (Config per Side)

Custom Cables SKU: CUS SNAKE4CHEASY
MPN: CUSTOM MOGAMI 4CH SNAKE EASY

Price:
Sale price$60.00
Stock:
Custom Made to Order

Key Features

  • Mogami 2931 4-Channel Snake Cable
  • Genuine Neutrik Connectors
  • Lifetime Warranty
  • Custom Labeling Available
  • Finishing Options
  • Custom Made to Order

Description

Custom Mogami W2931 4-Channel Audio Snake, Configured per Side

Bring four analog audio connections into one organized cable run, with a convenient connector arrangement selected for each end. Custom built to order by Performance Audio using Mogami W2931 4-channel audio snake cable and genuine Neutrik connectors, this assembly helps tidy connections in studio racks, recording setups, and live audio systems.

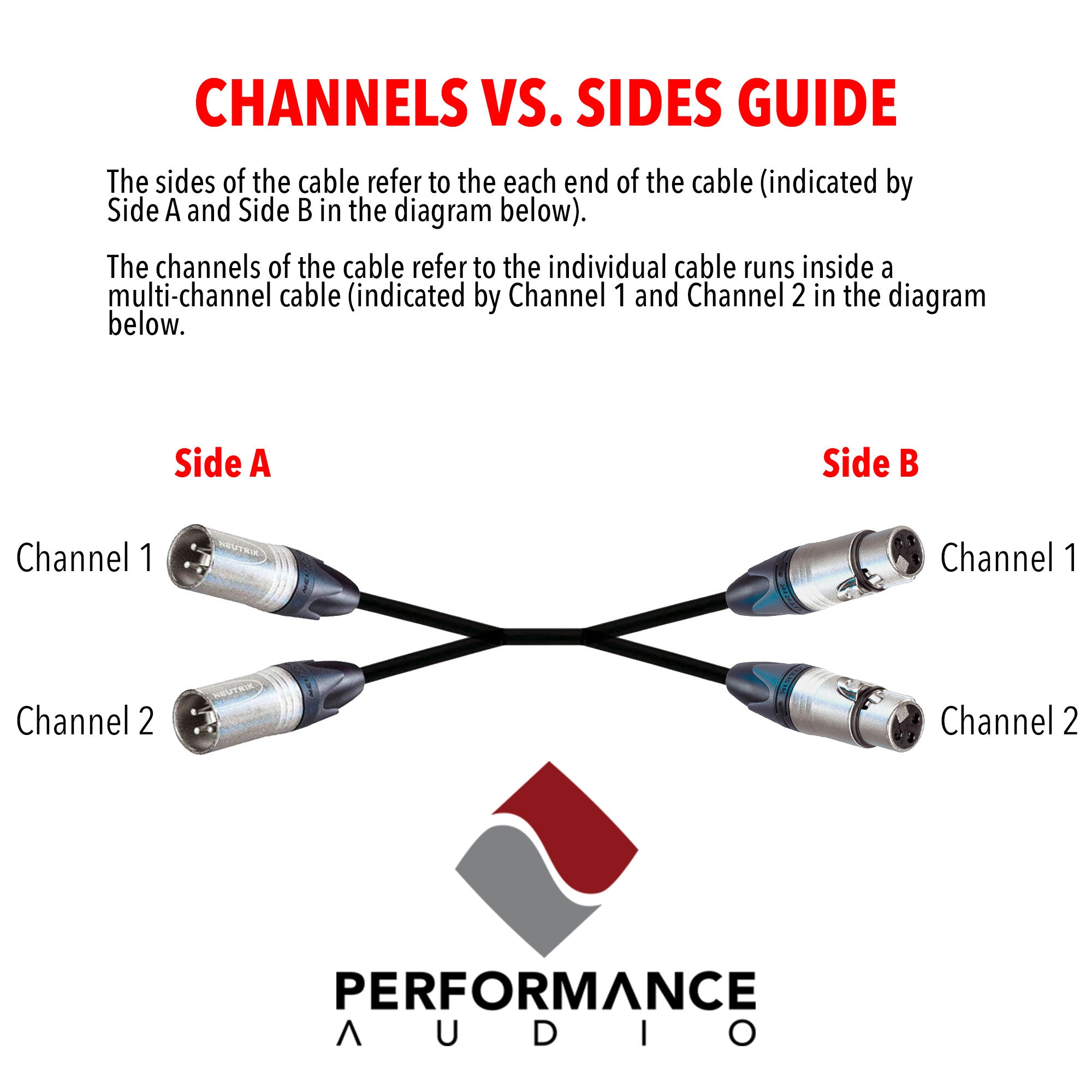

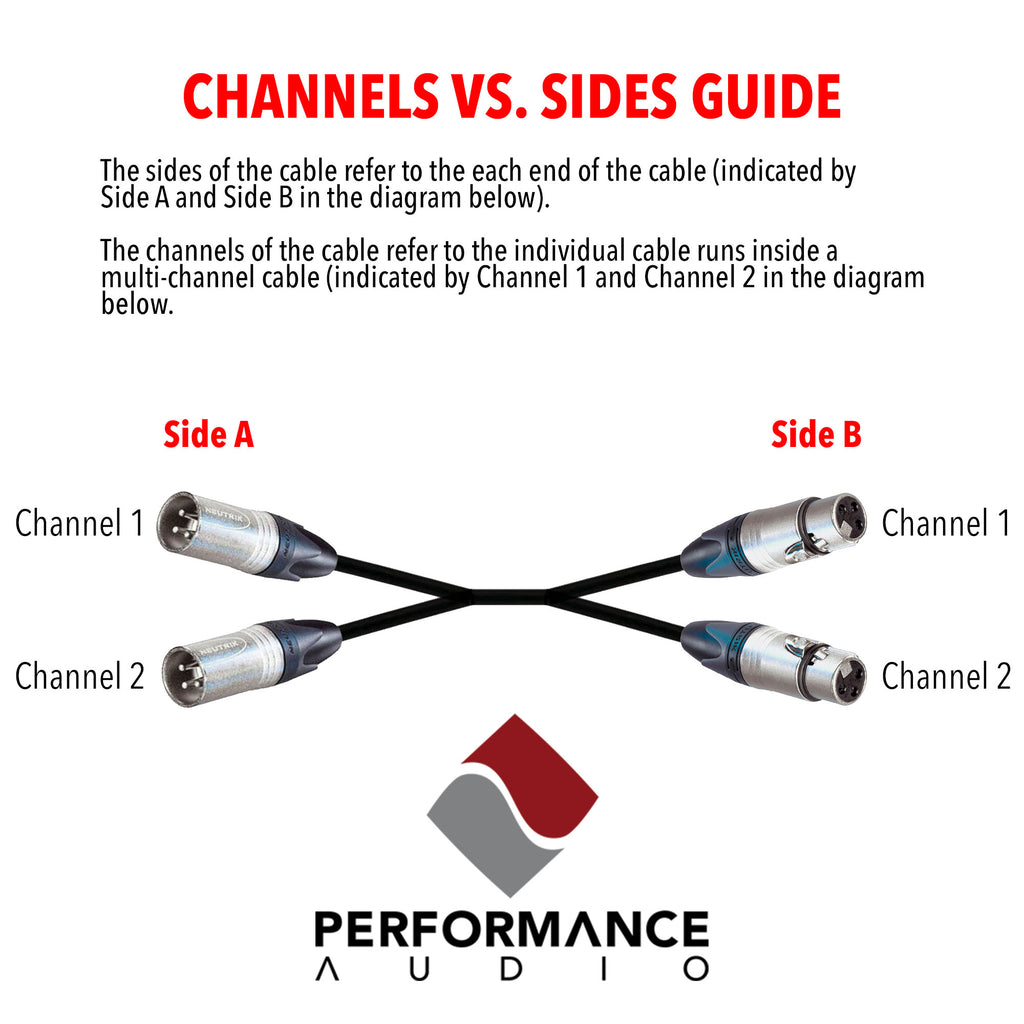

Select a Configuration for Each Side

This listing uses the available preconfigured connector arrangements for each side of the snake, rather than selecting every channel's connectors individually. Choose the arrangement that matches the equipment at one end, then choose the arrangement for the other end. Check the connector types, XLR genders where applicable, and channel assignments included in each selection before ordering.

If you need a combination not offered by the per-side options, contact our custom cable specialists about an individually configured build. Provide your equipment models and connection plan, including any special wiring or pinout requirements, rather than relying on connector fit alone.

Built for Your Setup

  • Cable: Mogami W2931 4-channel audio snake cable.
  • Connectors: Genuine Neutrik connectors, selected from the available configuration options.
  • Per-side configuration: Select an available connector arrangement for each end of the snake.
  • Finished assembly: Custom made to order, not unterminated W2931 bulk cable.
  • Identification and finishing: Custom labeling and finishing options available. Ask about channel color coding for your build.
  • Warranty: Lifetime warranty.

Four Separate Audio Paths

The four channels remain separate. Use them for compatible analog microphone or line-level connections as appropriate for the selected connectors, wiring, and equipment. The snake does not mix, sum, split, convert signal levels, provide microphone preamplification, or replace a DI box or isolation transformer.

For balanced mono connections, each channel carries one audio signal. A stereo line-level connection uses two channels, one for left and one for right. Balanced operation requires suitable connectors, wiring, and balanced equipment throughout the connection; an unbalanced termination does not become balanced simply because it is part of a multichannel snake.

Check Socket Function and Signal Compatibility

Match each source's output level to its destination input. An XLR microphone input and an XLR line input are not interchangeable simply because the plug fits. Where 1/4" TRS connectors are selected, confirm that the sockets are intended for balanced mono audio rather than stereo headphones or an insert send/return connection.

For microphones requiring phantom power, confirm that the microphone, receiving input, and complete wiring path support the required power arrangement. Keep phantom power off on connections to line-level or unbalanced equipment unless its manufacturer explicitly permits that use. Mute the relevant channels and follow the equipment manufacturer's connection procedure before patching.

This listing is for an analog audio snake. Do not assume suitability for AES/EBU digital audio, DMX, or other control formats based on connector fit. It is not a speaker cable; never use it between a power amplifier's speaker outputs and passive speakers.

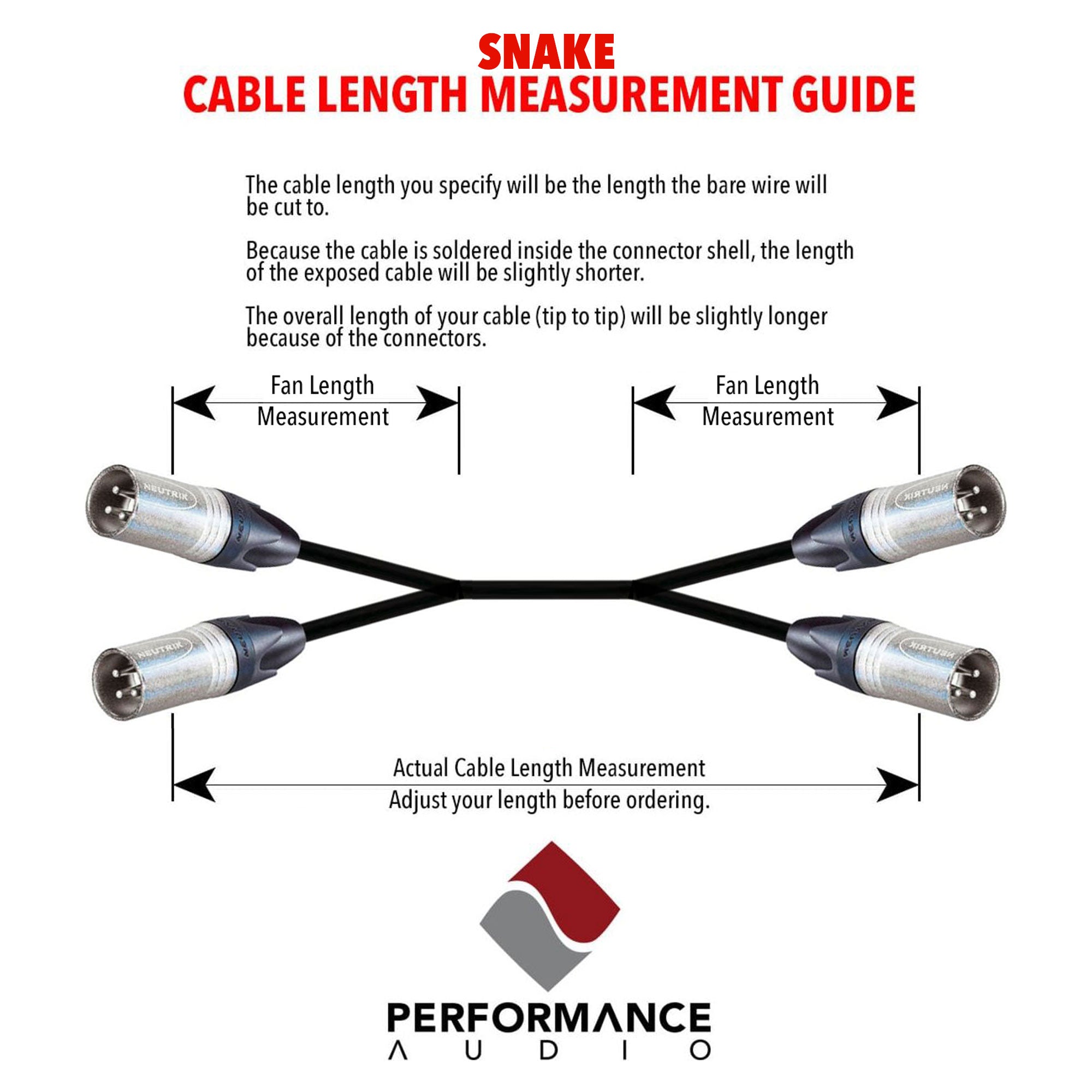

Plan Your Length and Breakout Reach

Measure the complete routing path with room for bends, service slack, and access behind equipment. Check how far apart the four sockets are at each end and allow enough breakout reach to connect them without strain, particularly when channels run to different devices.

Check connector-body clearance around recessed or closely spaced sockets, including access to XLR release latches where applicable. Confirm any special breakout lengths, connector orientation, channel mapping, or wiring requirements with our custom cable specialists before the build.

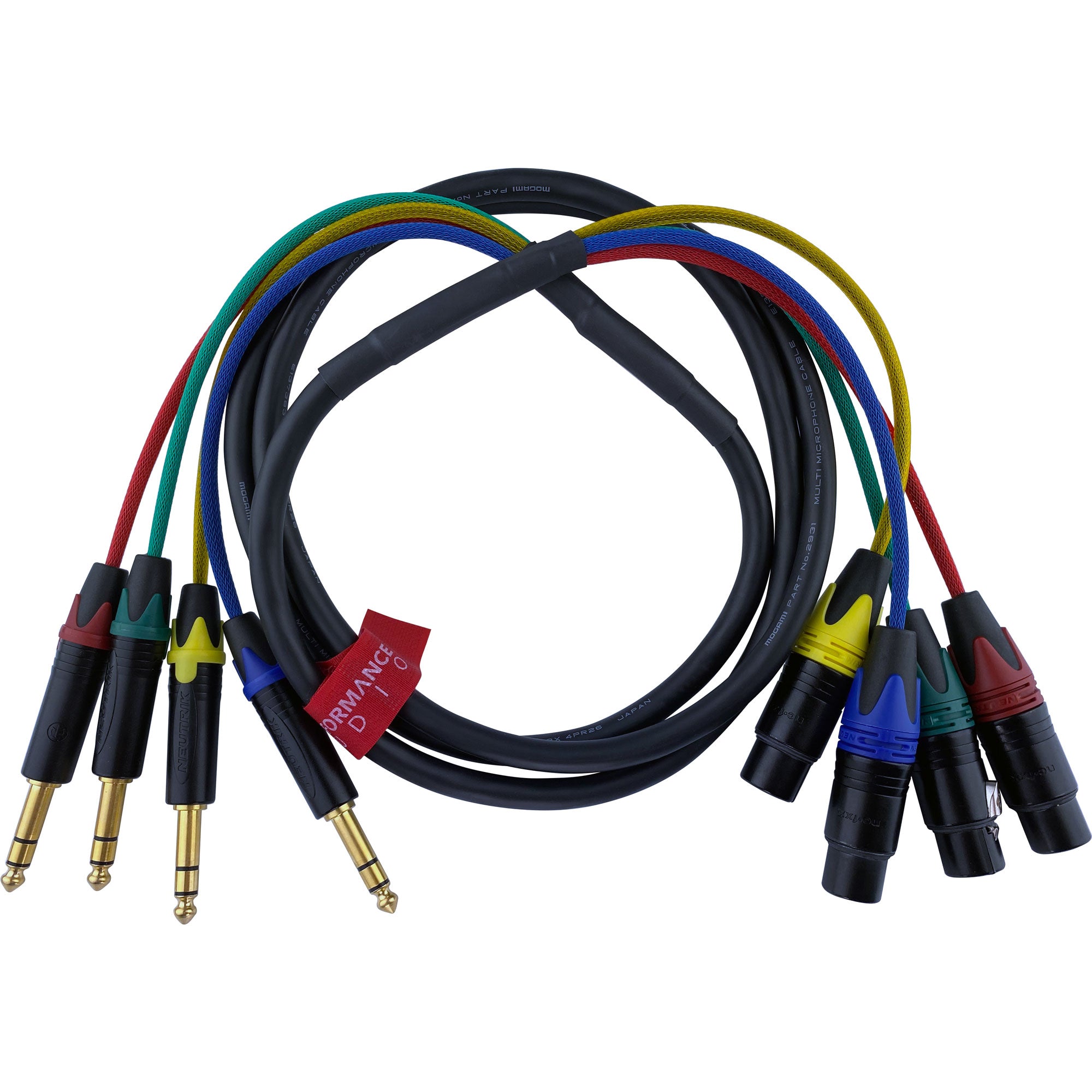

Custom Labels and Channel Identification

Label channels by number, left and right, connected equipment, or destination to make setup and troubleshooting easier. Ask about channel color-coding options and provide your preferred label text and channel assignments when discussing the configuration. Keep a channel map showing the source, destination, and connector arrangement for every path.

Installation and Handling

Support the main cable and breakouts so equipment sockets do not carry the cable's weight. Avoid tight bends, pinching, and tension at breakout points. Leave enough access for connection and removal, release connector latches where fitted, and disconnect by the connector body rather than pulling on the cable. Check every channel's routing and operation before putting the system into service.

Customization Help

If the website's configuration options do not cover your needs, call or email Performance Audio's custom cable specialists. Provide your equipment models, signal levels, connector arrangements needed at each end, cable length, breakout reach, and any special mapping, labeling, finishing, or wiring requests so we can confirm the build details. Confirm pricing and the build timeline before ordering if you have a deadline.

Details
  • Manufacturer:  Custom Cables
  • MPN: CUSTOM MOGAMI 4CH SNAKE EASY
  • Model Number: Custom Mogami W2931 4 Channel Snake Easy
