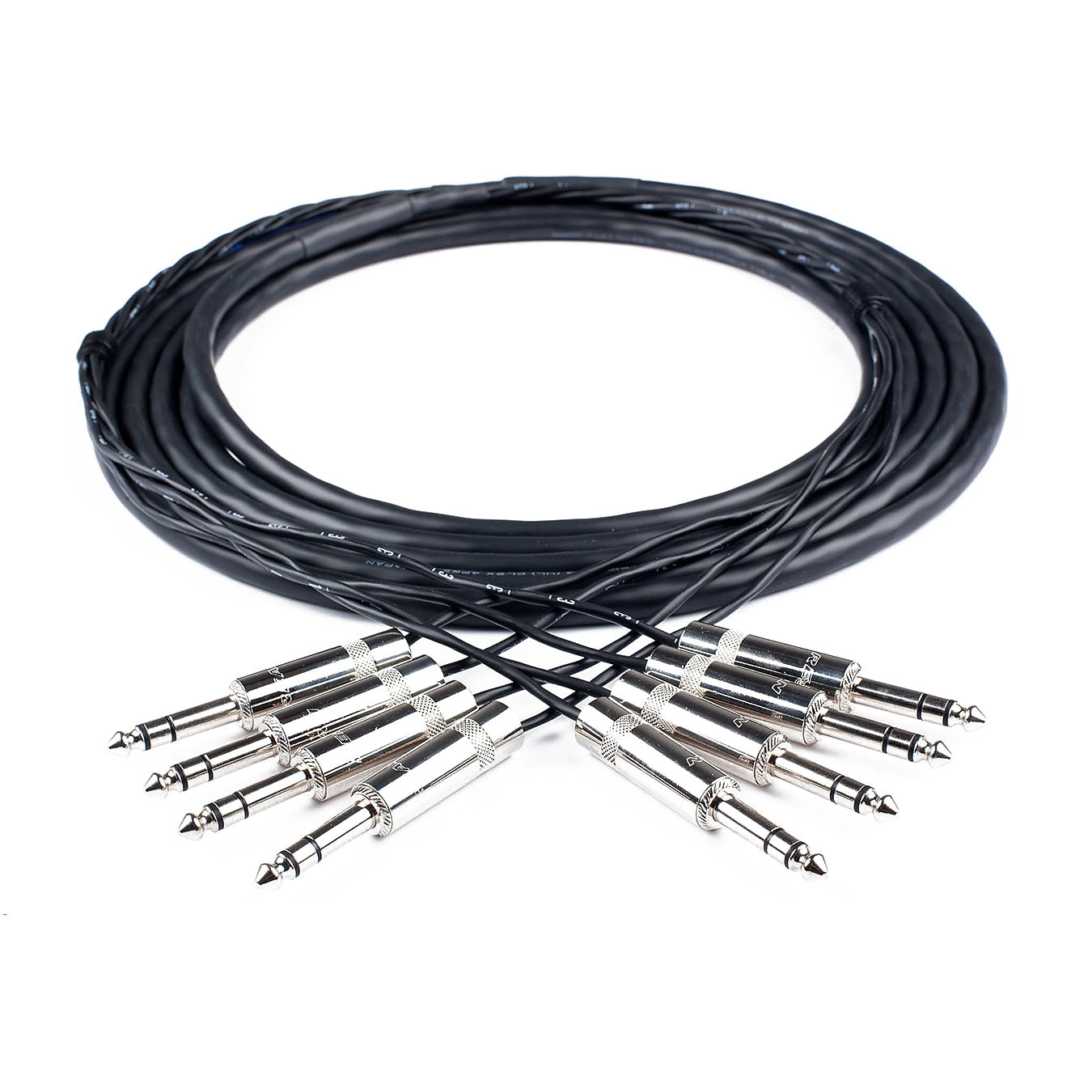

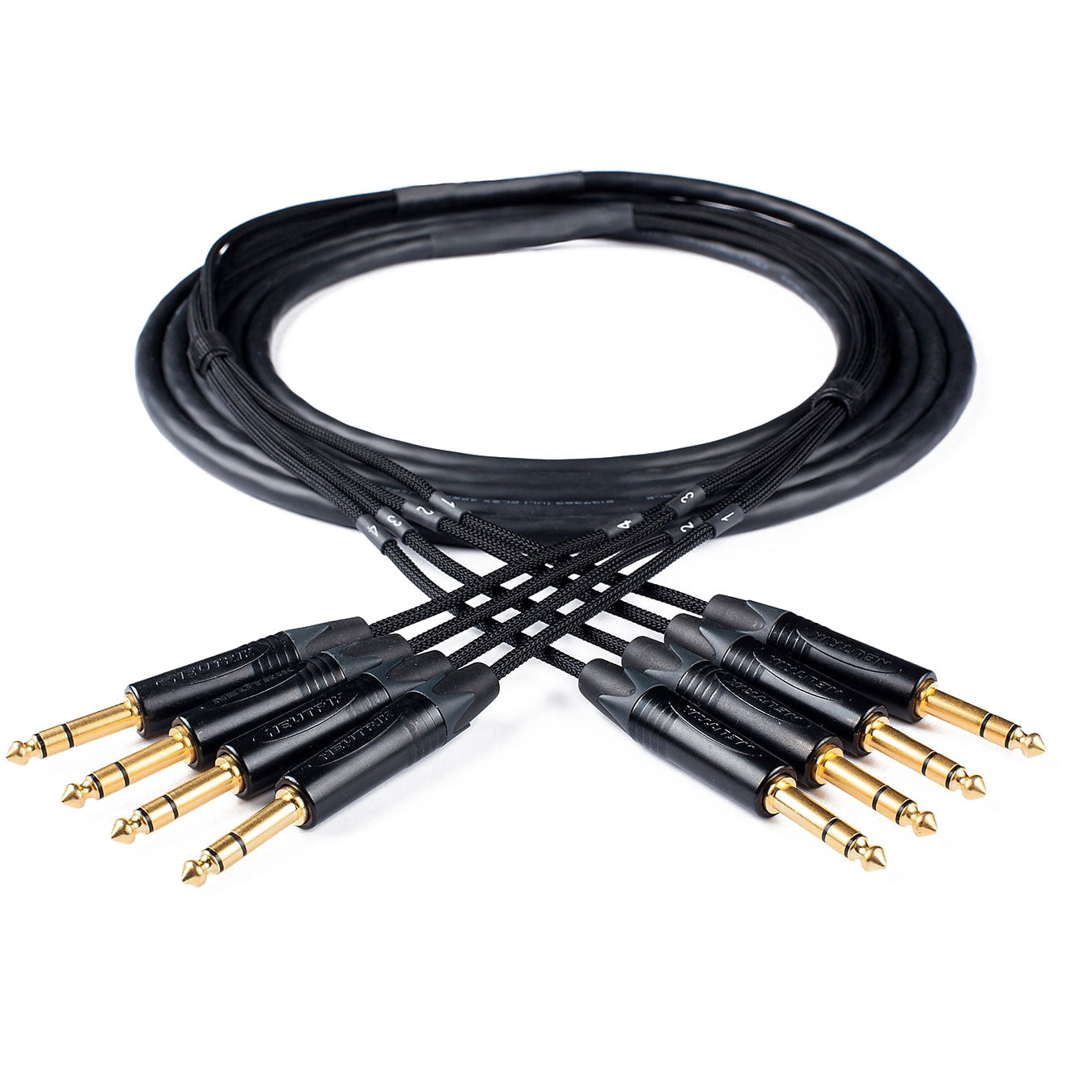

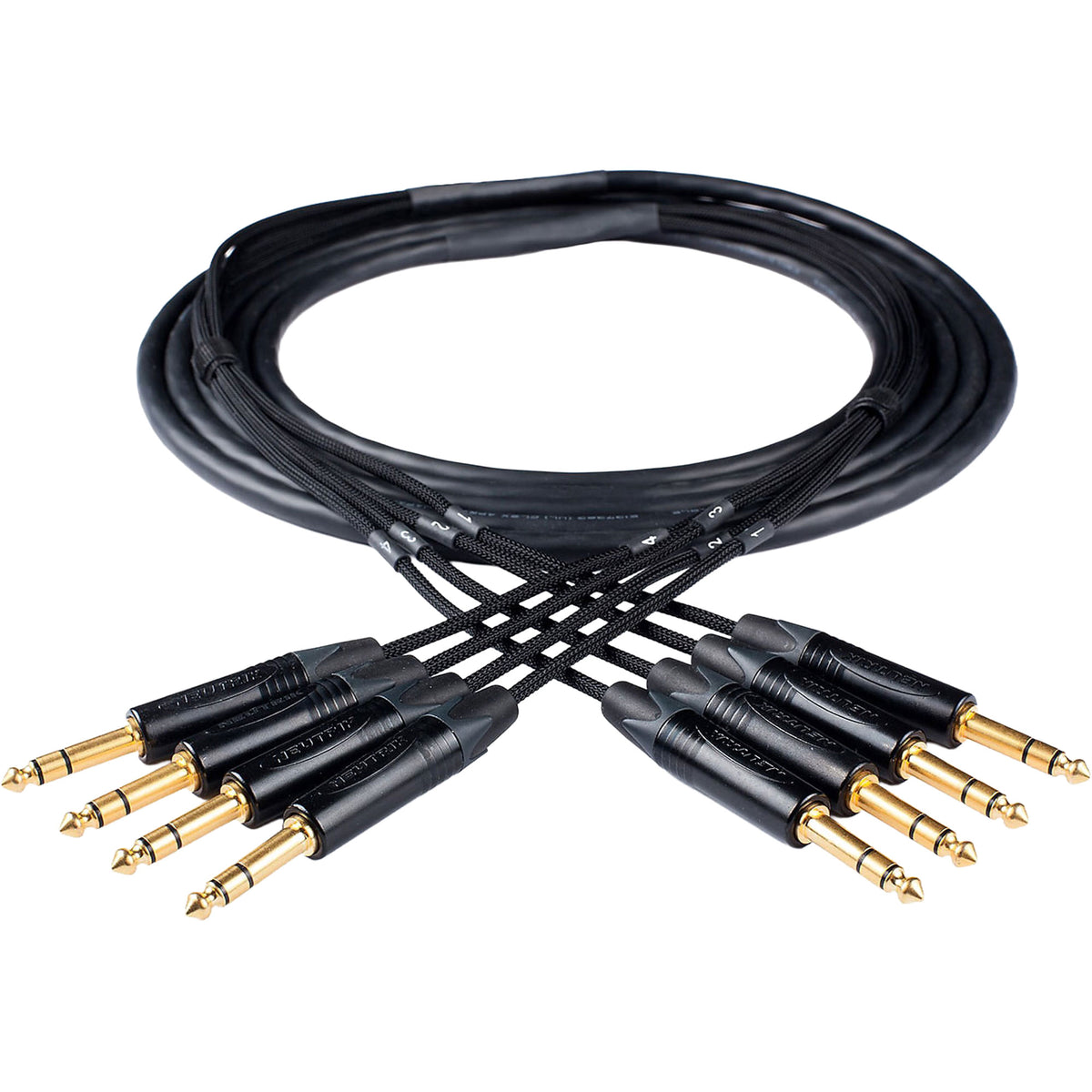

Custom Cables 4-Channel Audio Snake Made from Canare MS202 & Pro Connectors (1/4" TRS to 1/4" TRS)

Custom Canare MS202-4P 4-Channel 1/4" TRS-to-TRS Audio Snake

Keep four balanced analog audio connections together in one organized cable run. Custom built to order by Performance Audio using Canare MS202-4P audio snake cable and professional connectors, this assembly helps tidy connections between compatible mixers, audio interfaces, processors, patchbays, and other equipment with 1/4" TRS balanced audio connections.

Built for Your Connections

• Cable: Canare MS202-4P 4-channel audio snake cable.
• Connection format: Four separate 1/4" TRS-to-1/4" TRS paths for compatible balanced mono analog audio connections.
• Connector selection: Choose from the professional connector options available for this build. Check connector clearance at both ends.
• Custom build: Finished cable assembly made to order, not unterminated MS202-4P bulk cable.
• Identification and finishing: Custom labeling and finishing options available. Ask about channel color coding for your build.
• Warranty: Lifetime warranty.

Four Separate Balanced Audio Paths

Use each channel between a compatible balanced analog output and input. Each TRS connection carries one balanced mono signal, not a left/right stereo pair. A stereo line-level connection uses two snake channels, one for left and one for right; four channels can organize two stereo pairs or four independent mono connections.

The four paths remain separate. This snake does not mix, sum, split, or convert signals, and it does not provide microphone preamplification or isolation. Match the source's signal level to the destination input and check the equipment's wiring requirements.

Check the TRS Socket's Function

A 1/4" TRS socket can be used for balanced mono audio, stereo headphones, or an insert send/return connection. These functions are not interchangeable. This listing is intended for balanced mono audio paths; do not assume it is a headphone distribution cable or an insert breakout simply because the plugs fit.

Balanced operation requires compatible balanced equipment and wiring throughout the connection. If either device uses an unbalanced socket or an adapter, confirm the correct wiring with the equipment manufacturer or our custom cable specialists before ordering.

Do not assume suitability for digital audio, control signals, or speaker-level power solely because the connectors fit. This is an audio signal snake, not a speaker cable; never use it between a power amplifier's speaker outputs and passive speakers.

Plan Your Length and Breakout Reach

Measure the complete routing path with room for bends, service slack, and access behind equipment. Check how far apart the four jacks are at both ends and allow enough breakout reach to connect them without strain, especially when patching across several devices.

Check clearance around recessed or closely spaced sockets when selecting connector styles. Confirm any special breakout lengths, connector orientation, channel mapping, or wiring requirements with our custom cable specialists before the build.

Custom Labels and Channel Identification

Label channels by number, left and right, connected equipment, or destination to make setup and troubleshooting easier. Ask about channel color-coding options and provide your preferred label text and channel assignments when discussing the configuration. Keep a record of each channel's source and destination.

Installation and Handling

Support the main cable and breakouts so equipment sockets do not carry the cable's weight. Avoid tight bends, pinching, and tension at breakout points. Leave enough access for connection and removal, and disconnect by the connector body rather than pulling on the cable. Check every channel's routing and operation before putting the system into service.

Customization Help

If the website's configuration options do not cover your needs, call or email Performance Audio's custom cable specialists. Provide your equipment models, signal levels, cable length, breakout reach, connector-clearance needs, and any special mapping, labeling, finishing, or wiring requests so we can confirm the build details. Confirm pricing and the build timeline before ordering if you have a deadline.
