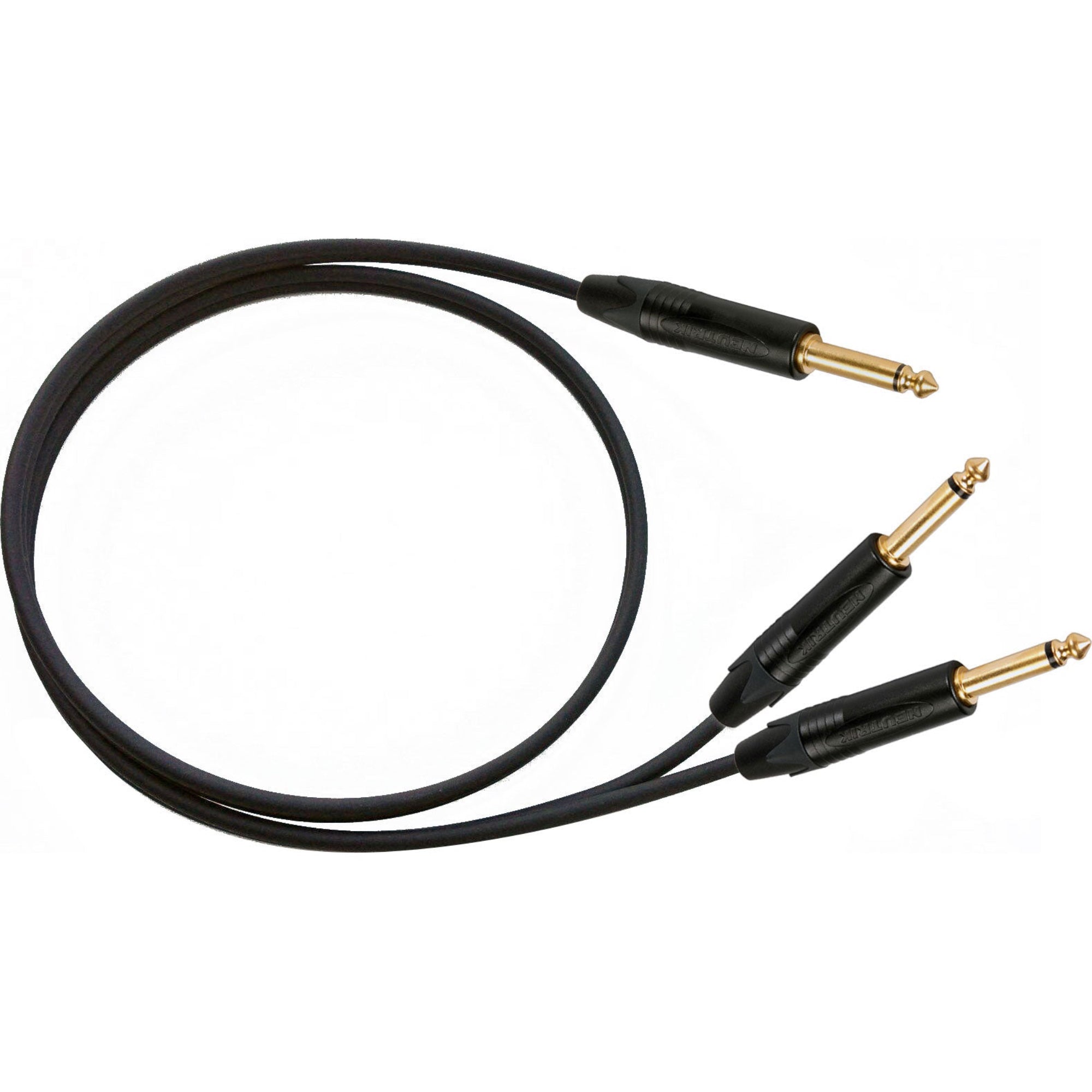

Custom Cables 1/4" TS Mono Y-Cable Splitter/Combiner Made from Mogami W2528 & Neutrik Connectors

Custom Mogami W2528 1/4" TS Mono Y-Cable

Send one compatible mono signal to two destinations with a custom Y-cable built around your setup. Assembled to order by Performance Audio using Mogami W2528 Puroflex zip-style dual unbalanced mic/line cable and genuine Neutrik connectors, this 1/4" TS assembly helps you plan the main run and branch lengths for your studio or live connections.

Built for Your Connections

• Cable: Mogami W2528 Puroflex zip-style dual unbalanced mic/line cable.
• Connection format: 1/4" TS mono Y-cable for compatible unbalanced audio connections.
• Connectors: Genuine Neutrik connectors. Check the available connector options and clearance at each connection.
• Custom build: Finished cable assembly made to order, not unterminated cable sold by the foot.
• Identification and finishing: Custom labeling and finishing options are available. Ask about connector color coding to distinguish destinations.
• Warranty: Lifetime warranty.

Match the Cable to Your Equipment

Use a mono Y-cable to split one suitable output to two compatible inputs, such as feeding a mono line-level source to two input destinations. Check the source's ability to drive both input loads; a passive Y-cable provides no buffering or isolation. For passive guitar pickups or setups with hum or loading concerns, an appropriate buffered or isolated splitter may be a better choice.

Splitting is not the same as combining. Do not use this cable to directly join two active outputs into one input. Combining outputs requires an appropriate mixer, summing network, or a device connection specifically approved by the equipment manufacturer.

This is a mono TS Y-cable, not a stereo breakout or a TRS insert cable. It does not separate left and right channels or provide independent send and return connections. It is not a balanced audio cable or a speaker cable; never connect it between a power amplifier's speaker output and passive speakers.

Plan Your Custom Build

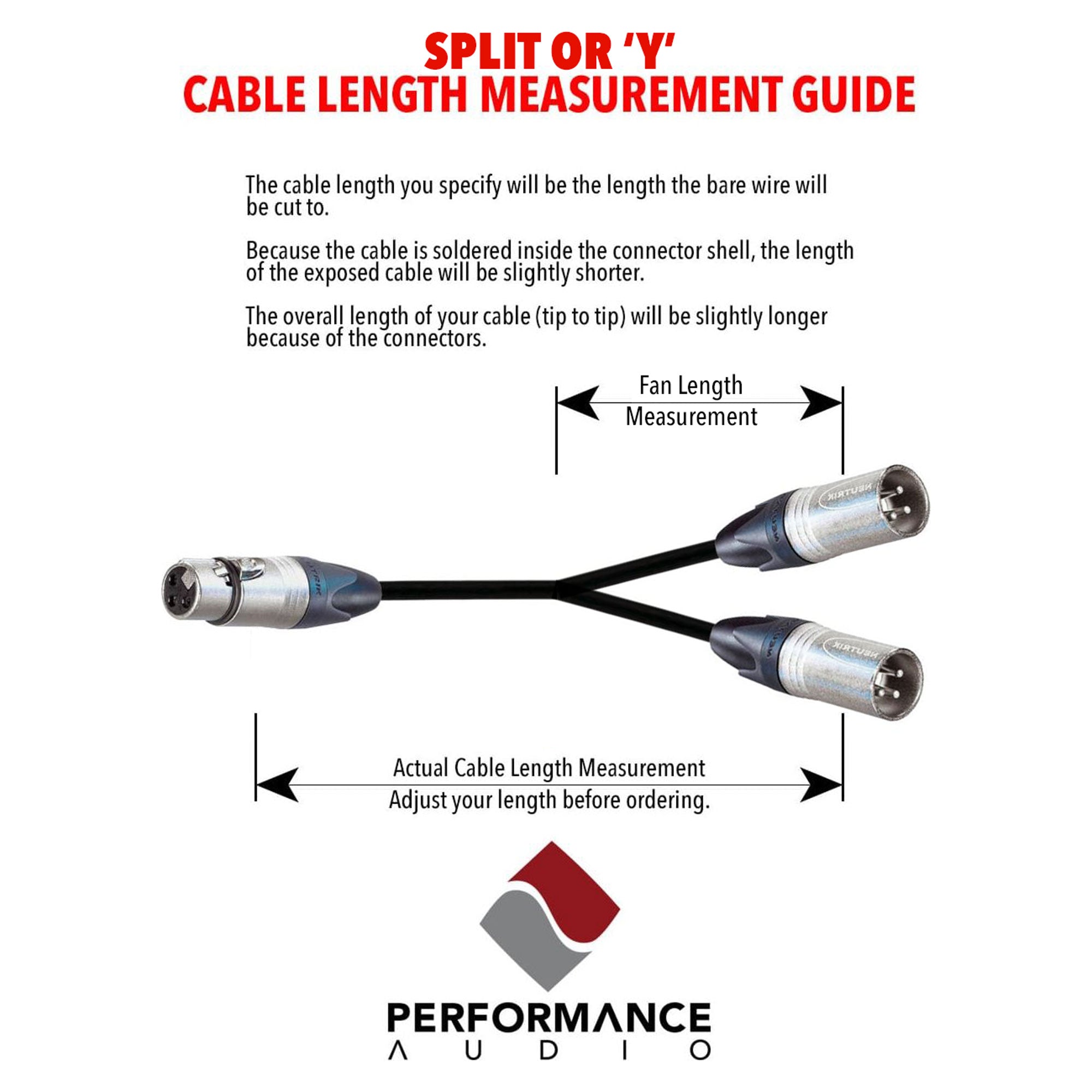

Measure the actual route from the source to the split point and from that point to each destination. Allow enough branch length for equipment spacing, bends, and access without placing strain on the connectors. Check jack orientation and clearance around recessed or closely spaced connections.

Label each branch by destination to make setup and troubleshooting easier. If the available options do not cover your layout, call or email Performance Audio's custom cable specialists with your equipment models, signal direction, main-run and branch-length requirements, connector needs, and labeling preferences.
