Countryman Isomax DBM Stage Microphone

Microphone for Motion Picture and TV Production

The Countryman Isomax DBM stage microphone incorporates Countryman's Isomax capsule and accessorizes with an adjustable stage mounting plate. The microphone is mounted on stage floors and can achieve great range without audience and background noise. A cable reel and 50-feet (15.24m) of specially constructed cable for reliable, clutter-free microphone placement is included.

The microphone's design incorporates Countryman's dedication to high audio standards; with features that include a low-mass miniature capsule and back-plate polarization. The result yields a high transient response without distortion and a uniform frequency response at the direct and off-axis sections of the polar pattern. Fewer Isomax DBM microphones are needed to achieve maximum pickup and a full, rich sound.

The Countryman DBM is a professional miniature surface mounted microphone that may be used as a stage microphone, podium microphone, plant microphone for motion picture and more.

Uniform Response
The capsule's design results in a frequency independent, directional polar pattern. A rich, full sound is achieved with fewer microphones.
Unobtrusive Design
The miniature Isomax DBM features a miniature unobtrusive design. The microphone may be installed on stages while remaining out of view.

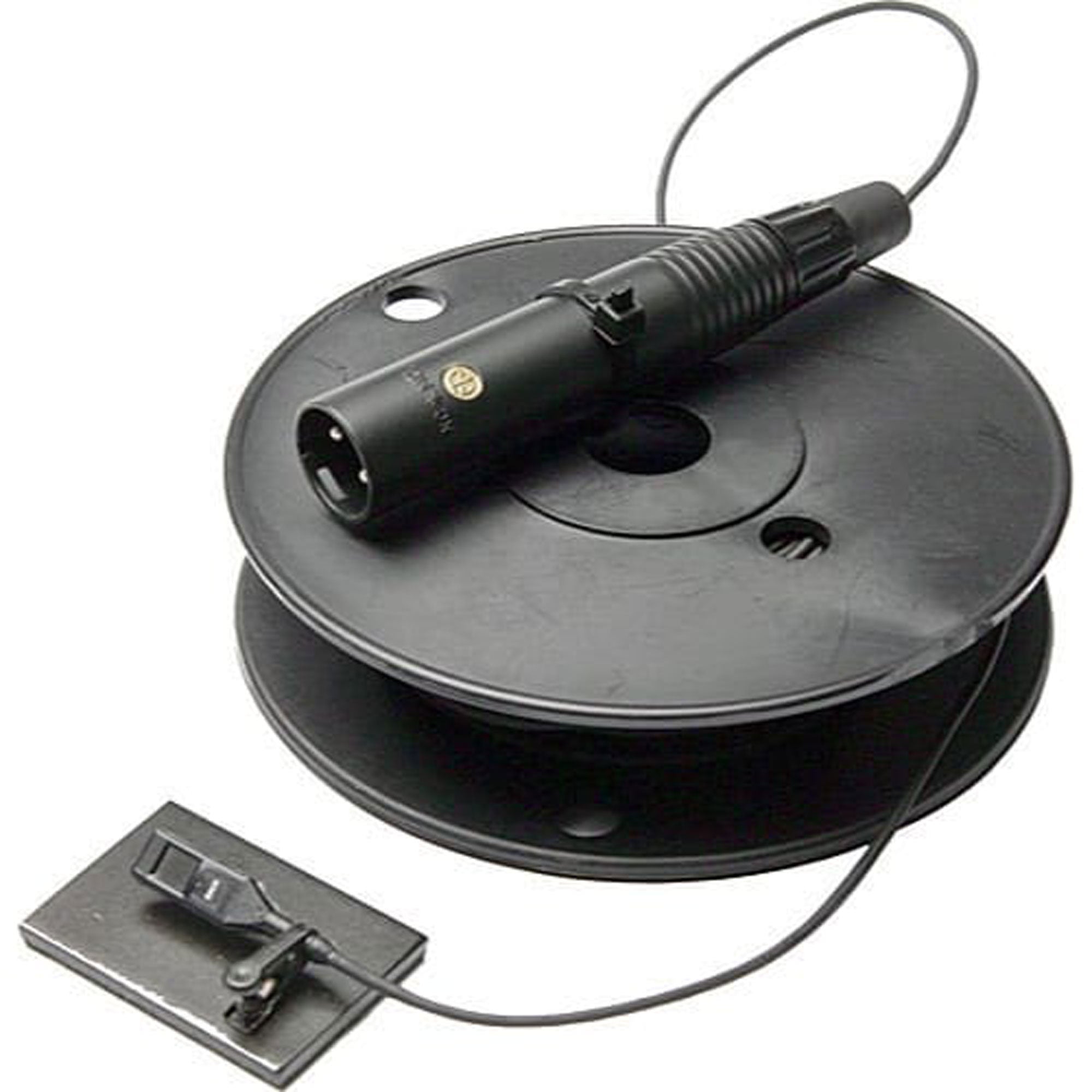

Cable Reel
The included reel 50-foot cable provides flexible clutter-free microphone placement and positioning.

Features:

• Excellent Feedback Rejection

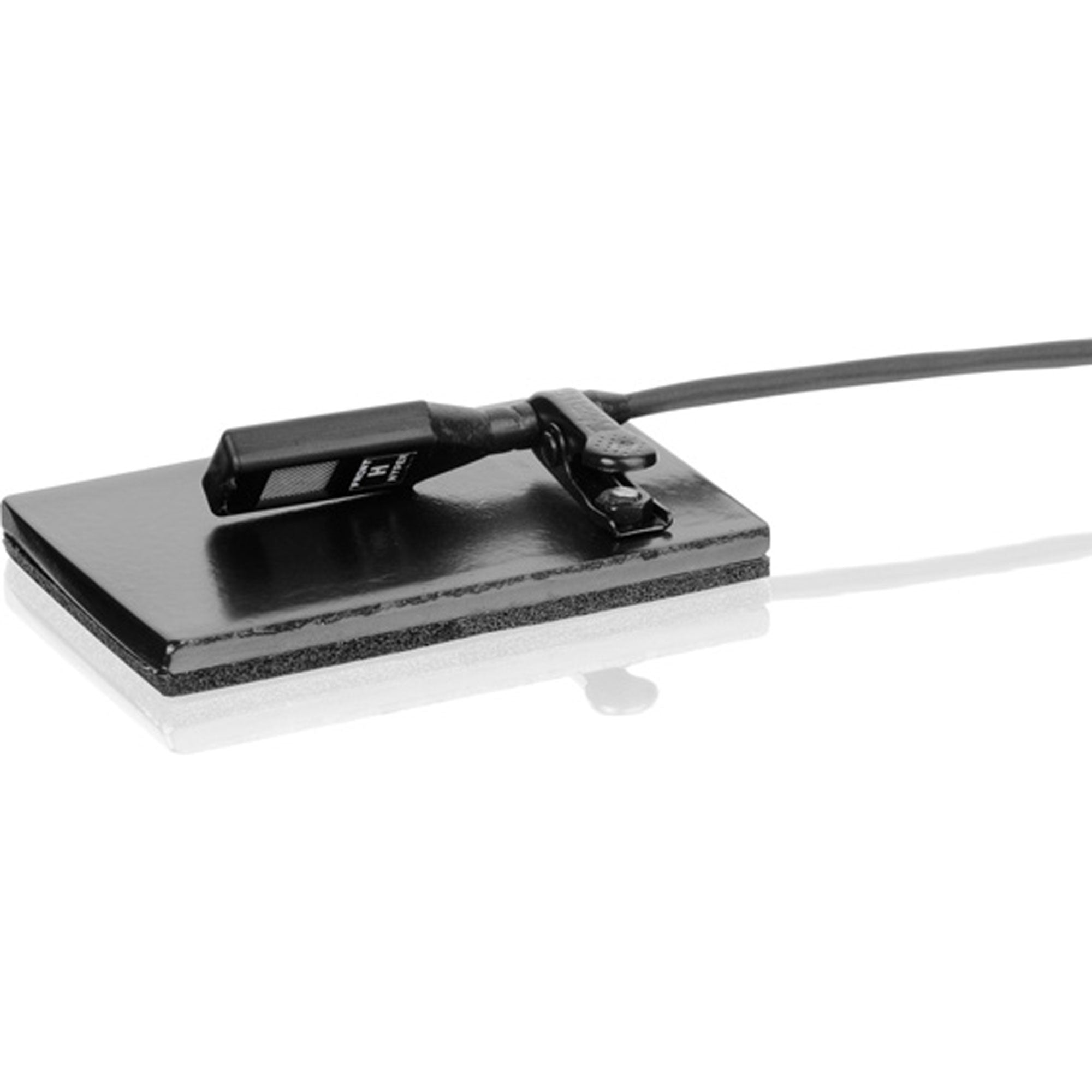

• Surface Mount Plate
• Hypercardioid

Specifications:

• Transducer: Condenser
• Polar Pattern: Hypercardioid
• Frequency Response: 40Hz to 18kHz (figure 1)
• Dynamic Range (Typical): 101dB
• Signal-to-Noise Ratio: 65dB referred to 94dB SPL
• Maximum Input Sound Level: 130dB @ 1% THD 1kHz
• Power Requirements: Phantom 9V @ 1mA to 55V @ 8 mA
• Output Impedance: 350 ohms
• Output Connectors: 3-pin XLR
• Pad: No
• Low Frequency Roll-Off: No

Includes:

• Adjustable Surface Mounting Plate
• 50-Foot (15.24m) XLR Cable with Reel
• Phantom Powered Preamplifier
• 1 Year Warranty
