Key Features
- Figure-8 Polar Pattern
- Rounded Magnet Technology
- Internally Shock Mounted
- Includes Wood Case
- Made in the USA
Description

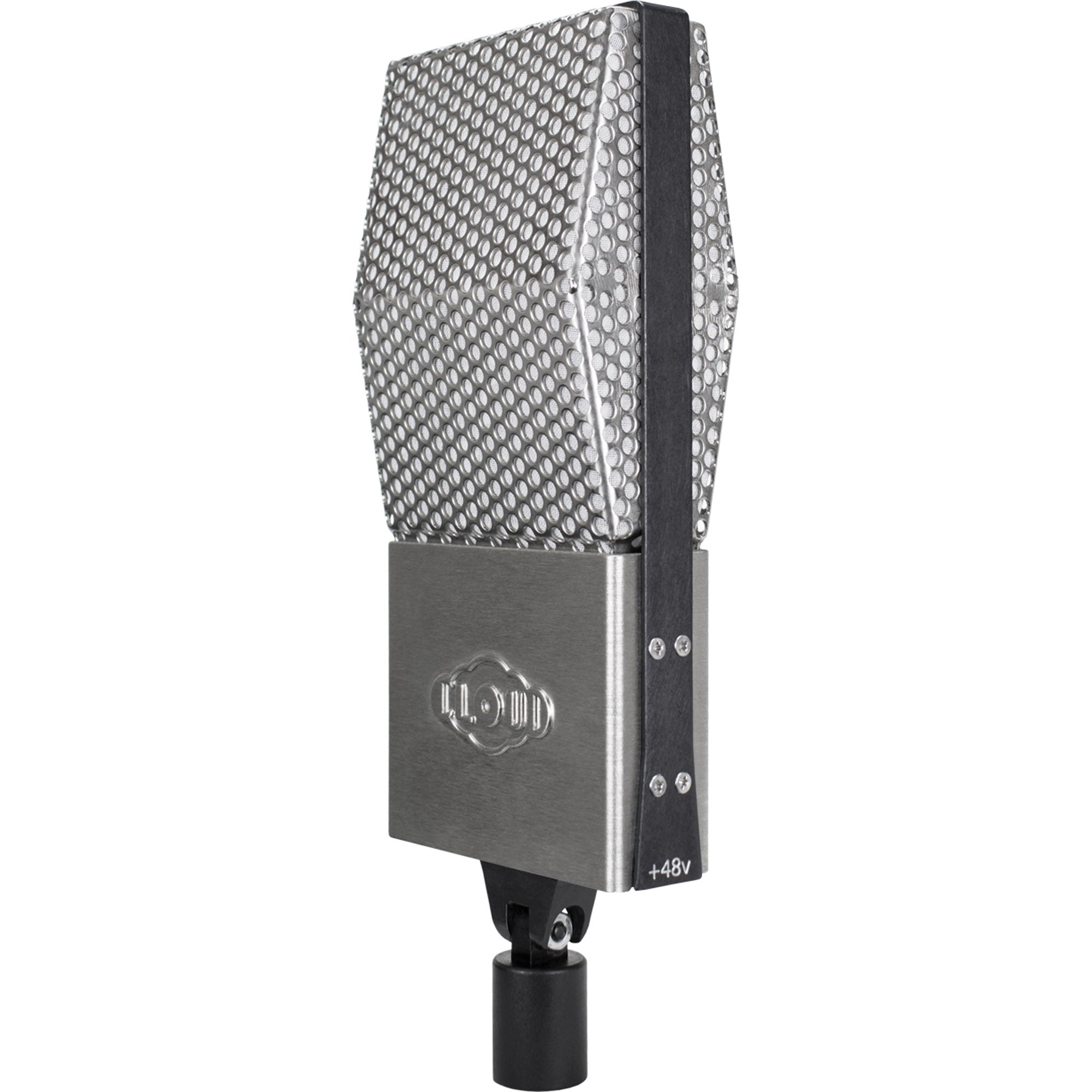

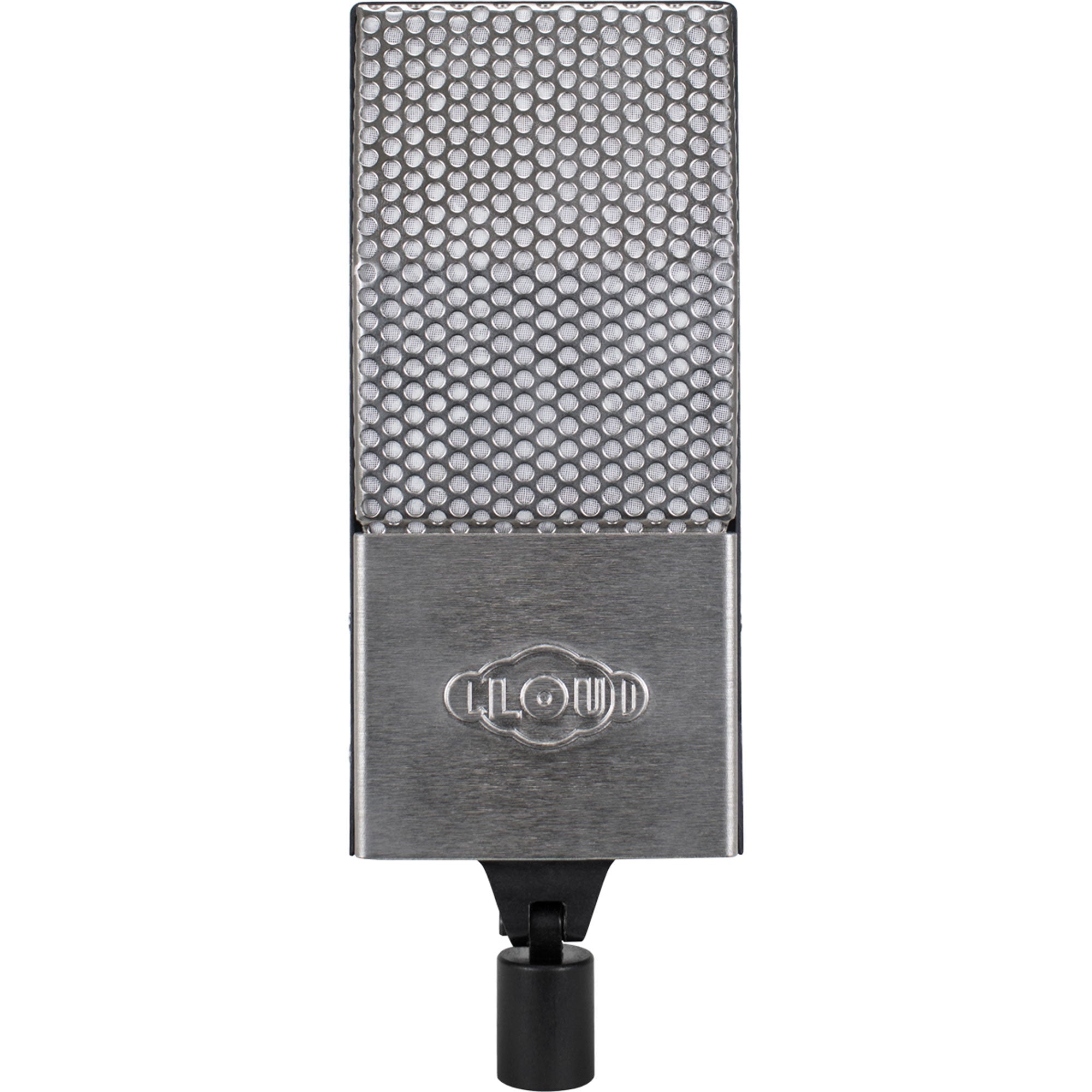

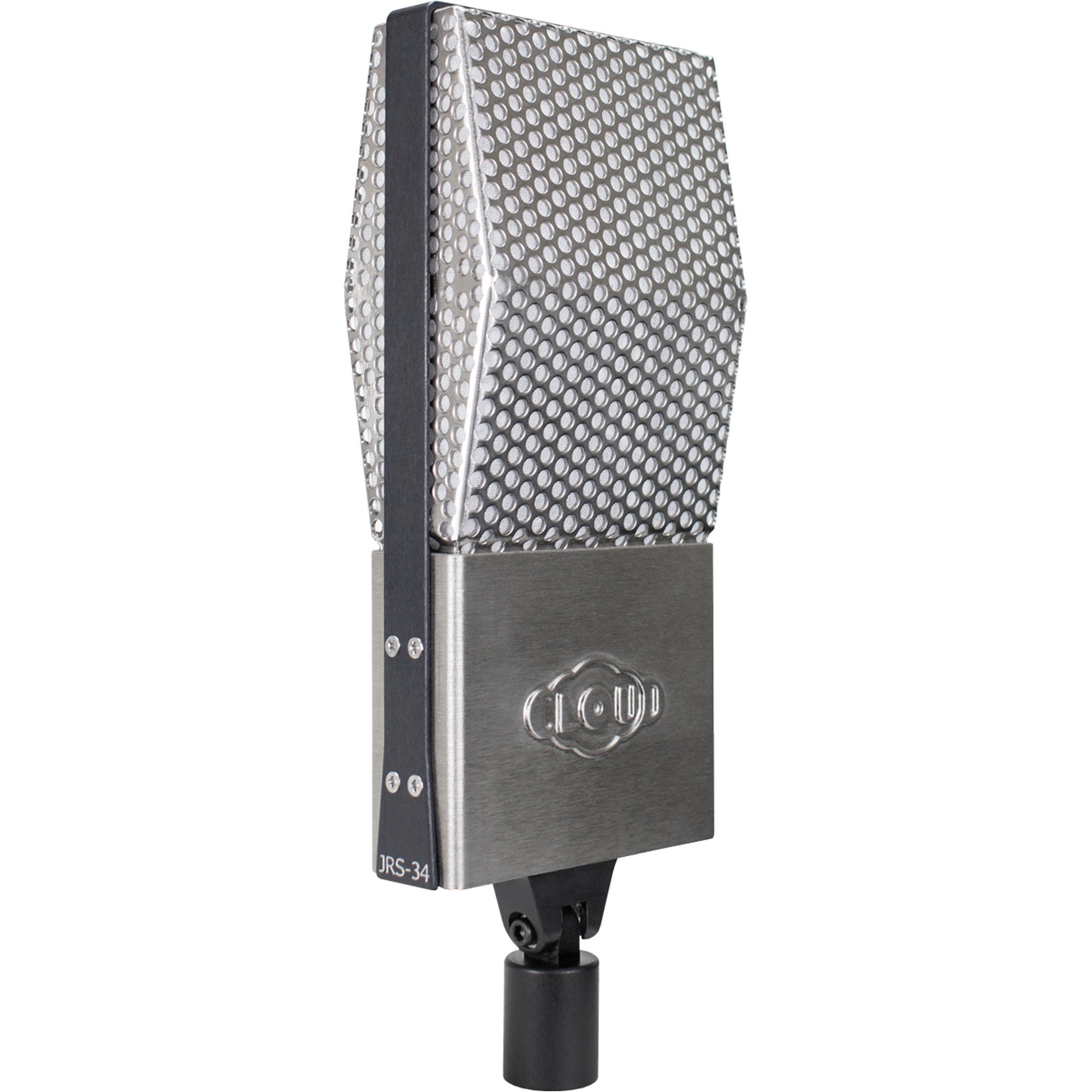

Combines the Best Attributes of Vintage & Modern Ribbon Microphone Technologies
Vintage Inspired
Built upon the shoulders of giant RCA mics, each JRS-34 ribbon is cut, corrugated and installed by hand.
Modern Electronics
Custom CineMag transformers, a patented round magnet, and Cloudlifter JFET technology expand the JRS-34's performance for today's applications.
Active Output
The active JRS-34 requires phantom power and has an output level compatible with virtually any modern preamp.
Made in the USA

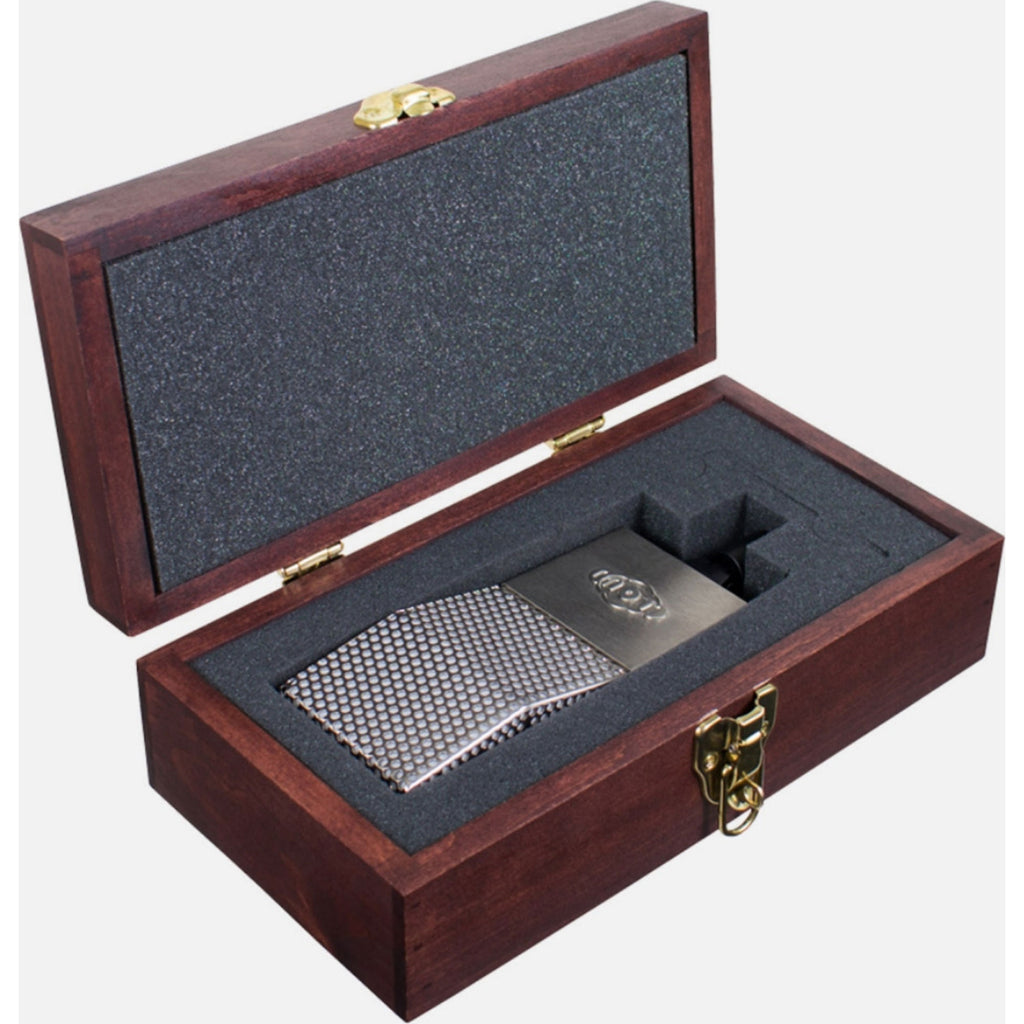

Shipped in a custom wood case with a two year ribbon warranty and a limited lifetime warranty on all other parts.
Features:
- Figure 8 polar pattern, adequate side null rejection
- Patented Rounded Magnet technology
- New mount offers a 180 degree range of motion
- Internally shock mounted
- Built in XLR connector
Specifications:
- Figure 8 polar pattern w/ -35db null at 90°
- Patented Rounded Magnet technology
- Phantom Powered "Cloudlifter" Class A, Discrete Circuity
- Ribbon dimensions: .19" wide, 2.35" long, 1.8 microns thick
- New mount offers 180 degree range of motion
- Internally shock mounted
- Handmade entirely in the USA
- Dimensions: 7.75" x 3" x 1.75"
- Weight: 1.03lbs
- Frequency Response: 20 HZ - > 20kHz
- Output Sensitivity: -27 dBv/Pa
- Max SPL: 138 dB > 1kHz
- Out Impedance (in Ohms): 150 ohms
- Recommended Load (in Ohms): 1kohm or greater
- Supplied Accessories: Wood Case, Mic cover
- Optional Accessories: Cloud U1 Shockmount
