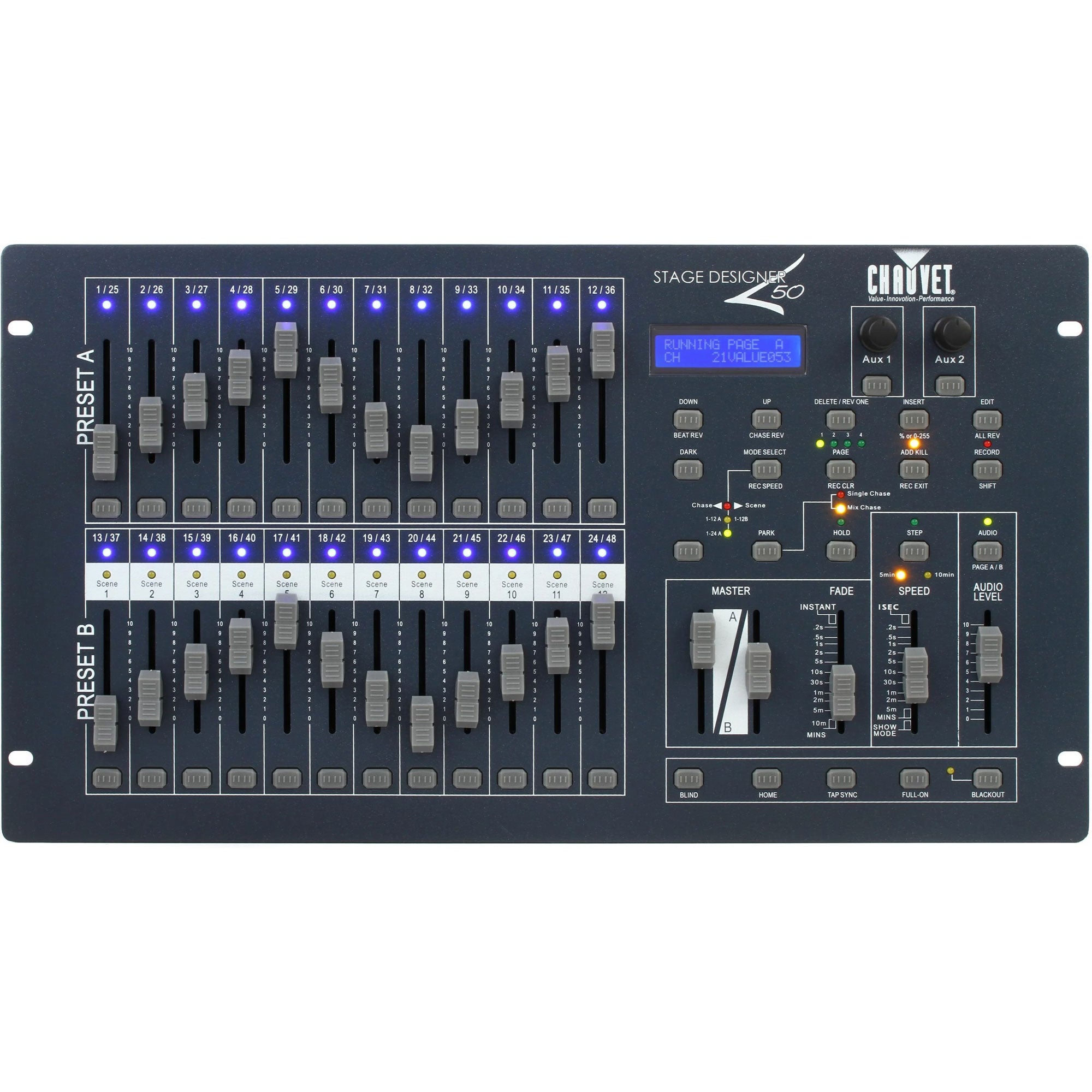

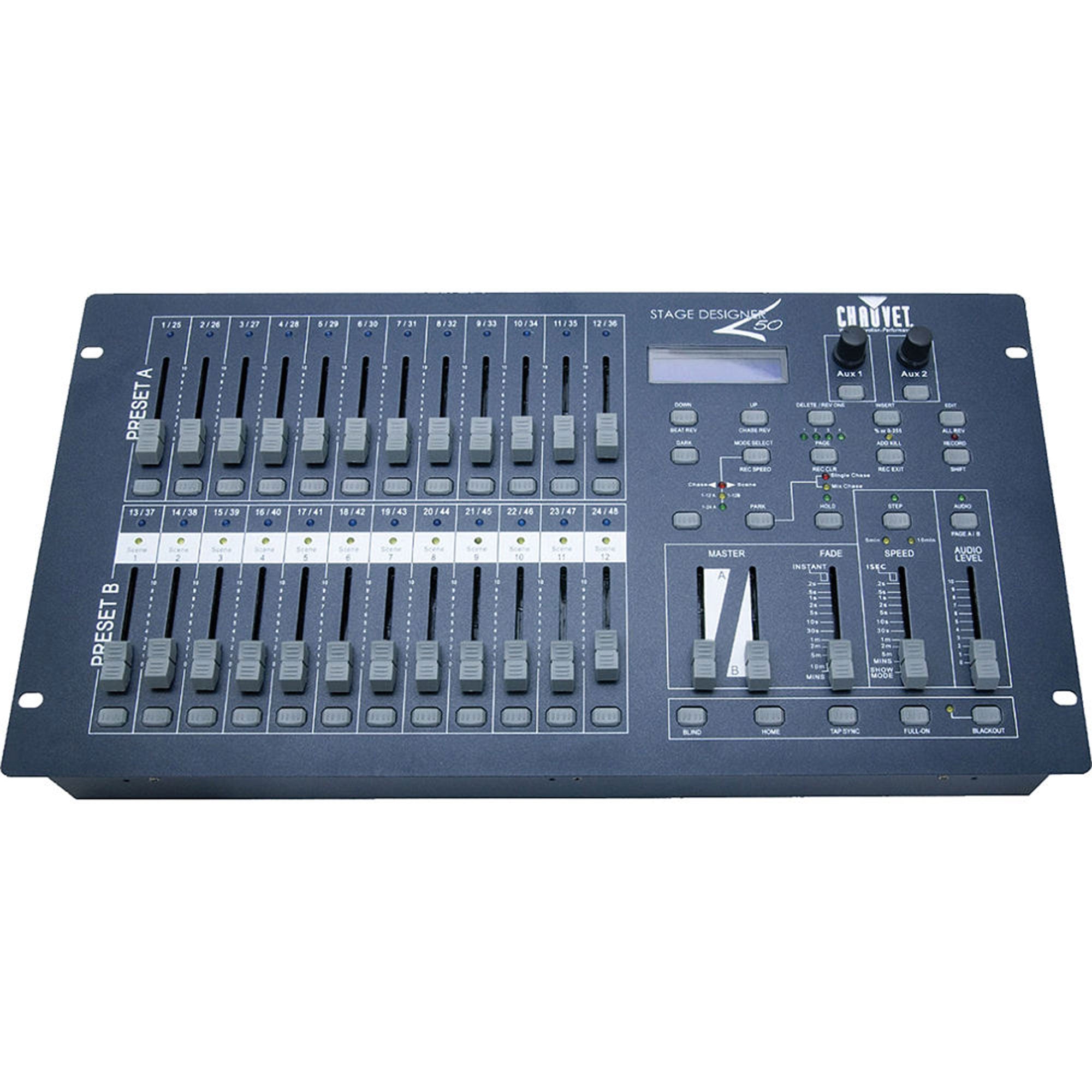

Chauvet DJ Stage Designer 50 24-Channel DMX Dimming Console

48-Channel Theater-Style DMX Lighting Controller

The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.

Features:

• Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
• Saves desk space by squeezing 48 channels into a 24-channel console
• Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
• Increase programming and playback versatility with two programmable auxiliaries
• Simplify programming by using DMX channel patching to reassign channels
• Increase flexibility with built-in MIDI support for remote dimming and scene triggering
• Coordinate your light shows to music using the direct audio input connector or built-in microphone
• Ability to stack scenes for simultaneous or sequential playback

Specifications:

• DMX Channels: 48
• DMX Connectors: 3- and 5-pin XLR
• Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
• Weight: 9.9 lb (4.5 kg)
• Size: 19 x 10.5 x 3.5 in (483 x 267 x 89 mm)
• Approvals: CE
• Rackmount: 6U

Includes:

• Power cord
• User manual
• Warranty card
• External power supply
