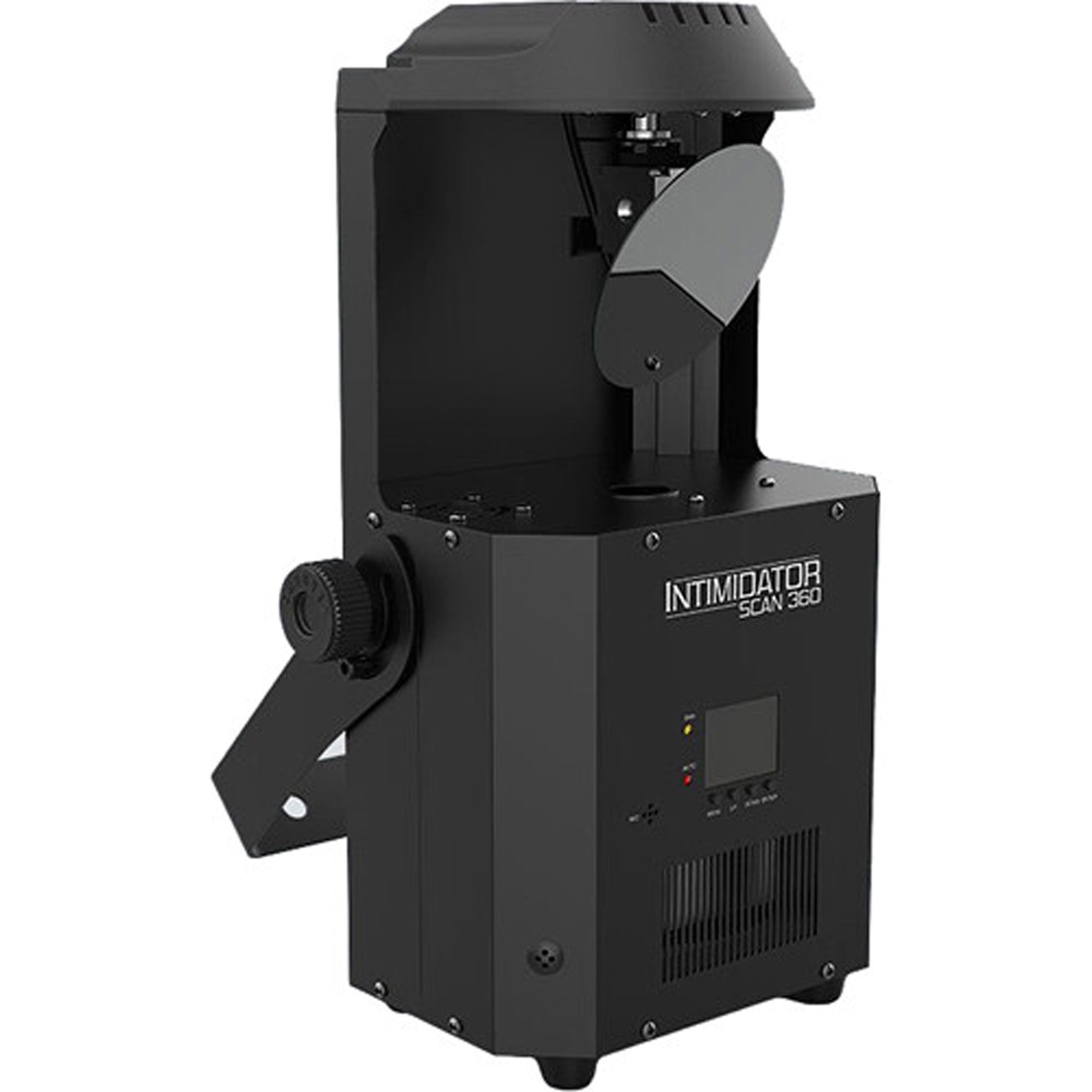

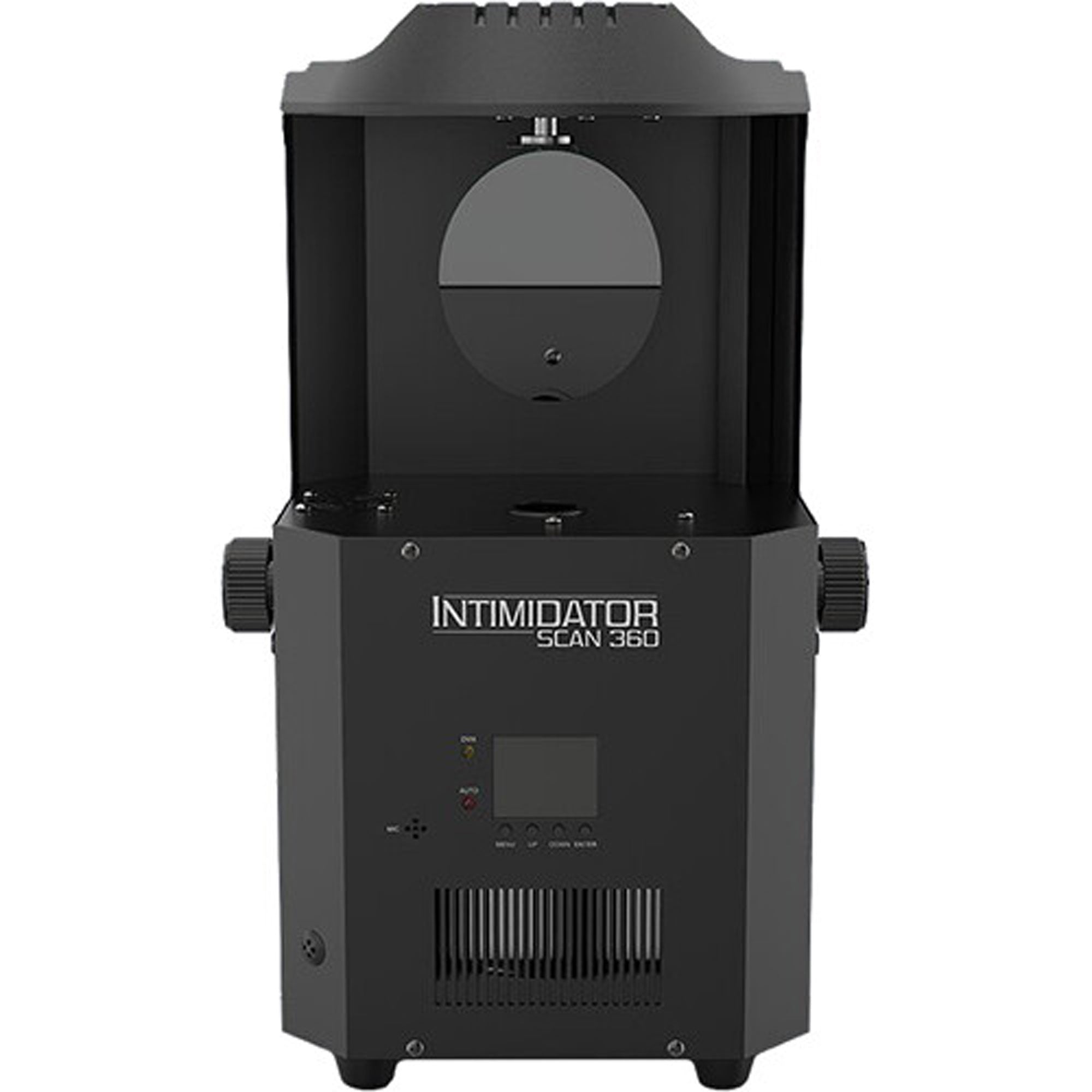

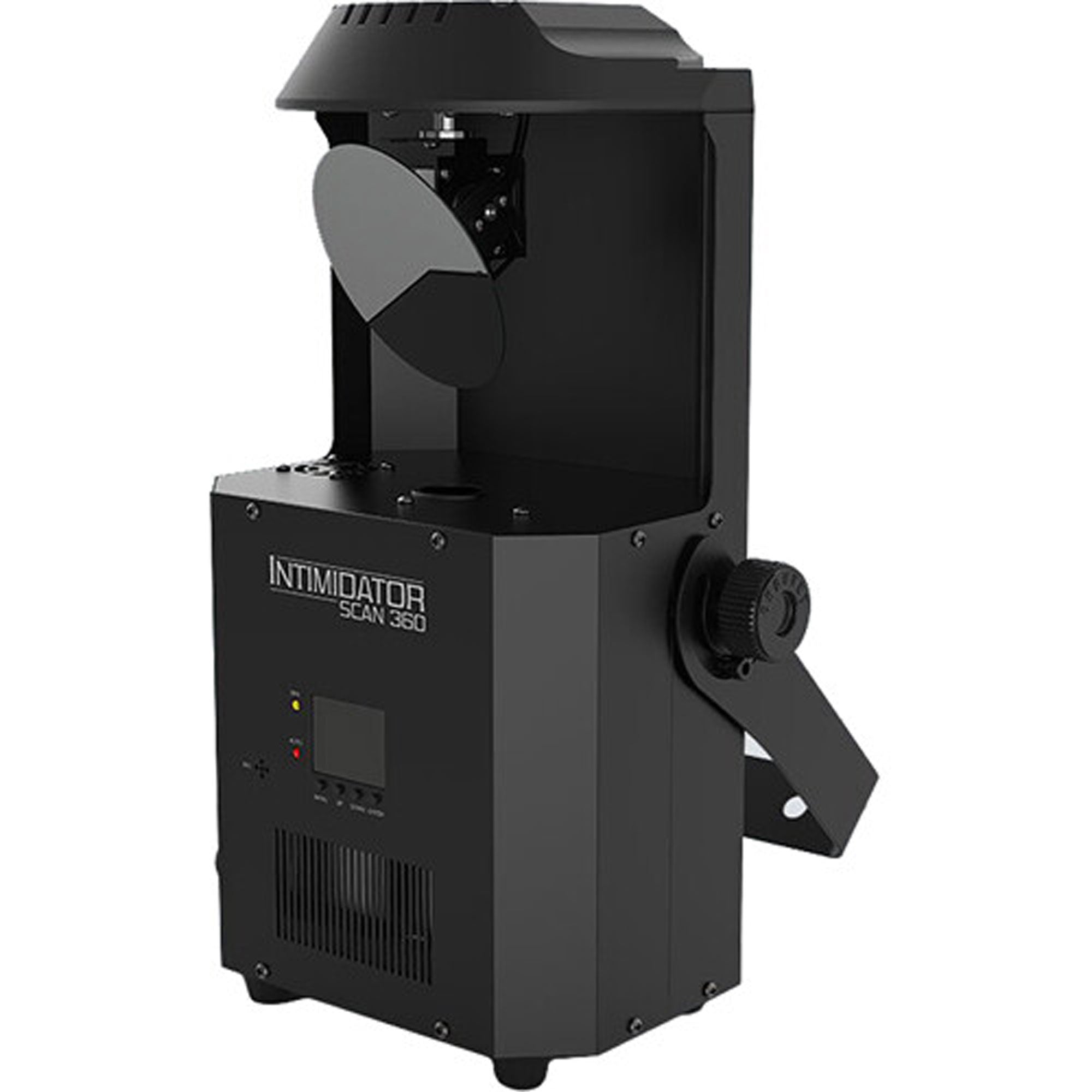

Chauvet DJ Intimidator Scan 360 LED Scanner Effect Light

Save $20.00
Chauvet SKU: CHV INTIMSCAN360
MPN: INTIMSCAN360 UPC: 781462220723

Price:
Sale price$499.99 Regular price$519.99
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • Shoots Colored Spot with Gobo Image
  • 100W White LED
  • 7 Gobos + Open, Rotating, Indexing
  • 8 Colors + White & Color Split, Scroll
  • Beam Angle: 21°
  • Pan/Tilt: 172°/39°
  • Movement Macros & Sound-Active Mode
  • 8- or 14-Channel DMX
  • Universal Autosensing Power Supply
  • Includes Hanging Bracket

Description

Bring fast-moving beams and detailed gobo projections to your next mobile performance. The Chauvet DJ Intimidator Scan 360 pairs a 100W white LED with motorized focus, separate color and gobo wheels, and a three-facet rotating prism for a varied light show in one portable scanner.

Crisp patterns and expanded beam effects

Use motorized focus to sharpen your projections as the throw distance changes. Seven rotating, indexing, interchangeable gobos plus an open position give you a range of looks, while the three-facet round prism splits the beam to cover a larger area. Variable-speed prism rotation adds another layer of movement.

The separate color wheel offers eight colors plus white, split colors, and variable-speed scrolling. Combine color changes with rotating patterns and strobe effects up to 20 Hz to build energetic sequences for the dance floor.

Flexible control for your show

Choose 8- or 12-channel DMX operation through 3-pin XLR connections. The full-color LCD display lets you manually set, save, and recall one scene directly on the fixture. For wireless control without DMX, add the optional IRC-6 infrared remote, sold separately.

Designed for mobile performances and video

High-frequency LED dimming supports flicker-free video operation, making the Scan 360 useful when your event is being filmed. Its 12.6 lb design is practical for portable rigs, and power linking multiple fixtures helps reduce separate power runs during setup.

Key specifications

  • Light source: One 100W white LED with a manufacturer-rated 50,000-hour life expectancy.
  • Colors: Eight plus white, with split colors and variable-speed scrolling.
  • Gobos: Seven plus open, comprising six metal gobos and one glass gobo; rotating, indexing, interchangeable slot-n-lock design with variable-speed scrolling.
  • Prism: Three-facet round prism with variable-speed rotation.
  • Focus: Motorized.
  • Beam angle: 21°.
  • Illuminance: 4,050 lux at 2 meters.
  • Movement: 172° pan and 39° tilt.
  • Strobe rate: 0–20 Hz.

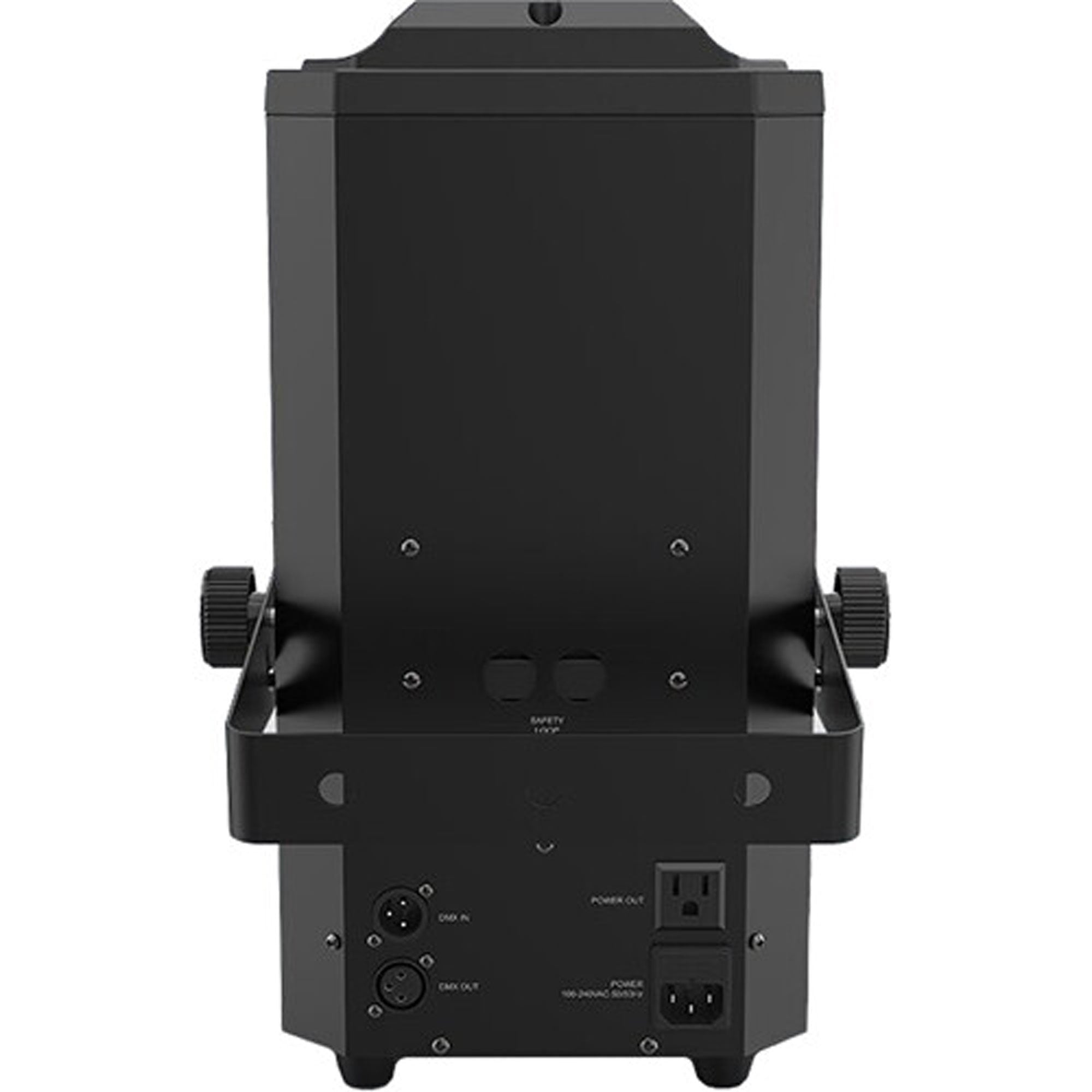

  • DMX: 8 or 12 channels; 3-pin XLR connectors.
  • Input voltage: Auto-ranging 100–240 VAC, 50/60 Hz.
  • Power consumption: 147W, 1.9A at 120V, 60 Hz; 143W, 1.1A at 230V, 50 Hz.
  • Power linking: Up to four units at 120V or seven units at 230V.
  • Metal gobo size: 19.75 mm outside diameter, 14 mm image diameter, 1 mm maximum thickness.
  • Dimensions: 10 × 6.1 × 16.3 inches (255 × 155 × 415 mm).
  • Weight: 12.6 lb (5.7 kg).
  • Approval: CE.

What's included

  • Intimidator Scan 360 fixture.
  • Power cord.
  • Quick Reference Guide.

Optional accessory: IRC-6 infrared remote, sold separately.

Details
  • Manufacturer:  Chauvet
  • MPN: INTIMSCAN360
  • Model Number: Intimidator Scan 360
  • UPC: 781462220723
