Key Features
- Wireless DMX Transmission
- LED Indicators Show Wireless Channels
- Battery Powered, 11-Hour Runtime
- 165' Wireless Range
Description

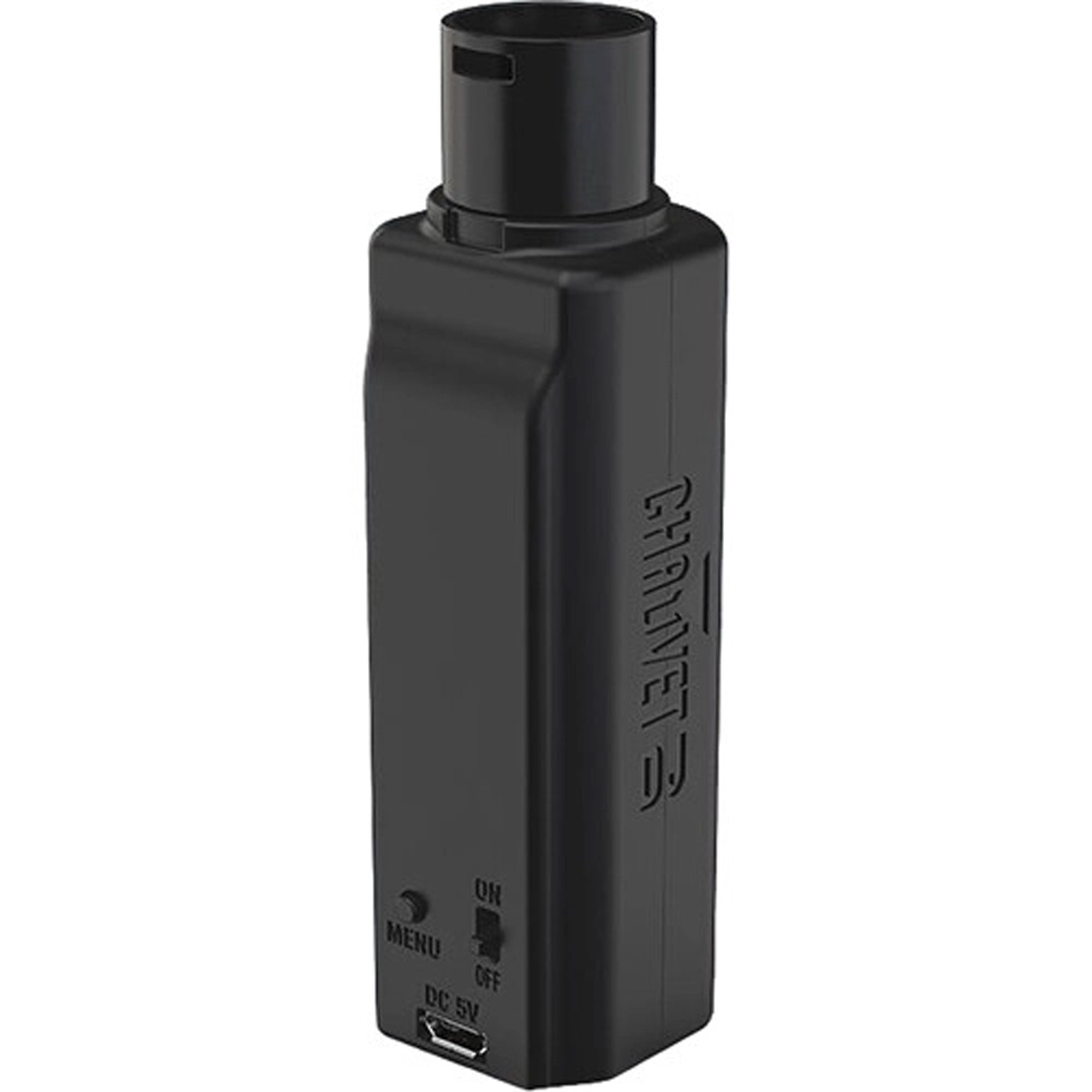

Transmitter for Wireless DMX System with 165' Wireless Range
Discover the amazing transforming transmitter! D-Fi XLR TX transforms conventionally wired DMX set-ups into wireless ones! This battery powered wireless D-Fi transmitter fits in the palm of your hand and provides instant wireless communication between similar fixtures. The unit plugs directly into a light's XLR port to wirelessly transmit DMX and master/slave signals. Convenient LED indicators visually show wireless channel operation. D-Fi XLR TX is FCC/RTTE compliant.
Highlights
- Battery-powered wireless D-Fi transmitter provides instant wireless communication
- Plugs directly into your device's XLR port
- Transmits DMX and master/slave signals between similar fixtures

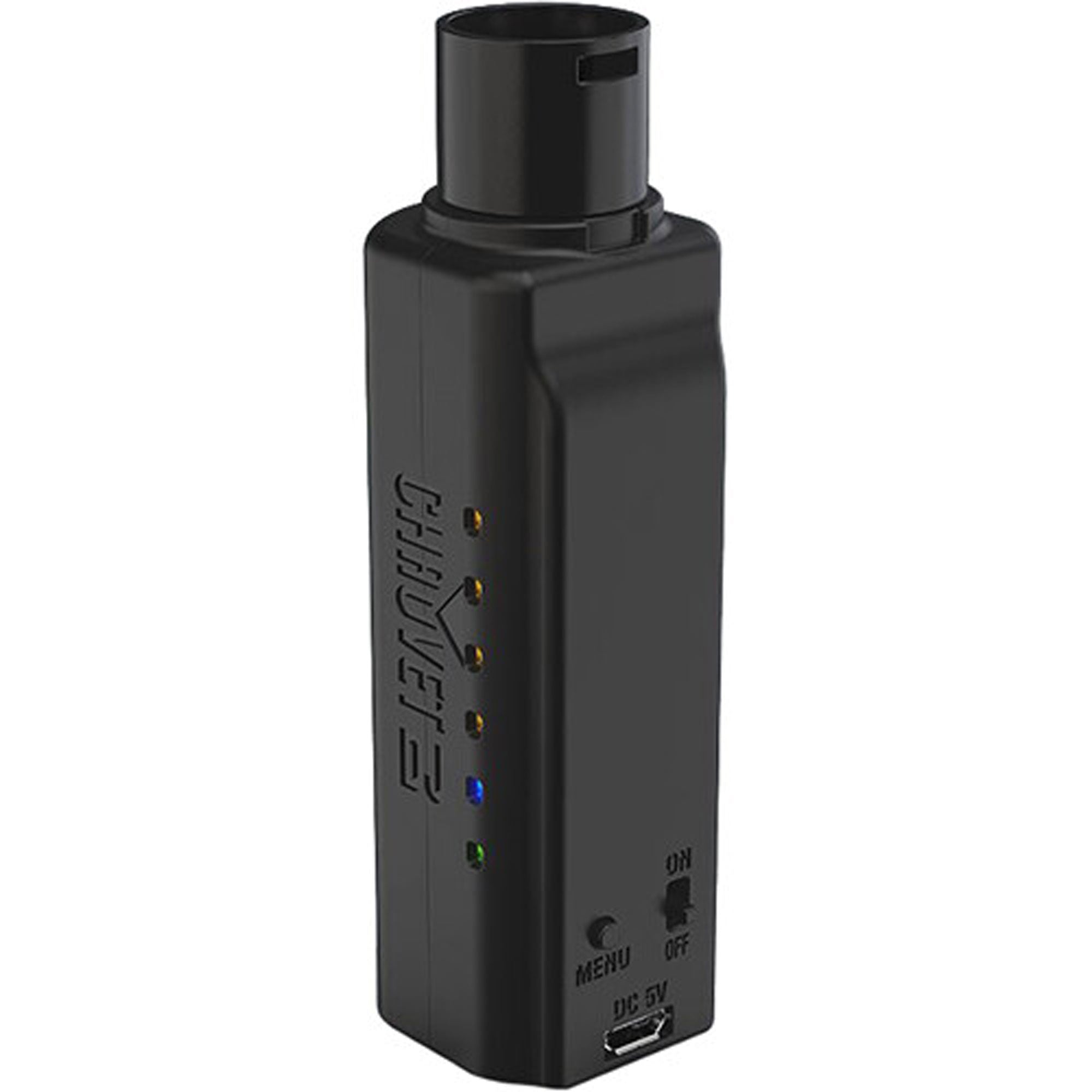

- LED indicators visually show wireless channel operation
- Works without the need of an external power supply
- Fully FCC/RTTE compliant
Specifications
- Max Unobstructed Distance: 165 ft (50 m)
- Maximum Run Time: up to 11 hours
- Recharge Time: 4 hours
- Operating Frequency: 2.412 to 2.484 GHz
- Input Voltage: 5 VDC, 500 mA
- Weight: 2.4 oz. (68 g)
- Size: 3.7 x 1 x 1.14 in (94 x 27 x 29 mm)
- Approvals: CE, FCC, RTTE
- RF output: 12.72 dBm
WHAT'S INCLUDED
- D-Fi XLR RX
- Quick Reference Guide
Details
- Manufacturer: Chauvet
- MPN: DFIXLRTX
- Model Number: D-Fi XLR TX
- UPC: 781462221379
