CBI BW-SJOOW-14/3 Outdoor Rated 14/3 Stranded Electrical Power Wire (By the Foot) Image 1
Roll over image to zoom in Click on image to zoom
CBI BW-SJOOW-14/3 Outdoor Rated 14/3 Stranded Electrical Power Wire (By the Foot) Image 1

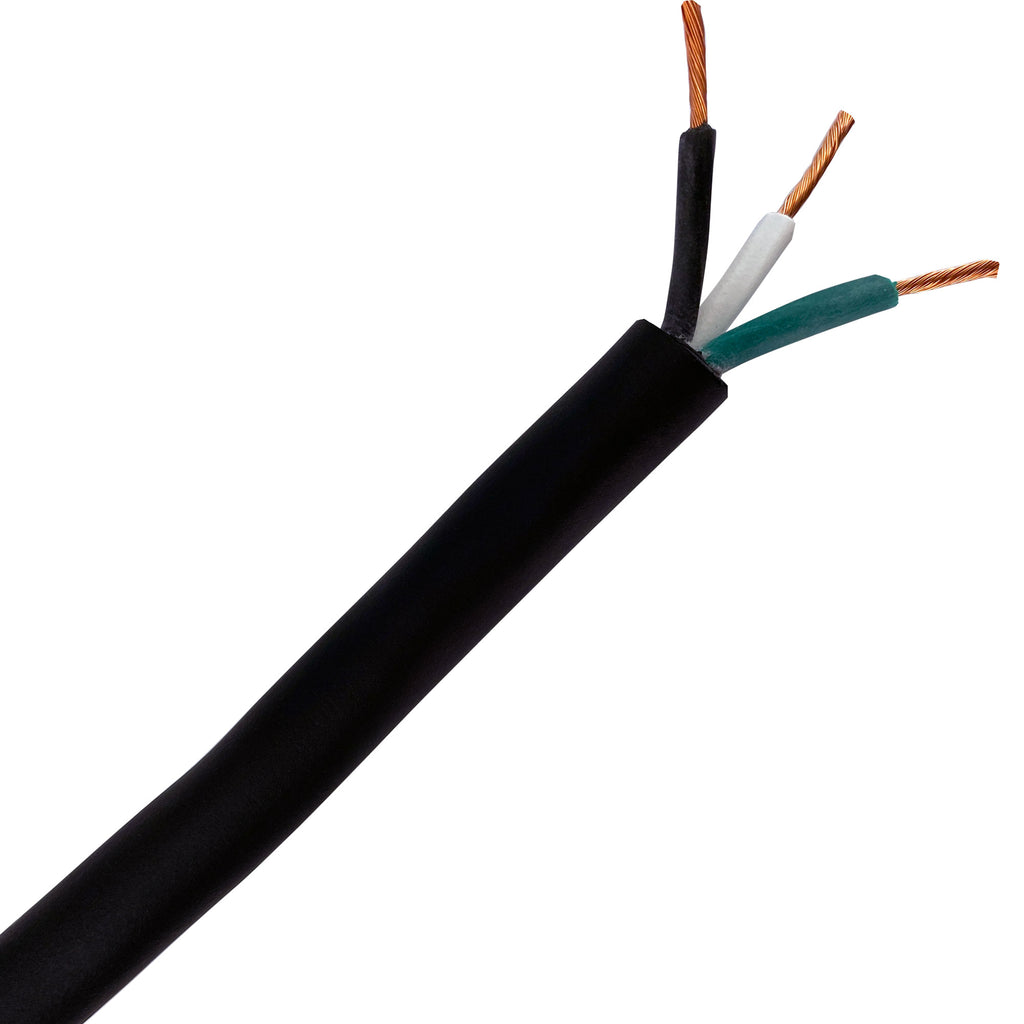

CBI BW-SJOOW-14/3 Outdoor Rated 14/3 Stranded Electrical Power Wire (By the Foot)

CBI SKU: CBI BWSJOOW143
MPN: BW-SJOOW-14/3
Price:
$1.46
Stock:
750 In Stock & Ready to Ship

Make it a bundle

Custom Cable 50 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 50 Feet of CBI 14/3 SJOOW Power Wire
$73.00
Custom Cable 10 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 10 Feet of CBI 14/3 SJOOW Power Wire
$14.60
Custom Cable 30 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 30 Feet of CBI 14/3 SJOOW Power Wire
$43.80
Custom Cable 40 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 40 Feet of CBI 14/3 SJOOW Power Wire
$58.40
Custom Cable 23 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 23 Feet of CBI 14/3 SJOOW Power Wire
$33.58
Custom Cable 24 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 24 Feet of CBI 14/3 SJOOW Power Wire
$35.04
Custom Cable 14 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 14 Feet of CBI 14/3 SJOOW Power Wire
$20.44
Custom Cable 22 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 22 Feet of CBI 14/3 SJOOW Power Wire
$32.12
Custom Cable 95 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 95 Feet of CBI 14/3 SJOOW Power Wire
$138.70
Custom Cable 20 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 20 Feet of CBI 14/3 SJOOW Power Wire
$29.20
Custom Cable 45 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 45 Feet of CBI 14/3 SJOOW Power Wire
$65.70
Custom Cable 19 Feet of CBI 14/3 SJOOW Power Wire Image 1
Custom Cable 19 Feet of CBI 14/3 SJOOW Power Wire
$27.74

Key Features

  • 3 Conductor
  • 14 AWG Conductor Size
  • Bare Copper Stranded Conductors
  • Ethylene Propylene Rubber Insulation
  • Unshielded
  • Water/Oil Resistant
  • Heavy-Duty Type SJOOW
  • UL Listed, CSA and RoHS certifed
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

Flexible 14/3 portable power cord, cut to length

CBI BW-SJOOW-14/3 is an unterminated SJOOW portable power cable with three 14 AWG stranded bare copper conductors, color-coded EPDM insulation, and a Black neoprene jacket. Its flexible construction and resistance to oil, moisture, weather, and abrasion make it an option for suitable portable equipment cords and custom power-cable assemblies.

The cable has a listed 300 V rating, a −40°C to +90°C temperature range, and a nominal 9.40 mm (0.370 inch) outside diameter. Match the complete assembly to the equipment, environment, connectors, and electrical requirements rather than selecting by wire gauge alone.

Ordering by the foot

Sold by the foot and shipped in a continuous length. Enter the total feet needed: quantity 25 means one 25-foot piece. This is bulk cable, not a finished extension cord. Plugs, receptacles, and other connectors are not included. Allow extra length for routing and termination.

Choose the right application

SJOOW portable cord is intended for suitable flexible power connections, including compatible appliances and small motors. Oil, water, weather, and sunlight resistance describe the cable, not a waterproof rating for a finished assembly. Connectors and terminations must also suit the intended environment.

Do not assume this portable cord is suitable for permanent building wiring, direct burial, or continuous submersion. Confirm the cable markings and application requirements before use.

Assembly and connector fit

Choose connectors whose cable entry and strain relief accept the 9.40 mm jacket and whose terminals accept 14 AWG stranded conductors. Strain relief should grip the outer jacket, not the individual insulated wires.

The conductor colors are Black, White, and Green. Follow the equipment and connector wiring instructions, preserve the required protective-ground connection, and have power-cable assemblies wired and tested by a qualified person. Disconnect power before assembly or servicing.

The supplied specifications list 18 A for the cable. This is not a blanket rating for every finished cord or installation. The permitted load depends on the application, operating conditions, cord length and voltage drop, and the ratings of the equipment and connectors.

Features

  • Three 14 AWG stranded bare copper conductors.
  • Flexible SJOOW portable-cord construction.
  • Color-coded EPDM conductor insulation.
  • Black neoprene outer jacket.
  • Resistance to oil, moisture, weather, sunlight, and abrasion.
  • Listed for indoor and outdoor use, subject to the application and complete assembly.
  • Sold by the foot for custom-length builds.

Construction specifications

  • Brand: CBI
  • Model: BW-SJOOW-14/3
  • Cord type: SJOOW
  • Conductor size: 14 AWG
  • Conductor count: 3
  • Conductor material: Fully annealed stranded bare copper
  • Conductor stranding: 41/30
  • Listed conductor construction standard: ASTM B-174
  • Conductor colors: Black, White, Green
  • Insulation: Premium-grade, color-coded 90°C EPDM
  • Listed insulation thickness: 0.76 mm (0.030 inch)
  • Jacket: Black neoprene
  • Nominal outside diameter: 9.40 mm (0.370 inch)
  • Listed cable weight: 0.105 lb per foot

Electrical and temperature specifications

  • Listed voltage rating: 300 V
  • Listed cable current: 18 A, subject to application and operating conditions
  • Listed temperature range: −40°C to +90°C

Listed standards and approvals

  • UL Listed flexible cord; UL Subject 62
  • CSA Certified flexible cord; C22.2-49
  • MSHA approved
  • RoHS compliant

These are the cable standards and approvals supplied with the listing; they do not certify a customer-built assembly or establish suitability for every installation.

Details
  • Manufacturer:  CBI
  • MPN: BW-SJOOW-14/3
  • Model Number: BW-SJOOW-14/3
