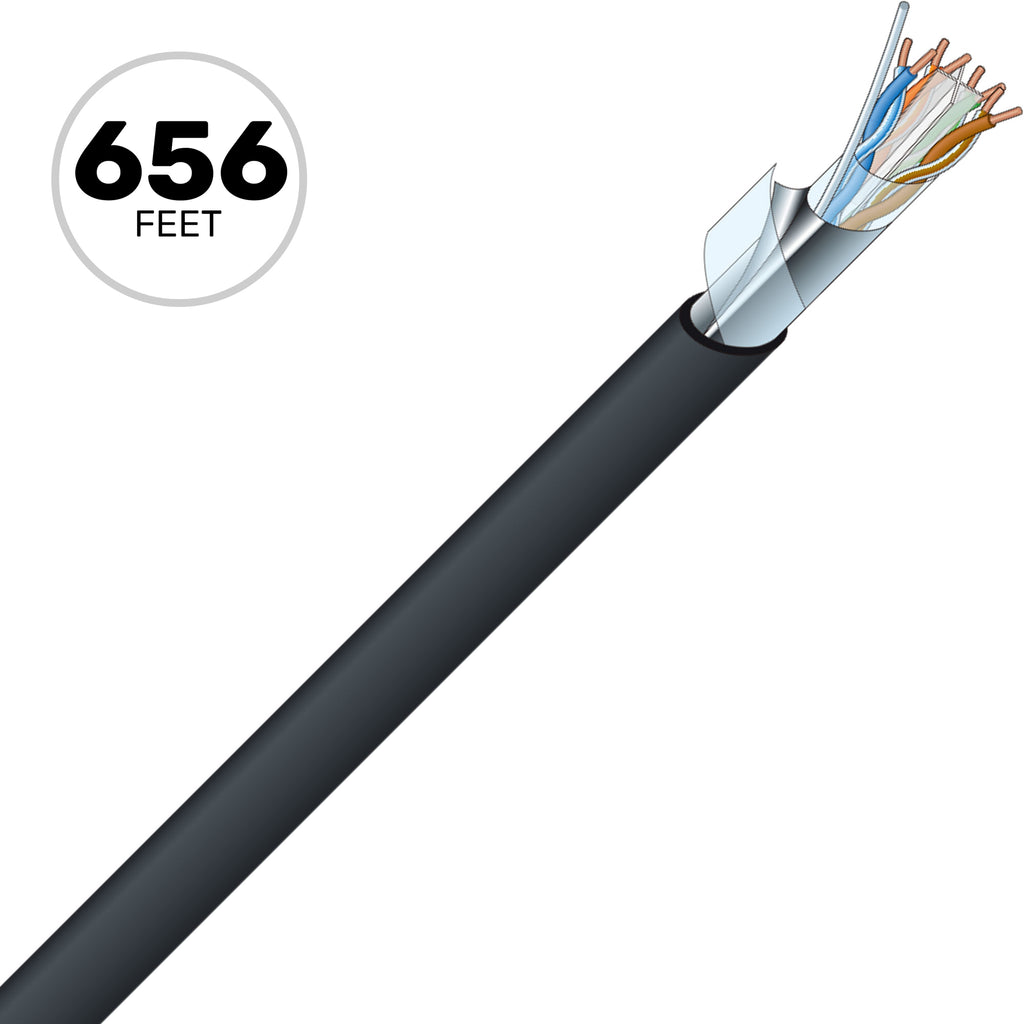

Canare RJC6A-4P-F Cat6a Standard STP (F/UTP) Shielded Ethernet Cable (Black, 656'/200m)

The Canare RJC6A-4P-F is a black Category 6A shielded Ethernet cable supplied on a full 656-foot / 200-meter spool. With 24 AWG solid conductors and an overall foil shield, it provides bulk cable for network cabling projects that call for multiple custom-length runs.

Its F/UTP construction uses an overall foil shield to help reduce electromagnetic interference, with a drain wire included. As you pull cable from the spool, length markings on the PVC jacket help you measure each run and keep track of the cable used.

Full-Spool Ordering

Each order quantity of 1 includes one full 656-foot / 200-meter spool of cable. This listing is sold by the spool, not by the foot.

Key Features

• Category 6A Ethernet cable with F/UTP overall foil shielding
• 24 AWG solid conductors
• 100% overall foil shield coverage to help reject EMI
• Drain wire included
• Black PVC jacket with length markings
• Full 656-foot / 200-meter spool for multiple cable runs

Specifications

• Model: RJC6A-4P-F
• Cable category: Cat6A
• Shield type: Overall foil (F/UTP)
• Conductor size: 24 AWG, solid
• Nominal outside diameter: 7.5 mm
• Nominal cable weight: 5.2 kg per 100 m
• DC resistance: 9.4 ohms per 100 m
• Impedance: 100 ohms
• Jacket: Black PVC with length markings
• Spool length: 656 feet / 200 meters
