Key Features
- 75 Ohm RCA Bulkhead Connector
- RCA Jack to Solder Pin
- Gold Plated Center Contact
- White Insert
Description

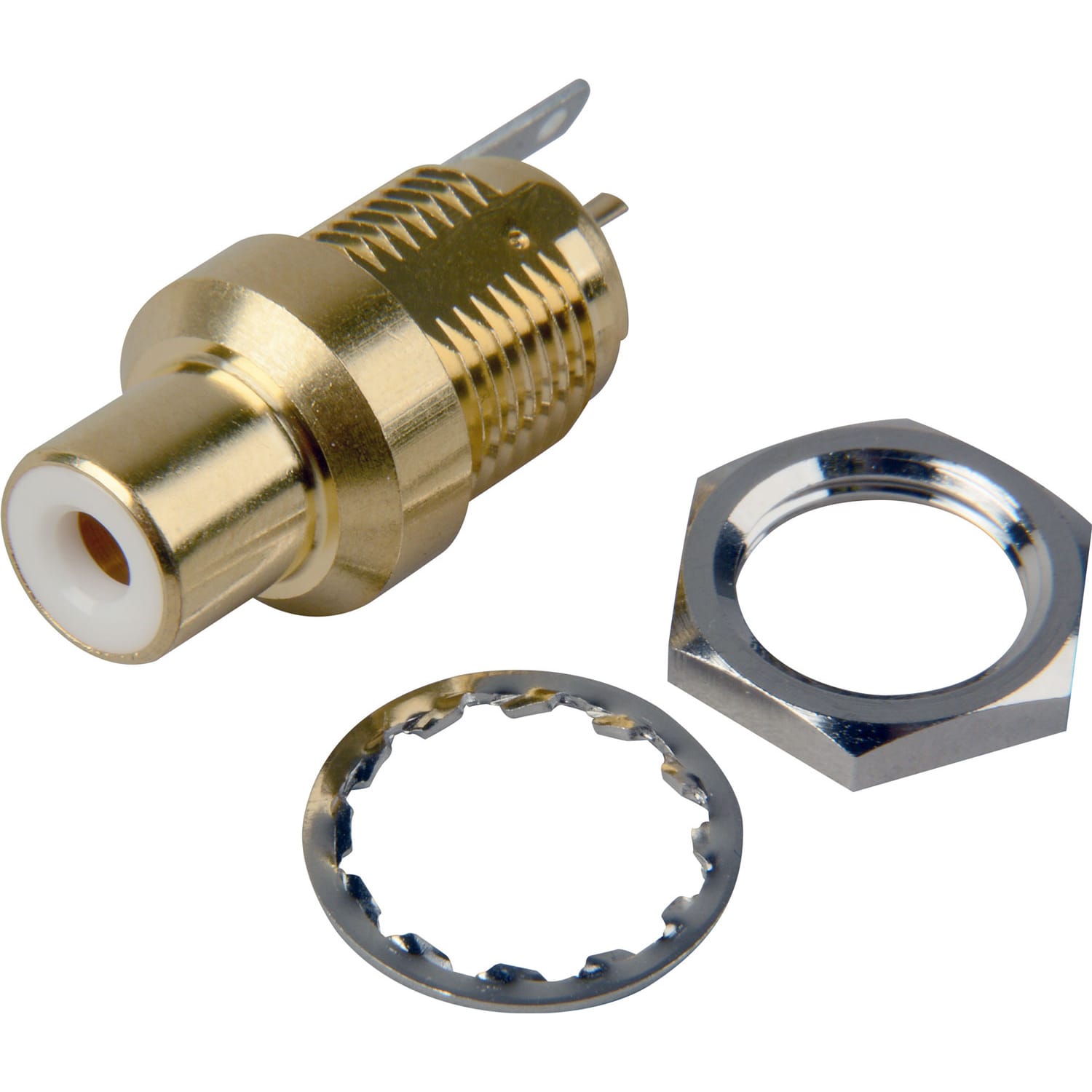

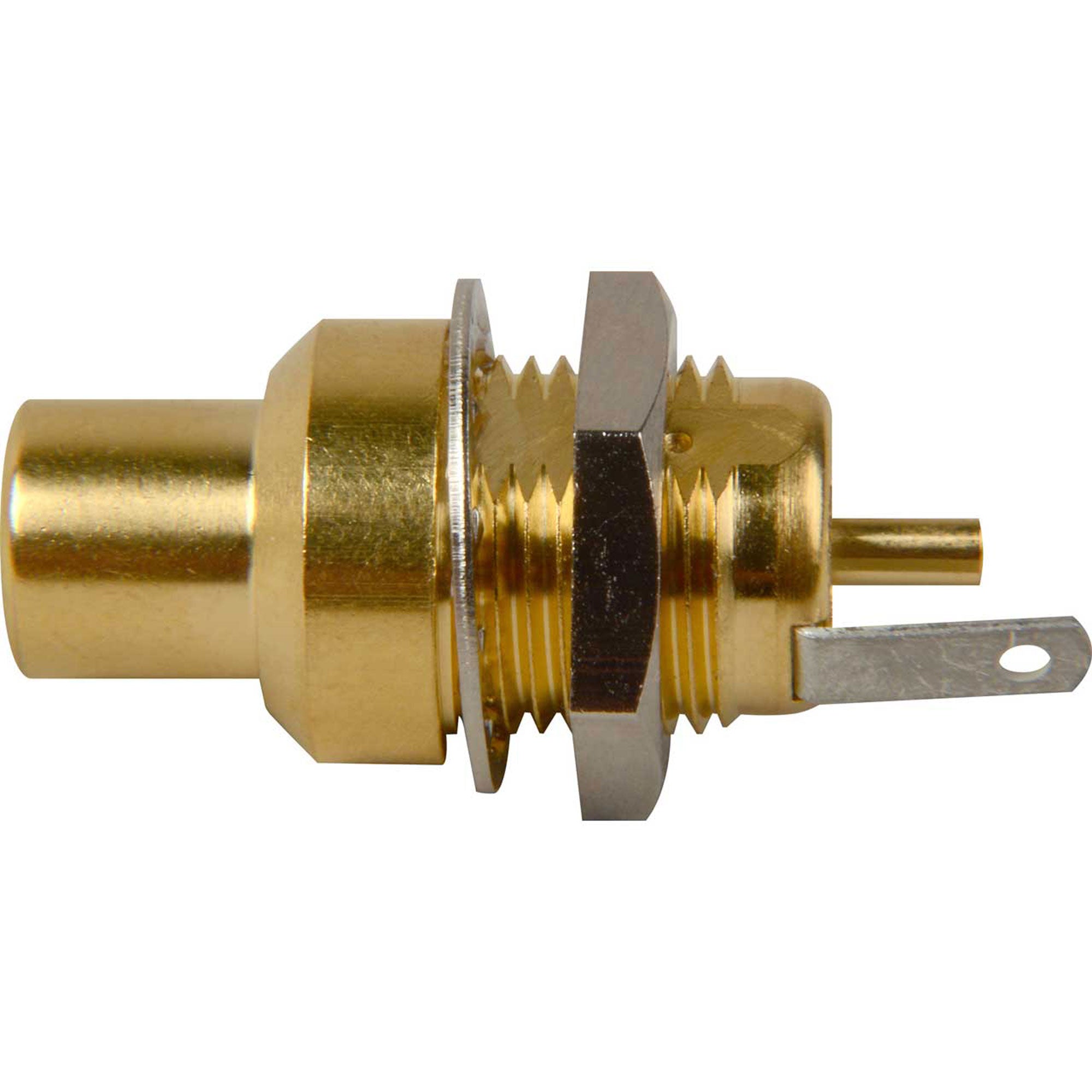

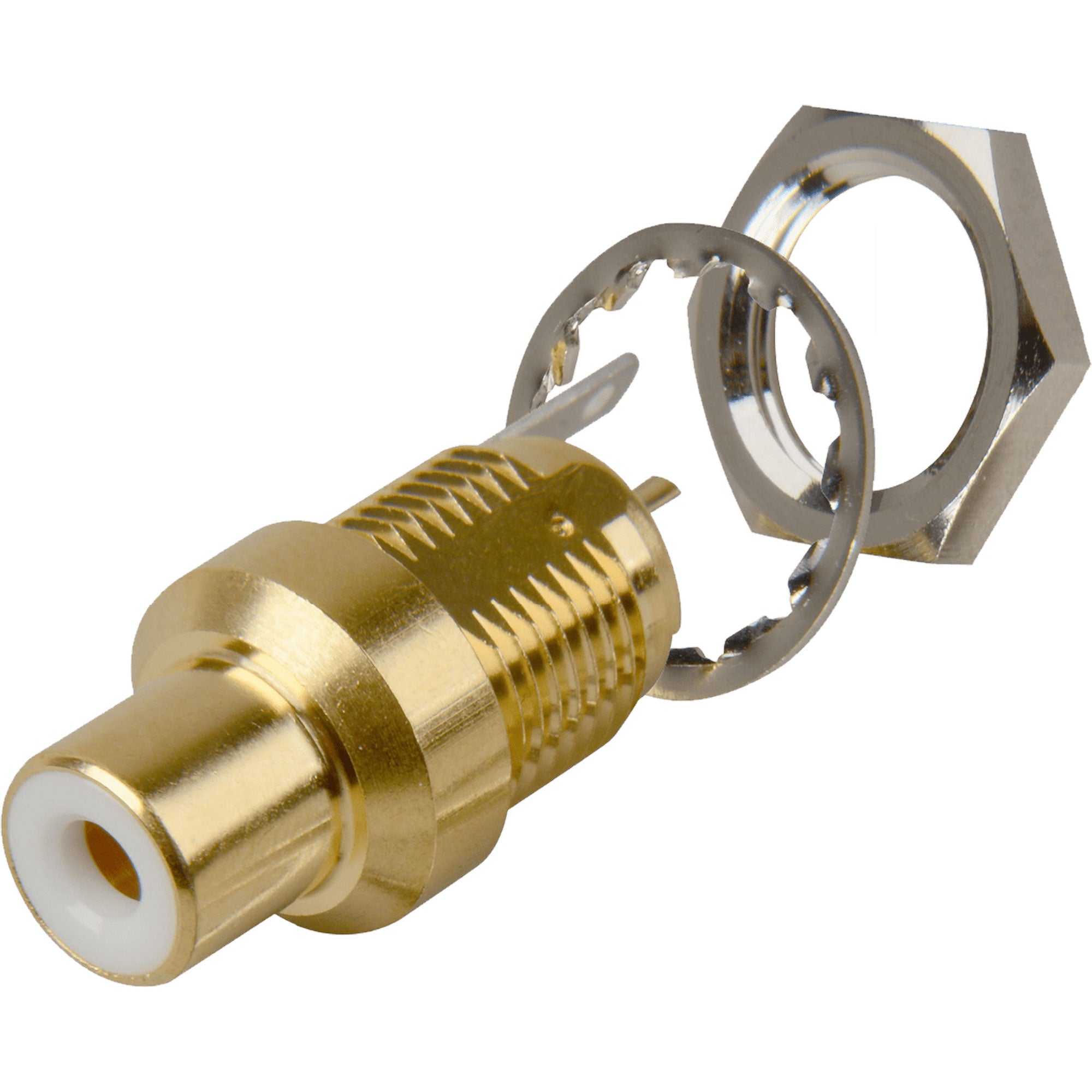

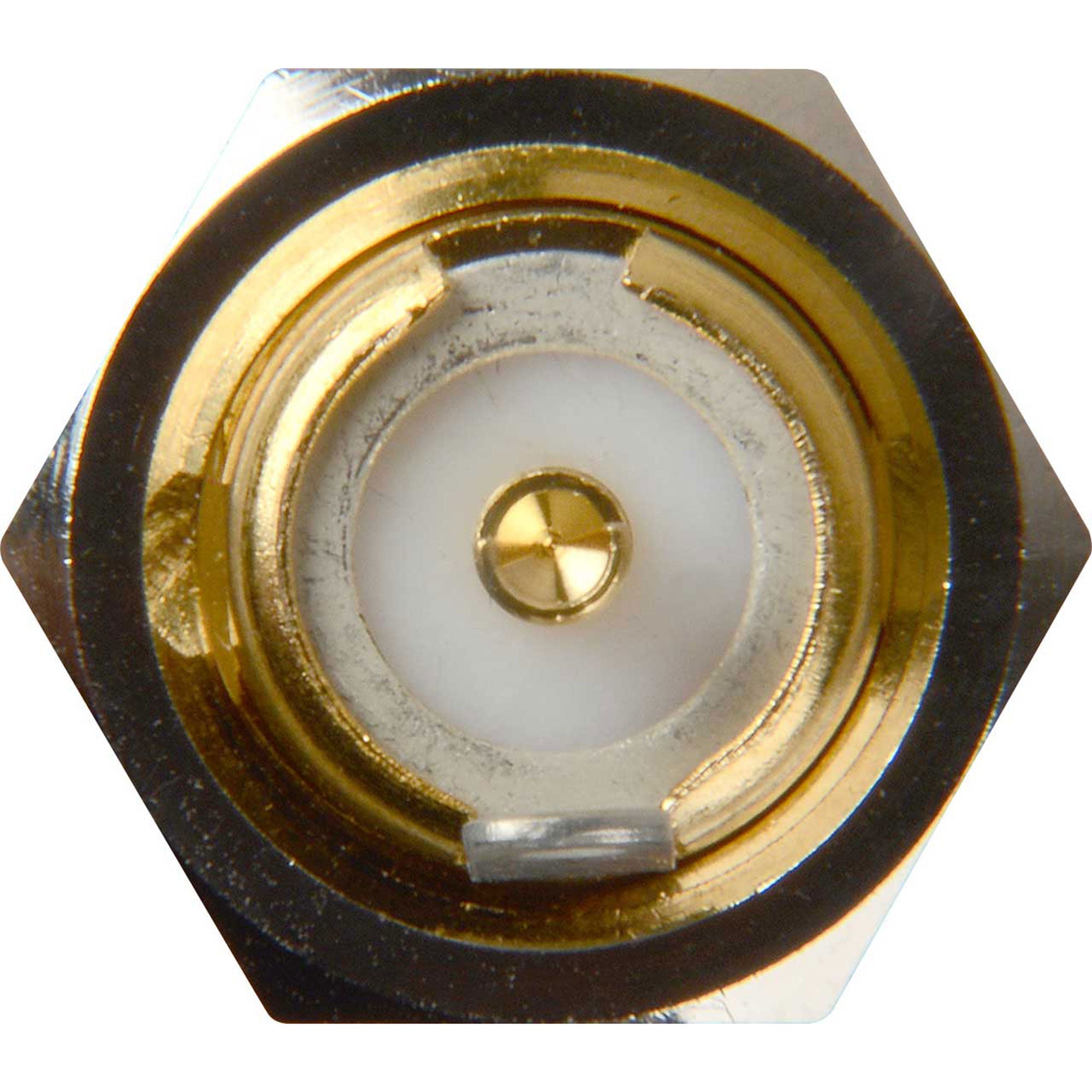

75 Ohm RCA Bulkhead Connector with White Insert - RCA Jack to Solder Pin
75 Ohm RCA Bulkhead Connectors offer premium quality connections for your Video & Audio components. These panel mount jacks mount in a Double D style kockout. Nickel over Brass design with Gold plating ensures positive connections every time in the studio or in the field!
Features:
- Jack to Solder
- Double D Hole Punch
- Use with Isolation Bushing IU-7/16
Specifications:
- 75 Ohm RCA JACK NOMINAL SPECIFICATIONS
- Bandwidth VSWR Return Loss DC-100MHz: <1.1 >26dB
- Center Contact Material (Plating): Beryllium Copper (Gold)
- Body/ Material (Plating): Brass (Nickel)
- Dielectric: PTFE
- Flange Material (Plating): DieCast AL (Nickel)
- Insulation Resistance at 500V DC: >100 MegaOhms
- Voltage Rating for 1 Minute: 500V AC(rms)
- Center Contact Resistance: <10 miliOhms
Details
- Manufacturer: Canare
- MPN: RJ-R WHITE
- Model Number: RJ-R White
