Key Features
- 75 Ohm RCA Crimp Plug
- Gold Plated Center Shaft
- Superior Cable Pull Strength
- For Canare Cable: LV-77S
Description

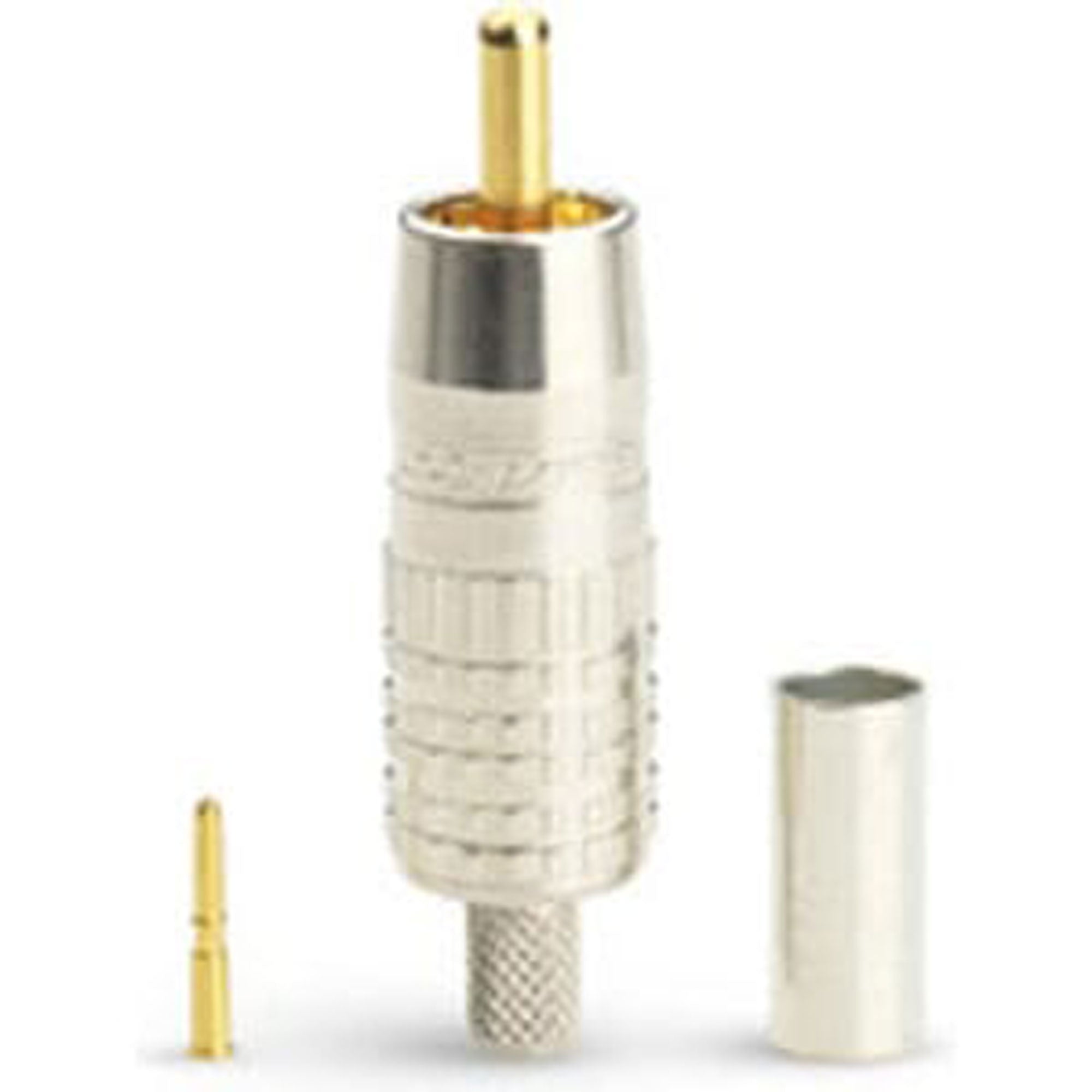

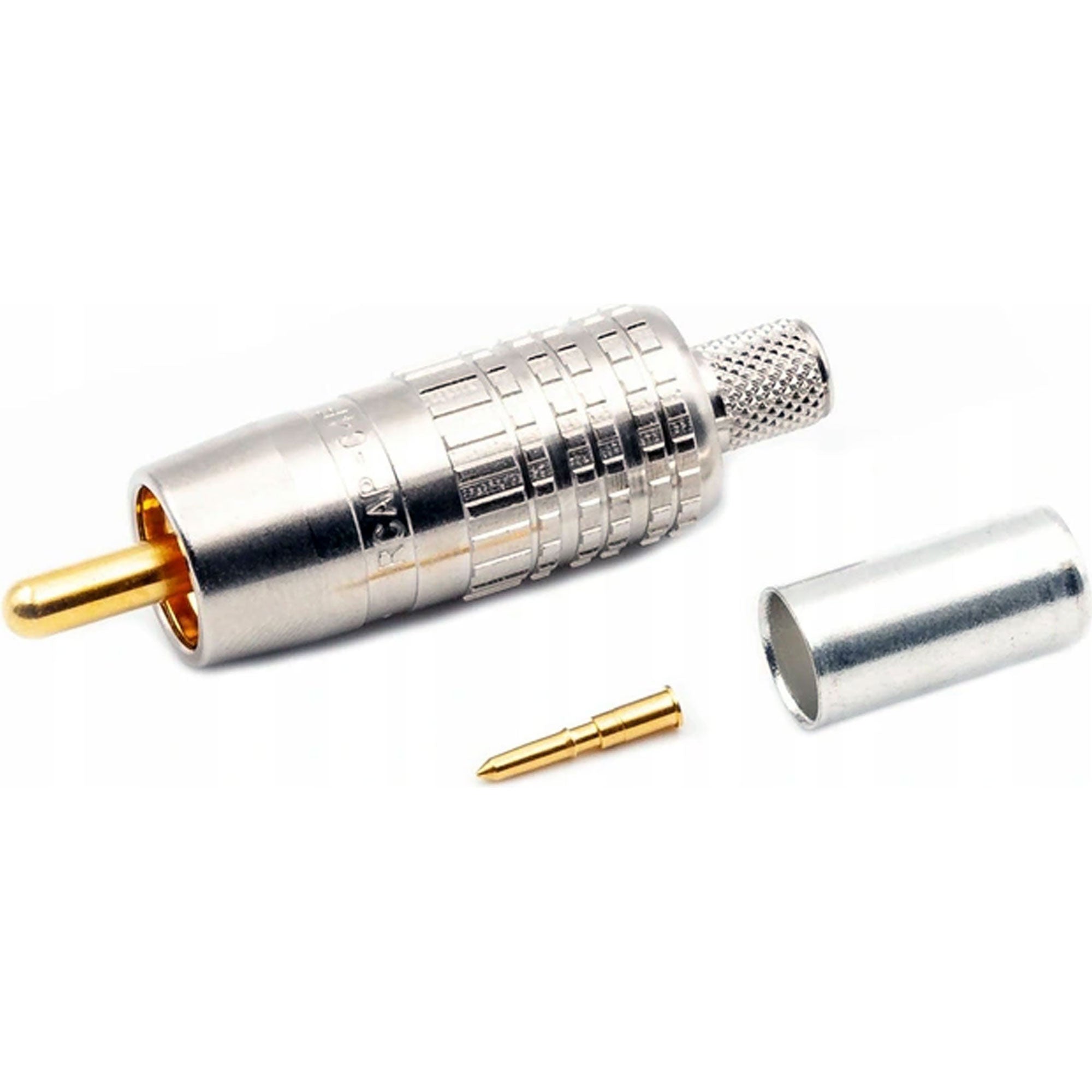

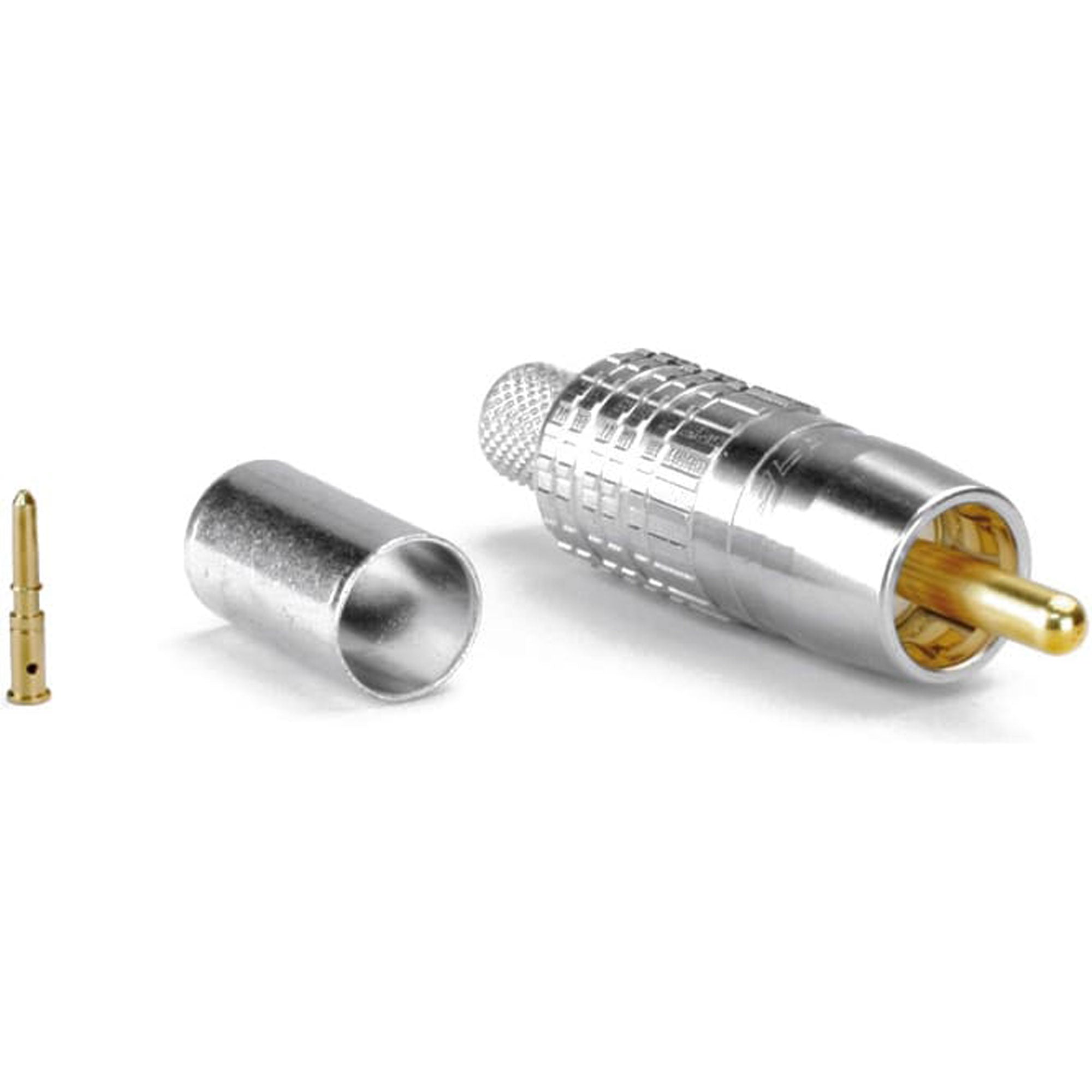

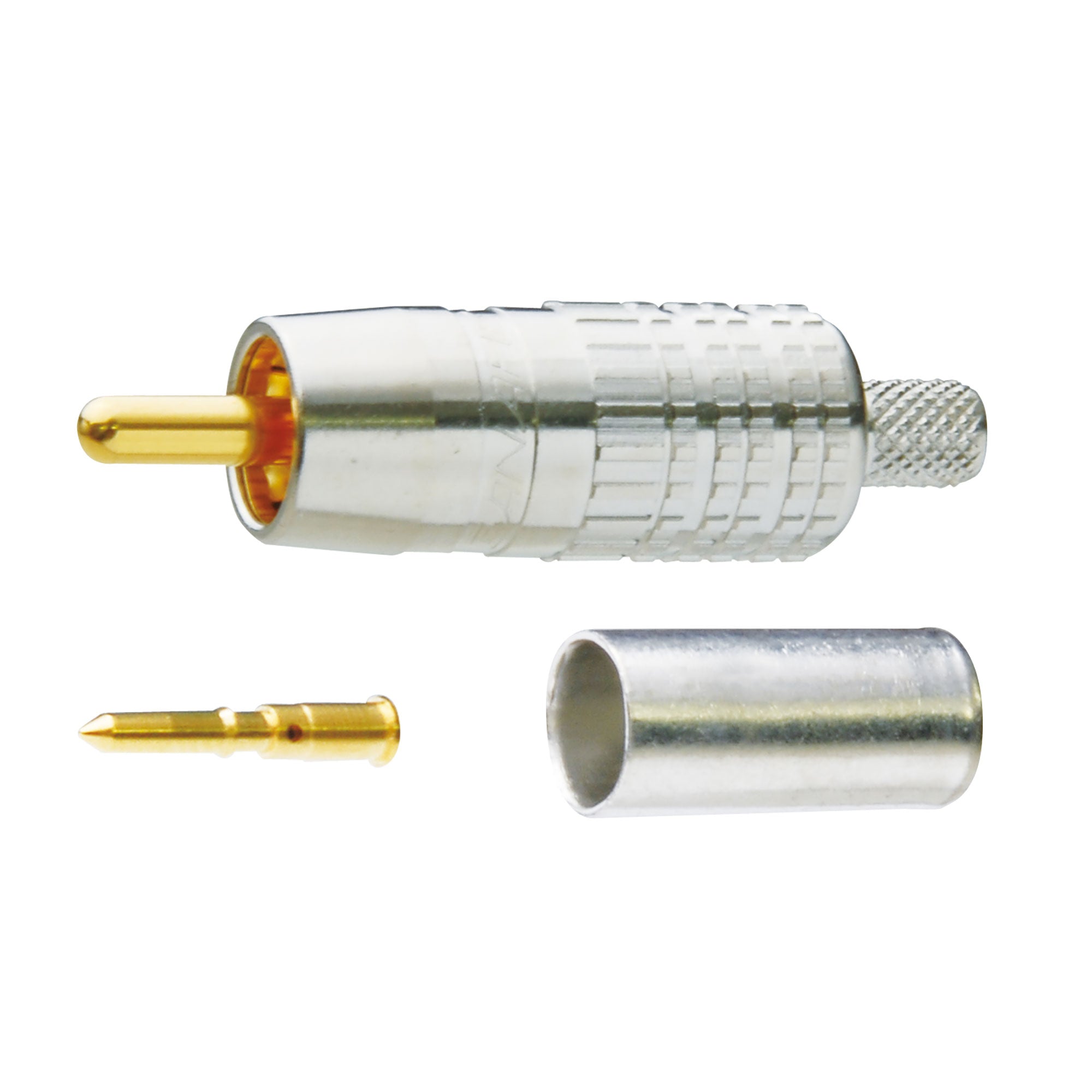

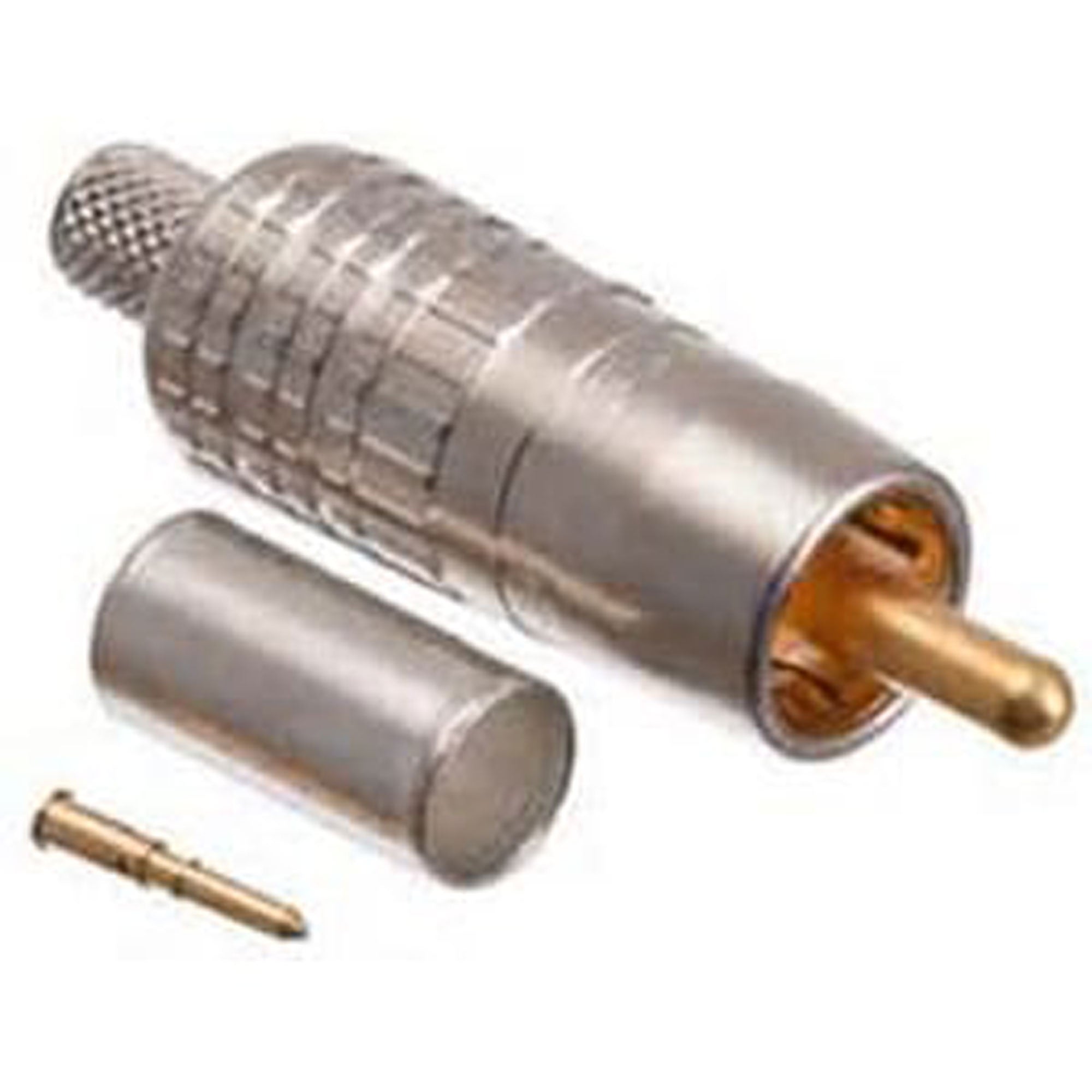

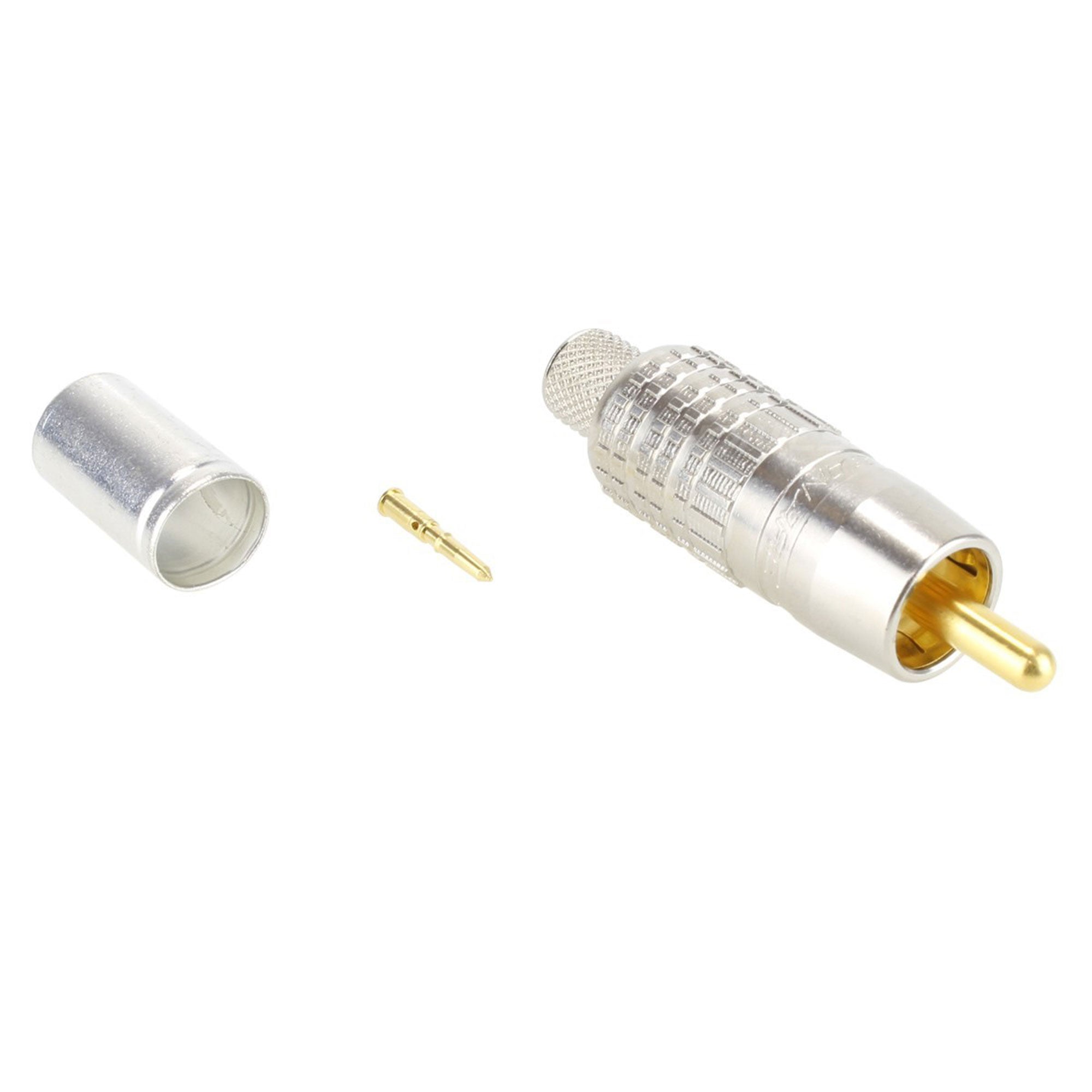

75 Ohm RCA Crimp Plug for Canare LV-77S Cable
Canare's all new 75 ohm type RCAP Video Crimp Plugs are impedance matched and achieve outstanding analog and digital electrical performance with a usable bandwidth to 200MHz. Our original 3-piece connector design offers consistent and extremely reliable terminations with a wide variety of 75 ohm coaxial cable sizes. This unique construction reduces set-up and assembly time by >80% because no soldering is ever required!
Features:
- Standard 75 ohm construction Crimp Pin & Sleeve
- DC to 200MHz >26dB Return Loss (<1.1 VSWR)
- Absolutely No Soldering Required
- Assembly Time Reduced by 80%
- Superior cable pull strength
- Internal Pressure Contact Fingers
- Gold plated center Shaft
- Easy Assembly using Canare Strip & Crimp Tools
- Operating temperature -20 to +60 degrees Celsius
Specifications:
- Model: RCAP-C77
- Cable: LV-77S, 8281F
- Boot: CB26
- Crimp Die: TCD-5CF, TCD-55FA
- Crimp Pin: B11016E
- Sleeve: B75004A
- NOMINAL SPECIFICATIONS
- Parts: Body, Crimp Pin, Sleeve
- Imp.: 75 ohm
- Bandwidth VSWR (Return Loss) DC to 200MHz: <1.1 (>26dB)
- Body Material (Plating): Brass (Nickel)
- Center Contact Material (Plating): Phosphor Bronze (Gold)
- Outer Contact Material (Plating): Beryllium Copper (Gold)
- Dielectric Material: PPO Noryl
- Crimp Pin Material (Plating): Brass (Gold)
- Crimp Sleeve Material (Plating): Copper (Tin)
- Cable Retention lbs. (kgs): >55 (>24.9)
- Insulation Resistance at 500V DC: >100M ohm
- Voltage Rating for 1 mim.: 500V AC (rms)
- Center Contact Resistance: <10m ohm
- Outer Contact Resistance: -
