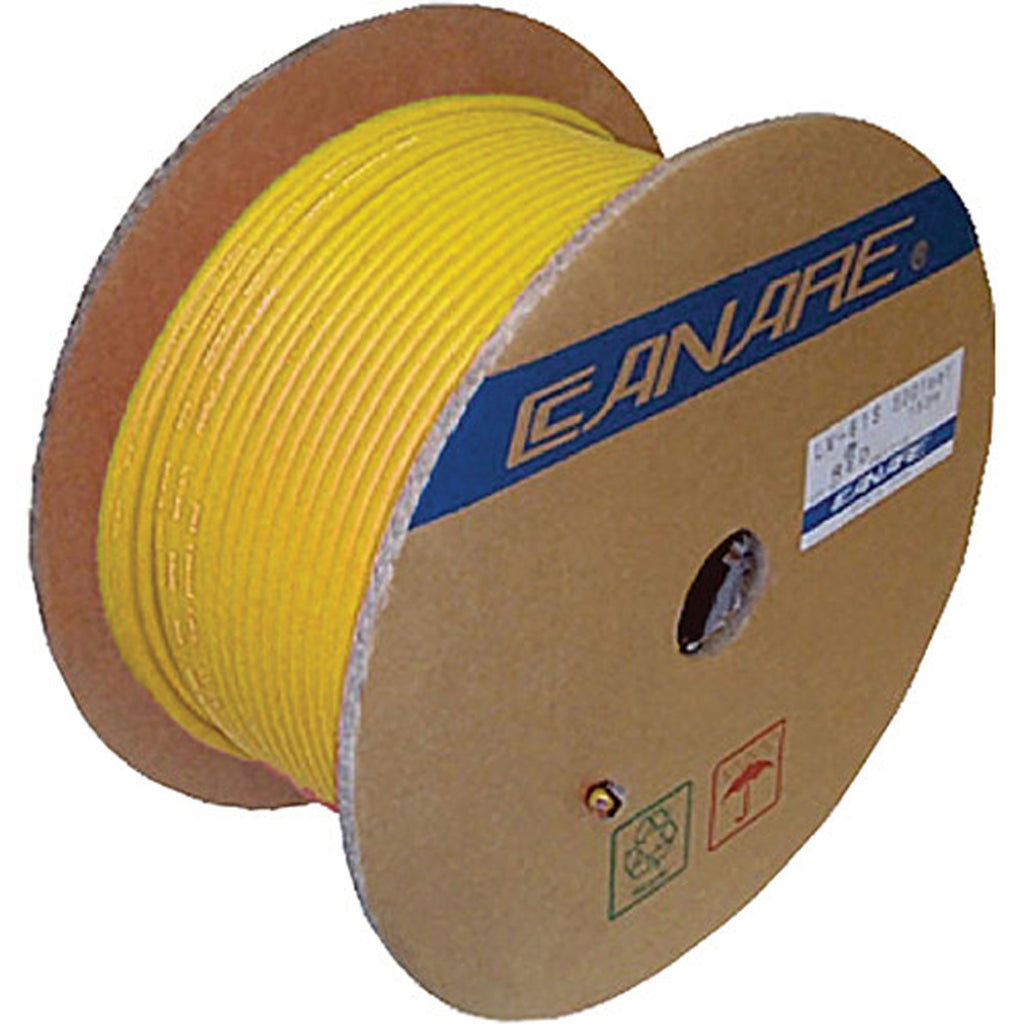

Canare LV-61S 75 Ohm Coaxial Video Cable RG-59 Type (Yellow, By the Foot) Image 1

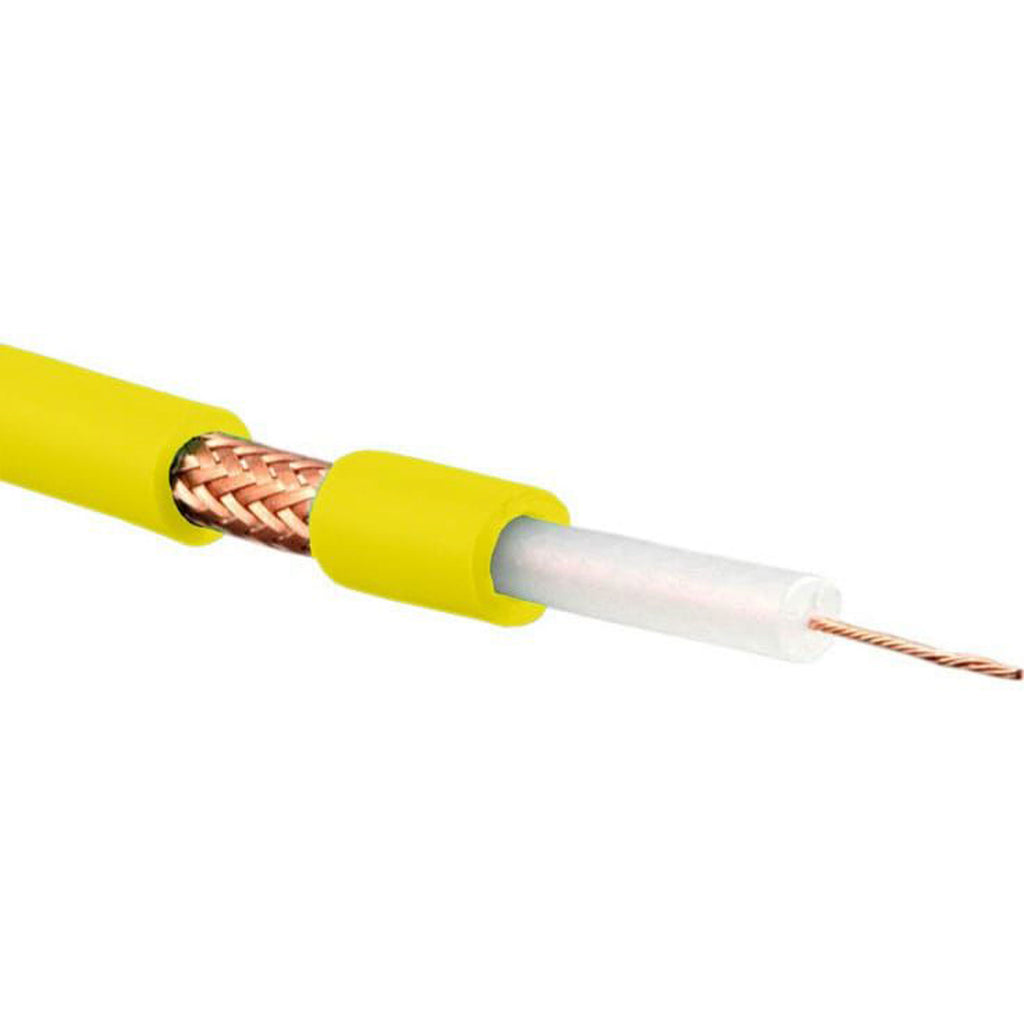

Canare LV-61S 75 Ohm Coaxial Video Cable RG-59 Type (Yellow, By the Foot) Image 2
Roll over image to zoom in Click on image to zoom
Canare LV-61S 75 Ohm Coaxial Video Cable RG-59 Type (Yellow, By the Foot) Image 1Canare LV-61S 75 Ohm Coaxial Video Cable RG-59 Type (Yellow, By the Foot) Image 2

Canare LV-61S 75 Ohm Coaxial Video Cable RG-59 Type (Yellow, By the Foot)

Canare SKU: CAN LV61SYELLOW
MPN: LV-61S YELLOW
Price:
$0.72
Stock:
379 In Stock & Ready to Ship

Make it a bundle

Custom Cable 7 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 7 Feet of Canare LV-61S Yellow Wire
$5.04
Custom Cable 25 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 25 Feet of Canare LV-61S Yellow Wire
$18.00
Canare LV-61S 75 Ohm Coaxial Video Cable RG-59 Type (Yellow, 500'/153m) Image 1
Canare LV-61S 75 Ohm Coaxial Video Cable RG-59 Type (Yellow, 500'/153m)
$334.80
2 Reviews
Custom Cable 9 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 9 Feet of Canare LV-61S Yellow Wire
$6.48
Custom Cable 6 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 6 Feet of Canare LV-61S Yellow Wire
$4.32
Custom Cable 50 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 50 Feet of Canare LV-61S Yellow Wire
$36.00
Custom Cable 23 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 23 Feet of Canare LV-61S Yellow Wire
$16.56
Custom Cable 24 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 24 Feet of Canare LV-61S Yellow Wire
$17.28
Custom Cable 3 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 3 Feet of Canare LV-61S Yellow Wire
$2.16
Custom Cable 20 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 20 Feet of Canare LV-61S Yellow Wire
$14.40
Custom Cable 30 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 30 Feet of Canare LV-61S Yellow Wire
$21.60
Custom Cable 45 Feet of Canare LV-61S Yellow Wire Image 1
Custom Cable 45 Feet of Canare LV-61S Yellow Wire
$32.40

Key Features

  • Sold by the Foot
  • Shipped in a Continuous Length
  • RG59 Type
  • Flexible Center Conductor
  • Dielectric Strips Away Clean
  • Tightly Woven Braid Shield
  • 10 Colors Available

Description

Flexible 75-ohm coax for custom video cables

Canare LV-61S Yellow is a flexible, single-channel 75-ohm RG59B/U-equivalent coaxial cable with a stranded 24 AWG bare copper center conductor, polyethylene dielectric, and greater than 95% copper braid coverage. Its 6.1 mm PVC jacket suits custom video patch leads and equipment interconnects where flexibility and easy cable identification matter.

Ordering by the foot

Sold by the foot and shipped in a continuous length. Quantity 25 means one 25-foot piece. This is unterminated bulk cable; connectors are not included. Allow extra length for routing and termination.

Match the cable to the signal

Use appropriate 75-ohm connectors for compatible video and other 75-ohm coaxial connections. Confirm the equipment's signal format, frequency, cable requirements, and permitted run length. A 75-ohm impedance specification alone does not establish suitability for every SDI format or transmission distance.

LV-61S can also be used for suitable unbalanced audio or instrument assemblies when properly terminated. Its listed capacitance is 21 pF/ft (67 pF/m); total cable capacitance increases with length. It does not increase pickup sensitivity, and connector plating alone does not guarantee better sound. This single-center-conductor coax is not a substitute for two-conductor balanced microphone cable or speaker cable.

Connector fit and assembly

Select connectors explicitly compatible with LV-61S or its complete construction: 6.1 mm jacket, 3.6 mm dielectric, and 0.6 mm stranded center conductor. Jacket diameter alone does not establish fit. For crimp connectors, use the specified strip dimensions, ferrule, contact, tooling, and die sizes. Secure the jacket with the intended strain relief, keep braid strands clear of the center contact, and test the finished cable before use.

Choose a jacket color

Use different colors to identify signal paths and simplify patching. These links are for the active by-the-foot color listings.

Construction specifications

  • Model: LV-61S
  • Jacket color: Yellow
  • Type: Single-channel RG59B/U-equivalent coaxial cable
  • Center conductor: 24 AWG annealed stranded bare copper
  • Conductor stranding: 7 strands × 7.88 mil
  • Nominal conductor diameter: 0.024 inch (0.6 mm)
  • Dielectric: PE (polyethylene)
  • Insulation outside diameter: 0.142 inch (3.6 mm)
  • Shield: Annealed copper braid, greater than 95% coverage
  • Nominal cable outside diameter: 0.240 inch (6.1 mm)
  • PVC jacket thickness: 0.039 inch (1.0 mm)
  • Reference roll length: 500 ft (153 m)
  • Reference roll weight: 19 lb (8.6 kg)

Electrical specifications

  • Nominal impedance: 75 ohms
  • Center-conductor DC resistance: Less than 25.9 Ω/1,000 ft (8.5 Ω/100 m)
  • Shield DC resistance: Less than 4.0 Ω/1,000 ft (1.3 Ω/100 m)
  • Nominal capacitance at 1 kHz: 21 pF/ft (67 pF/m)
  • Nominal attenuation at 10 MHz: 13 dB/1,000 ft (4.2 dB/100 m)
  • Velocity of propagation: 66%
  • Dielectric strength: 1,000 V AC for 1 minute
  • Listed insulation resistance, 3 Mft reference: Greater than 1,000 MΩ

Temperature reference

Listed jacket brittle point: −22°F (−30°C). This is a material brittle-point specification, not a guaranteed operating-temperature range.

Details
  • Manufacturer:  Canare
  • MPN: LV-61S YELLOW
  • Model Number: LV-61S Yellow
