Canare L-4E5C Mini Star Quad Microphone Cable (Black, By the Foot)

Canare SKU: CAN L4E5CBLACK
MPN: L-4E5C BLACK

Price:
Sale price$0.71
Stock:
1575 In Stock & Ready to Ship

Key Features

  • Sold by the Foot
  • Mini Version of L-4E6S
  • Flexible in Extreme Cold Weather
  • Rejects EMI & RFI
  • Reduced Handling Noise

Description

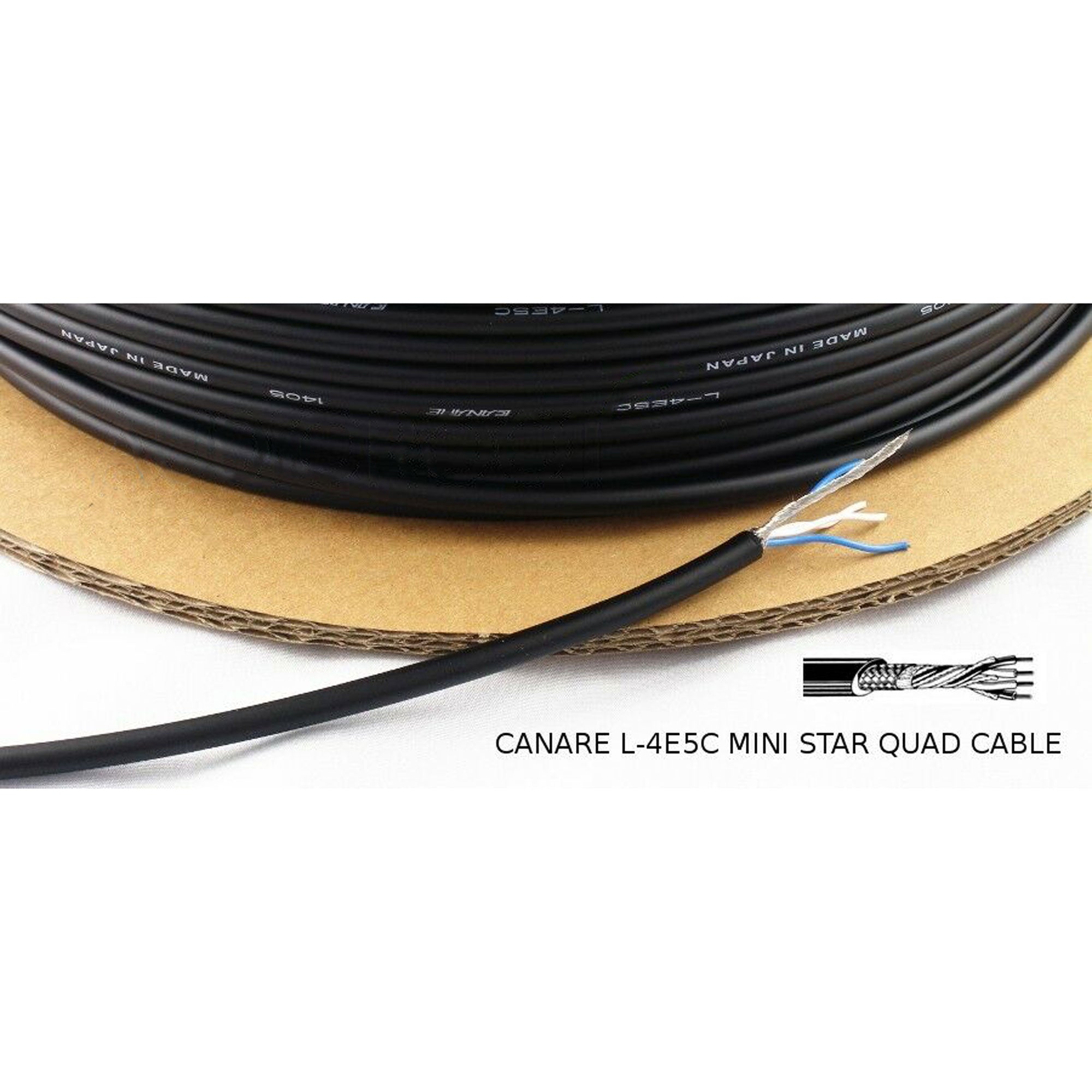

Black Canare L-4E5C Mini Star Quad Cable, Sold by the Foot

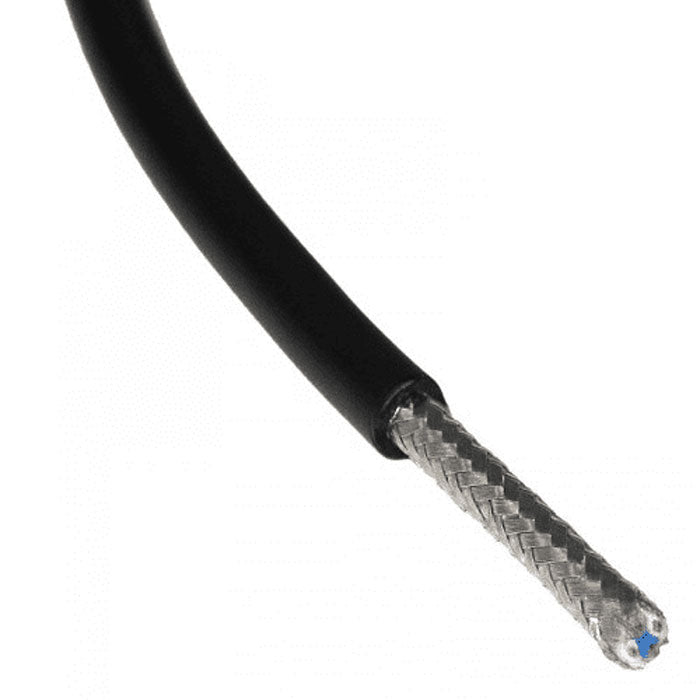

This black Canare L-4E5C Mini Star Quad microphone cable gives custom cable builds a compact profile for remote field work and installations where space and weight matter. Its black PVC outer jacket has a nominal 4.8 mm outside diameter, smaller than the 6 mm L-4E6S. Sold by the foot, this listing is specifically for the black jacket color.

Order the Length You Need

Sold by the foot. Enter the number of feet you need in the quantity field. For example, quantity 25 orders 25 feet of cable. This is bulk cable for custom assembly, not a finished microphone cable; connectors are not included.

Plan Your Connectors and Wiring

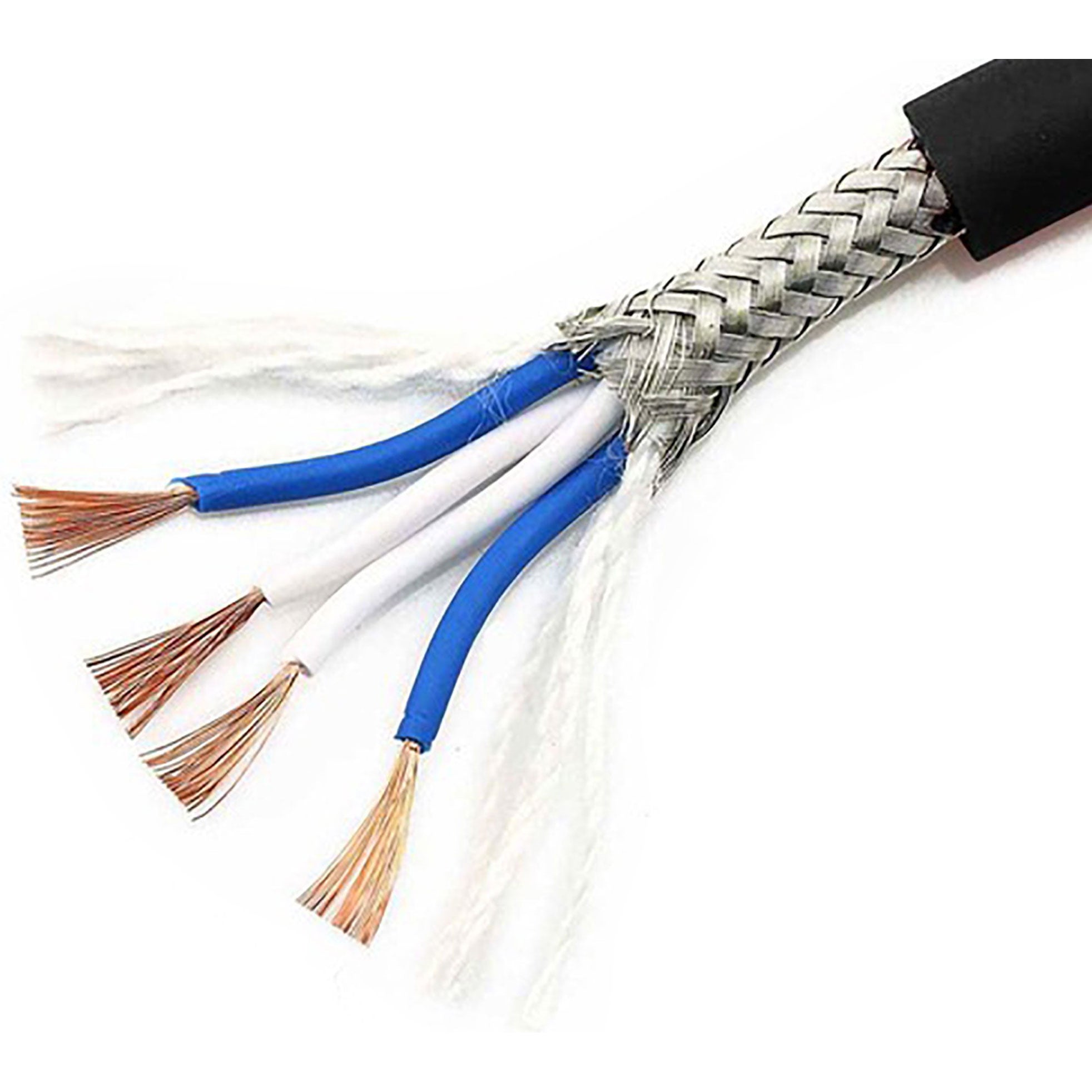

L-4E5C has four individual 26-AWG conductors, two blue and two white, arranged in a Star Quad construction with a braided shield. The listed 23-AWG quad equivalent refers to the paired conductors, not the gauge of each individual conductor.

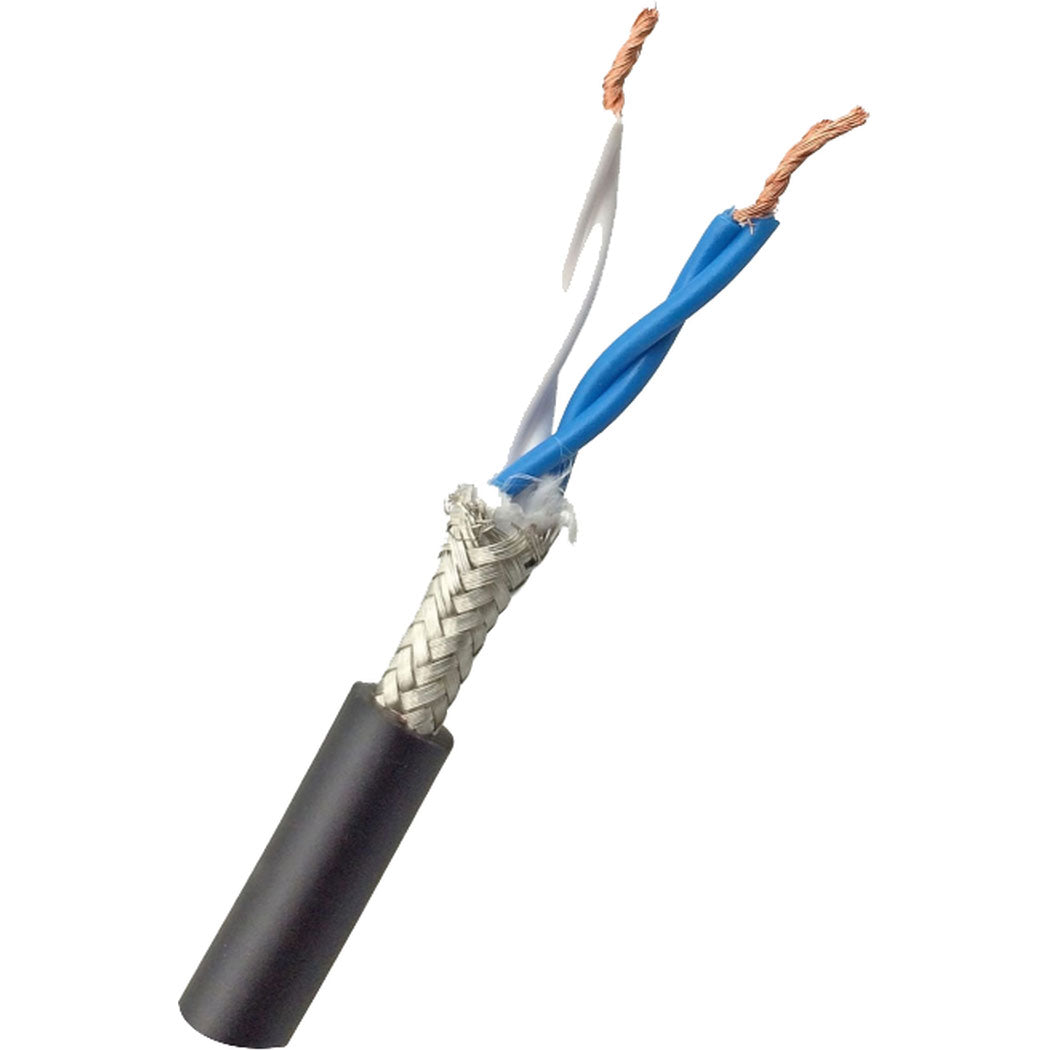

For balanced Star Quad wiring, pair the two conductors of each color to form the two signal legs. Connect the shield according to your equipment and connector requirements. Check that the connector's cable entry and strain relief accommodate the 4.8 mm jacket and that its terminals accommodate the paired conductors. Follow the connector manufacturer's preparation and assembly instructions.

Features

  • Miniature Star Quad construction for custom microphone cable builds.
  • Narrower profile than L-4E6S for space-conscious installations and remote field applications.
  • Four 26-AWG conductors with a listed 23-AWG quad paired equivalent.
  • Braided shield with greater than 96% coverage.
  • Black PVC jacket with a nominal 4.8 mm outside diameter.
  • Sold by the foot for custom lengths.

Mechanical Specifications

  • Model: L-4E5C
  • Jacket color: Black
  • Nominal outside diameter: 4.80 mm, 0.189 in.
  • Nominal PVC jacket thickness: 0.80 mm, 0.032 in.
  • Conductors: Four, two blue and two white
  • Individual conductor gauge: 26 AWG
  • Conductor construction: 30 strands × 3.15 mil; listed cross-sectional area 232.5 mil²
  • Quad paired equivalent: 23 AWG
  • Insulation: IPE, listed thickness 11.8 mil
  • Quad twist pitch: 18 mm, 0.71 in.
  • Shield: TAC braid, greater than 96% coverage
  • Listed jacket brittle point: −49°C, −56°F; not an operating-temperature rating

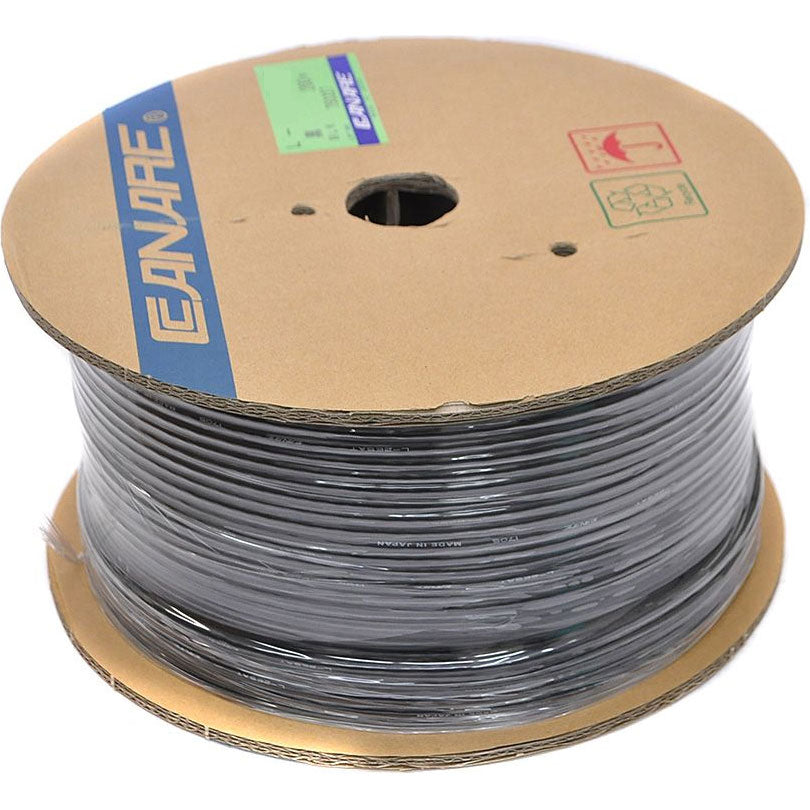

  • Standard reference length: 200 m, 656 ft; this listing is sold by the foot, not as a full roll
  • Listed weight per standard reference length: 8 kg, 18 lb

Electrical Specifications, Quad Connection

  • Conductor DC resistance: Less than 39.7 Ω/1,000 ft, less than 13.0 Ω/100 m
  • Shield DC resistance: Less than 7.6 Ω/1,000 ft, less than 2.5 Ω/100 m
  • Listed nominal capacitance values: 162 pF/m and 200 pF/m
  • Nominal impedance: 40 Ω
  • Listed nominal attenuation: 0.9 V/1,000 ft, 0.3 V/100 m
  • Group delay: 1.71 ns/ft, 5.6 ns/m
Details
  • Manufacturer:  Canare
  • MPN: L-4E5C BLACK
  • Model Number: L-4E5C Black
