Canare L-4.5CHD 75 Ohm Super Low Loss 3G-SDI / HD-SDI Digital Video Coax Cable (Black, 984'/300m)

The Canare L-4.5CHD is a black, 75-ohm super low loss digital video coaxial cable supplied on a full 300-meter spool, approximately 984 feet. Designed for 3G-SDI and HD-SDI distribution, it provides bulk cable for custom-length video connections, rack wiring, and professional AV projects.

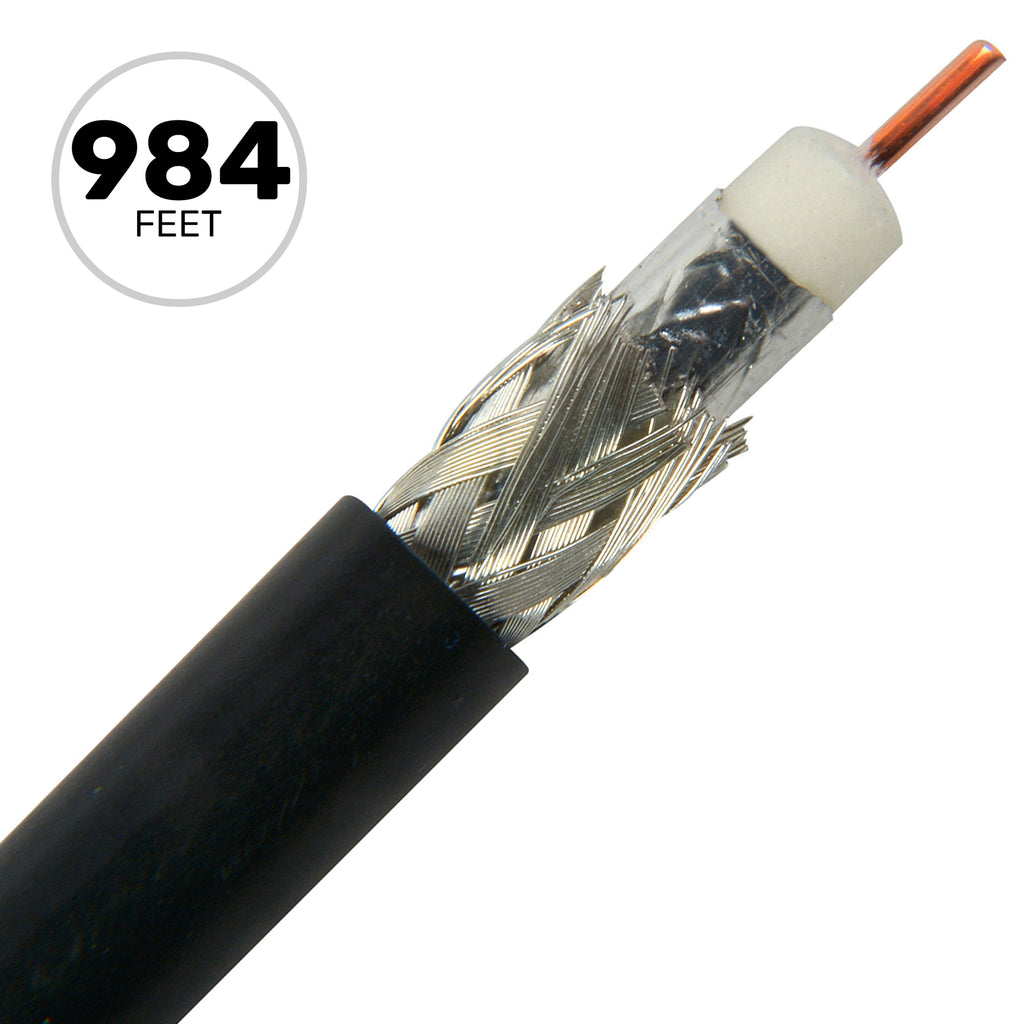

An 18 AWG solid center conductor and highly foamed PE insulation provide the cable's low-attenuation construction. Multi-layer insulation uses different foaming ratios to balance low loss with strength, while aluminum foil and a high-density tinned copper braid help shield the video signal from interference. Keep a full spool on hand to cut the lengths each equipment layout requires.

Other lengths available: By the Foot

Full-Spool Ordering

Each order quantity of 1 includes one full 300-meter spool, approximately 984 feet (984.25 feet). This listing is sold by the spool, not by the foot. Spool length is the total cable supplied, not the supported length of a single SDI run.

Key Features

• 75-ohm precision coaxial cable for 3G-SDI and HD-SDI applications
• 18 AWG solid center conductor
• Highly foamed, multi-layer PE insulation for low attenuation and strength
• Aluminum foil and tinned copper braid shielding
• Braided shield coverage of 91% or greater
• Supports SMPTE 259M, 292M, and 424M applications
• Full 300-meter spool for multiple custom-length cable runs

Specifications

• Model: L-4.5CHD
• Impedance: 75 ±3 ohms
• Center conductor: 18 AWG solid, 1.02 mm diameter
• Nominal outside diameter: 7 mm
• Insulation diameter: 4.57 mm
• Insulation: Highly foamed, multi-layer PE
• Shield: Aluminum foil and high-density tinned copper braid
• Center conductor resistance: ≤23.3 ohms/km
• Outer conductor resistance: ≤9.9 ohms/km
• Capacitance: 53 nF/km at 1 kHz
• Attenuation: 17.4 dB per 100 m at 750 MHz
• Color: Black
• Spool length: 300 meters, approximately 984 feet
