Key Features
- 75 Ohm 23 AWG Coaxial Cable
- Multi-Layered, Highly-Foamed Insulation
- Different Foaming Ratio Per Layer
- Tinned Copper Braid and Foil Shielding
- Ideal for Internal Rack Wiring
- Sold by the Foot
- Shipped in a Continuous Length
Description

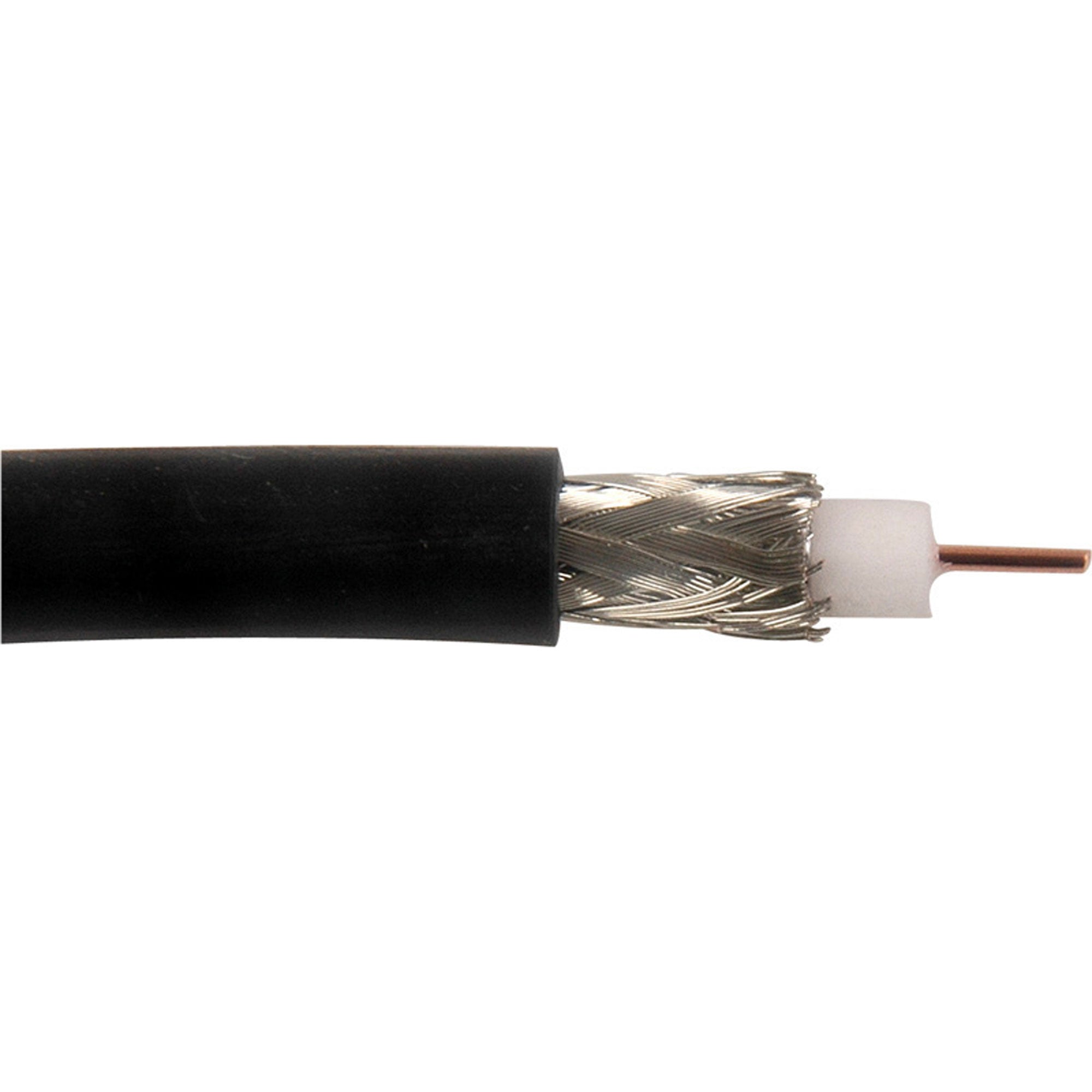

Super Low Loss 75 Ohm Digital Video Coaxial Cable, Single Channel, Low Attenuation, 23 AWG - Black - Sold by the Foot
Canare's variety of 75 ohm coaxial cables support full-range of video formats. Our cutting-edge Super Low Loss Coax and Low Loss Coax are ideal for 3G-SDI / HD-SDI distribution.

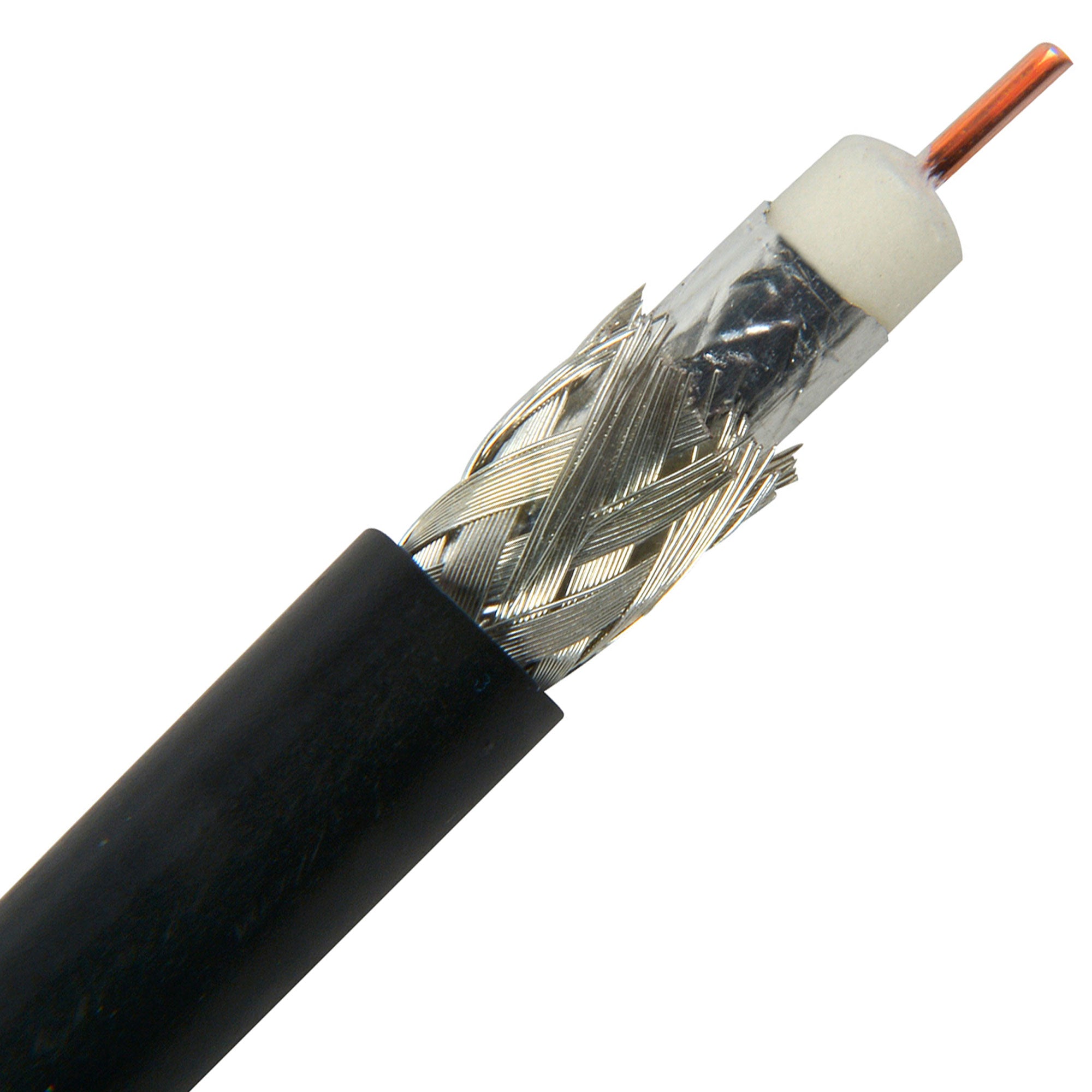

This Canare L2.5CHD Super Coax Cable is a 75 Ω, 23 AWG coaxial cable for internal rack wiring. It features highly-foamed PE insulation that allows better attenuation because of the softness of the foaming. The insulation is made up of multiple layers at different foaming ratios to increase its durability. The shielding is tinned copper braid with aluminum foil, which provides better rejection of interference because of the solid composition of the foil.
Features:
- HD-Serial Digital Video.
- Satellite Head Ends.
- HDTV Upgrades.
- Broadband Facilities.
- SMPTE 259M, 292M,424M.
- Best suited to 3G-SDI / HD-SDI transmission
- Highly-foamed PE insulation allows further improvement in the attenuation characteristics.
- Multi-layer insulation in which to each layer is given a different foaming ratio is used to increase strength.
- Tinned copper braid with aluminum foil brings excellent shielding.
- L-2.5CHD is ideal for internal rack wiring.
- Flame resistance UL 1666 Riser (L-2.5CHD, L-4CHD, L-4.5CHD, and L-5CHD).
Specifications:
- Model Number: L-2.5CHD
- Nom. O.D (mm): 4.2
- Weight (kg/100m): 2.6
- AWG: 23
- Inner cond. O.D (mm): 0.59
- Insulation O.D (mm): 2.59
- Outer Conductors - Braid comp. (mm/ends/carriers): 16.9
- Inner cond. resist. (/km): 66.9
- Attenuation (dB/100m - 1.5 GHz): 43.1
