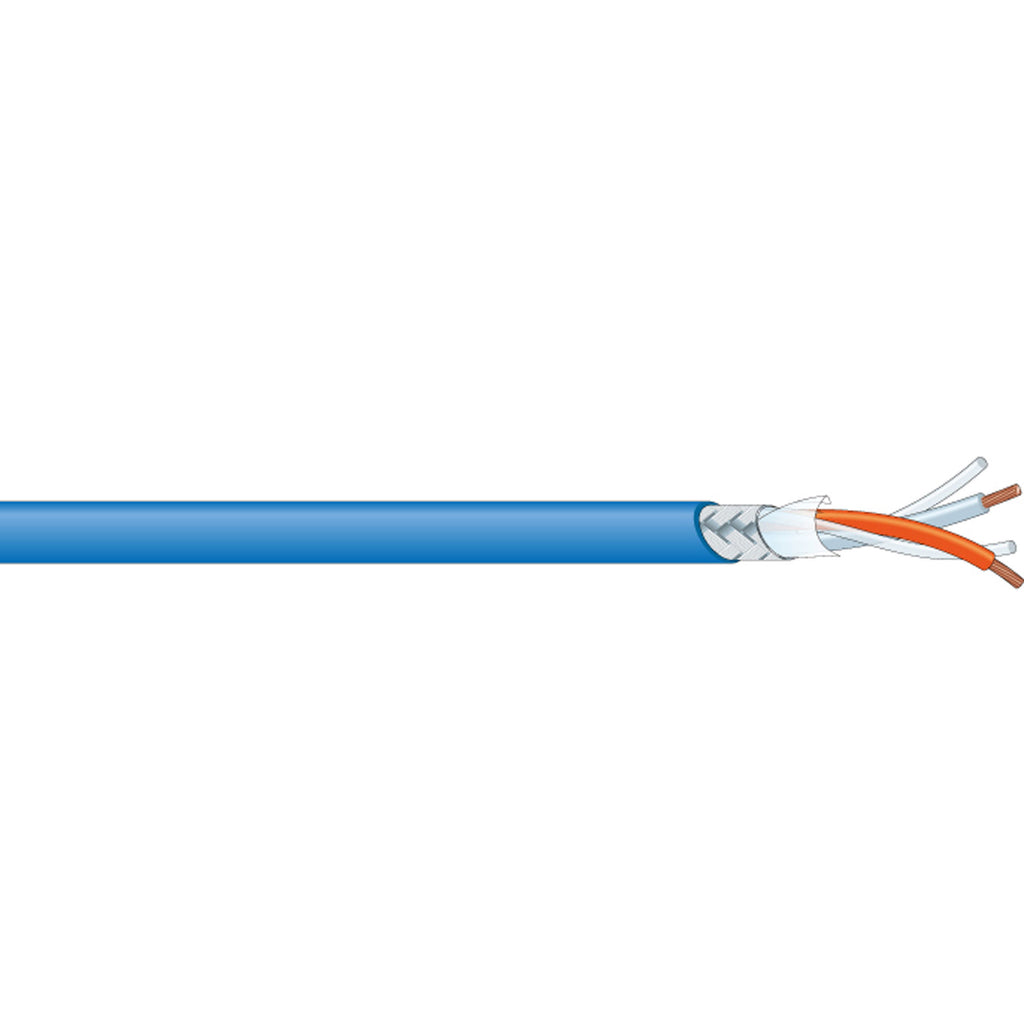

Canare DA206 110 Ohm AES/EBU Digital Audio Cable (Blue, 656'/200m)

110 Ohm AES/EBU Digital Audio Cable, 20 AWG - Full 656'/200m Roll

Canare DA206 is the cable of choice for running AES/EBU digital audio signals. Its large O.D. and robust construction makes it the perfect choice for the longest cable runs in digital pro-audio and broadcast video field recording.

Twisted Pairs with Braided Shield Special PE Filter Rods maintain constant 110ω impedance. Maximum recommended AES/EBU Length: 1,180ft (360meters). Jacket color: BLUE.

Features:

• PE rod configuration ensures consistent 110 ohm impedance with large or small bends in cable during installation.
• DA206 ideal for digital audio paths up to 360 m*.

Specifications:

• Model Number: DA206
• No. of ch.: 1
• Nom. O.D. (mm): 7.3
• Weight (kg/100m): 7.5
• AWG: 20
• Twist Pitch (mm): 60
• Shield coverage (%): 95
• Unit O.D. (mm): -
• Cond. D.C.R. (Ω/100m): 3.3
• Shield D.C.R. (Ω/100m): 1.4
• Nom. Cap* - pF/m: 48
• Nom. Cap** - pF/m: 73
