Key Features
- 32 MDVJ-STW / 75ohm Dual Video Jacks
- For HD-SDI / Serial Digital Video
- Bandwidth - DC to 3.0 GHz
- Return Loss > 10 dB
- Used for HDTV Upgrades & in OB Vans
- Canare's Proprietary Rotary Switch
- Beryllium Copper & Gold-plated Contacts
- 1RU Lightweight Alloy Body
- Slim BNC Crimp Plug/Easy Maintenance
Description

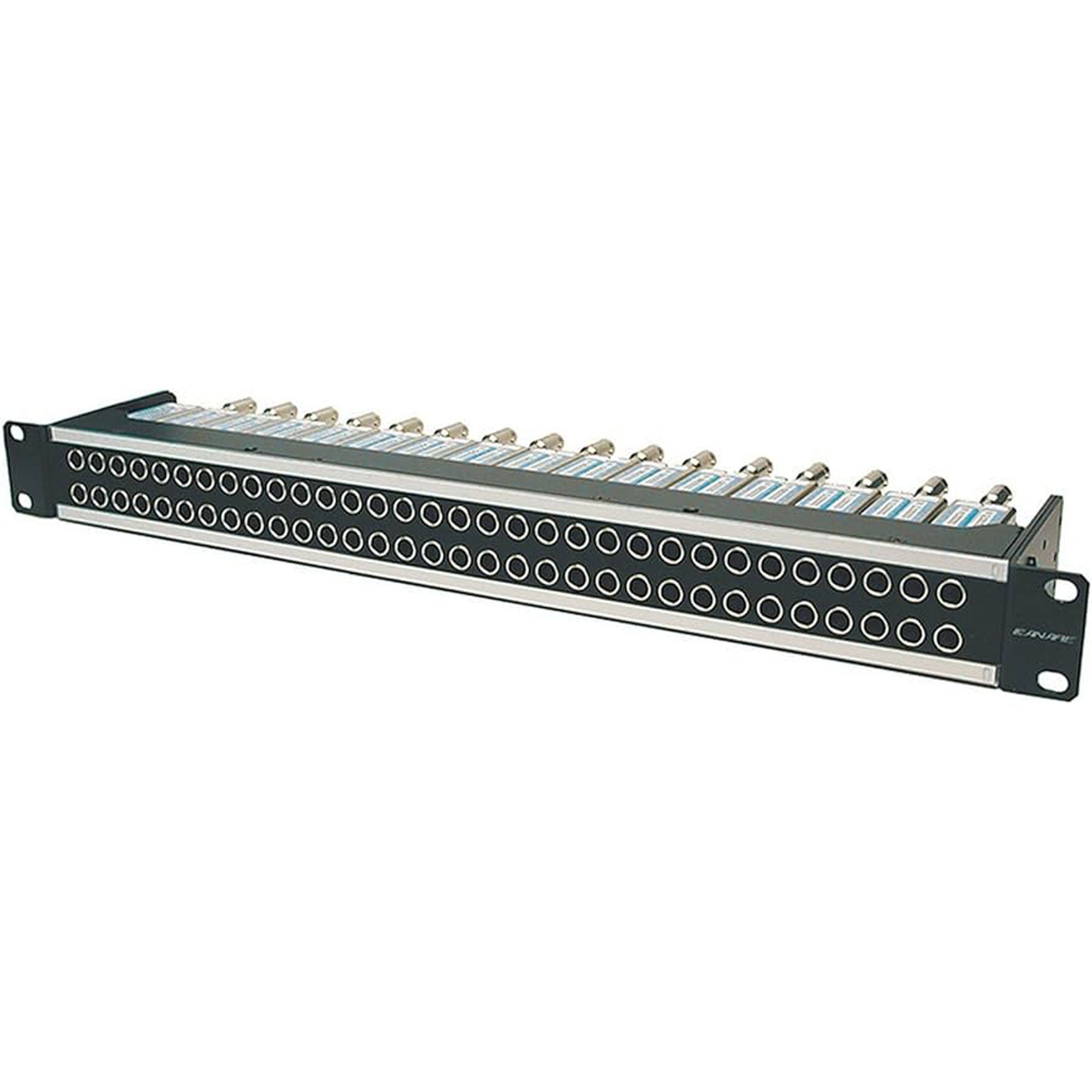

1RU Mid-Sized Video Patchbay with 32 Normal Through
The Canare 32MD-ST / Mid-size HD-SDI Patchbay (2 x 32 / Normal Through) is used to quickly change the path of select signals without the need for dedicated switching equipment. It comes loaded with 32 MDVJ-STW 75 ohm dual video jacks and is compatible with HD-SDI, Serial Digital Video, and NTSC Analog.
With a frequency ranging from DC to 3.0 GHz and a return loss greater than 10 dB, the Mid-size HDTV Patchbay is ideal for use in OB vans and for HDTV upgrades. In addition to Canare's rotary switch, this lightweight alloy patchbay also comes with beryllium copper and gold-plated center contacts. Housed in a 1RU, this patchbay can be easily maintained through a standard or Canare Slim BNC crimp plug.
Features:
- Used to quickly change the path of select signals without dedicated switching equipment
- Loaded with 32 MDVJ-STW 75ohm dual video jacks and offers a normal through circuit
- Compatible with HD-SDI, Serial Digital Video, and NTSC Analog
- Offers bandwidth ranging from DC to 3.0 GHz and a return loss greater than 10 dB
- Ideal for use in OB vans and for HDTV upgrades
- Equipped with Canare's proprietary rotary switch
- 1RU lightweight alloy body with beryllium copper and gold-plated center contacts
- Easy maintenance with standard or Canare's Slim BNC crimp plug
Specifications:
- Impedance: 75 Ohms
- Panel Size: 1 RU
- Loaded Video Jacks: 32 x MDVJ-STW
- Circuit Type: Normal through
- Jacks & Connectors: 32 (video jacks)
- Return Loss:
750 MHz: 26 dB or greater
2.4 GHz: 20 dB or greater
3 GHz: 10 dB or greater - Isolation:
1.5 GHz: 35 dB or greater
3 GHz: 20 dB or greater
