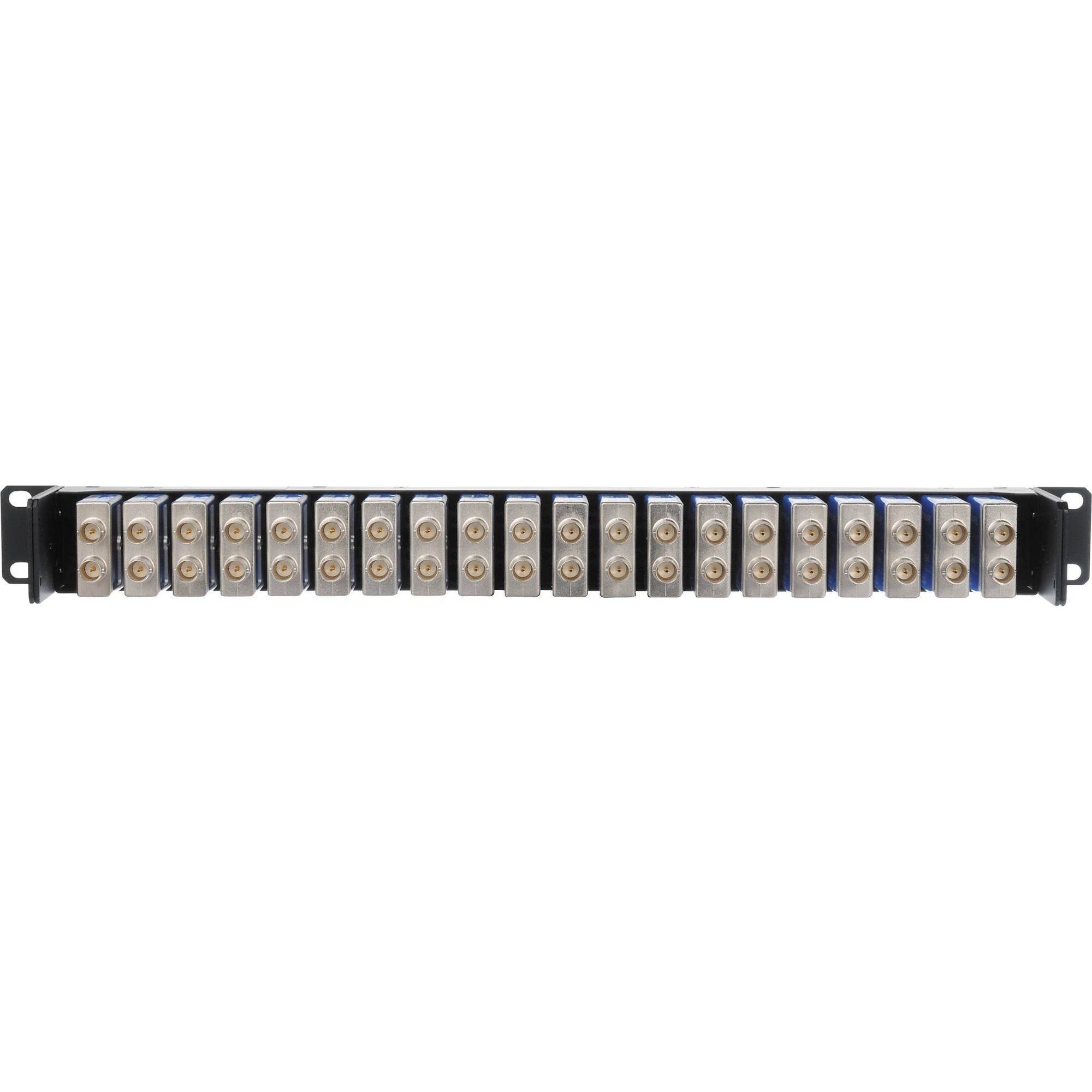

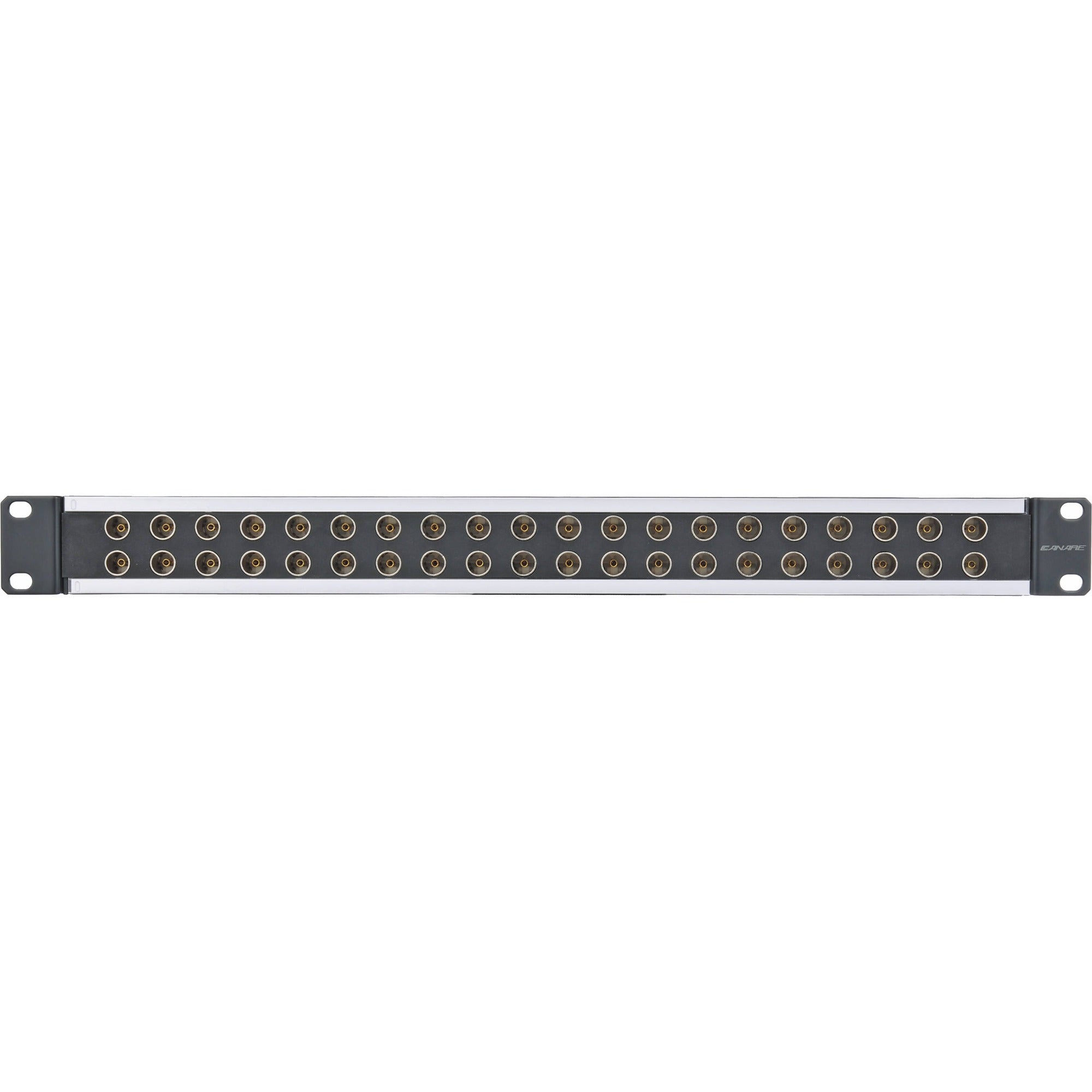

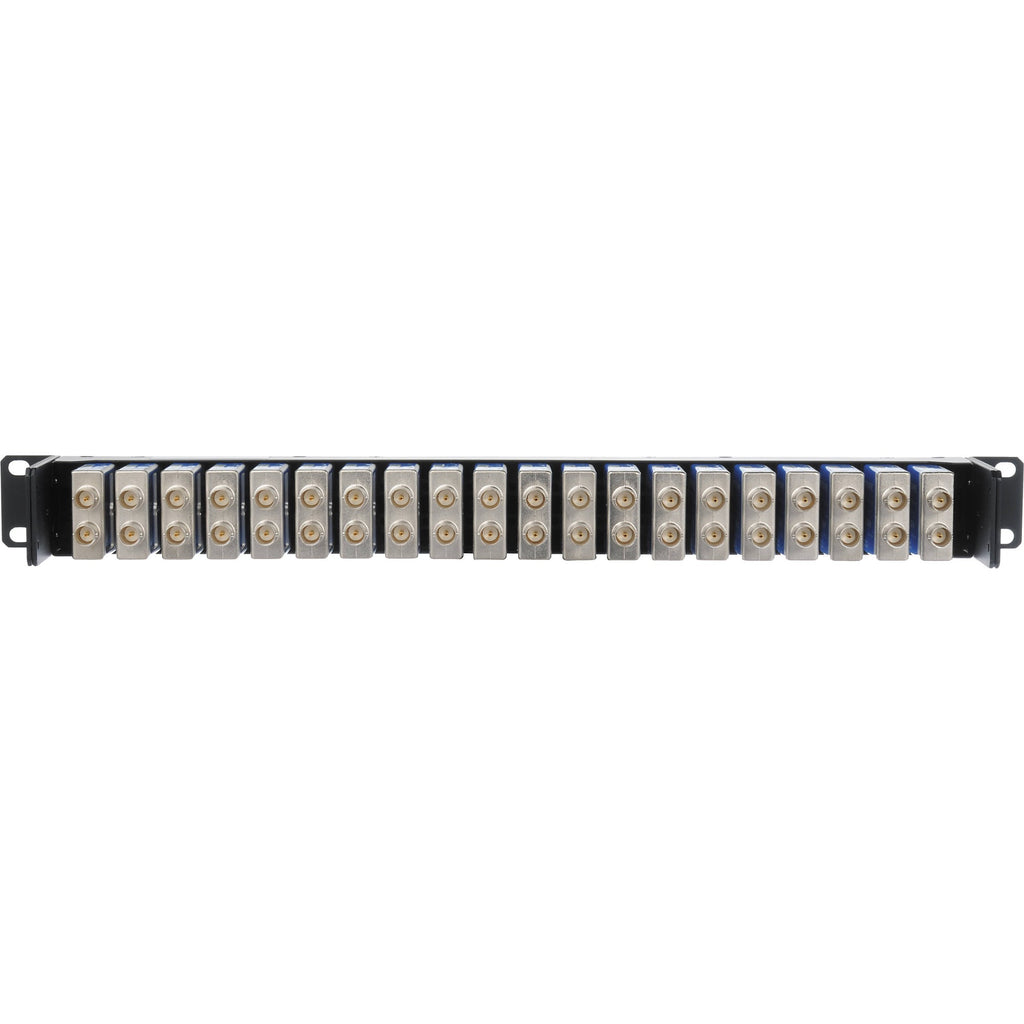

Canare 20DVS 2x20 Digital Video Patchbay (1RU, Straight Through)

1RU Video Patchbay with 20 Straight Through

The Canare 20DVS / Digital Patchbay (2 x 20 / Straight Through) is used to quickly change the path of select signals without the need for dedicated switching equipment. It comes loaded with 20 DVJB-S 75 ohm dual video jacks and is compatible with HD-SDI, Serial Digital Video, and NTSC Analog.

With a frequency ranging from DC to 3.0 GHz and a return loss of 20 dB, the Digital Patchbay is ideal for use in OB vans and small production studios and for HDTV upgrades. Thanks to its compact size (19 x 1.7 x 6.4" / 483 x 44 x 164 mm) and an easy front mount assembly, the 1RU patch panel proves suitable for satellite headends and broadband telecom cell sites, where rack space is minimal.

In addition to Canare's rotary switch, the lightweight alloy patchbay also comes with beryllium copper and gold-plated center contacts.

Features:

• Used to quickly change the path of select signals without dedicated switching equipment
• Loaded with 20 DVJB-S 75ohm dual video jacks and offers a Straight Through circuit
• Compatible with HD-SDI, Serial Digital Video, and NTSC Analog
• Offers bandwidth ranging from DC to 3.0 GHz and a return loss of 20 dB
• Ideal for HDTV upgrades and for use in OB vans and small production studios
• Compact size (19 x 1.7 x 6.4" / 483 x 44 x 164 mm)
• Easy front mount assembly
• Suitable for satellite headends and broadband telecom cell sites
• Equipped with Canare's proprietary rotary switch
• 1RU lightweight alloy body with beryllium copper and gold-plated center contacts

Specifications:

• Rack Height: 1RU
• Circuit Design: Straight
• Jack: x20
• Configuration: Row Configuration: 2 x 20
• Patch Point: 40
• Dimensions (WxHxD): 19 x 1.7 x 6.4" (483 x 44 x 164mm)
