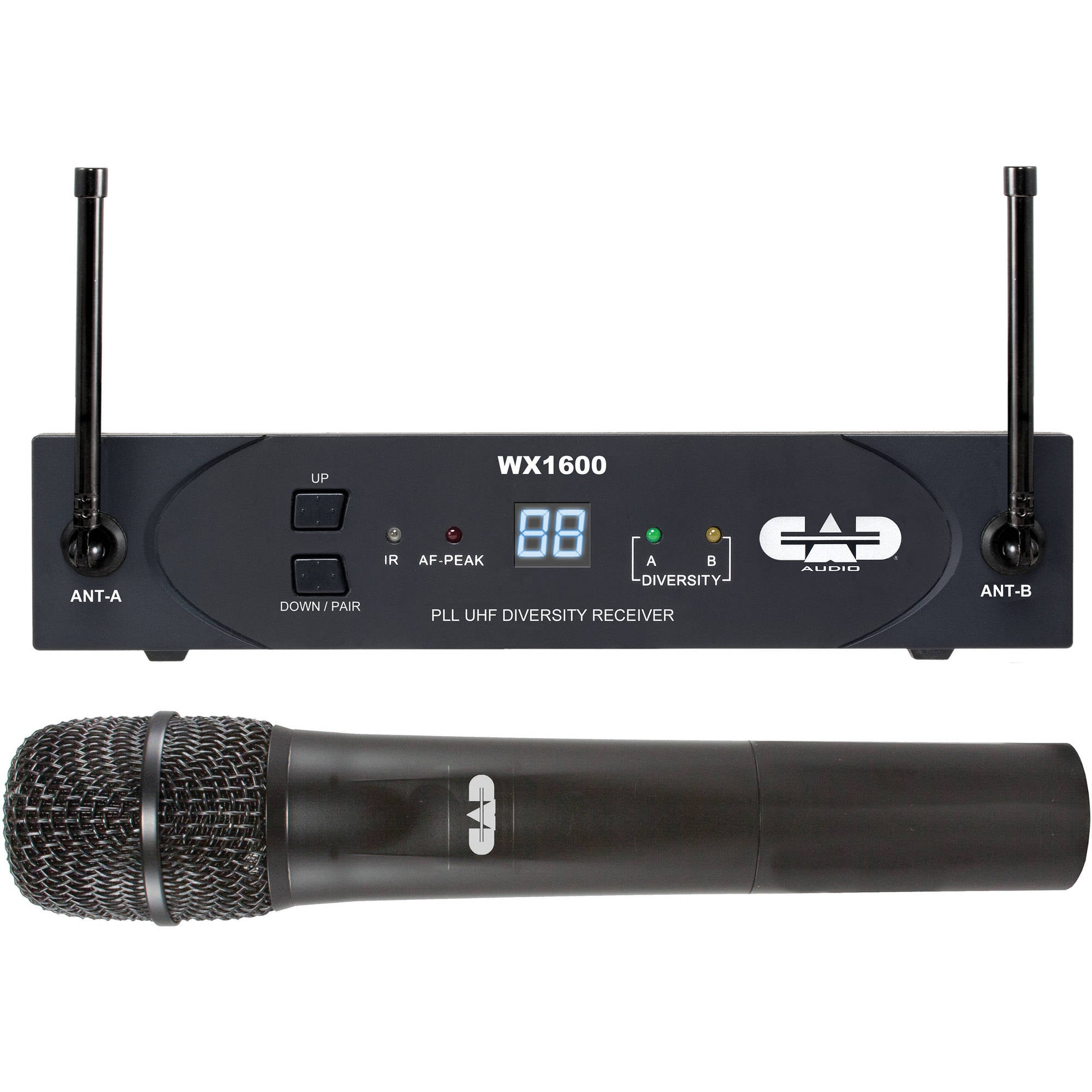

CAD WX1600 UHF Wireless Handheld System

UHF Wireless Cardioid Dynamic Handheld Microphone System

The WX1600 UHF 100-Channel Frequency Agile Handheld Wireless System from CAD Audio is for capturing audio. It is used in various venues for vocal and speech applications such as for singers, public speakers, stage and theater performances and more. It features a frequency response of 40Hz to 15kHz and a dynamic range of 109dB. This handheld system features 100-channel UHF frequency agile reception and offers connectivity with a minimal of multipath interference.

The WX1600 is built with Scan-Link technology to provide instantaneous and automatic channel configuration. There is an automatic code encoded squelch to help prevent and eliminate unauthorized interference. AA batteries supply over 15 hours of battery life. The transmitters have SoftTouch On and Mute switches with multicolor LED indicators to monitor mute status and battery life. The receiver is built with a metal chassis to provide a durable and shielded enclosure. This receiver features 1/4" and XLR outputs to connect to a mixer source. Rack ears and joining kit are included.

Specifications:

• Receiver
• Frequency Range:
  Band F: 638 - 662 MHz
  Band G: 542 - 564 MHz
• Audio Frequency Response: 40 Hz to 15 kHz
• Dynamic Range: >109 dB
• Outputs:
  1 x 1/4" (6.3 mm)
  1 x XLRM
• Handheld Transmitter
• Capsule: Dynamic Cardioid
• Frequency Response: 40 Hz to 15 kHz
• Transmit Power: 10 mW
• Batteries & Power: 2 x AA batteries with >15 hours battery life
