C2G C2G42395 HDMI Inline Extender Decorative Wall Plate with Interchangeable Wall Plate Covers - 4K 60Hz

The HDMI Inline Signal Booster Decorative Wall Plate is an excellent choice for transitioning to in-wall cabling, concealing and extending 4K HDMI behind the wall instead of running cables across the floor - perfect for home offices, conference rooms, huddle spaces, and classrooms.

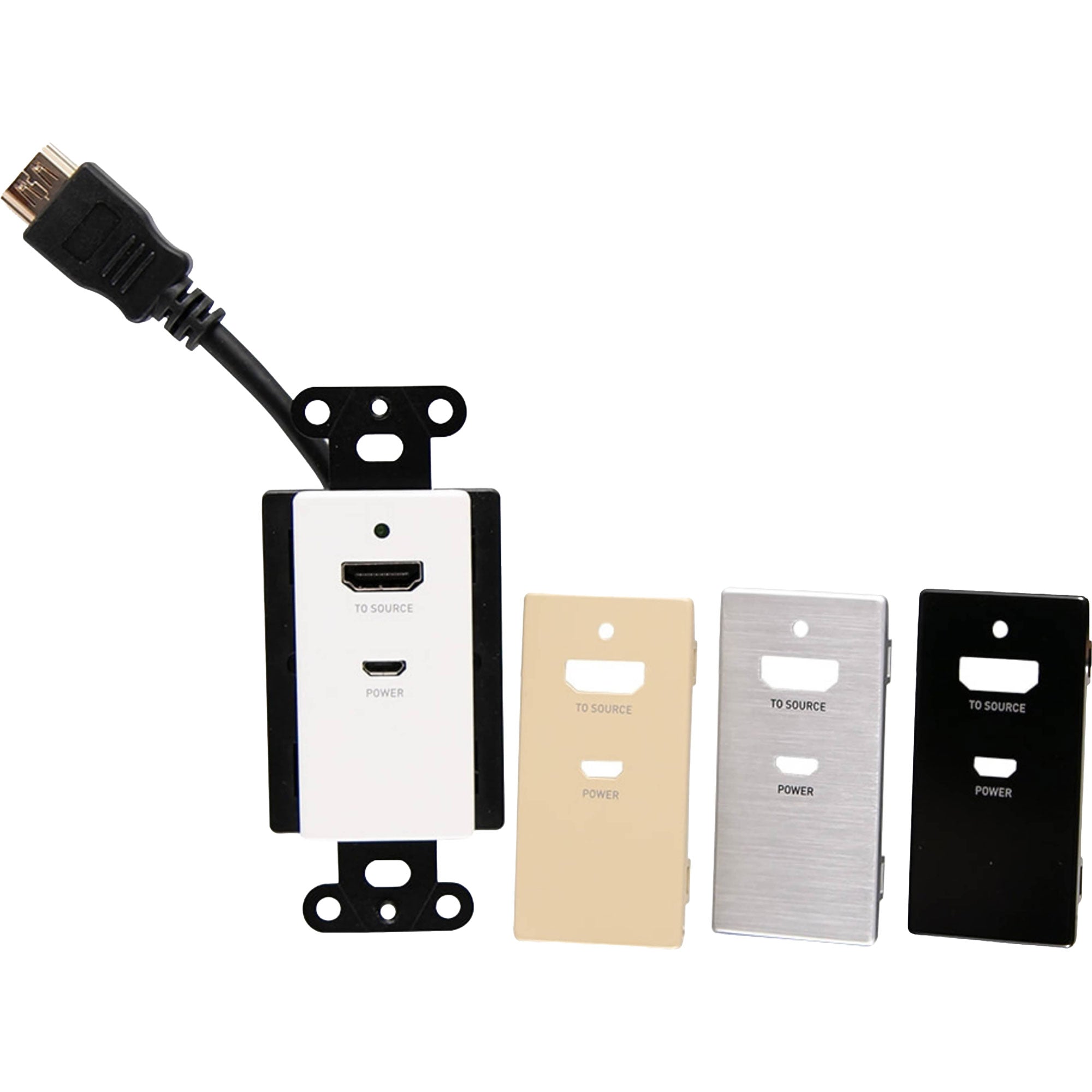

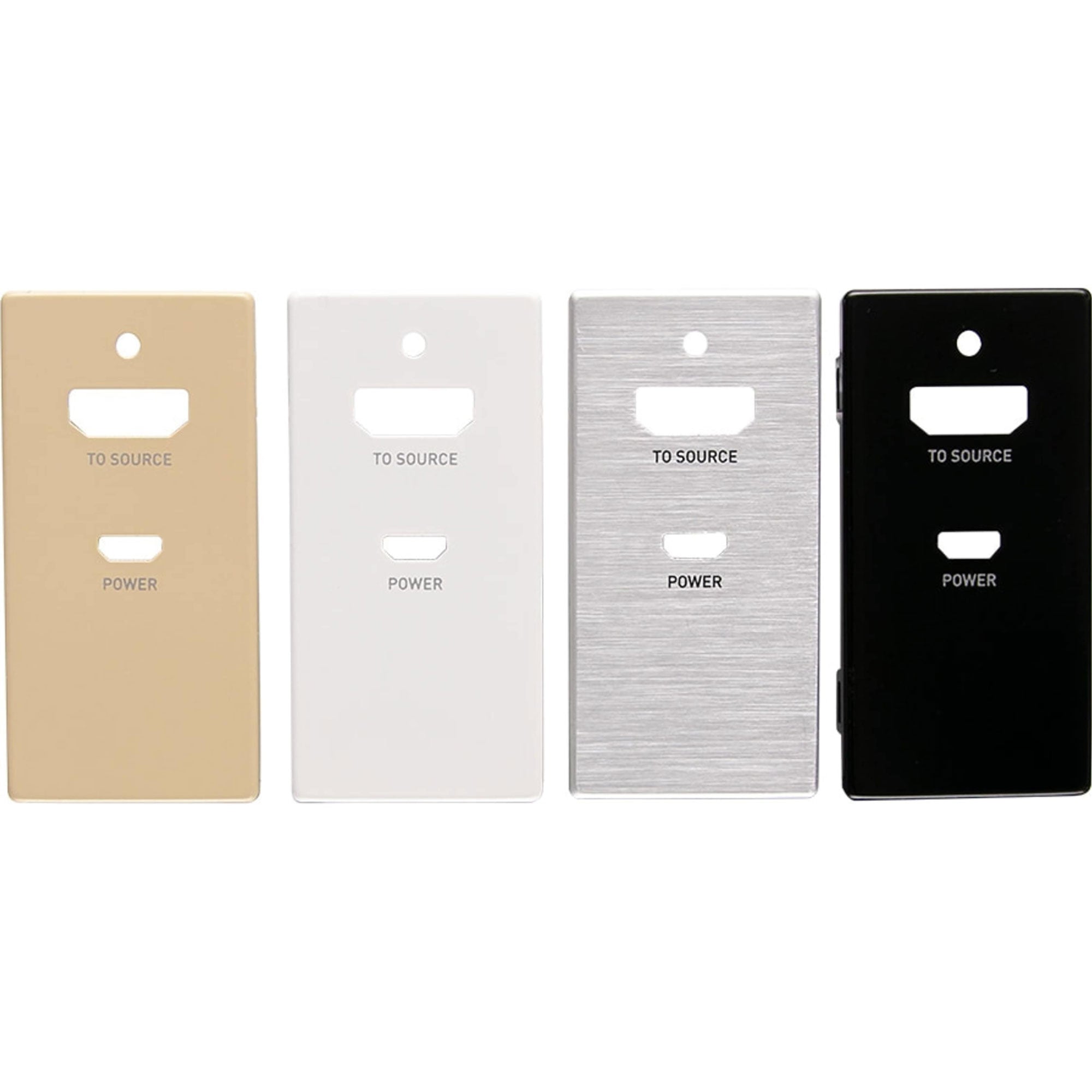

Appearance matters, and the clean, professional-looking installation of this wall plate will complement any environment. The four included interchangeable wall plate covers come in white, black, beige, and brushed aluminum to match the decor of any installation.

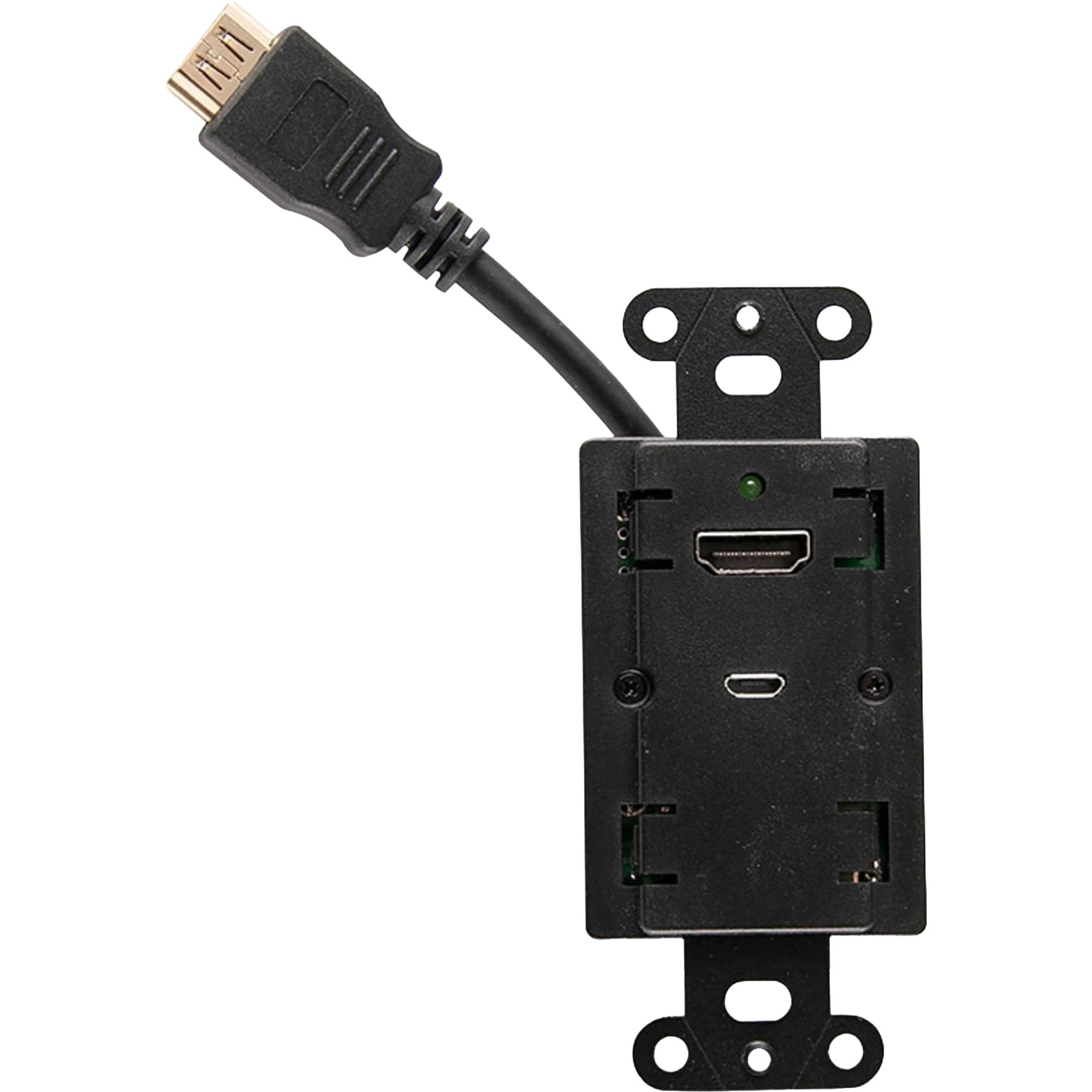

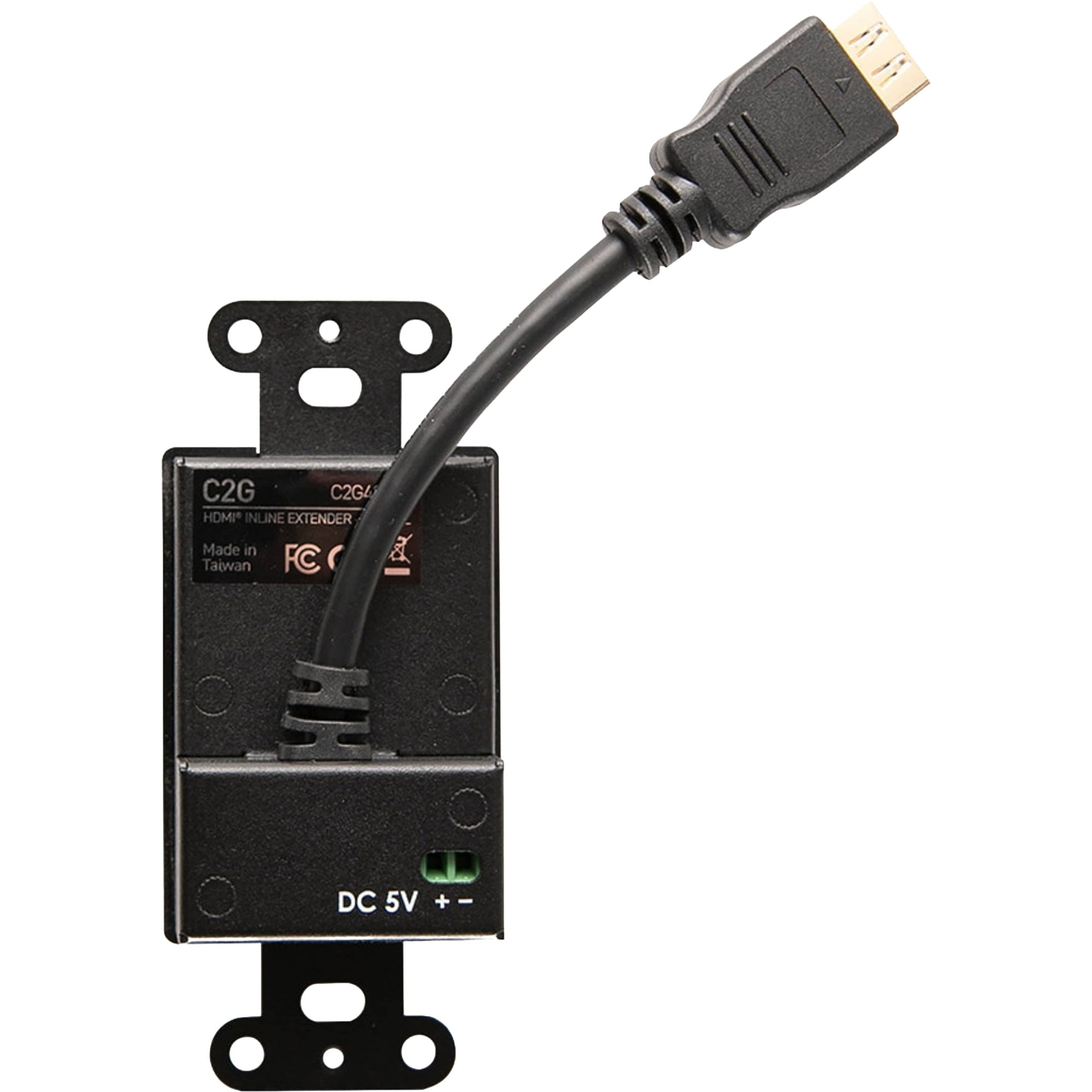

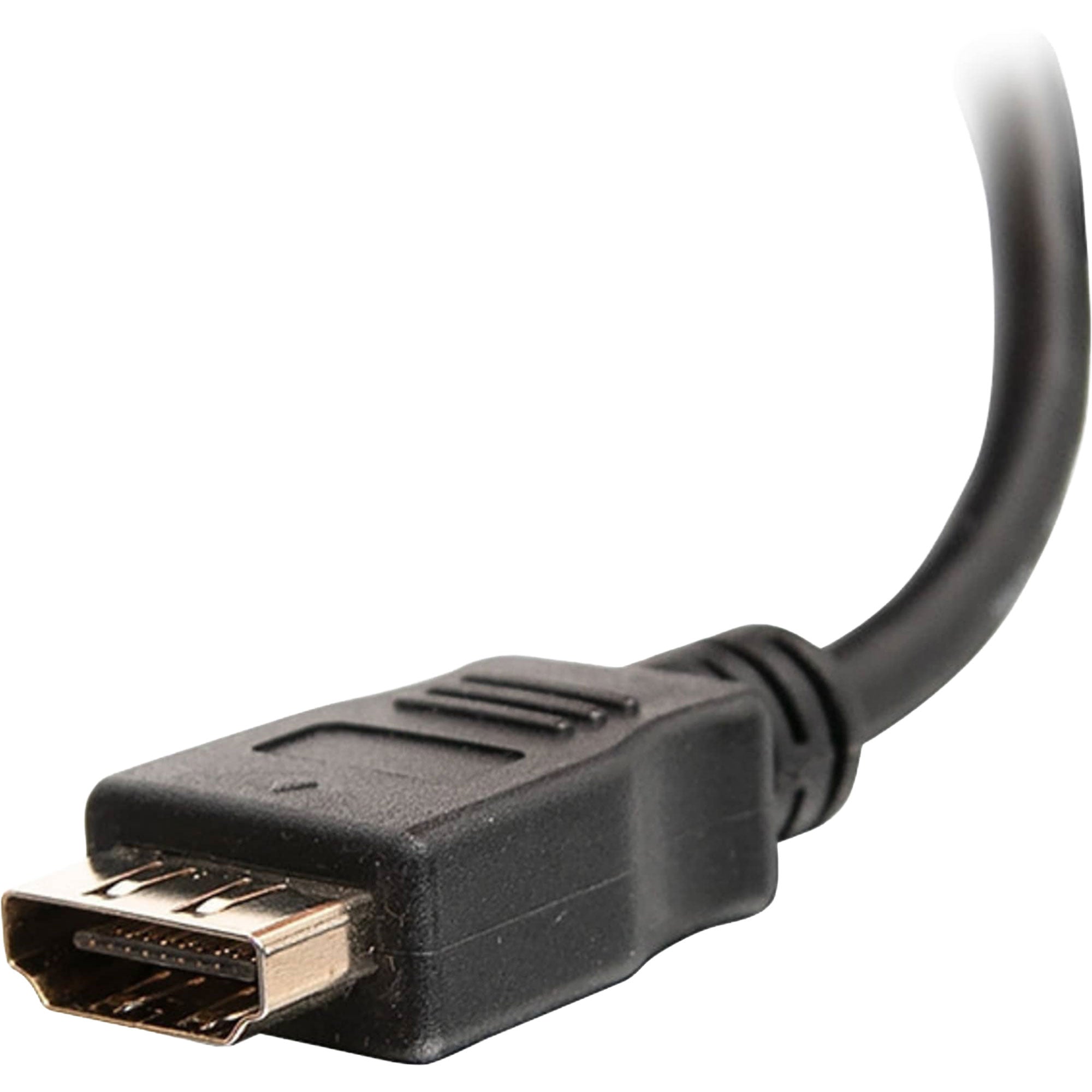

This HDMI inline extender includes a thin, flexible HDMI pigtail that accommodates the tight bend radius required for installations within a standard junction box. With three different power options, you can choose from HDMI power supplied through the signal connection, the USB Micro B port on the front, or the power jack on the backside, offering versatility for any installation.

Specifications

• Signal Specifications
• Resolutions Supported up to 4K (4096 x 2160) at 60 Hz
• Signal Bandwidth Supported: 18Gbps
• Electrical Specifications
• Voltage: 30V
• Rating: Temp 80°C
• LED: LED Off or Blinking Light: External Power Supply Required
• Physical Specifications
• Operating Temperature: 0°C to 40°C (Non-Condensing)
• Storage Temperature: -20°C to +80°C
• Physical Characteristics
• Cable: 32AWG; OD: 5.5 ± 0.2mm
• Micro USB: 2.0 Female, Terminal: Brass G/F, Shell: Nickel Plated, Insulation: LCP, Black
• HDMI Input: Female, Terminal: Copper Alloy G/F, Shell: Nickel Plated, Insulation: LCP+Glass, Black
• HDMI Output: Female, Terminal: Copper Alloy G/F, Shell: Nickel Plated, Insulation: LCP, Black
• Terminal Block: Housing: PA66, UL94V-0, Pin: Brass, Tin Plated
• Faceplates: Metal, White / Black / Beige / Brushed Aluminum
• Back Panel: ABS, Black
• Back Shell: Metal, Black
• Product is CE and FCC marked and conforms to 2015/863/EU ROHS
• Dimensions & Measurements
• Shipping Weight: 0.7 lbs (0.3 kg)
• Characteristics & Features
• Connector 1: (1) HDMI Female
• Connector 2: (1) HDMI Female
• TAA Compliant: Yes
• UPC: 757120423959
• Certifications & Warranties
• Certifications:
  NDAA 889
  Prop 65
  REACH
  RoHS
  TAA
  TSCA
• Warranty: 5 years
