Key Features
- Mini DisplayPort/Thunderbolt Male
- Up to 1920x1200 Resolution
- Use VGA Monitor on Mini DisplayPort
- TAA Compliant
Description

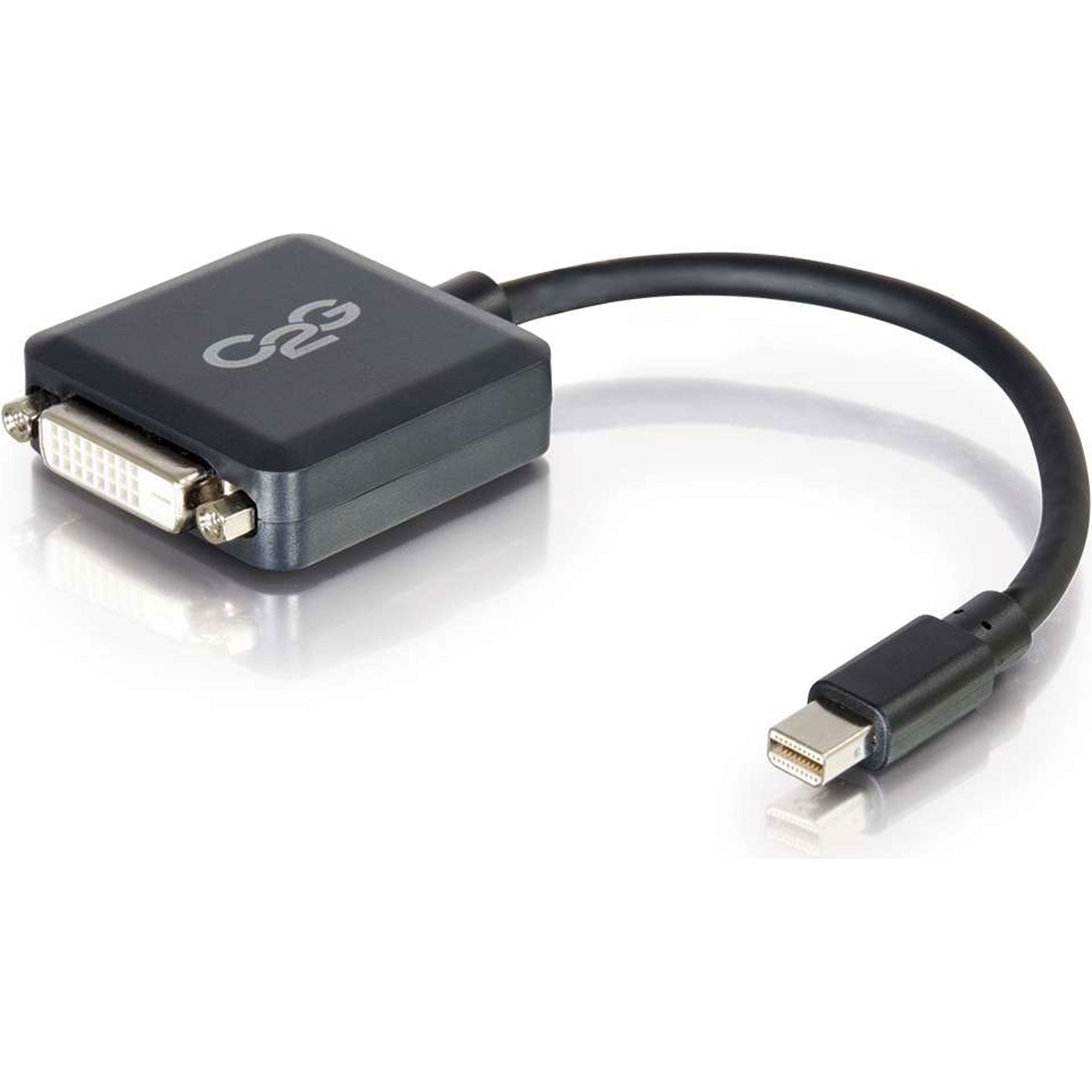

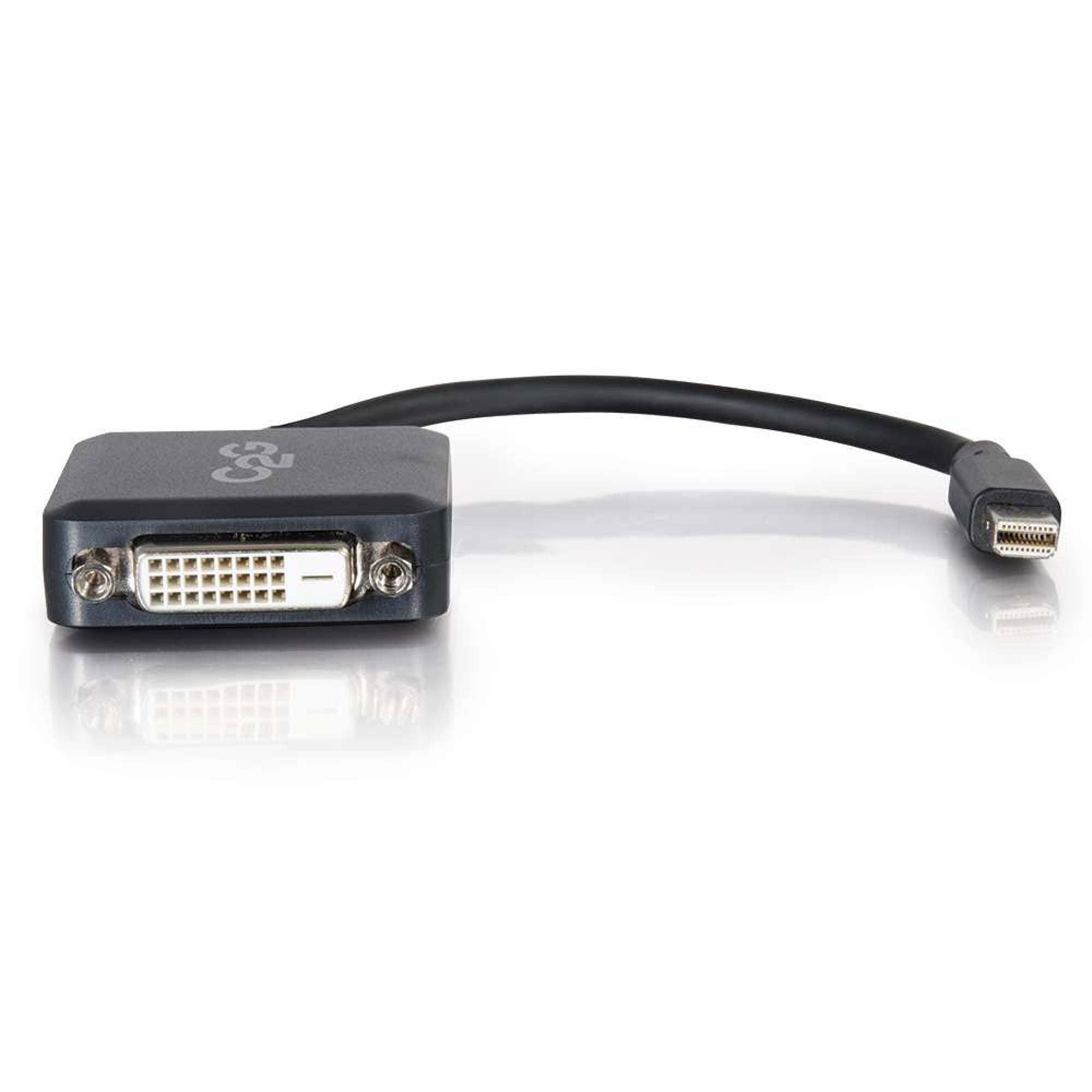

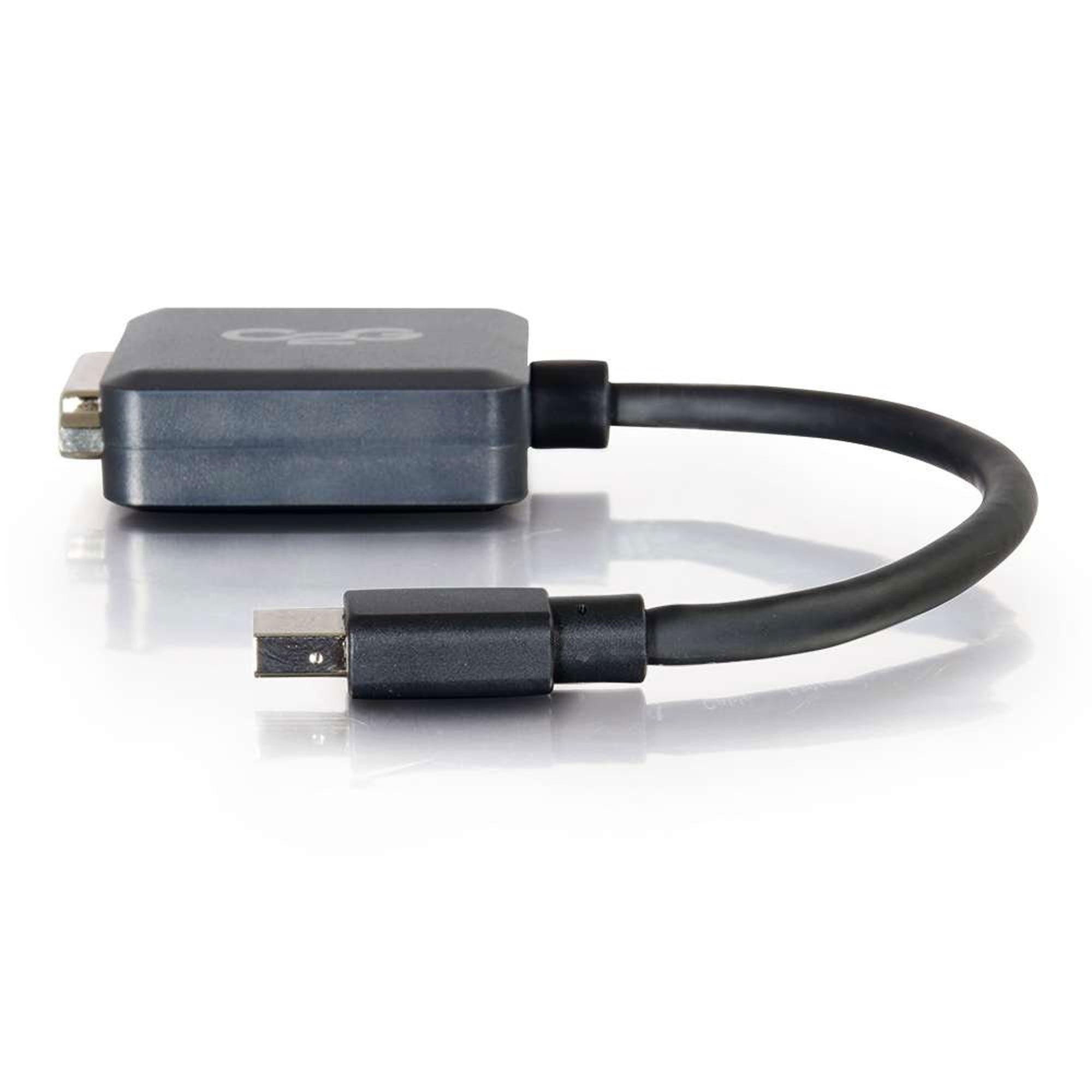

8in Mini DisplayPort Male to Single Link DVI-D Female Adapter Converter - Black
Adapt the Mini DisplayPort or Thunderbolt output of a computer so that it may be connected to a computer monitor which accepts a DVI-D input
This adapter converter is an ideal solution for converting the Mini DisplayPort or Thunderbolt output of a small laptop or tablet so that it may be connected to a computer monitor which accepts a VGA input. This adapter converter carries an analog video signal, supports up to a 1920x1200 resolution and meets the requirements of high performance applications.
Features:
- Adapts a Mini DisplayPort output to Single-Link DVI-D
- Carries a digital video signal
- Supports up to a 1920x1200 resolution
- Use with a DVI-D cable for a complete solution
Specifications:
- Color : Black
- UPC : 757120543114
- Warranty : 3 Years
- Vendor : C2G
- Weight : 0.094 LB
- Electrical Specifications
- Voltage Rating - 30v
- Conductor Resistance - @ 20°C max
- Insulation Resistance - 10MΩ/km
- Time Delay - 5.2ns/m (max)
- Attenuation -
- 5.02dB@100-450MHz, 7.69dB@1GHz,
- 12.595dB@2GHz, 17.495dB@3GHz,
- 22.395dB@4GHz, 27.295dB@5GHz,
- 32.195dB@6GHz, 37.095dB@7GHz
- Physical Specifications
- Operating Temperature - 0°C to 50°C
- Storage Temperature - -25°C to 70°C
- Approvals - CE
- Conductor (2 Conductor, 5 Pair)
- Conductor - 32AWG (7/0.08TC)
- Insulation - FM-PE, ID:0.63±0.05mm
- Color - White/Brown, White/Red, White/Orange, White/Green, White/Blue
- Drain - 32AWG (7/0.08TC), HD-PE ID:0.63±0.05
- Shield - AL-Mylar Wrap, Coverage-100%
- Conductor (5 Conductors)
- Conductor - 32AWG (7/0.08TC)
- Insulation - HD-PE, ID:0.5±0.05mm
- Color - Red/Orange/Yellow/Green/White
- Overall Cable
- Jacket - PVC
- Shield - AL-Mylar-Coverage 100%, Braid-16/9/0.12
- Drain - 2:30AWG (7/0.08 BC)
- OD - 5.2±0.2
