Key Features
- 1 HDMI input & 4 HDMI outputs
- Supports resolutions up 4K (4096 x 2160 at 30hz, 4:4:4)
- Supports resolutions up 4K (4096 x 2160 at 60hz, 4:2:0)
- HDCP 1.4 Compliant
- Supports 340MHz/3.4Gbps per channel
- Supports 3D formats
- Supports 8, 10 & 12bit per channel Deep Color
- Supports DTS-HD, Dolby TrueHD, DTS, Dolby AC3 & DSD Audio
Description

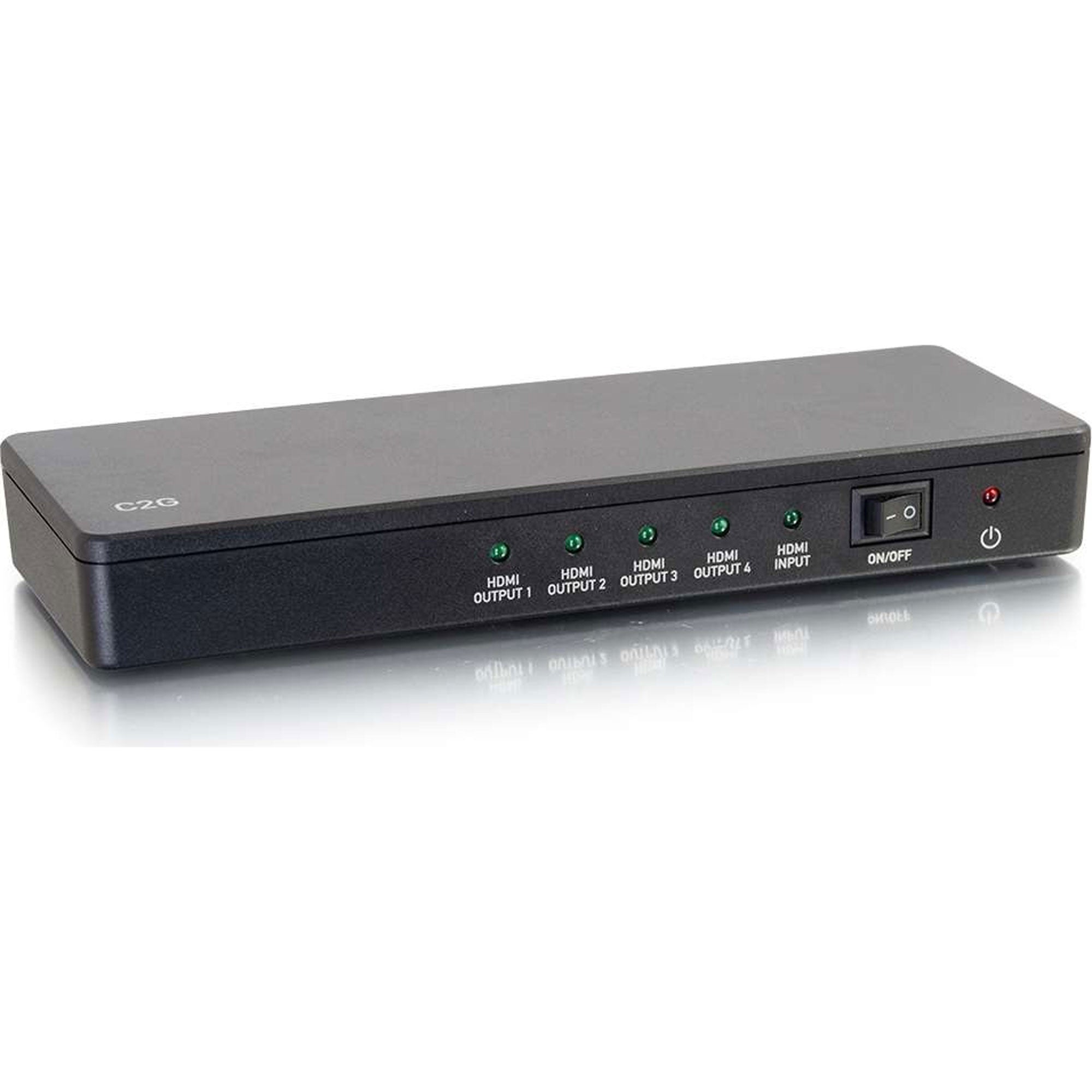

4-Port HDMI Distribution Amplifier Splitter - 4K 30Hz
The 4-Port HDMI Distribution Amplifier Splitter 4K 30Hz is a 1-Input 4-Output splitter supporting up to 4K (4096 x 2160 at 30hz, 4:4:4) video, ideal for applications utilizing the HDMI 1.4 standard. A perfect solution for connecting a computer, Blu-ray player, gaming console, media server, or A/V receiver to four HDMI displays.
The HDMI splitter is HDCP 1.4 compliant and supports exceptional 4K UltraHD resolutions up to 4096 x 2160 at 30hz, handling total HDMI data rates up to 10.2Gbps.
Supported resolutions
4096 x 2160 at 30Hz, 4:4:4
4096 x 2160 at 60Hz, 4:2:0

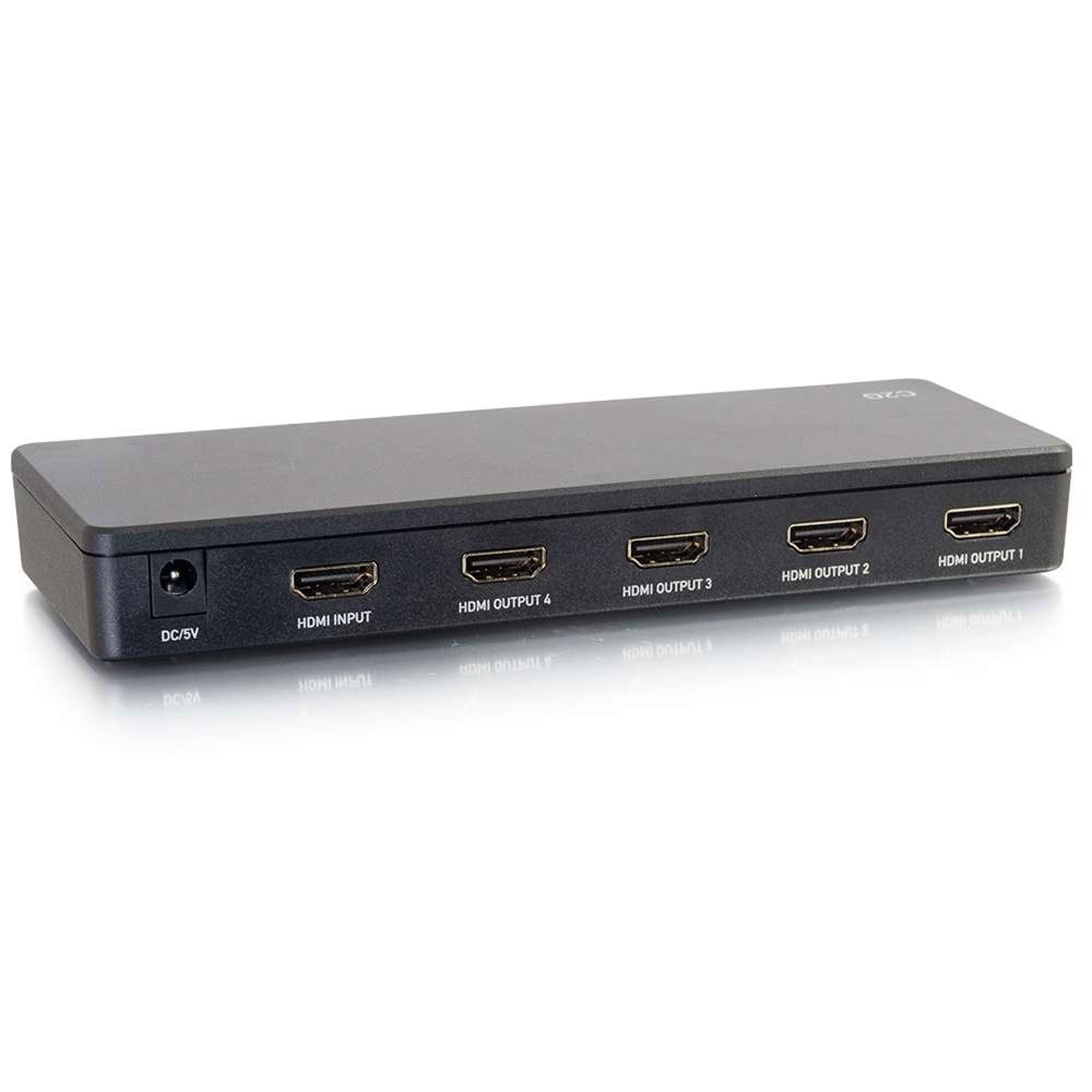

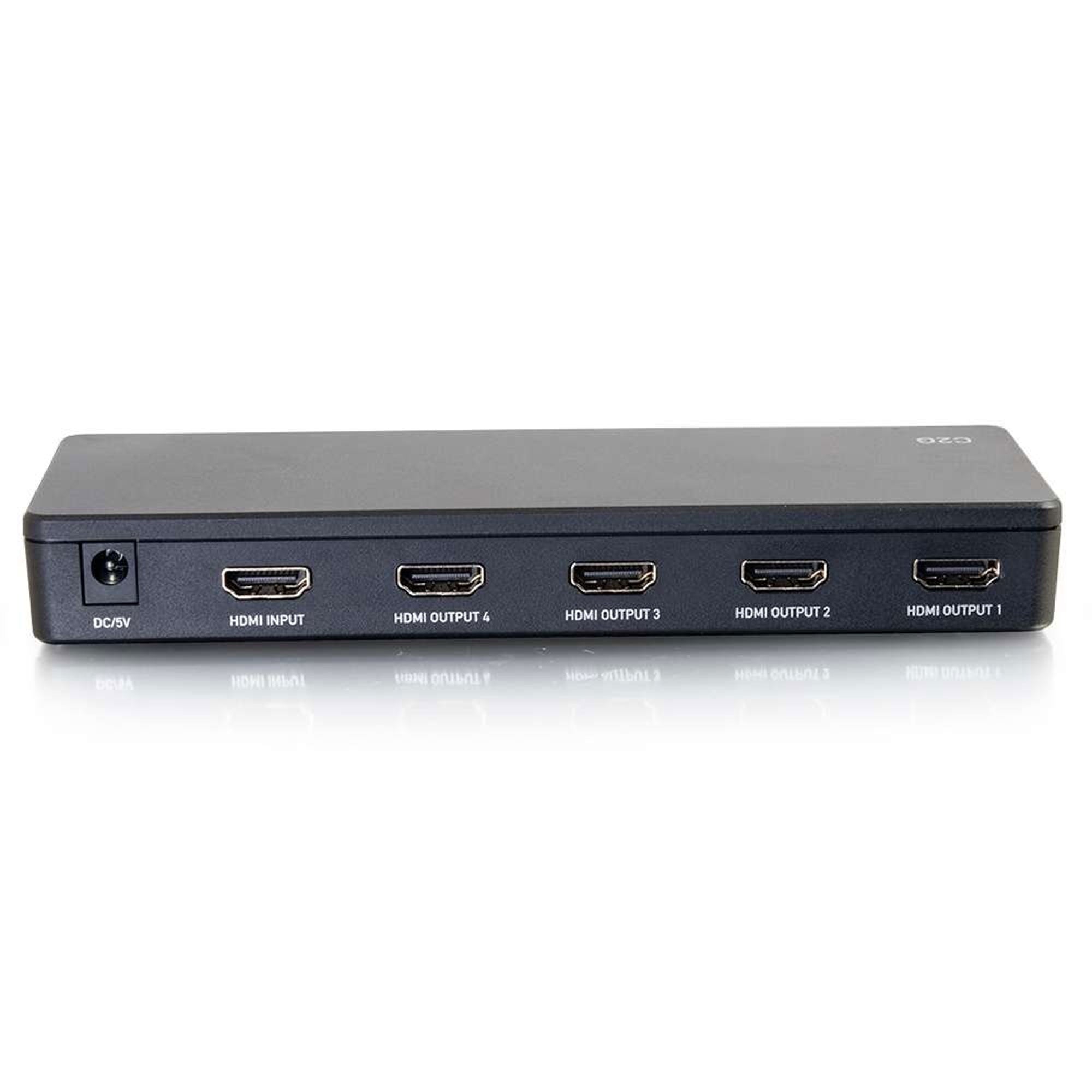

Connector 1: (1) HDMI Female
Connector 2: (4) HDMI Female
Features
-
One HDMI input and four HDMI outputs
-
Supports resolutions up 4K (4096 x 2160 at 30hz, 4:4:4)
-
Supports resolutions up 4K (4096 x 2160 at 60hz, 4:2:0)
-
HDCP 1.4 Compliant
-
Supports 340MHz/3.4Gbps per channel
-
Supports 3D formats
-
Supports 8, 10 <(><<)>(>&<(><<)>)> 12bit per channel Deep Color
-
Supports DTS-HD, Dolby TrueHD, DTS, Dolby AC3 <(><<)>(>&<(><<)>)> DSD Audio
Specifications
-
General Info
-
Product Line: C2G
-
Color: Black
-
UPC Number: 757120410584
-
Country Of Origin: China
-
Application Sector: Residential, Commercial
-
Warranty Type: 3-Year
-
Type: Splitter, Splitter
-
Listing Agencies / 3rd Party Agencies
-
CE : Yes
-
Technical Information
-
Video Resolution: 4K 30Hz, 4K, 1080p
