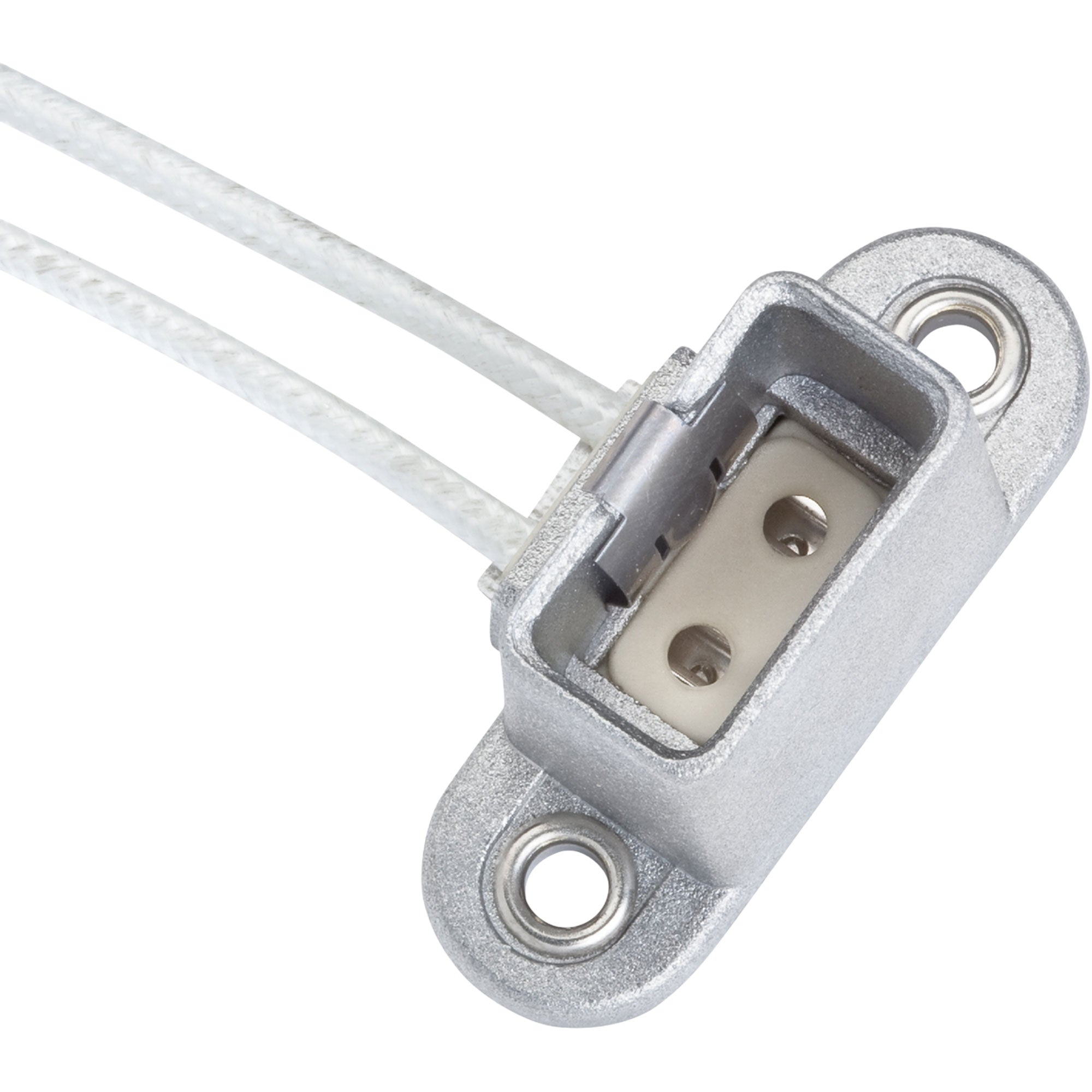

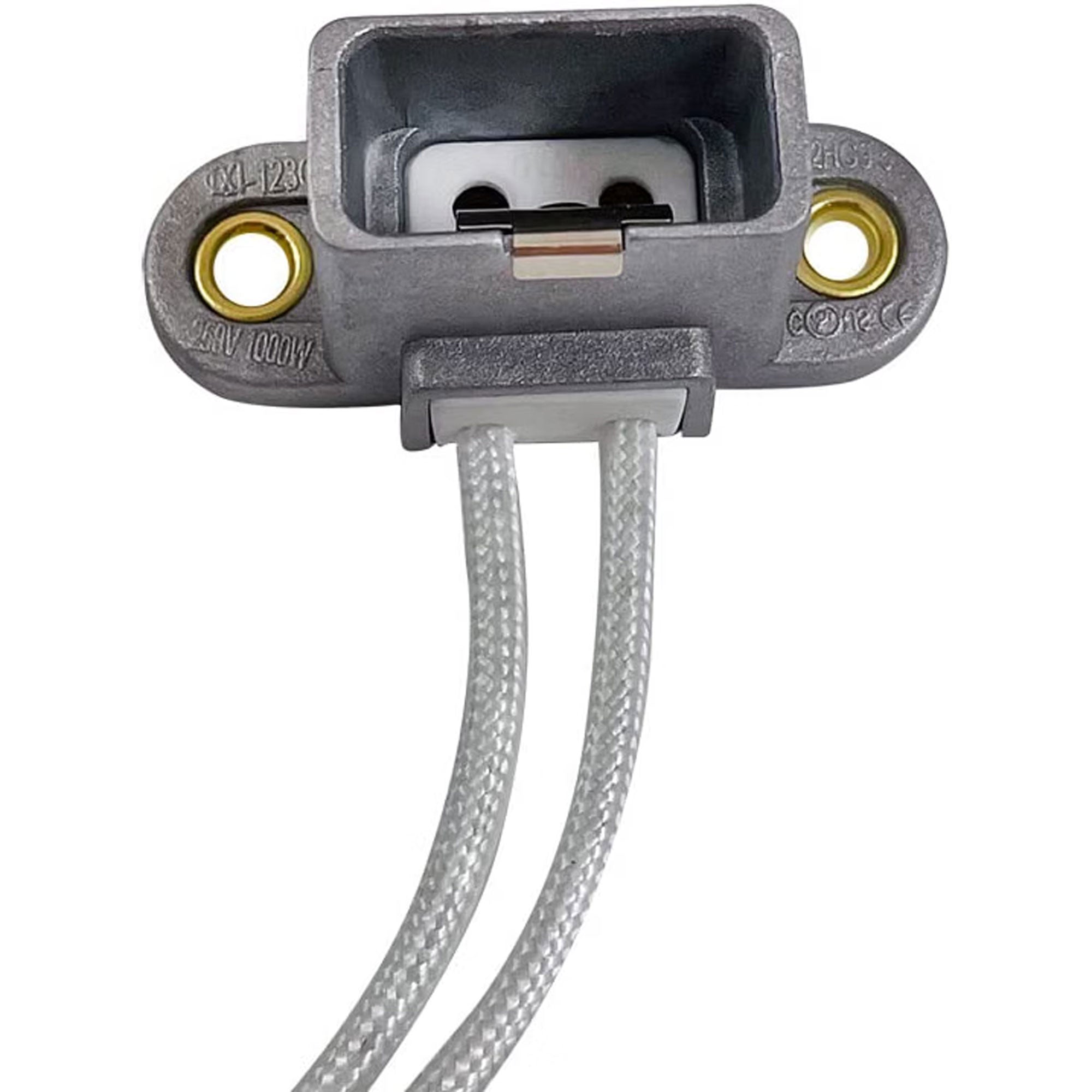

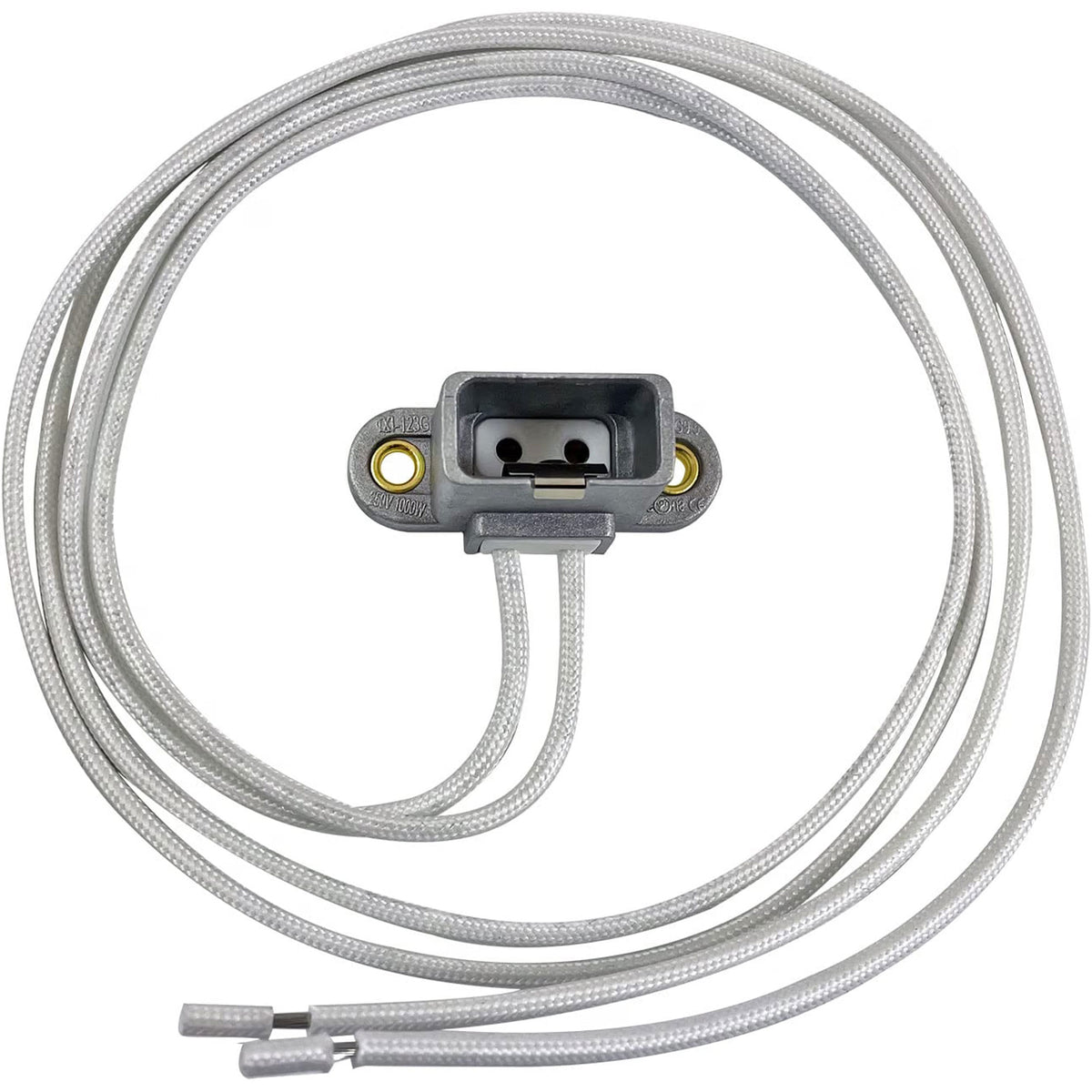

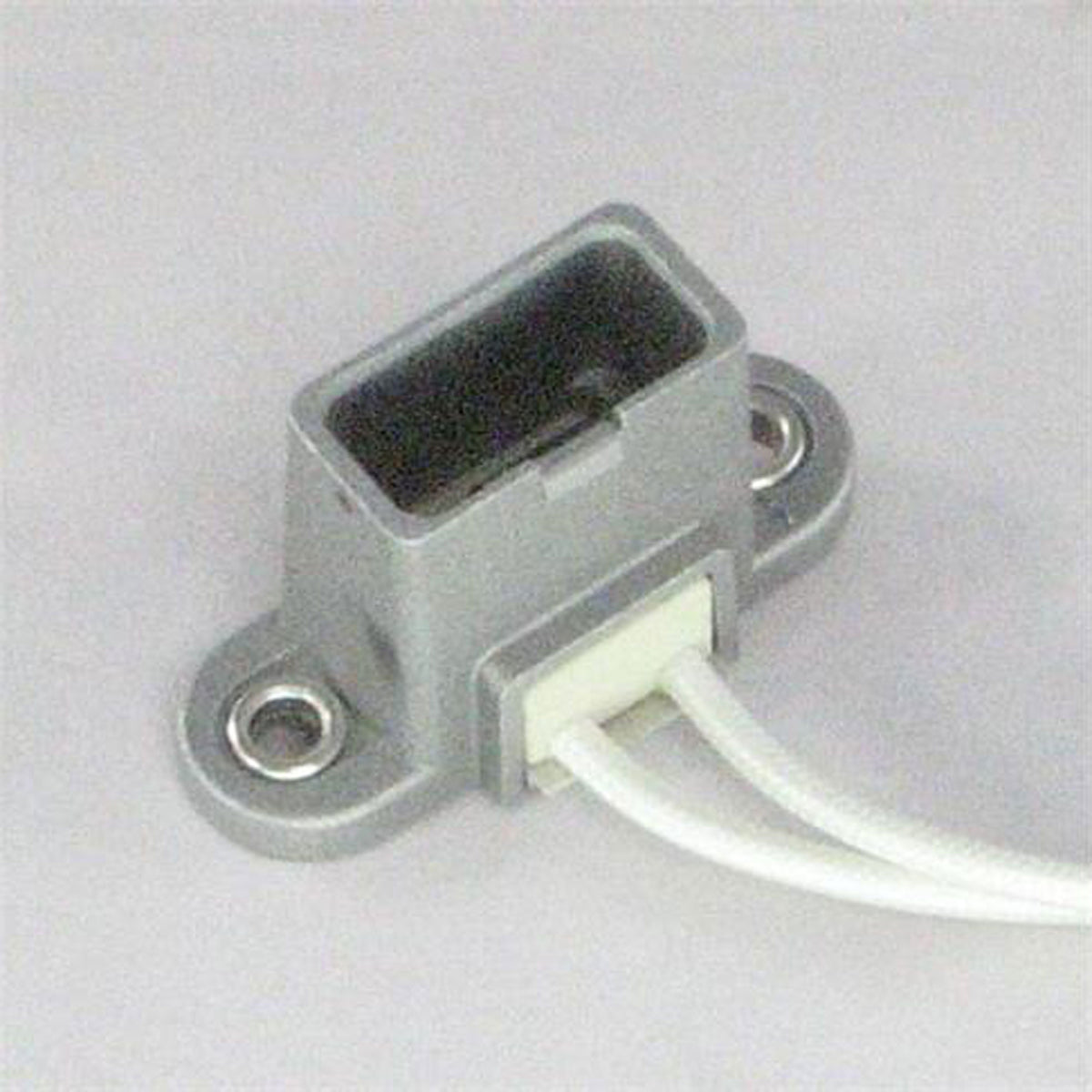

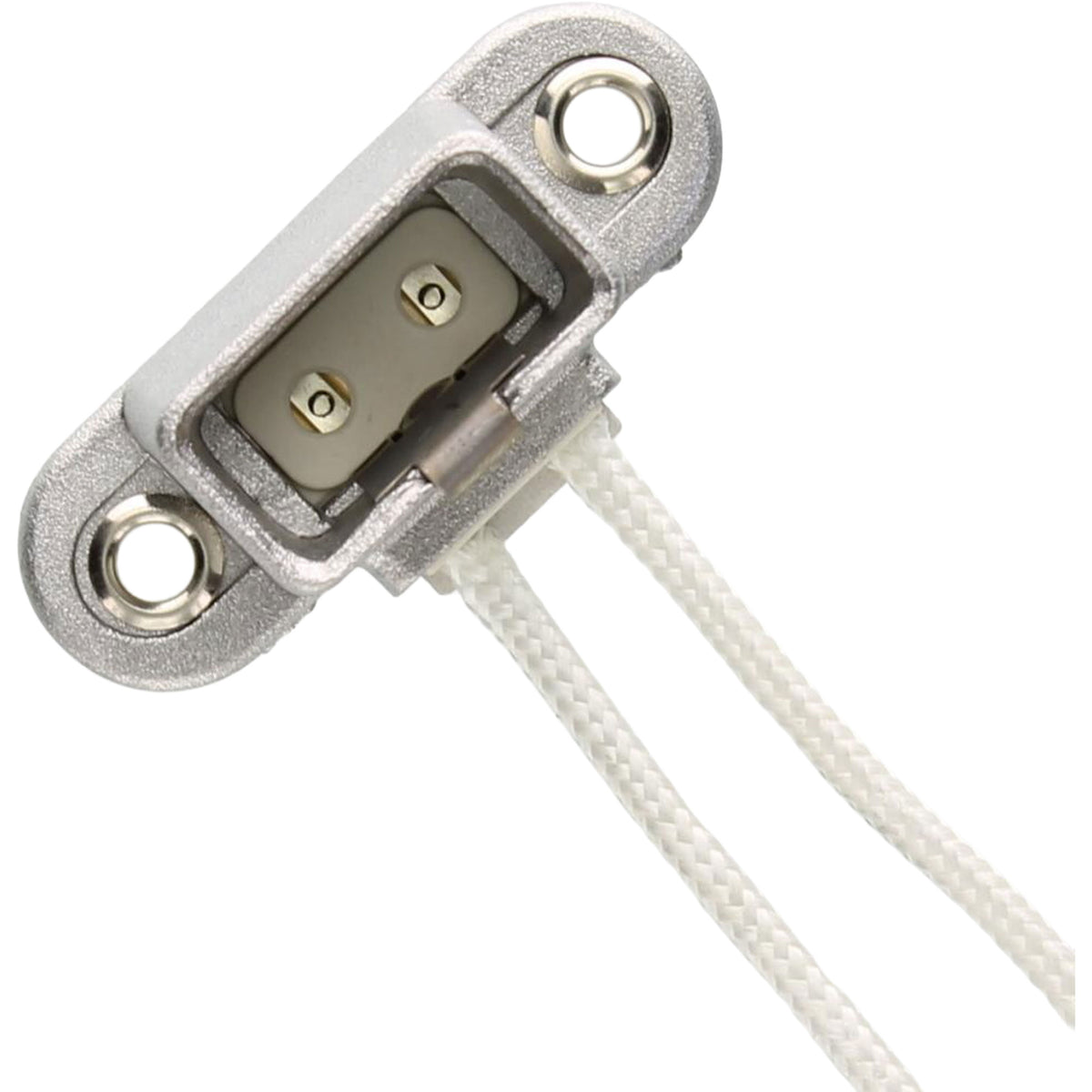

BMI Supply TP-22 Medium Two-Pin Lamp Socket for G9.5 Base (36" Leads)

Medium two-pin lamp socket for lamps with G9.5 base. 36" leads. Commonly used in older ellipsoidal fixtures such as the Altman 360Q.

TP-22 is a 1000W halogen lamp socket, used in Altman and ETC Stage and Studio lighting equipment and industrial heating applications. This socket is compatible with G9.5 base lamps to provide a lighting systems component and facilitate repairs. Engineered to increase life and provide reliable performance of lamp and socket systems.

Specifications

• For Lamp Base G9.5, 2-Pin Medium Base
• Max. Voltage: 250 Volts
• Max. Wattage: 1,000 Watts
• Lead Wire: 36 Inches, 16ga, SF-2 Insulation, White
• Socket Materials: Steatite ceramic body with diecast aluminum housing and silver plated nickel contacts
• Certifications: CSA, RoHS, UL (File No. E31557),
• Also Known As: 73326-01, Altman 97-1575, Osram TP22, TP22XL, Sylvania TP-22-XL
