Key Features
- Omnidirectional Polar Pattern
- Condenser Element
- 55" (1.4 m) Cable
- Locking 4-Pin Connector for A-T UniPak
- Includes Clothing Clip & Windscreens
- Beige Finish
Description

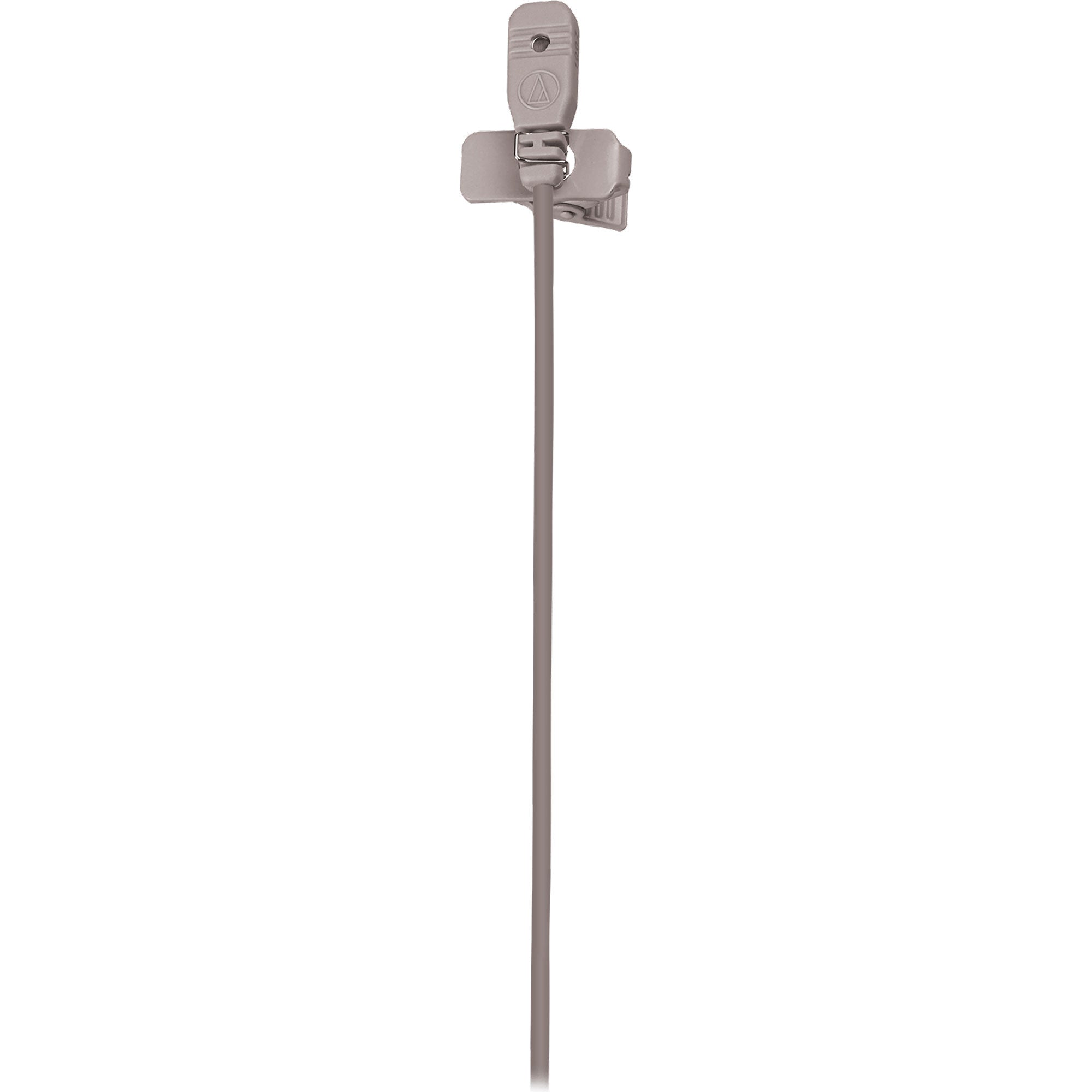

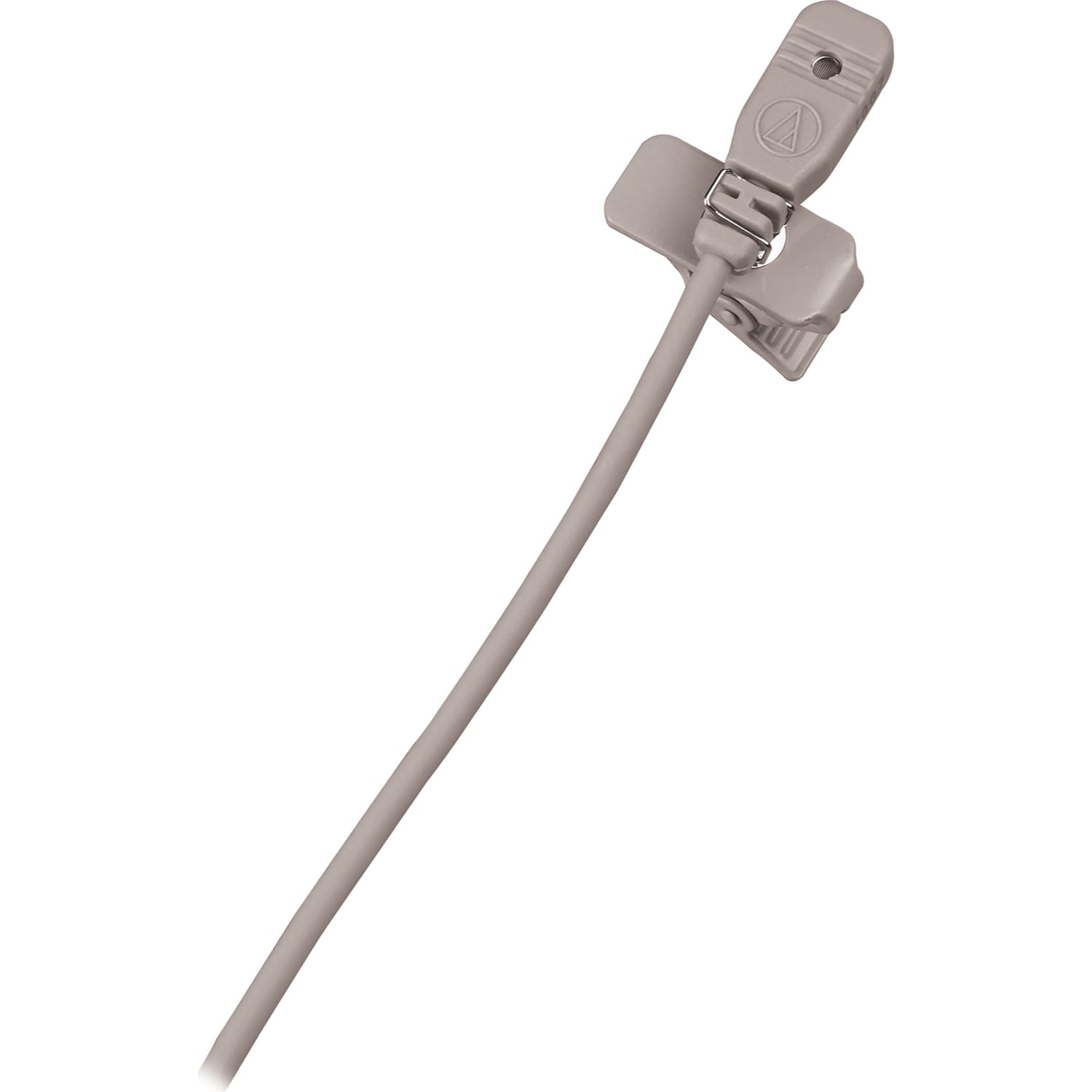

Omnidirectional Condenser Lavalier Microphone Wired for use with UniPak Transmitter - Beige
Designed to be worn as a lavalier or hidden in loose clothing or in the hair, the MT830 provides high intelligibility for lecturers, stage/TV performers and singers. The mic's wide-range capability ensures clean, accurate reproduction. It operates on phantom power only.
Available options:
MT830R - includes power module; 25' (7.6 m) cable, TA3F connector at power module
MT830c - less power module; 55" (1.4 m) cable, unterminated
MT830c-TH - same as MT830c but in "theater" color (beige)
MT830cT5 - less power module; 55" (1.4 m) cable terminated with TA5F connector for ATW-U101 and Lectrosonics body-pack wireless systems
MT830cT5-TH - same as MT830cT5 but in "theater" color (beige)
MT830cW - less power module; 55" (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak wireless systems
MT830cW-TH - same as MT830cW but in "theater" color (beige)
Features:
- Small size provides excellent yet unobtrusive sound pickup
- High intelligibility for lecturers, stage/TV performers and singers
- Wide-range capability ensures clean, accurate reproduction
- 55" (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak wireless systems
Specifications:
- ELEMENT: Fixed-charge back plate, permanently polarized condenser
- POLAR PATTERN: Omnidirectional
- FREQUENCY RESPONSE: 30-20,000 Hz
- LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
- OPEN CIRCUIT SENSITIVITY: -37 dB (14.1 mV) re 1V at 1 Pa
- IMPEDANCE: 200 ohms
- MAXIMUM INPUT SOUND LEVEL: 135 dB SPL, 1 kHz at 1% T.H.D.
- DYNAMIC RANGE (typical): 108 dB, 1 kHz at Max SPL
- SIGNAL-TO-NOISE RATIO: 67 dB, 1 kHz at 1 Pa
- PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
- SWITCH: Flat, roll-off
- WEIGHT: 1.3 g (0.05 oz)
- DIMENSIONS: 15.8 mm (0.62") long, 8.3 mm (0.33") wide, 5.0 mm (0.19") thick
- OUTPUT CONNECTOR: Locking 4-Pin
- CABLE: 55" (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak wireless systems

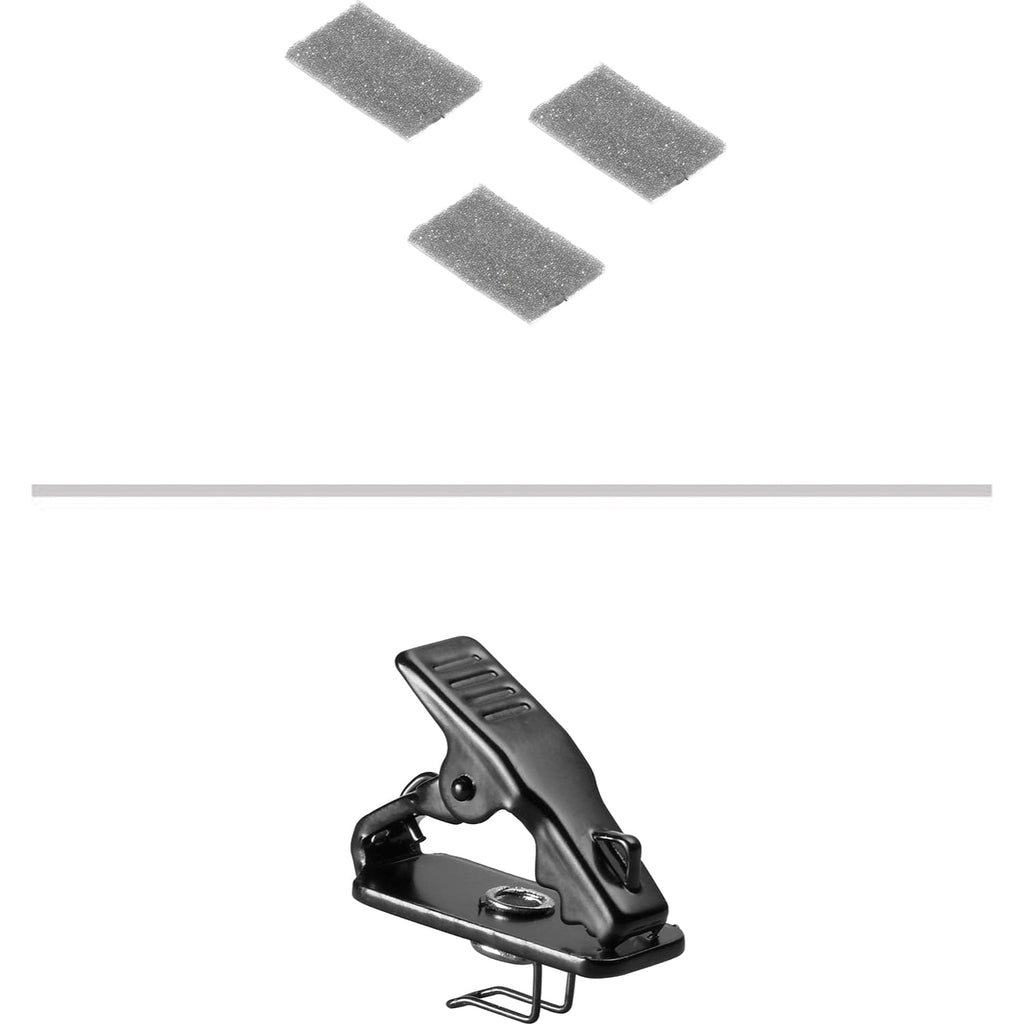

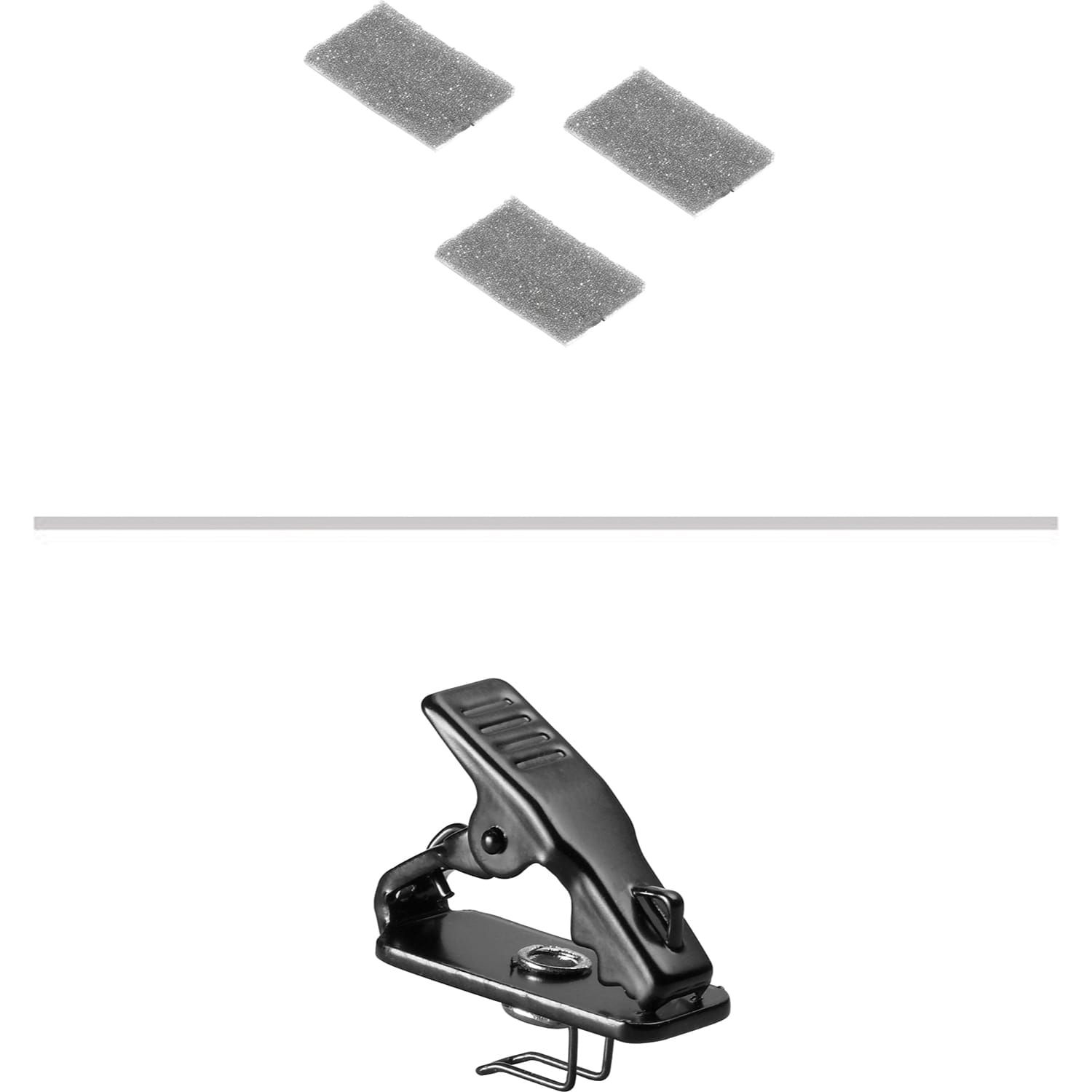

- ACCESSORIES FURNISHED: clothing clip; windscreens
- AUDIO-TECHNICA CASE STYLE: M7
