Key Features
- Measures 15.5" Long
- High Directivity
- Line + Gradient Polar Pattern
- Switchable 80 Hz High Pass Filter
- 10 dB Pad Switch
- Works with +48V Phantom Power
Description

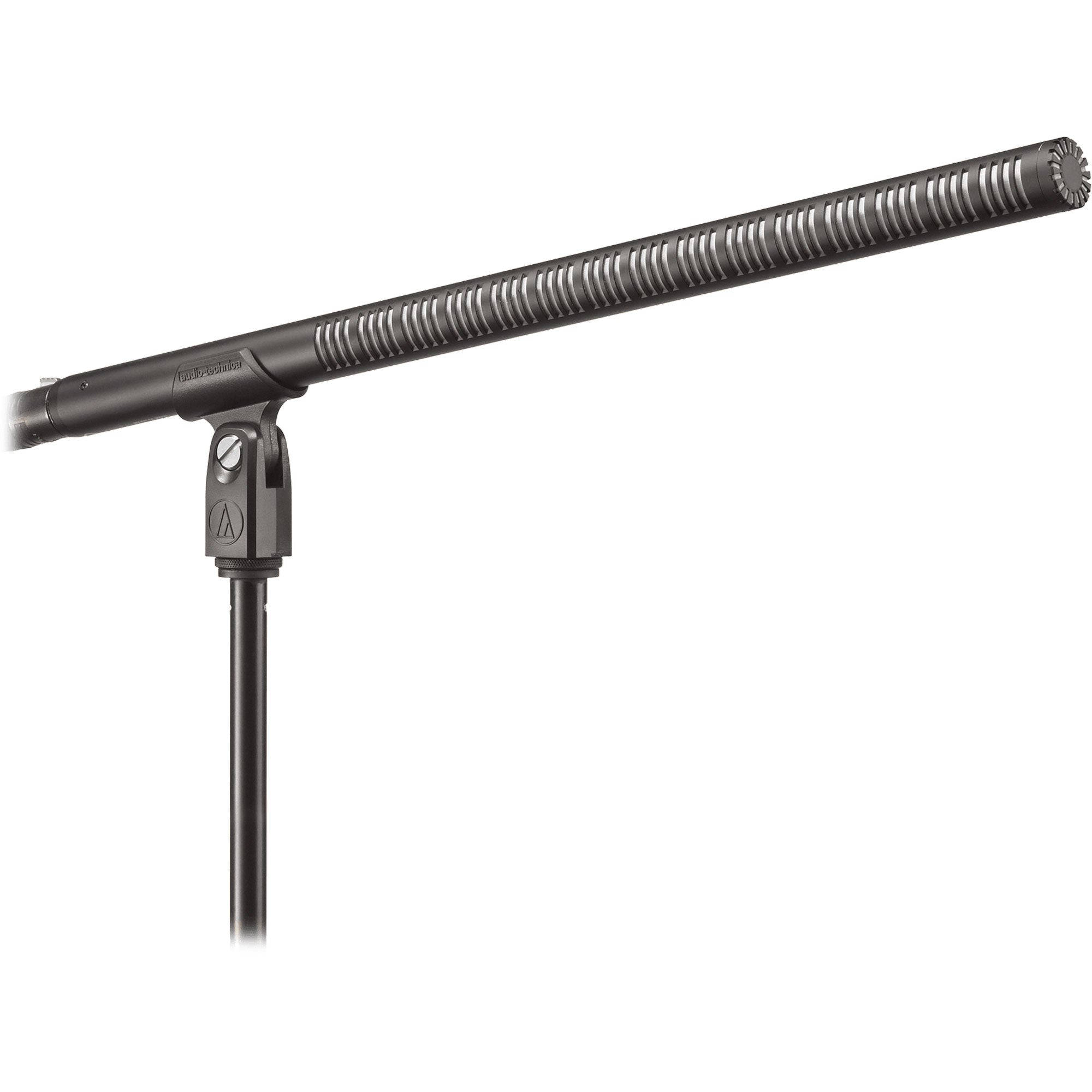

Line + Gradient Condenser Microphone, 15.5" Long with 3-Pin XLR Output
With directivity equal to mics up to 50% longer, the BP4071 has been specially created to meet the pickup demands of broadcasting, film/TV sound, professional recording, wildlife recording and theater sound reinforcement. Particularly useful for miking dynamic action in film/TV audio as well as in “spot” miking techniques in the music studio or theater, the 15.55"-long BP4071 provides a low noise floor and direct-coupled, balanced output for a clean signal even in high-output conditions. Audio-Technica has pioneered an interference tube design in the BP4071 that provides the same directivity as mics up to 50 percent longer.
Features
-
Designed for use in broadcasting, film/TV production, and theater sound reinforcement applications
-
Direct-coupled, balanced output ensures a clean signal even in high-output conditions
-
Innovative acoustic design provides same directivity as mics up to 50% longer
-
Rugged housing made of lightweight structural-grade aluminum alloy
-
Transformerless design for improved pickup of transients
-
Switchable 80 Hz high-pass filter & 10 dB pad
-
RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
Specifications
-
Microphones
-
Element Externally polarized (DC bias) capacitor
-
Polar Pattern Line + gradient
-
Frequency Response 20-20,000 Hz
-
Low Frequency Roll Off 80 Hz, 18 dB/octave
-
Open Circuit Sensitivity -29 dB (35.5 mV) re 1V at 1 Pa
-
Maximum Input Sound Level 141 dB SPL, 1 kHz at 1% T.H.D.; 151 dB SPL, with 10 dB pad (nominal)
-
Noise 13 dB SPL
-
Dynamic Range 128 dB, 1 kHz at Max SPL
-
Signal-to-Noise Ratio 81 dB, 1 kHz at 1 Pa
-
Phantom Power Requirements 48V DC, 4.8 mA typical
-
Switches Flat, roll-off; 10 dB pad (nominal)
-
Weight 136 g (4.8 oz)
-
Dimensions 395.0 mm (15.55") long, 21.0 mm (0.83") maximum body diameter
-
Output Connector Integral 3-pin XLRM-type
-

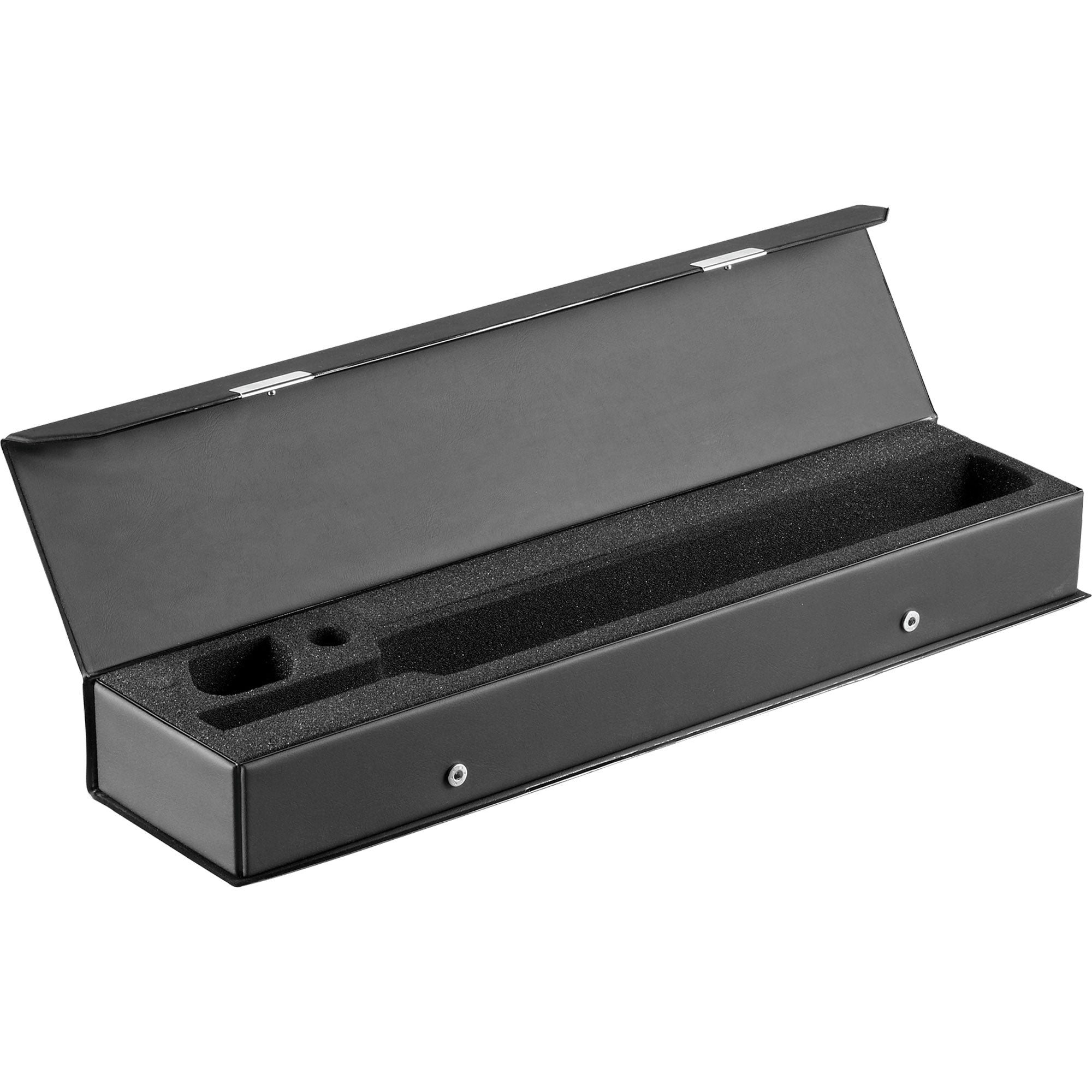

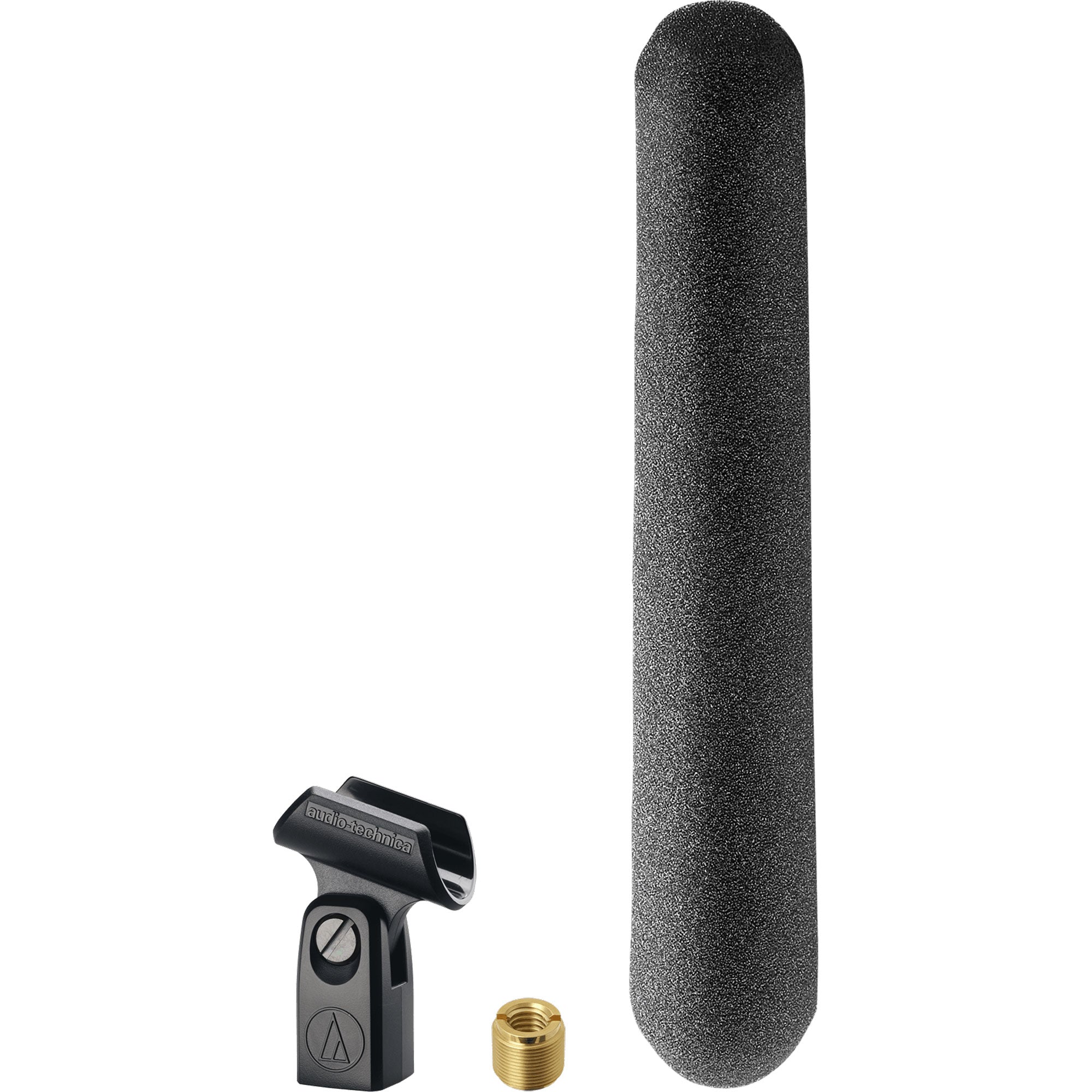

Accessories Included AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8145 windscreen; two O-Rings; protective carrying case
-
Audio-Technica Case Style SG3
