Key Features
- For ATW-R2100B 2000 Series Receiver
- Use with Lav/Headset Mic or Instrument
- 4-Pin Hirose cW-Style Connector
- 10 Selectable Frequencies
- Mic Level Trim
- Selectable 10/30mW RF Power
- 9 Hours on Two AA Batteries
Description

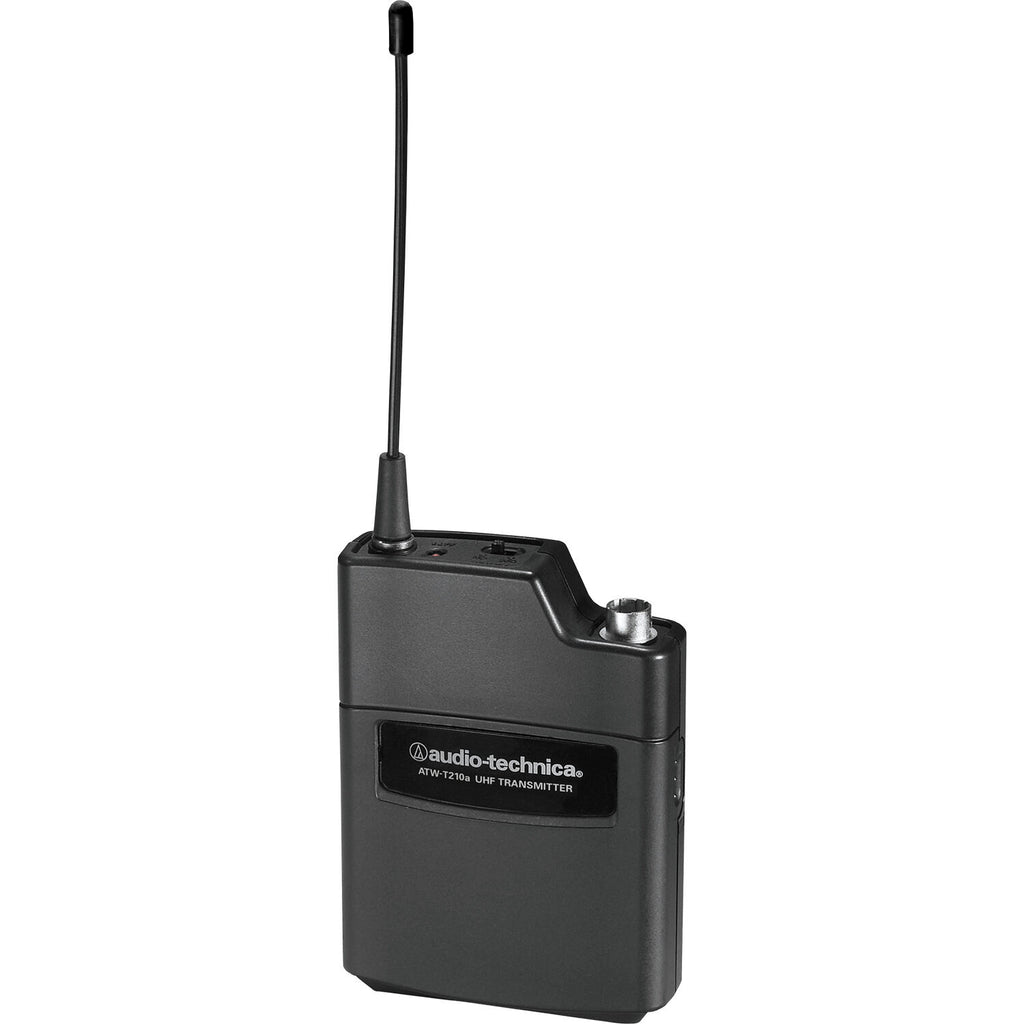

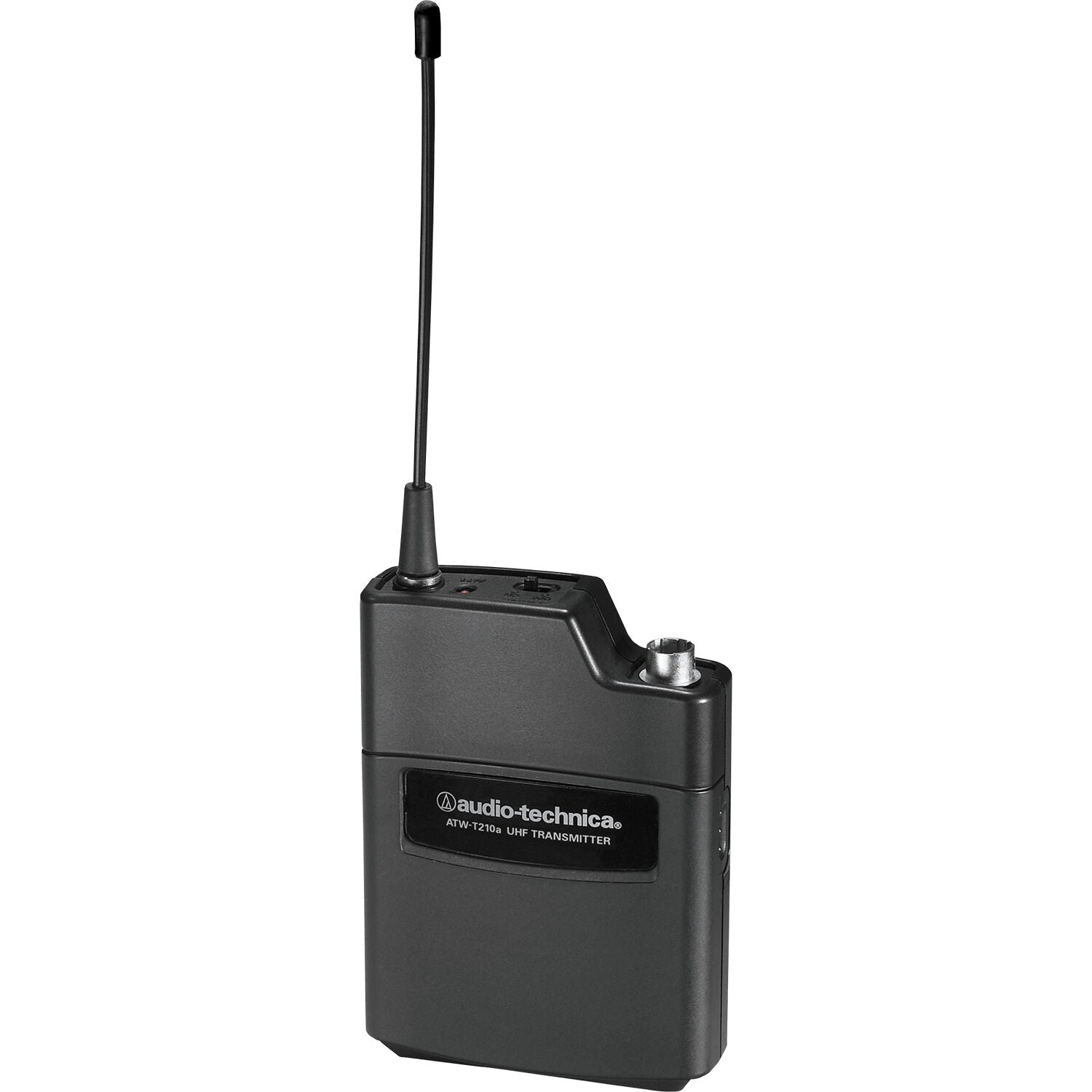

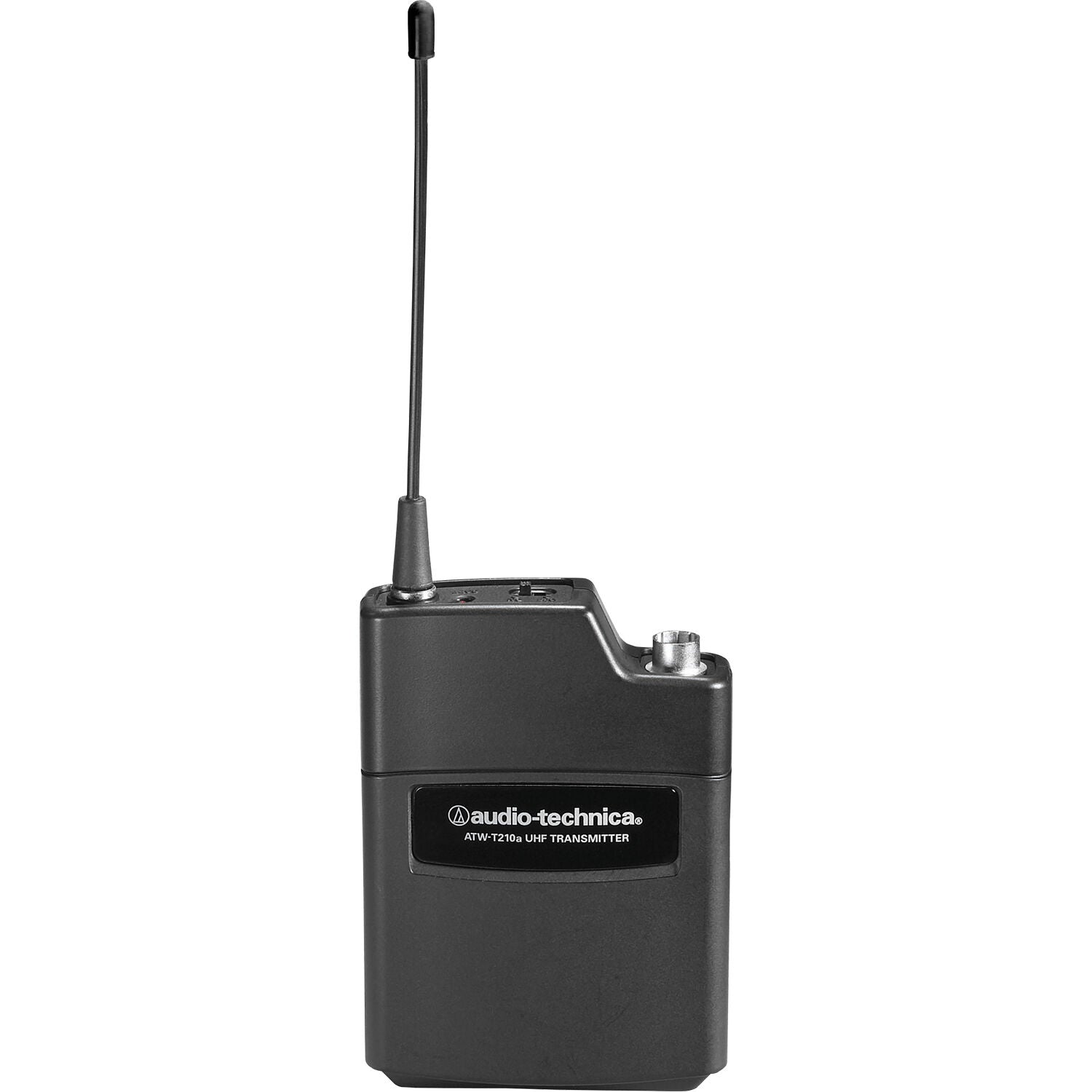

2000 Series Body-pack Transmitter - Band I (487.125 to 506.500 MHz)
Body-pack transmitter for use with 2000 Series wireless systems.
Specifications:
-
Belt Pack
-
RF Power Output: High 30 mW, Low 10 mW, nominal
-
Battery Life: Approximately 9 hours (low), 7 hours (high)
-
Battery Type: 2 x 1.5V AA Alkaline or rechargeable AA NiMH (not included)
-
Current Consumption: 150 mA typical
-
Dimensions: 66 mm x 92.3 mm x 22.5 mm (W x H x D)
-
Input Connections: Four-pin locking connector
-
Pin 1: GND
-
Pin 2: INST INPUT
-
PIN 3: MIC INPUT
-
PIN 4: DC BIAS +9V
-
Net Weight: 80 g
-
Spurious Emissions: According to National Regulations
