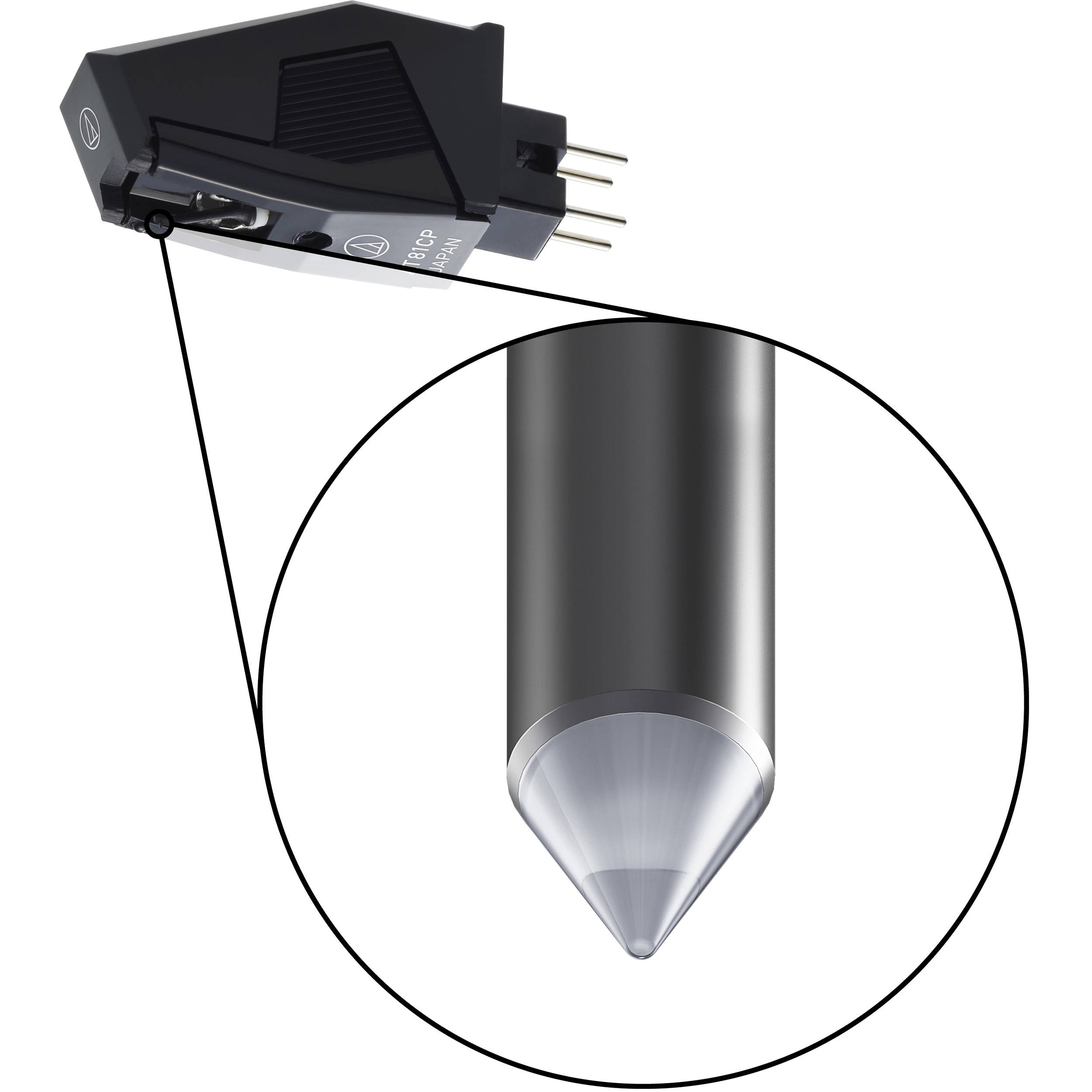

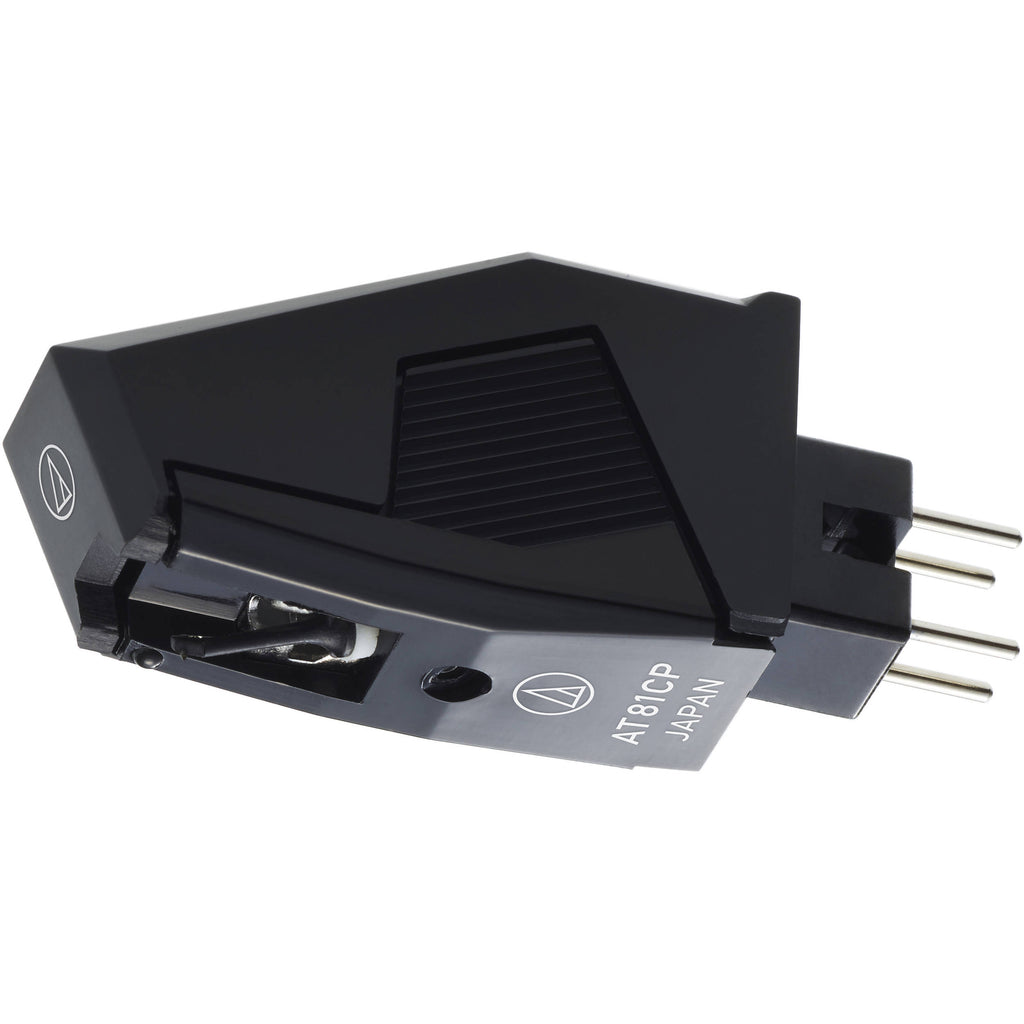

Audio-Technica AT81CP Conical Phonograph Cartridge for P-Mount Turntables

The Audio-Technica AT81CP is a 0.6 mil conical phonograph cartridge designed for DJs, turntablists, and music aficionados using P-mount turntables in clubs, live sets, and home stereo setups. It features a bonded round stylus shank with a carbon fiber reinforced ABS cantilever. The 18 dB of channel separation and a frequency response of 20 Hz to 20 kHz ensure accurate and detailed audio reproduction.

Features

• 0.6 mil cartridge fits P-Mount turntables
• Bonded round shank stylus with carbon fiber reinforced ABS cantilever
• 18 dB of channel separation and 20 Hz to 20 kHz frequency response for accurate audio reproduction

Specifications

• Type: P-mount
• Stylus:
  Construction: Bonded round shank
  Shape: 0.6 mil conical
  Cantilever: Carbon fiber reinforced ABS
• Frequency Response: 20 Hz to 20 kHz
• Output: 3.5 mV (1 kHz, 5 cm/second)
• Channel Separation: 18 dB at 1 kHz
• Channel Balance: 2.5 dB (1 kHz)
• Tracking Force: 1 to 1.5 g (1.25 g standard)
• Recommended Load Impedance: 47 kOhms
• Recommended Load Capacitance: 100 to 200 pF
• Impedance: Coil: 2.8 kOhms (1 kHz)
• Inductance: Coil: 400 mH (1 kHz)
• DC Resistance: 410 Ohms
• Vertical Tracking Angle: 20°
• Lifetime: Approximately 300 to 500 hours
• Replacement Stylus: ATN81CP
• Replacement: Replaces AT300P, AT3482, AT3482H/U, AT3482P, and AT90CD cartridges
• Dimensions: 0.6 x 0.4 x 1.4" / 15.3 x 10.0 x 35.1 mm
• Weight: 0.2 oz / 6 g
