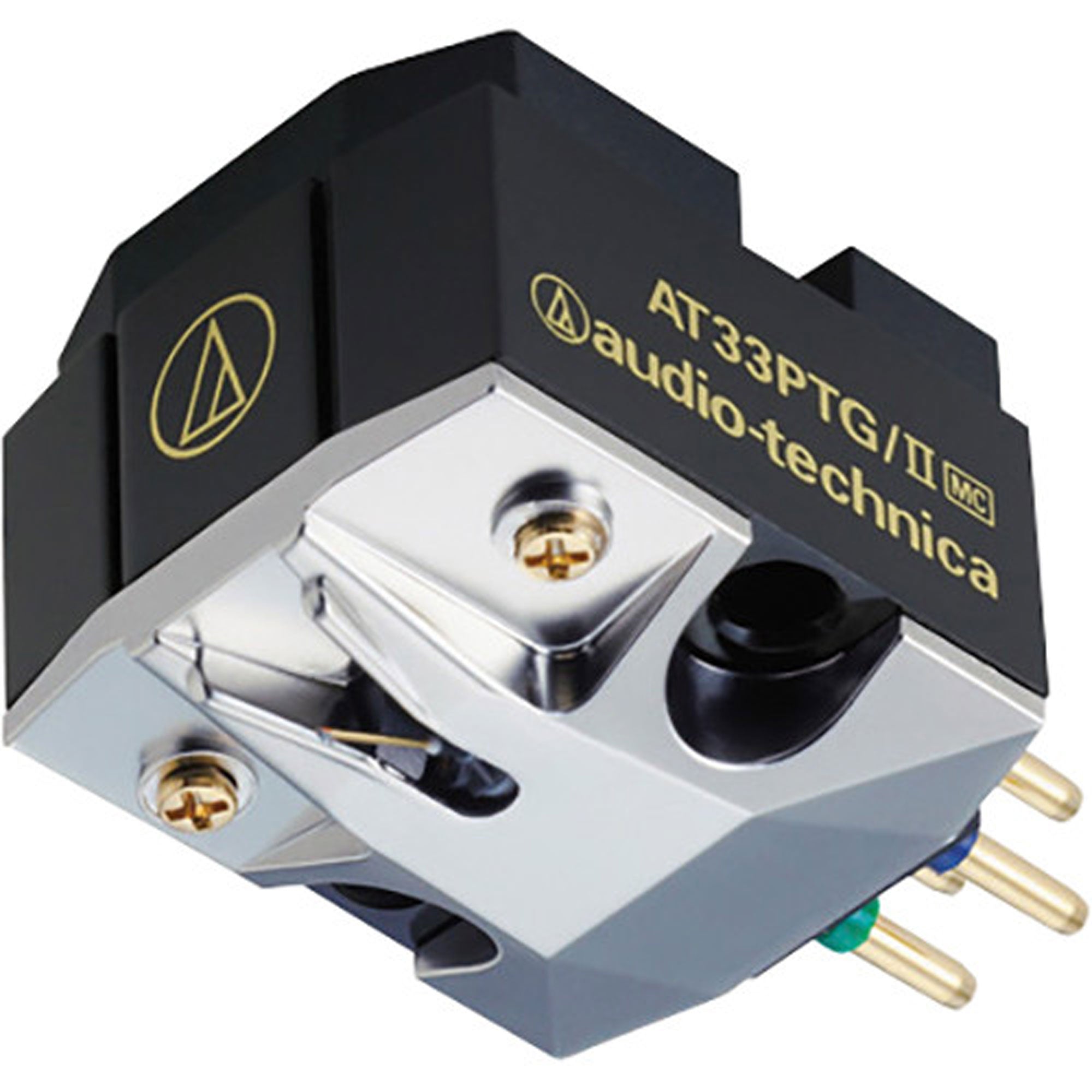

Audio-Technica AT33PTG/2 Dual Moving Coil Cartridge

Moving Coil Turntable Cartridge With Microlinear Stylus Delivers Exquisite, Full-Range Audio Reproduction

Building upon the success of the AT33PTG, the Audio-Technica Consumer AT33PTG/2 features a shortened and thinned cantilever with a lower coil impedance, which translates to low-distortion and high performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.

The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy, while the two coils provide remarkable channel separation. The strong, lightweight mold made of hard resin greatly reduces unwanted vibrations, while the PCOCC coils ensure pure audio transmission. The AT33PTG/2 includes a non-magnetic screwdriver, mounting hardware, plastic protector, and a set of PCOCC lead wires.

Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.

Features:

• Moving coil cartridge with Microlinear stylus delivers exquisite, full-range audio reproduction
• Advanced tapered boron cantilever and reduced coil weight improve the audio quality, particularly in the higher frequencies
• Neodymium magnet and permendur yoke dramatically enhance the magnetic energy
• PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
• High-separation, wide-response dual moving coil
• Strong, rigid housing limits unnecessary vibration
• Precision-cast hard aluminum alloy body enhances rigidity and the signal-to-noise ratio

Specifications:

• Type: Dual Moving Coil
• Mounting: 0.5" / 12.7 mm Centers
• Frequency Response: 15 Hz to 50 kHz
• Body Material: Aluminum / Synthetic Resin
• Channel Separation: 30 dB (1 kHz)
• Channel Balance: 0.5 dB (1 kHz)
• Output Voltage: 0.3 mV (1 kHz and 5 cm/sec)
• Vertical Tracking Angle: 23°
• Tracking Force: Vertical Tracking Force Range: 1.8 to 2.2 g (2.0 g Standard)
• Stylus:
  Stylus Shape: Microlinear
  Stylus Curvature Radius: Micro Linear
  Stylus Construction: Nude Square Shank
  Stylus Cantilever: Gold-Plated Solid Boron
• Coil:
  Coil Impedance: 10 Ohms (1 kHz)
  Coil Inductance: 22 µH (1 kHz)
• DC Resistance: 10 Ohms
• Static Compliance: 40 × 10-6 cm/dyne
• Dynamic Compliance: 10 × 10-6 cm/dyne (100 Hz)
• Pins: Terminal Pins: Brass
• Recommended Load Impedance: Minimum 100 Ohms
• Dimensions (H x W x L): 0.63 x 0.65 x 1.04" / 16 x 16.6 x 26.5 mm
• Weight: 0.2 oz / 6.9 g

Includes:

• Audio-Technica Consumer AT33PTG/2 Dual Moving Coil Cartridge
• Non-Magnetic Screw Driver
• Brush
• Set of Mounting Hardware (Screws, Washers, Nuts)
• Plastic Protector
• Set of PCOCC Lead Wires
• Limited 1-Year Warranty
