Key Features
- Horizontal Mono Moving Coil
- Designed for Mono Records
- Works with Stereo Vinyl
- 0.6mm Conical Stylus
- Duralumin Cantilever
- Strong Body Stabilization
- Hanenite Anti-Vibration Rubber
- Includes Mounting Hardware & Brush
- Includes Plastic Protector + PCOCC Wires
Description

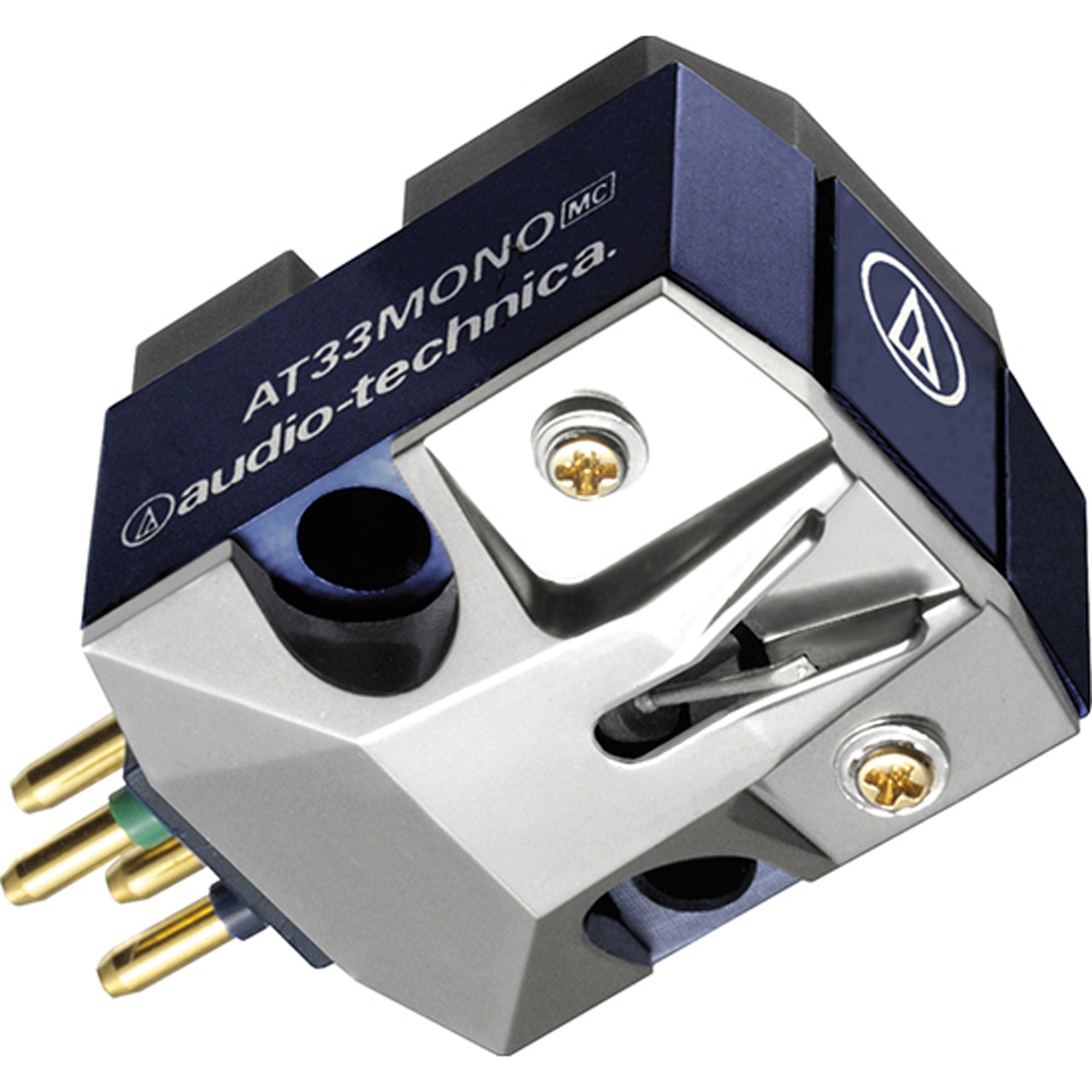

Dual Moving Coil Turntable Cartridge Designed Specifically for Use With Mono Vinyl Records
Designed for use with mono vinyl records and compatible with stereo playback systems, the Audio-Technica Consumer AT33MONO is a moving-coil turntable cartridge, which offers high-quality sound reproduction and dependable performance. With the horizontal configuration of PCOCC (Pure Copper by Ohno Continuous Casting) coil, the AT33MONO cartridge generates electrical signal with horizontal movement, yet it also has appropriate compliance in the vertical direction, making it safe for use with stereo records.
The AT33MONO helps prevent the transmission of unnecessary strain components from distorted or scratched records, while providing a mono audio signal with much higher quality than that generated by a stereo cartridge. The cartridge features a strong, rigid body and incorporates Hanenite rubber in the interior and cantilever fulcrum support to eliminate unnecessary vibrations. The AT33MONO includes a nonmagnetic screwdriver, mounting hardware, a plastic protector, and a set of PCOCC lead wires.
Note: This cartridge with 0.6 mil conical stylus is not compatible with SP (standard play) shellac records. It is designed to play microgroove 33-1/3 and 45 RPM vinyl records.
Features:
- Dual moving coil cartridge designed specifically for use with mono vinyl records
- Compatible with stereo playback systems
- 0.65 mil conical stylus is mounted on a hard duralumin cantilever
- Strong, rigid body construction
- Hanenite anti-vibration, high-damping rubber in the housing interior and cantilever fulcrum support eliminates unnecessary vibrations
- PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer without crystal gain boundary formation (in transmission direction)
- High-quality brass fastening screw
- Compatible with stereo playback systems
Specifications:
- Type: Magnetic Core Moving Coil
- Mounting: 0.5" / 12.7 mm Centers
- Frequency Response: 20 Hz to 20 kHz
- Body Material: Aluminum / Synthetic Resin
- Channel Separation: 30 dB (1 kHz)
- Channel Balance: 1.0 dB (1 kHz)
- Output Voltage: 0.35 mV (1 kHz and 5 cm/sec, Horizontal Signal)
- Vertical Tracking Angle: 23°
- Tracking Force: Vertical Tracking Force Range: 2.3 to 2.7 g (2.5 g Standard)
- Stylus:
Stylus Shape: 0.65 mil Conical
Stylus Type: Nude Square Shank - Stylus Cantilever: Duralumin Pipe
- Coil:
Coil Impedance: 10 Ohms (1 kHz)
Coil Inductance: 28 µH (1 kHz) - DC Resistance: 10 Ohms
- Static Compliance: 20 x 10 - 6 cm/dyn
- Dynamic Compliance: 6 × 10 - 6 cm/dyn (100 Hz)
- Recommended Load Impedance: Minimum 100 Ohms (When Head Amp Connected)
- Dimensions (H x W x L): 0.63 x 0.65 x 1.04" / 16.0 x 16.6 x 26.5 mm
- Weight: 0.2 oz / 6.9 g
Includes:
- Audio-Technica Consumer AT33MONO Moving Coil Cartridge
- Nonmagnetic Screw Driver
- Brush
- Set of Mounting Hardware (Screws, Washers, Nuts)
- Plastic Protector
- Set of PCOCC Lead Wires
- Limited 1-Year Warranty
