Key Features
- 0.3 x 0.7 mil Elliptical Cartridge
- Fits 1/2"-Mount Turntables
- Nude Square Shank Construction
- Duralumin Tapered Pipe Cantilever
- 30 dB of Channel Separation
- 15 Hz to 50 kHz Frequency Response
Description

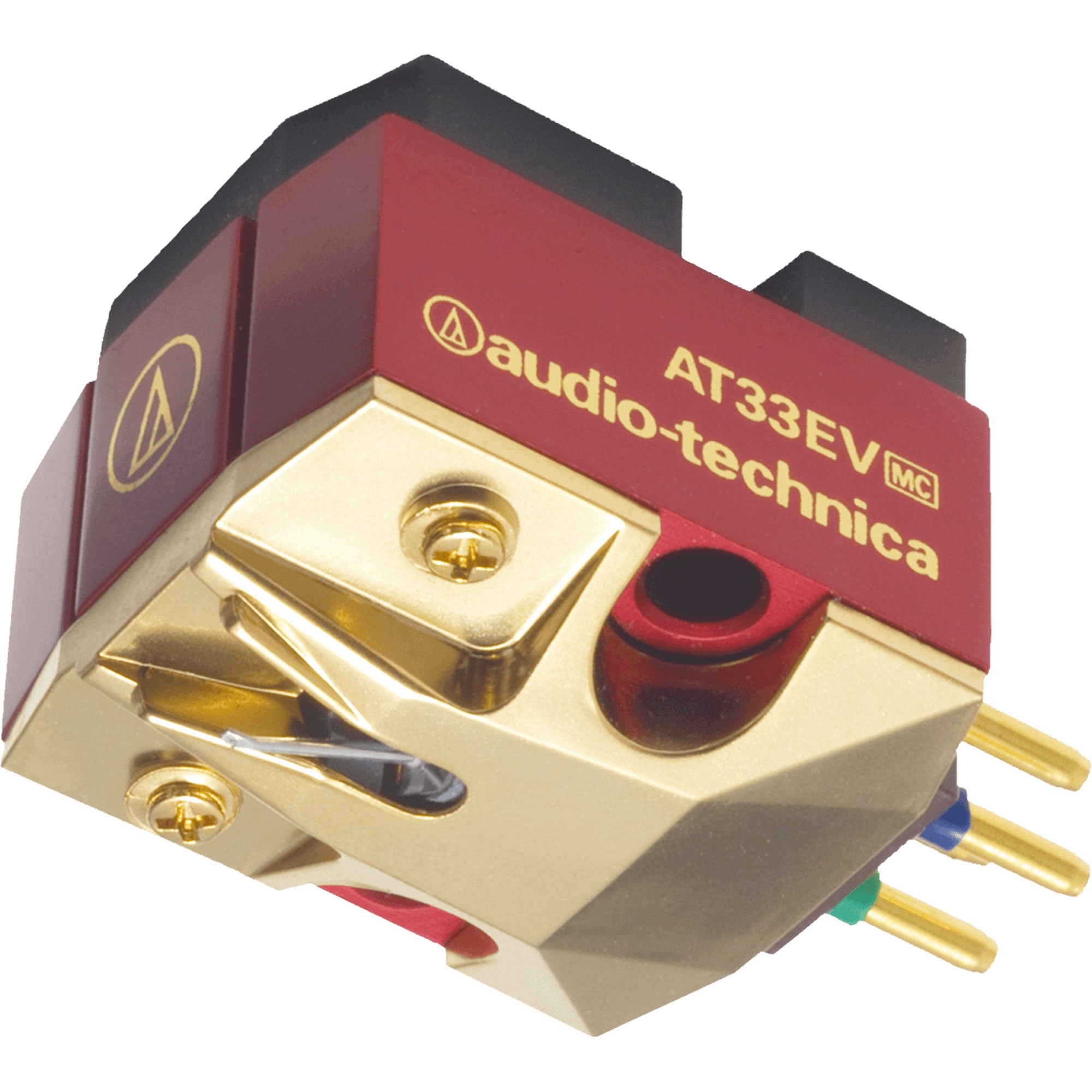

0.3 x 0.7mil Elliptical Dual Moving Coil Turntable Cartridge
The half-inch standard mount .3 x .7 mil elliptical AT33EV cartridge features a tapered duralumin cantilever. Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with neodymium magnet for enhanced magnetic energy and PCOCC wire for pure audio transmission.
Specifications:
- Frequency Response: 15-50,000 Hz
- Channel Separation: 30 dB (1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 grams (2.0 grams standard)
- Stylus Construction: Nude Square Shank
- Recommended Load Impedance: 100 ohms (with head amplifier connected)
- Coil Impedance: 10Ω (1kHz)
- DC Resistance: 10Ω
- Coil Inductance: 22µH (1kHz)
- Output Voltage: 0.3 (mV at 1 kHz, 3.54 cm/sec)
- Output Channel Balance: 0.5 dB (1 kHz)
- Stylus Shape: 0.3 x 0.7 mil nude elliptical
- Cantilever: Duralumin tapered pipe
- Static Compliance: 40x10-6cm/dyne
- Dynamic Compliance: 10x10-6cm/dyne (100Hz)
- Mounting: Half-inch
- Dimensions: H16xW16.6xD26.5mm
- Accessories Included: Non-magnetic screwdriver x 1, Washer x 2, Protector x 1, Cartridge installation screws 13 mm x 2 and 19 mm x 2, Nut x 2, Brush x 1, PCOCC lead set x 1
- Body Material: Aluminium/Synthetic Resin
- Mounting Feature: Half-inch mount
- Stylus Curvature Radius: 0.3 x 0.7 mil
- Terminal Pins: Brass
- Type: Dual Moving Coil
- Weight: 6.
Includes:
- Audio-Technica Consumer AT33EV Dual Moving Coil Cartridge
- 2 x 5mm Non-Magnetic Mounting Screws
- 2 x 9mm Non-Magnetic Mounting Screws
- Limited 1-Year Warranty
