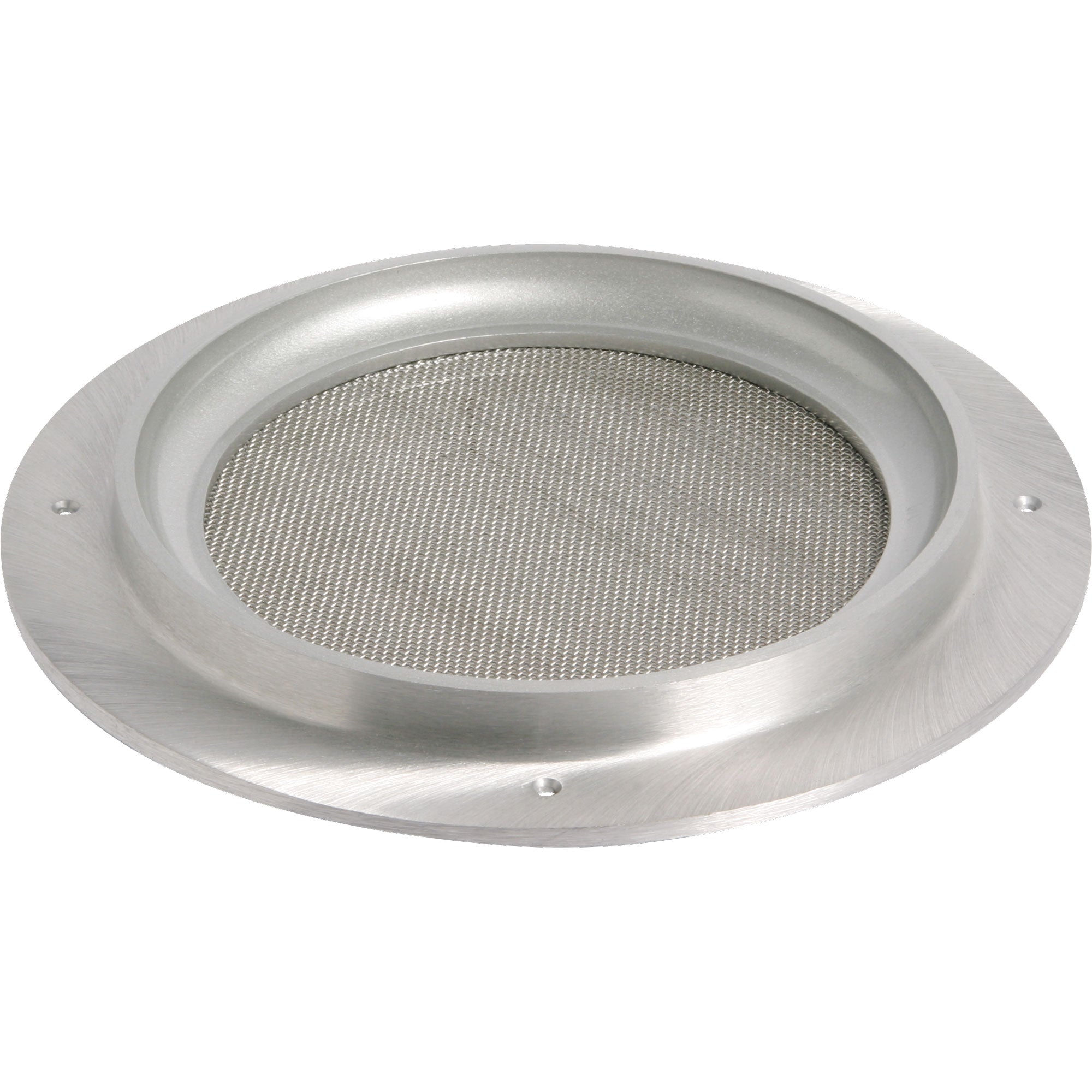

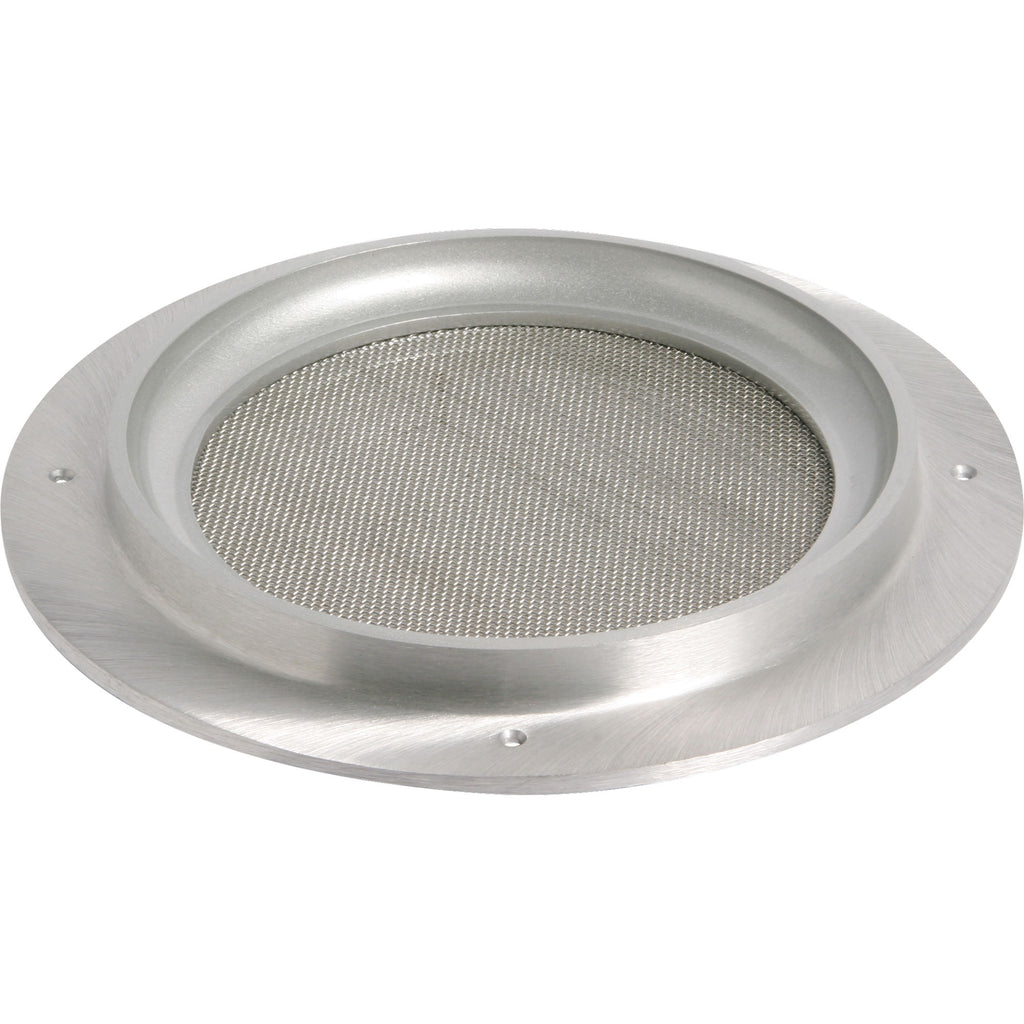

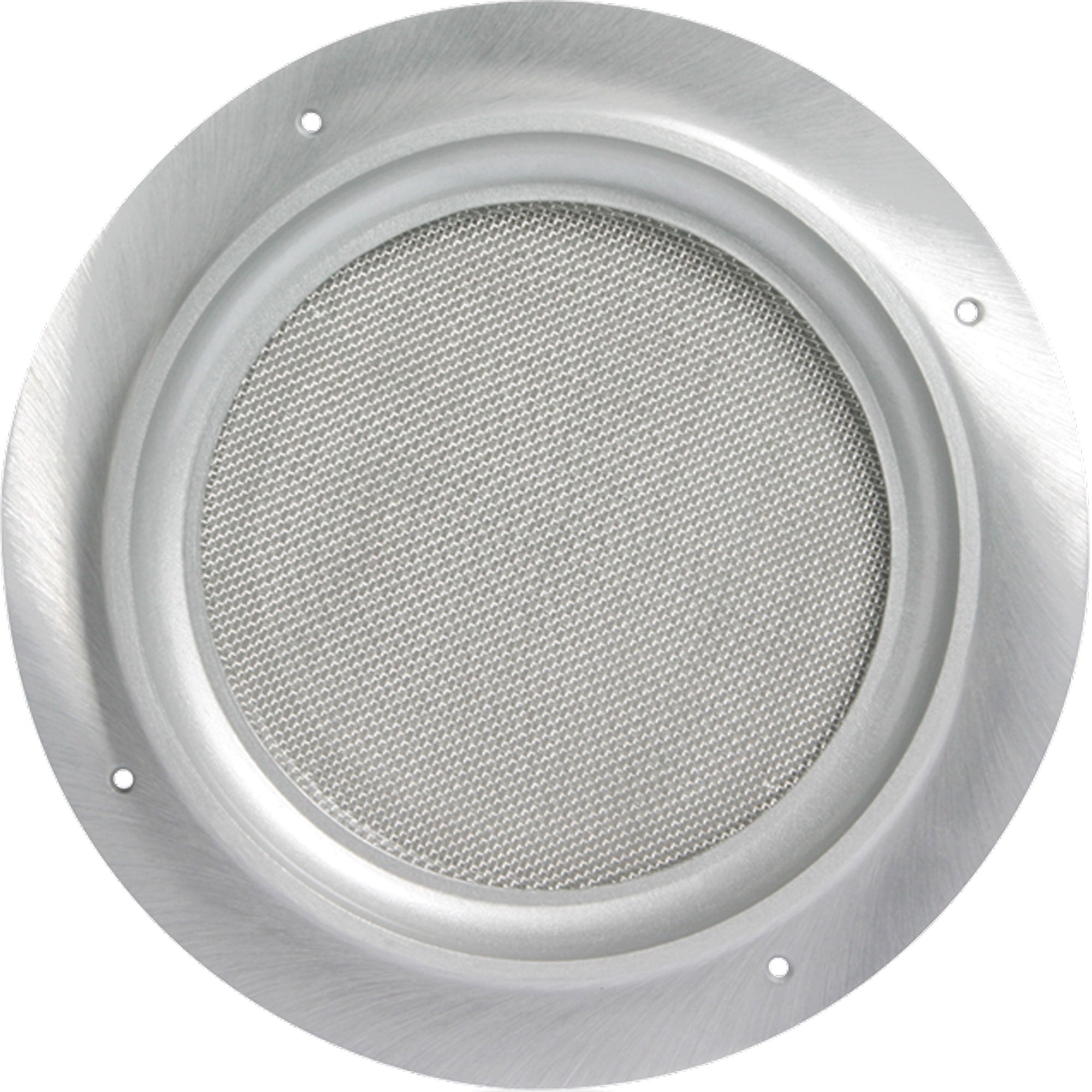

AtlasIED VP60R Recessed Circular Vandal Proof Baffle for 8" Speakers and Select Horn Speakers

Recessed Circular Vandal Proof Baffle

Model VP60-R. Reinforced, protective baffle assembly provides tamperproof recessed installation of a standard 8" cone loudspeaker or an APF Series re-entrant horn. Horn installation requires adapter plate Model FAMT-6.

Trim ring is cast from self-aging aluminum alloy with a tensile strength of 44,000 P.S.I. and features a 3/4" shielding collar to protect the loudspeaker from bashing.

The loudspeaker securely mounts to welded studs behind a perforated 22-gauge CRS plate which is then protected by a stainless steel-woven wire-mesh screen positioned 3/8" in front of the plate for direct impact protection. The mesh screen is reinforced by a thick bead of sealant on the inside to protect it against tearing or bending. Rugged unit installs via tamperproof heat-treated alloy screws (special wrench supplied) to specified enclosures. Mounting holes are countersunk for added security.

Finish is a satin aluminum with a clear acrylic coating.

Features:

• Meets varying application and aesthetic requirements
• Special aluminum alloy construction provides twice the strength of conventional cast aluminum baffles
• Tamperproof protection for cone loudspeakers and re-entrant horns

• Depth: 1" (2.54 cm)
• Diameter: 12-3/4" (32.385 cm)
• Shipping Weight: 3.13 lbs (1.42 kgs)
• UL Listed/Standard: 1480
