Description

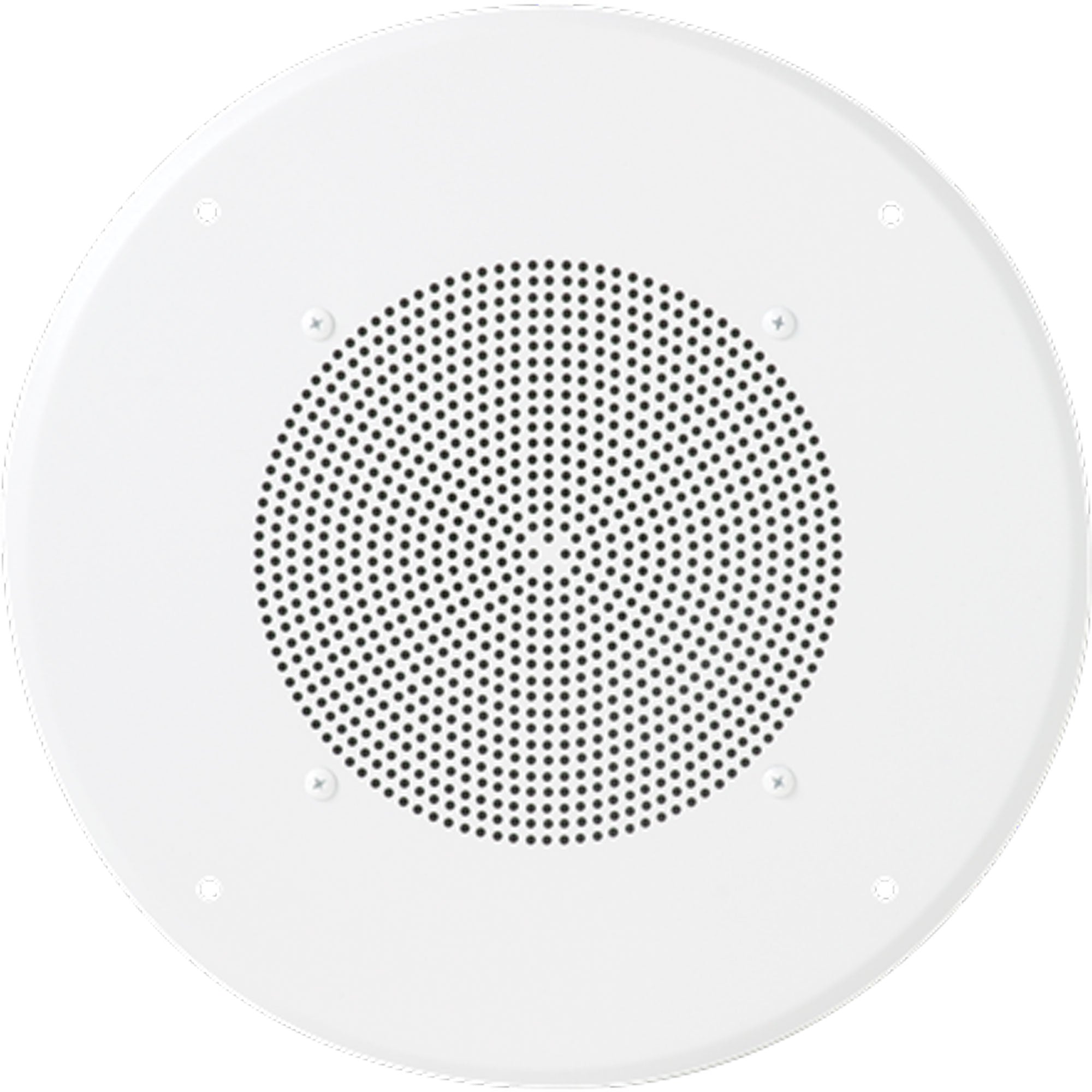

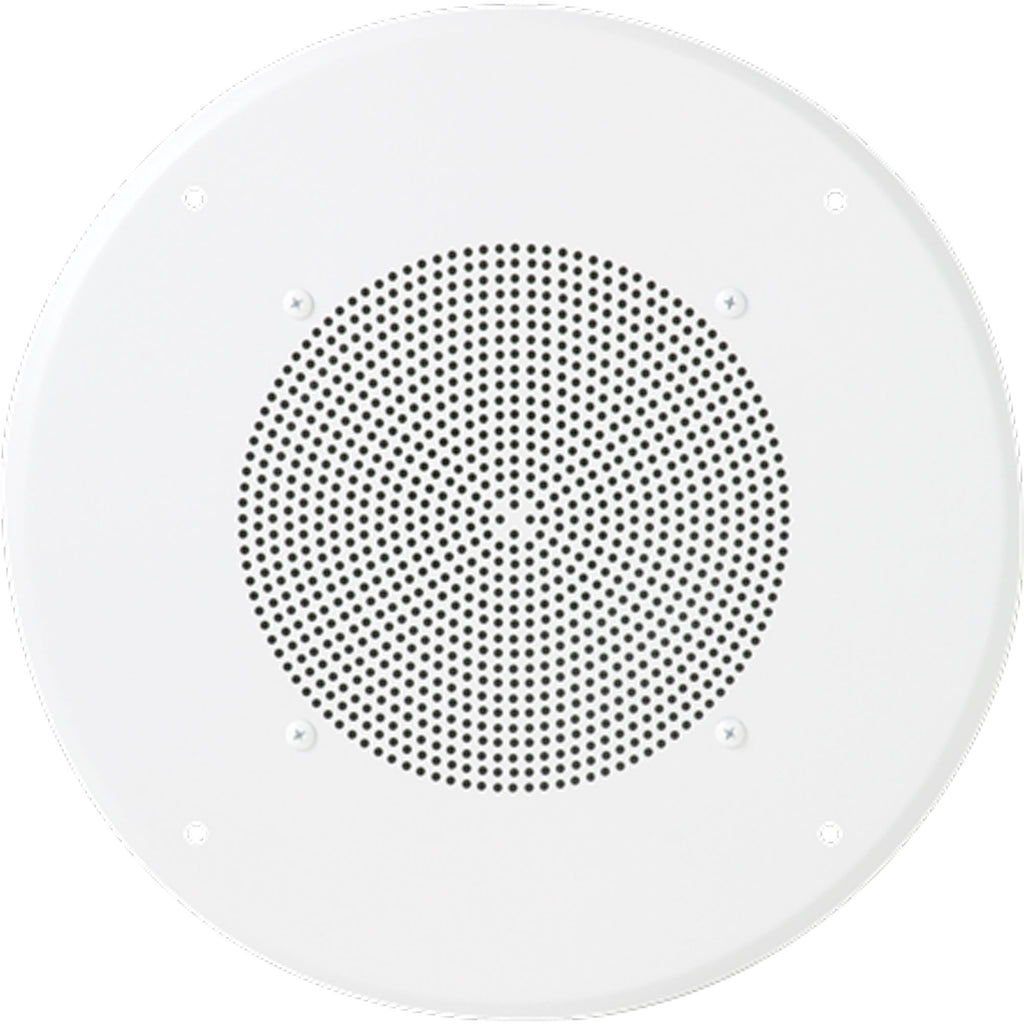

UL Listed 8" Loudspeaker for Fire Protective Signaling, 70V Transformer, U51-8 Baffle

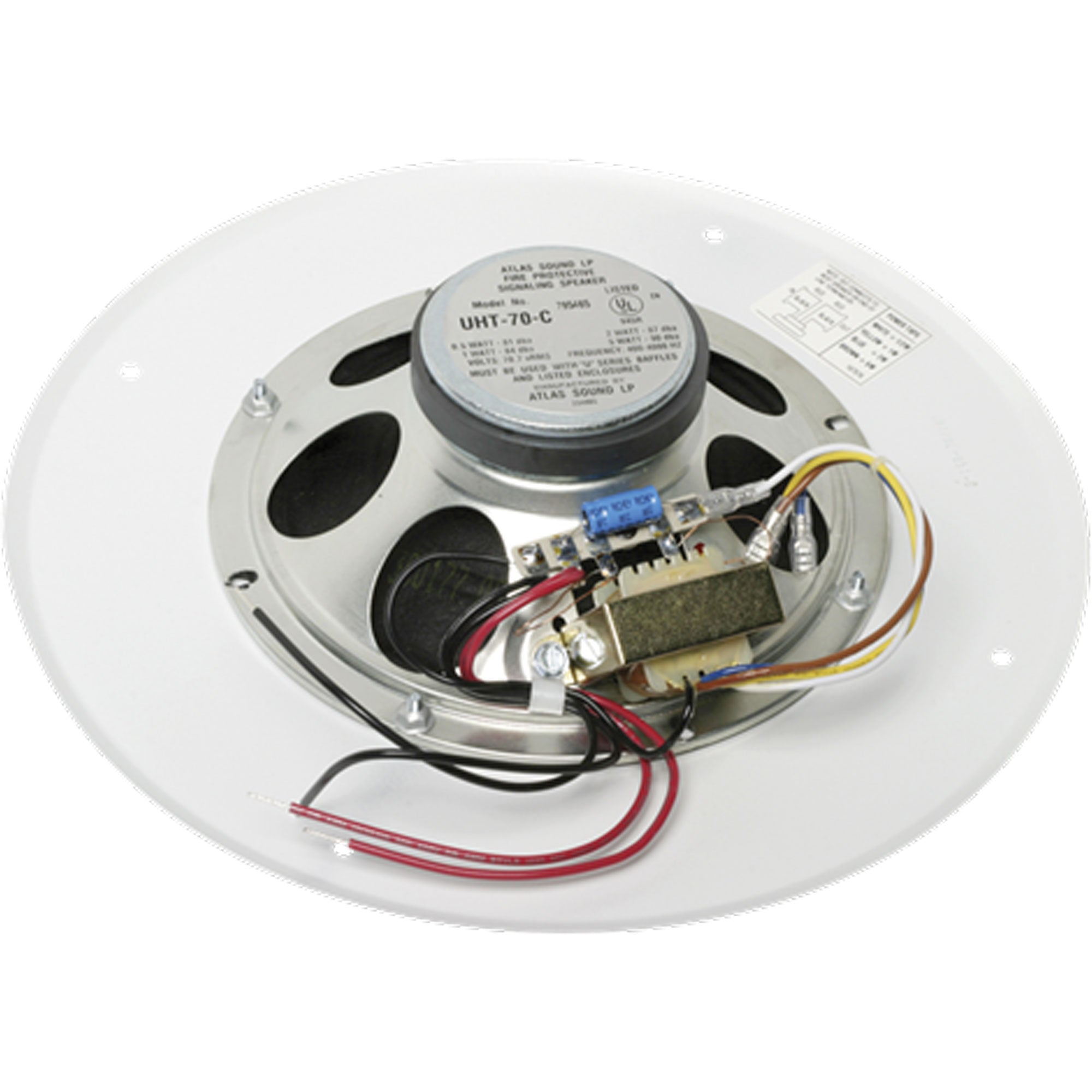

Atlas Sound's UHT70C-U51-8 are 8" diameter single voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle.
To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosures.
Features:
- Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
- Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
- Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
- Selection of UL Approved, Companion Enclosures is Offered
- UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
Specifications:
- Depth: 2-7/8" (7.3025 cm)
- Diameter: 8" (20.32 cm)
- Shipping Weight: 4.67 lbs (2.12 kgs)
- Frequency Response: 85 Hz - 8 kHz
- Power Taps: .5, 1, 2, & 5 Watts
- Power Rating: 10 Watts
- Sensitivity: 97dB Peak, 94dB Avg.
- UL Listed/Standard: 1480
