Description

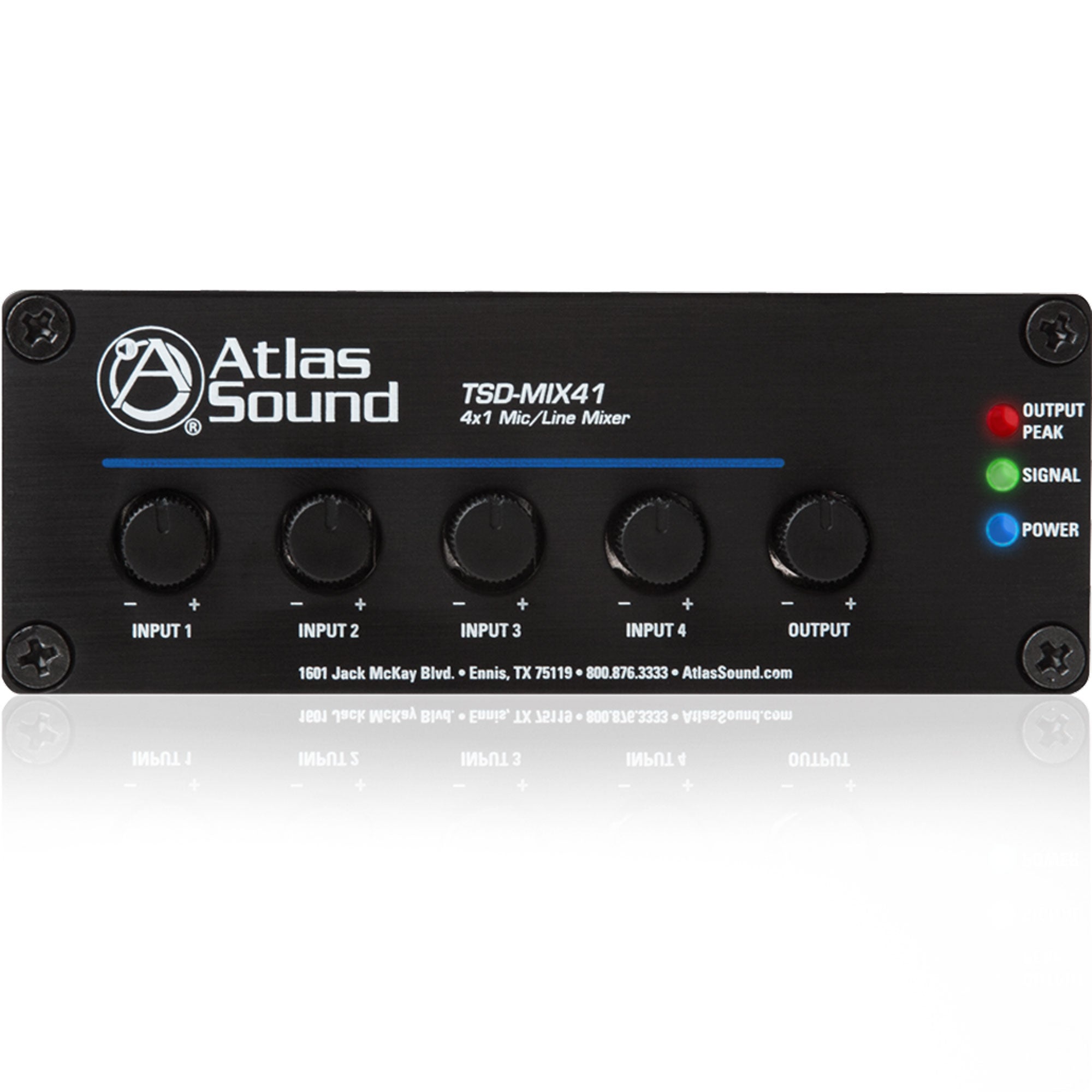

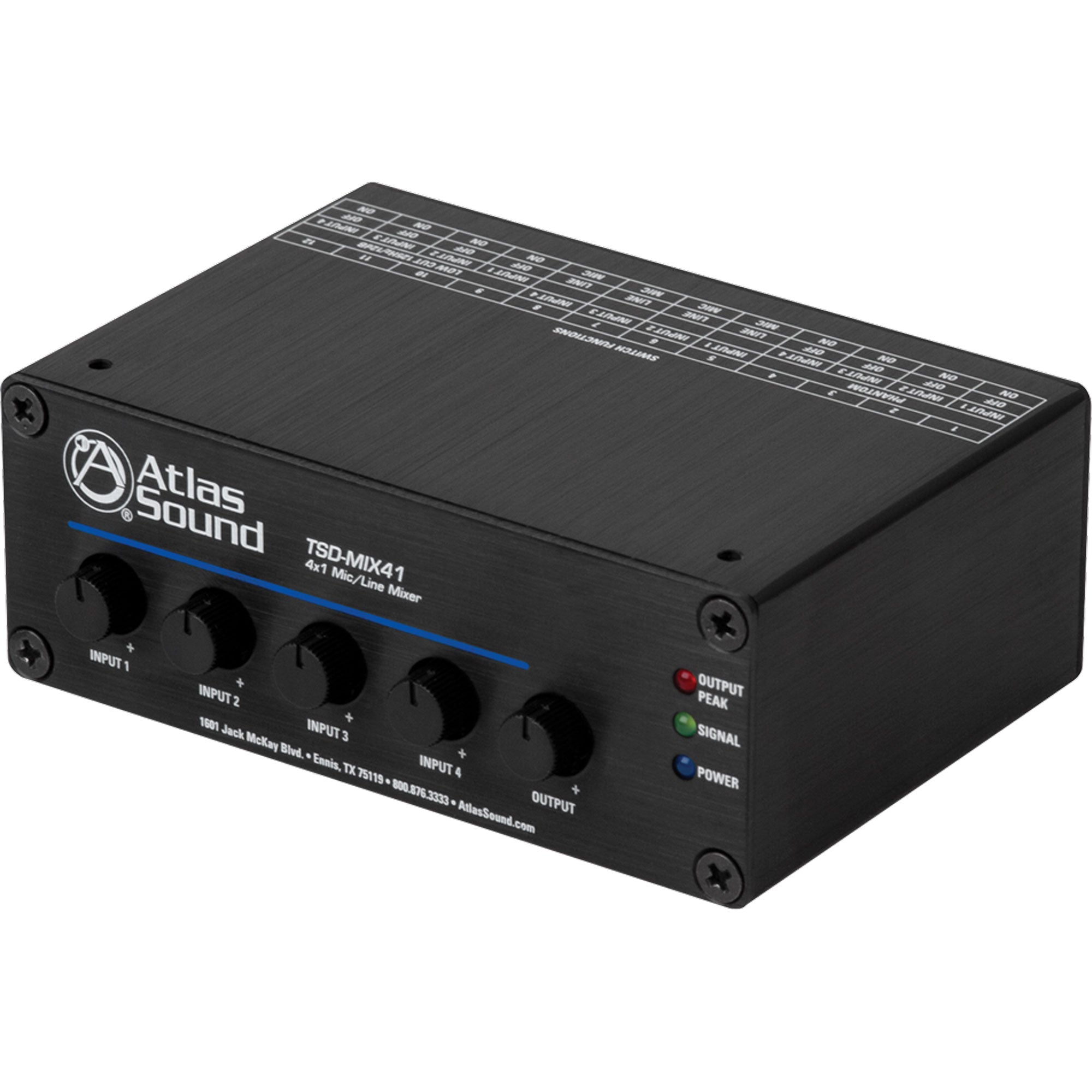

4 x 1 Mic/Line Mixer
The TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 is especially useful for combining similar sources such as choir microphones to a single mixer channel. The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with Atlas Sound amplifiers. Other applications include restaurants, conference rooms, and schools.
Each input is mic/line switchable with phantom power provided for condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback.
Features:
- Four (4) Balanced Mic/Line Inputs
- Four (4) Professional Grade Microphone Preamps with Switchable
- 24V Phantom Power
- Up to 50dB Mic Gain Per Input
- 12dB/Octave Low Cut Filter @ 125Hz
- Balanced Line Output
- Input Peak & Signal Indicator LED's
- Variable Output Limiter
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections

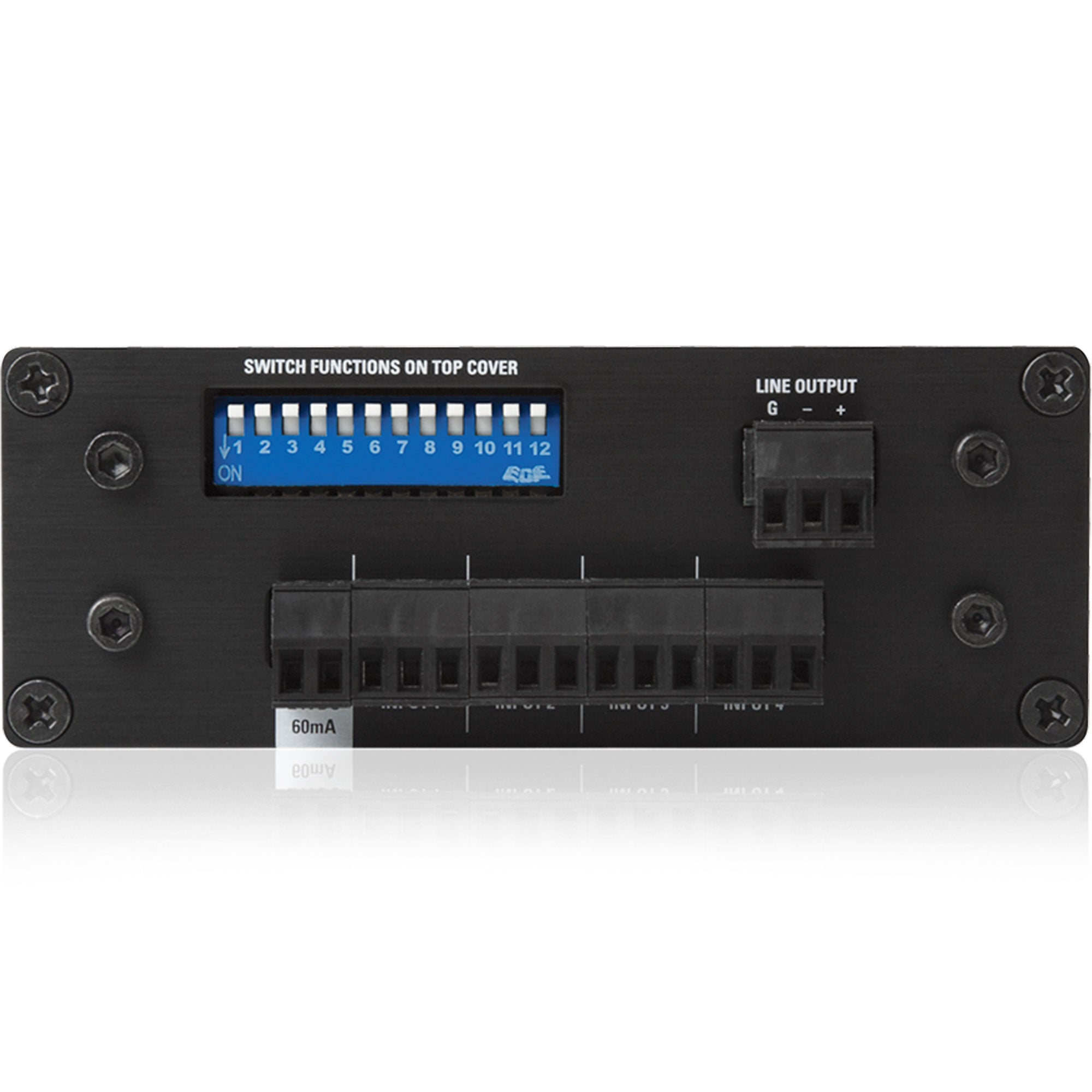

- Removable Phoenix Style I/O Connectors
- Security Covers Included for All Front Panel Controls
- Meets Energy Star Standards
Specifications:
- Input impedance: 1.2KΩ Balanced, 600Ω Unbalanced
- Phantom Power: 24VDC Defeatable
- Low Cut Filter: 125Hz/12dB Defeatable
- Line Input Level: 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
- Mic Input Level: 46dB Gain 10mV (-40dBV) Balanced = 2V (+6dbV) Balanced Output
- Output impedance: 300Ω Balanced, 150Ω Unbalanced
- Line Output Level: 1V (0dBV) In = 2V (+6dBV)
- Frequency Response: 20Hz - 20kHz (+/-1dB)
- THD: .06% & 1kHz
- Signal to Noise Ratio Line to Line: 85dBV
- Signal to Noise Ratio Mic to Line: 78dBV
- 24VDC Power Requirements: 60mA
- Dimensions
- Height: 1.5" (3.81 cm)
- Width: 4" (10.16 cm)
- Depth: 2.5" (6.35 cm)
- Weight: 6oz., .165kg
