Description
10oz Dual Cone Speaker/ 5 Watt Transformer (70.7/25V) Assembly
10oz Dual Cone Speaker/ 5 Watt Transformer (70.7/25V) Assembly
The speaker used in the SD72 is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series speakers. Similarity in sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72.

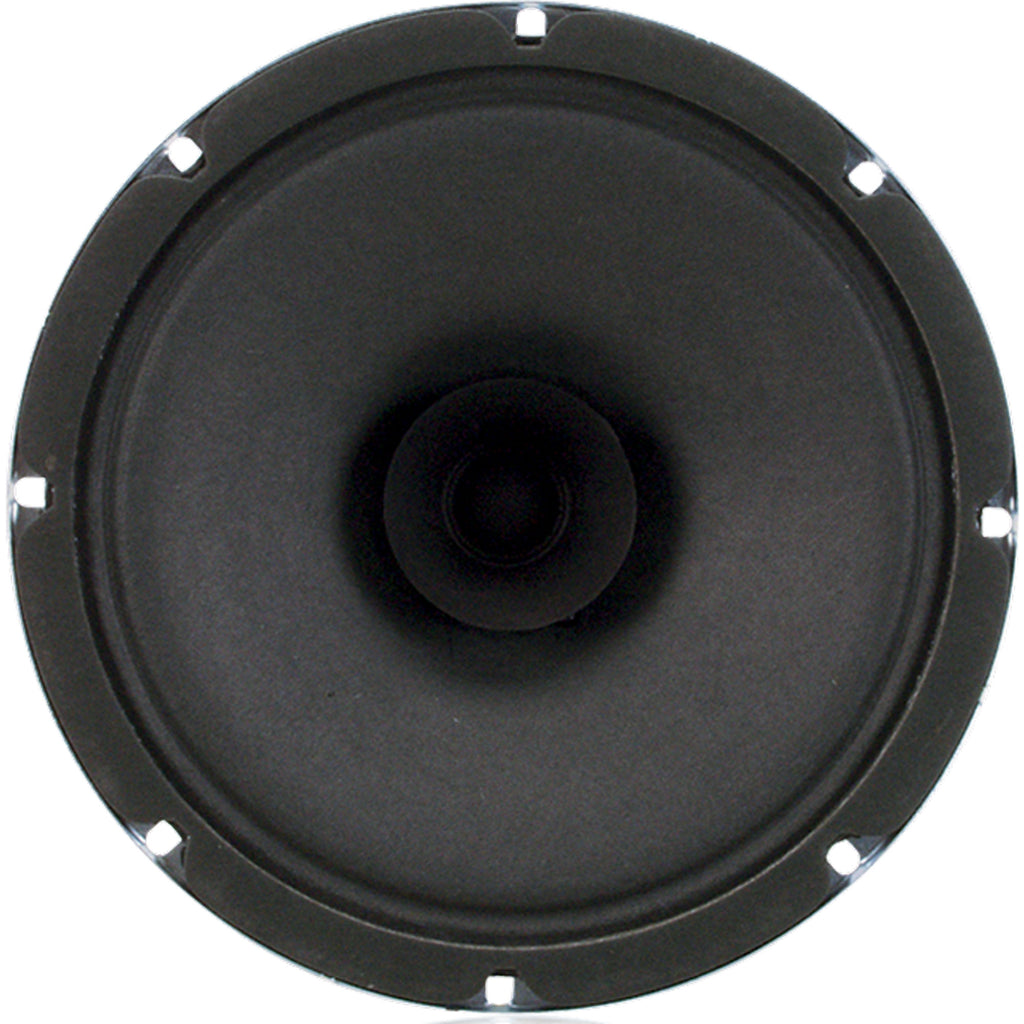

Model SD72 is a dual cone, 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

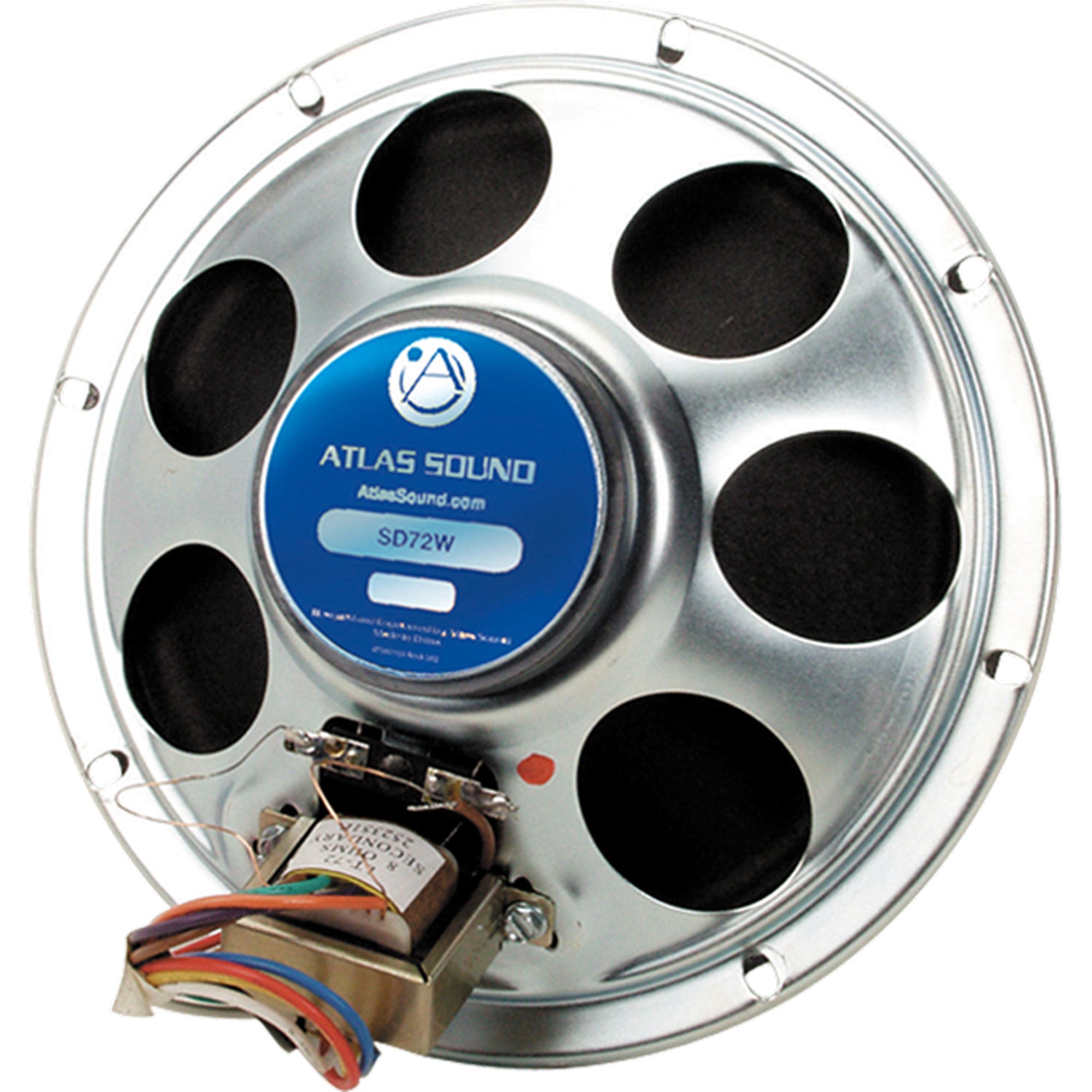

Model SD72 operates within a frequency response range of 45Hz to 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.
The unit mounts a wide variety of Atlas Sound round and square baffles and enclosures to meet functional and aesthetic application requirements.
Features:
- 5 watt-dual voltage transformer
- Individually packaged for stocking & ordering convenience
- Quality 10oz dual cone speaker provides familiar response & performance
Specifications:
- Depth: 2-7/8" (7.3025 cm)
- Diameter: 8-1/8" (20.6375 cm)
- Shipping Weight: 3.00 lbs (1.36 kgs)
- Frequency Response: 55Hz-8kHz (+/-5dB)
- Power Taps: 70.7V
- Speaker Type: Treated Paper
- Dispersion: 105 (2kHz Octave Band, -6dB Points)
- Sensitivity: 97dB Average
- UL Listed/Standard: 1480, 2043
