Description

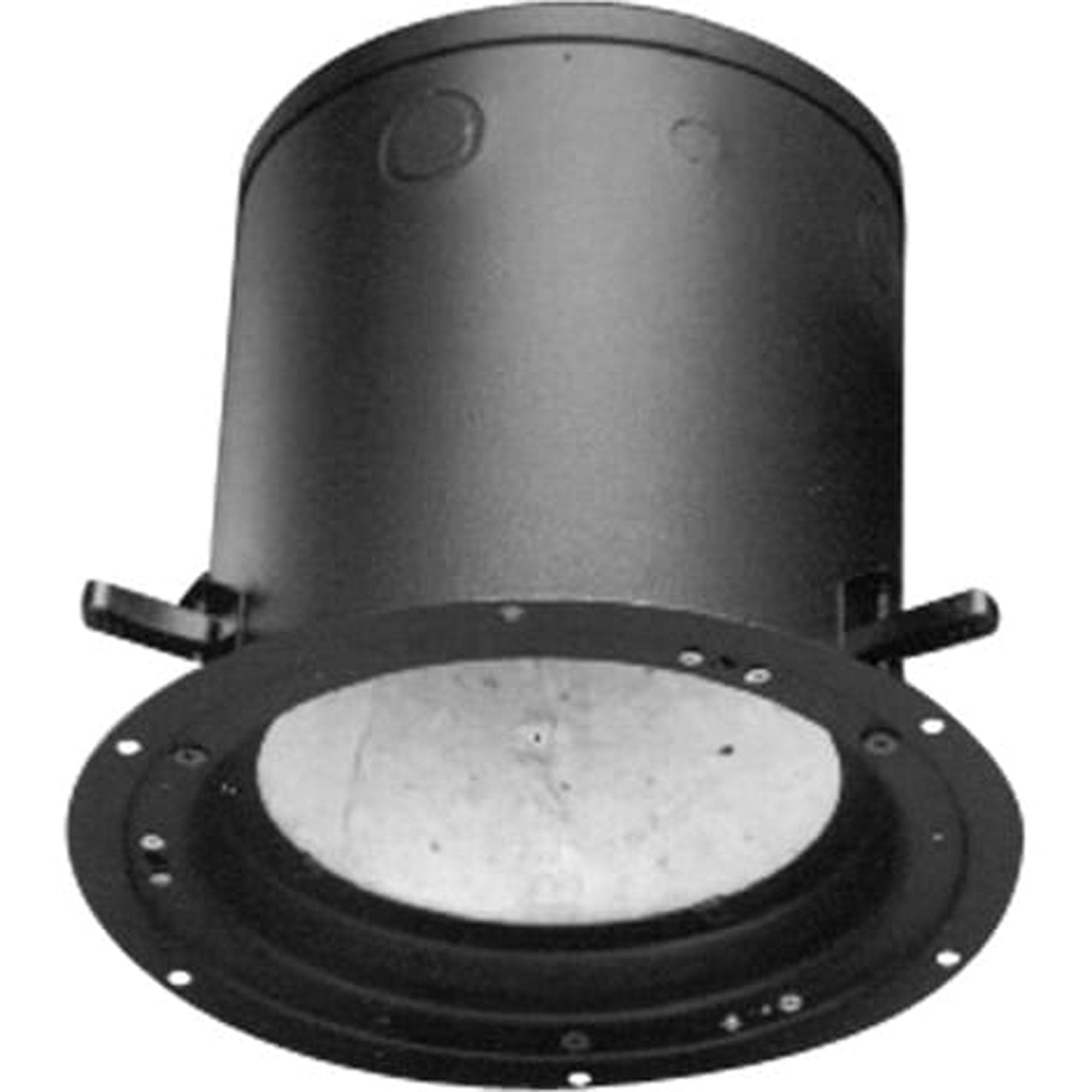

Recessed Enclosure with Dog Legs for 6" Strategy Series Extra Deep
Recessed Enclosure with Dog Legs for 6" Strategy Series Extra Deep
Model FA97-6 installs quickly and easily in plaster, drywall, or suspended tile ceilings up to 2-1/4" thick utilizing three, easy-to-adjust rotating clamps that rotate and secure into position with a screwdriver.
The enclosure front-loads Atlas Sound's Strategy Series 6" dia. loudspeaker Models FA136 and FA116. This direct loudspeaker to enclosure mounting method removes all load-bearing requirements from the grille, allowing the use of welded studs for convenient, push-on grille installation - a time-saving feature which presents a clean and hardware-free appearance. It also facilitates fast and easy grille removal for painting or other maintenance.
The FA97-6 allows the high-performance coaxial FA136 loudspeaker to achieve maximum potential. This high-quality loudspeaker/enclosure combination is perfect for applications where high-fidelity music and intelligible speech are imperative.
Features:
- Acoustically treated enclosure for Strategy I speakers
- Depth of enclosure allows for extended low frequency response
- Flip tab dog ears allow for installation in ceilings up to 2-1/4" thick
- Recessed lip in opening mounts speaker directly to enclosure to provide a sealed system
- Tubular spring clips on flanged face accept ribbed weld studs on Strategy I grills
- UL1480 and UL2043 listed for use in General Signaling and Plenum ceilings
Specifications:
- Depth: 7-5/8" (19.3675 cm)
- Diameter: 7" (17.78 cm)
- Shipping Weight: 2.83 lbs (1.29 kgs)
- UL Listed/Standard: 1480, 2043
