Description
6" Strategy 2 Series Loudspeaker, UL Listed, 70.7V/100V-30W xfmr

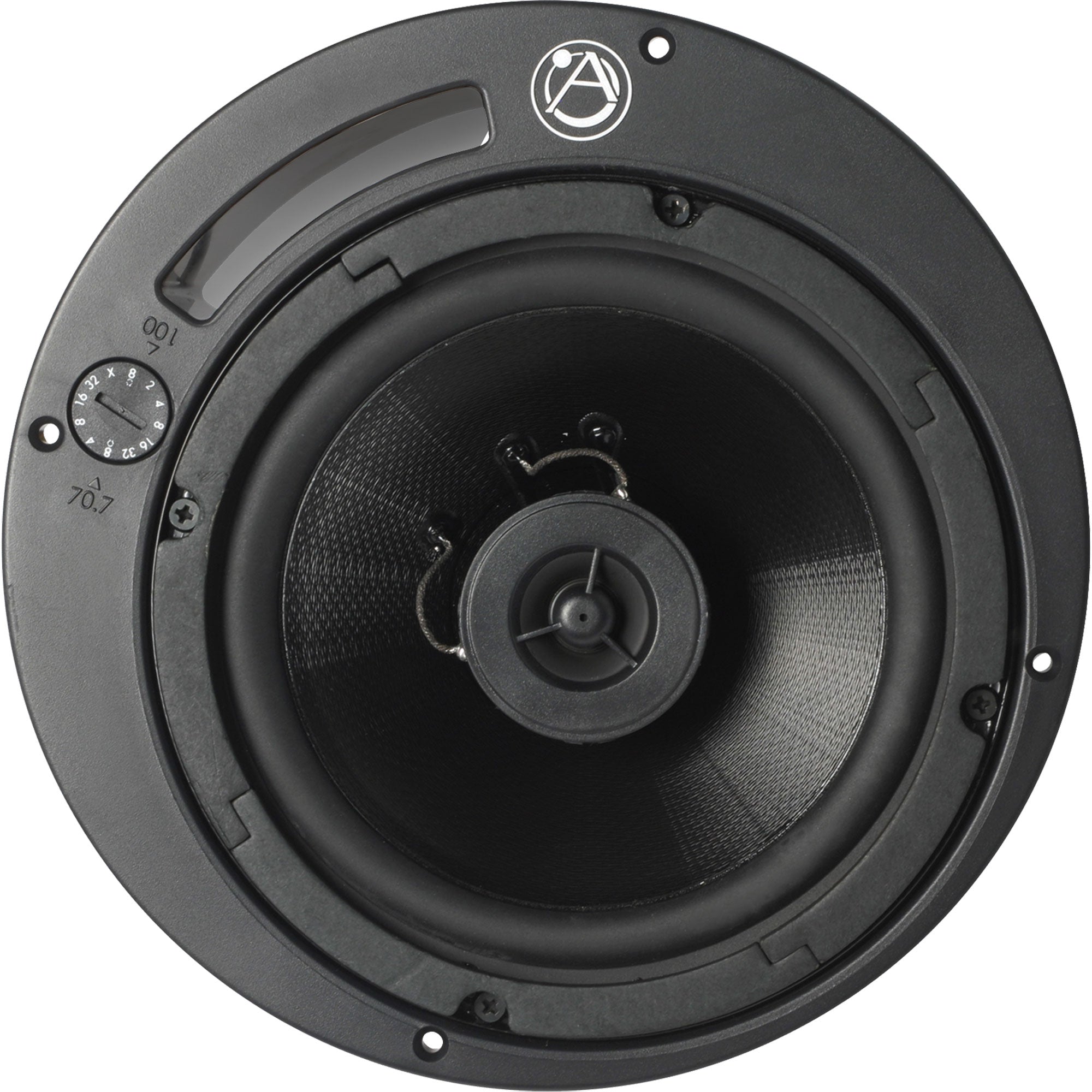

Strategy II 6" 30W @ 70.7V/100V "Motor Board" Assembly - Fits Original Strategy Series 8" Enclosures
Model FA62T-8MB is the entire 6" speaker/transformer/selector switch/front plate assembly found in the FAP62T assembly. The footprint of the FA62T-8MB is identical to a standard FA series 8" speaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosures in the exact same manner as a regular 8" FA speaker (FA138Txx).
Features:
- 6" Speaker installs into 8" Strategy enclosure
- Designed for division of labor installations when enclosures need to be installed before speakers
- Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
- Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
- Tuned port maximizes low frequency response from FA97-8 & FA95-8 enclosure
- UL1480 for General Signaling Listed file UEAY.S1824
Specifications:
- Depth: 5-1/2" (13.97 cm)
- Diameter: 8-1/2" (21.59 cm)
- Shipping Weight: 6.00 lbs (2.72 kgs)
- Frequency Response: 63Hz-20kHz
- Power Taps: 2, 4, 8, 16, 32, 8 Ohm direct
- Speaker Type: Coaxial
- Dispersion: 110
- Sensitivity: 88dB Average
- UL Listed/Standard: 1480
