Key Features
- Power & Network Status LEDs
- 8 Label Slots with Plastic Covers
- Aluminum Front Panel
- RJ45 Ethernet Connector
Description

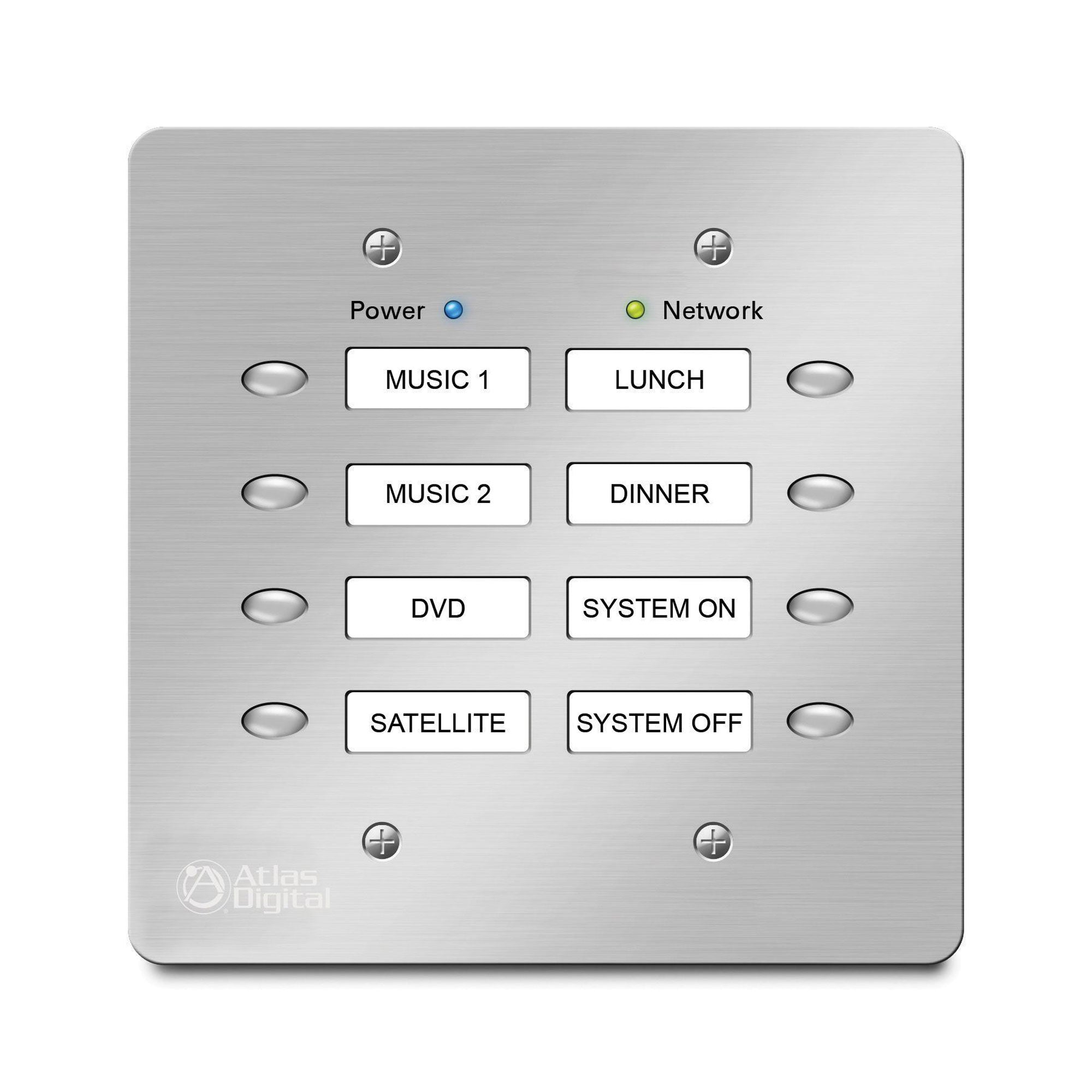

BlueBridge DSP Controller with 8-Button Controller - White
The BBWP-S8W is part of the BlueBridge DSP product line. The BBWP-S8W is a eight-button wall controller that can be used to change any eight preset selections. It can also control button, preset, matrix connect, and mute functions. Using BlueBridge Designer software, you can virtually assign level values and stack multiple actions to the single button control.
Features:
- Power and Network Status Indicator LEDs
- Eight (8) Label Slots with Plastic Protective Covers
- Aluminum Front Panel
- RJ45 Ethernet Connector
- External Power: 2 Pin Detachable Euro Connector
- IP Reset Switch Push Button
- Also Available in Black
Specifications:
- Power: 5V DC @ 1A, Power Supply Included 48VDC-PoE
- Wall Mounting: Fits 2-Gang Back Box
- Height: 4.5" (114.3mm)
