Key Features
- 10W Power Rating
- 10 Attenuation Steps
- For 25 & 70.7-Volt Systems
- Matte Black Dial Scale
- Priority Paging Feature
- Rack Mounting Style
- Skirted Black Knob
Description

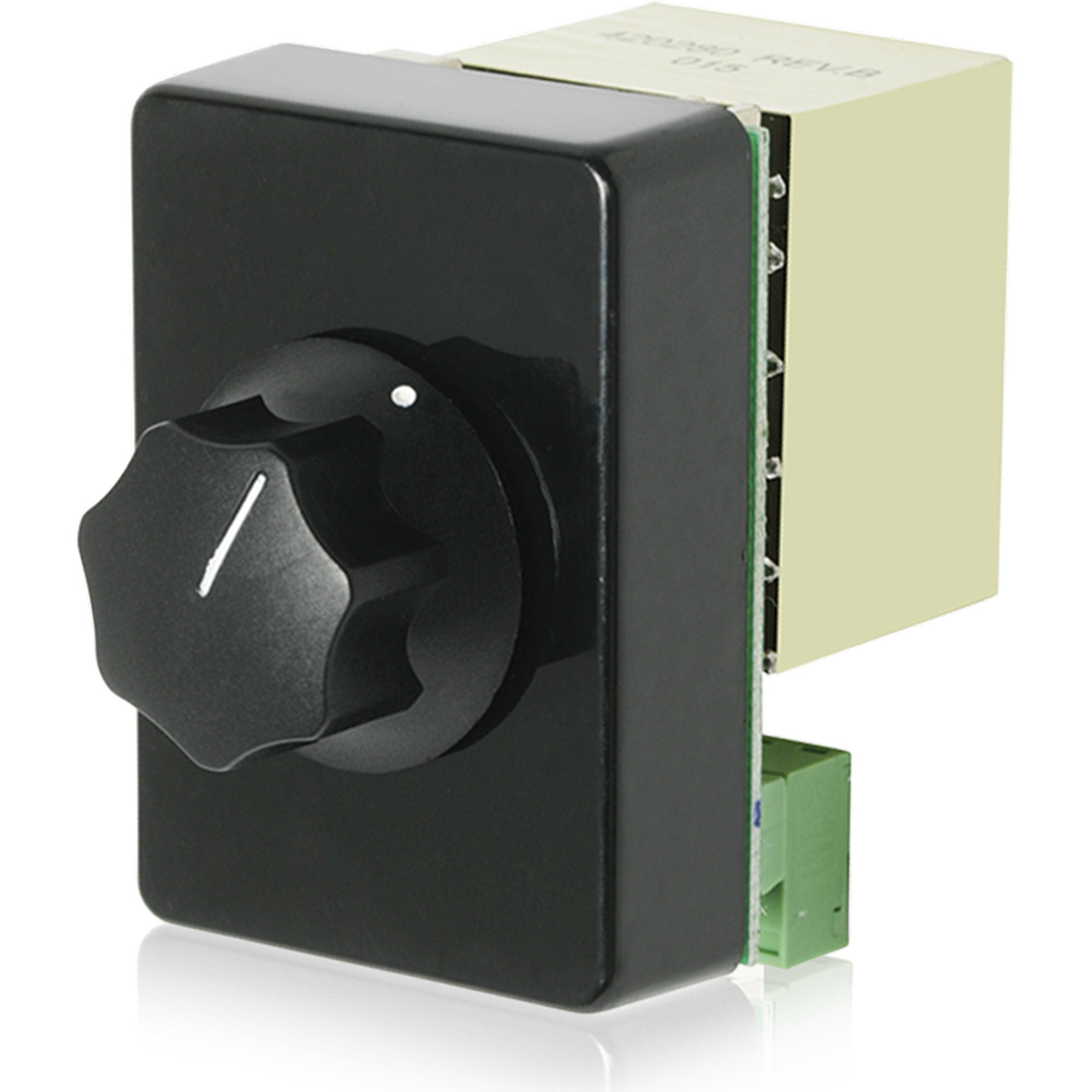

Deluxe Priority, Rack Mounted 100W Attenuator with Priority Relay, 3dB Steps
High-quality auto transformer AT100-PARM provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems.
Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation.
Features a removable terminal block. Includes screen printed dial scale and a skirted black knob.
Features:

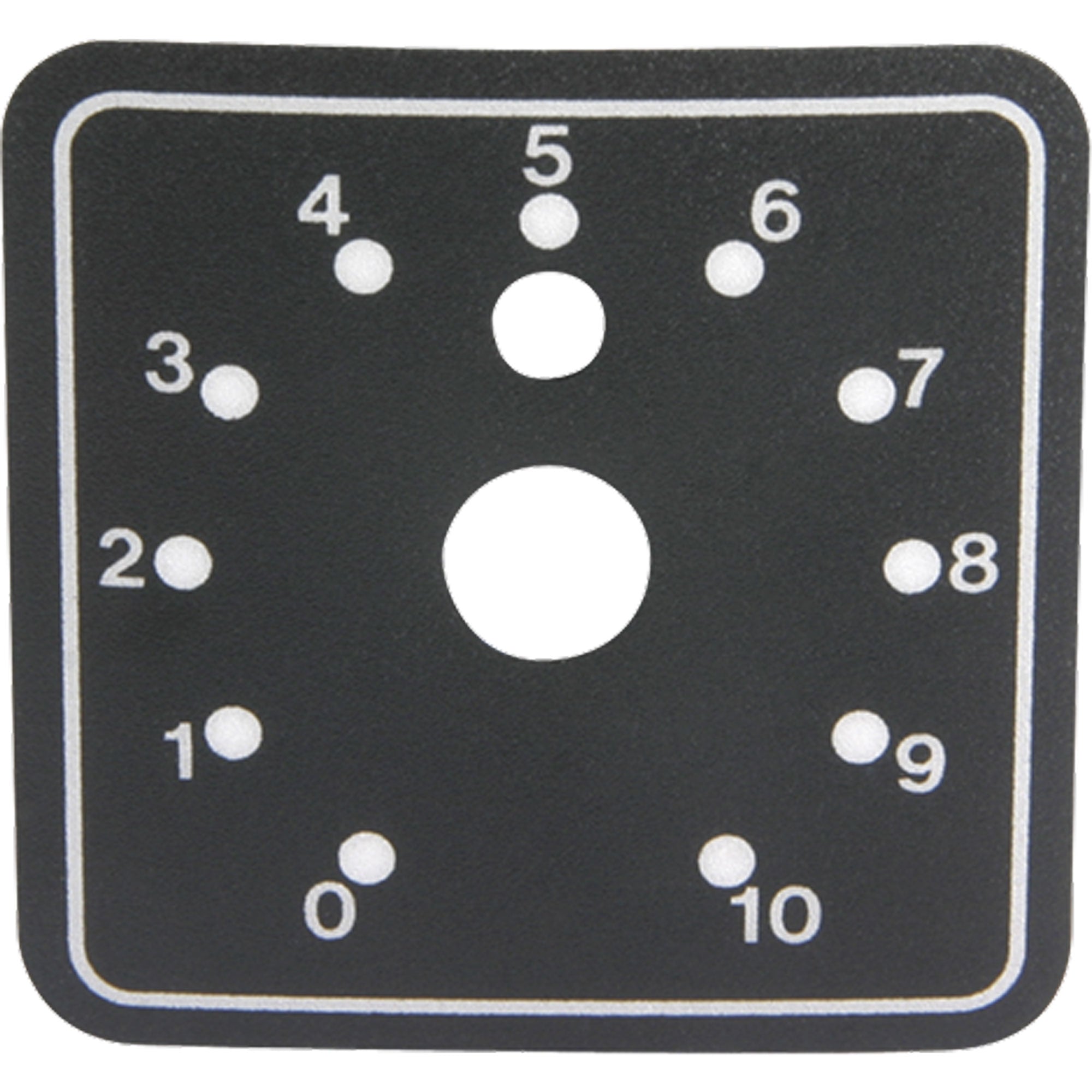

- Attractive Matte Black Polycarbonate Dial Scale Overlay with Adhesive Backing Replaces the Mounting Plate. Includes Skirted Black Knob.
- Priority Paging Feature By-Passes the Effect of the Attenuator
- Rack Mount Attenuator for Mounting on to Blank Panels in Equipment Cabinets
- The SPDT Relay is Operated with 24 VDC at 10mA
Specifications:
- POWER RATING: 100W
- TOTAL ATTENUATION: 27dB
- HEIGHT: 2 3/4" (6.99 cm)
- WIDTH: 1 3/4" (4.45 cm)
- DEPTH: 2 1/2" (6.35 cm)
- SHIPPING WEIGHT: 1.50 lbs (0.68 kgs)
- SAFETY LISTED: 813, 2043
Details
- Manufacturer: AtlasIED
- MPN: AT100-PARM
- Model Number: AT100-PARM
- UPC: 612079179596
