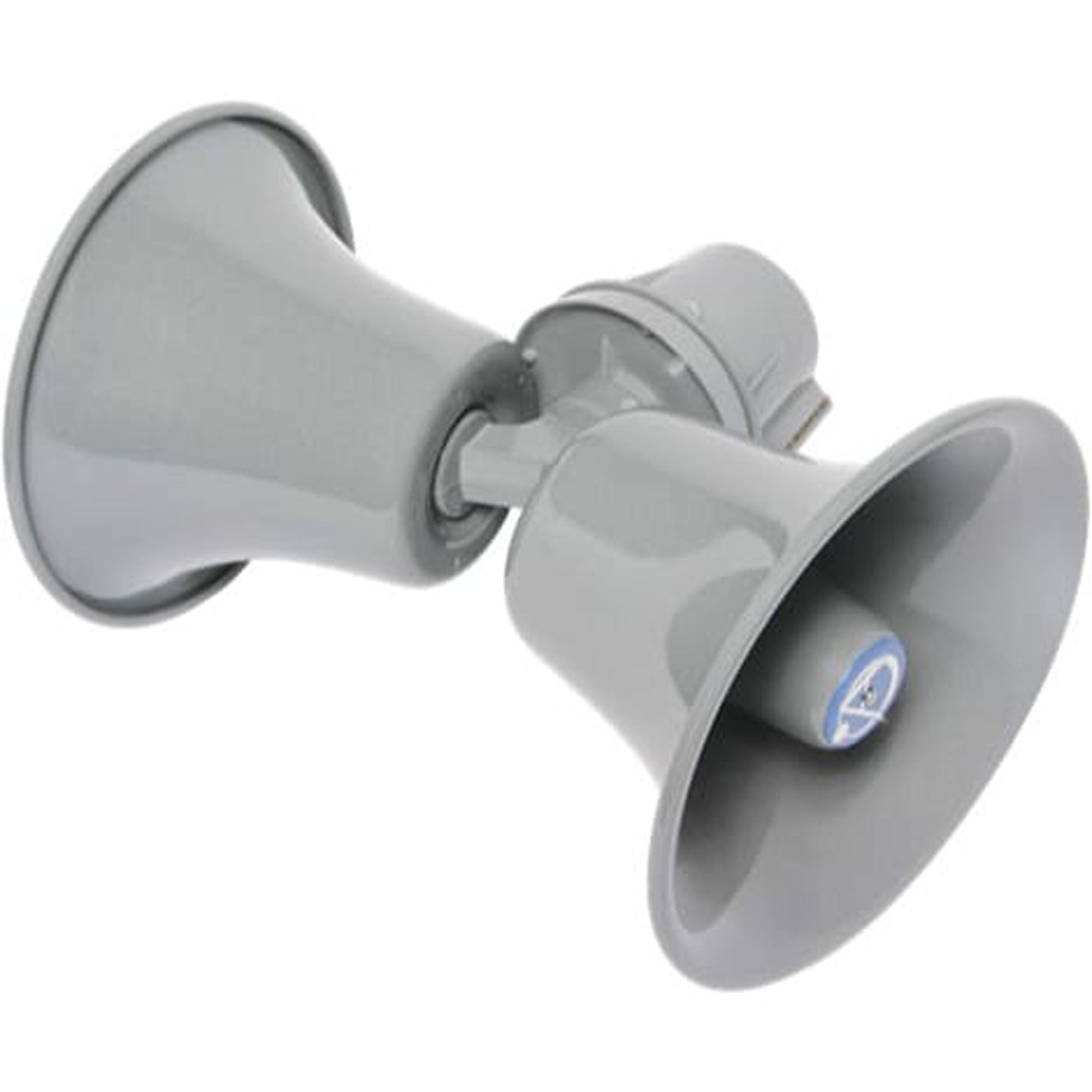

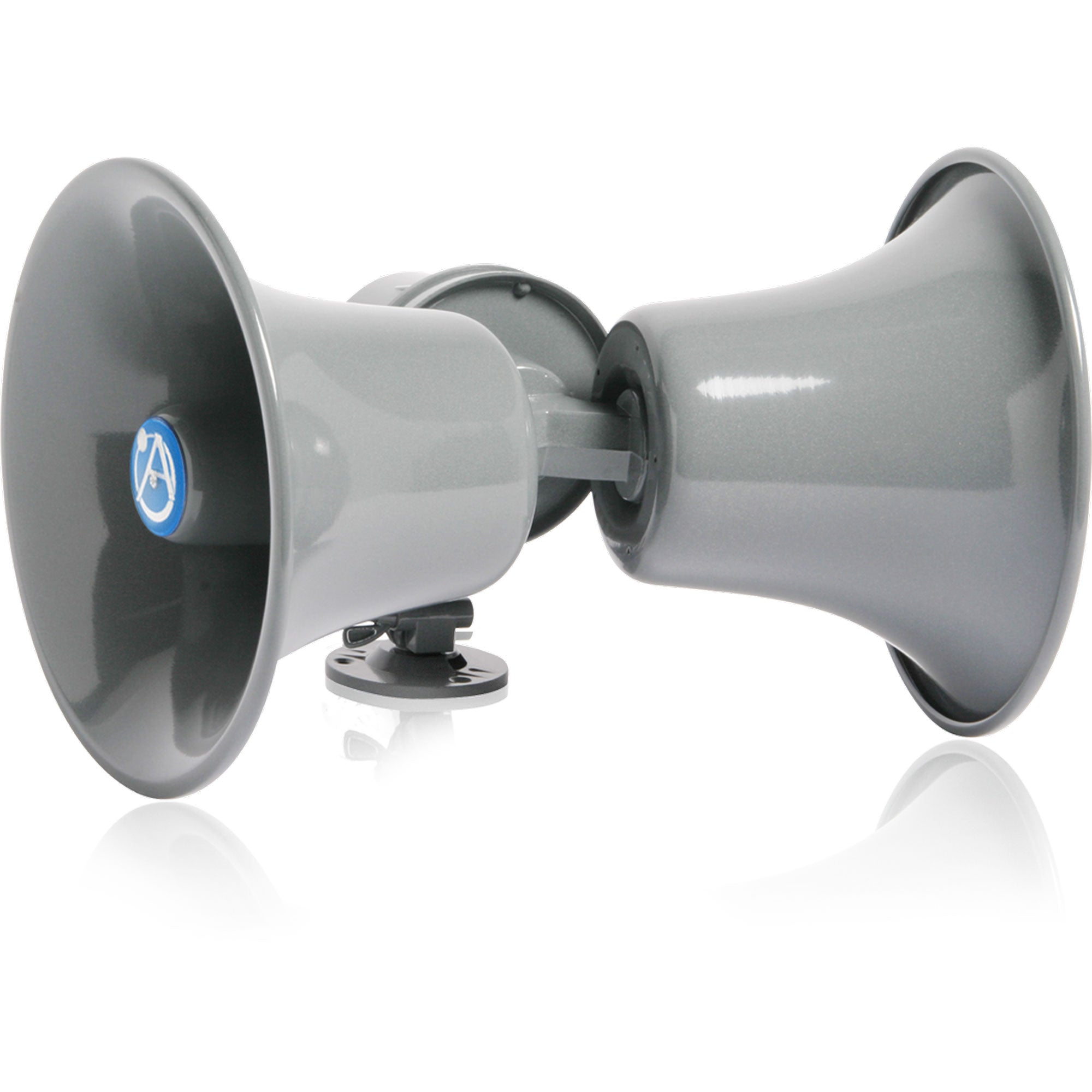

AtlasIED APT-34AT Dual Direction Twin Horn Speaker

Dual Direction Twin Horn Speaker with 30-Watt 25V/70V/100V Transformer

Model APT-34AT Surface-mounting speaker with bi-directional sound dispersion provides concentrated coverage in corridors, stairwells and walkways in commercial, institutional and industrial applications.

Twin horn assembly delivers 30 watts of power with a single compression driver (included) and provides 100° sound dispersion in each direction.

Unit includes the Omni-Purpose bracket and provisions for surface/strap mounting. Finished in grey baked epoxy.

Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.

Features:

• Includes 30 Watt High Efficiency Driver
• Omni-Purpose Mounting Bracket for Positioning Flexibility on Vertical or Horizontal Planes
• Twin Reflex Projectors Provide High Efficiency Bi-Directional Sound Dispersion
• Weather Resistant Construction for Indoor or Outdoor Installations

Specifications:

• FREQUENCY RESPONSE: 400Hz - 12.5kHz
• SENSITIVITY: 101dB
• POWER TAPS: 2, 3.8, 7.5, 15, 30W @ 70.7V
• DISPERSION: 175°
• DEPTH: 16 1/2" (41.91 cm)
• DIAMETER: 9 1/4" (23.50 cm)
• SHIPPING WEIGHT: 9.00 lbs (4.08 kgs)
