Key Features
- 14U Racking Height
- 10-32 Adjustable Rack Rails
- Internal Louvers on Each Side
- Ships Completely Assembled
- All-Welded Construction
- Keyed Lock on Rear Door
- Spring-Loaded Hinge on Rear Door
Description

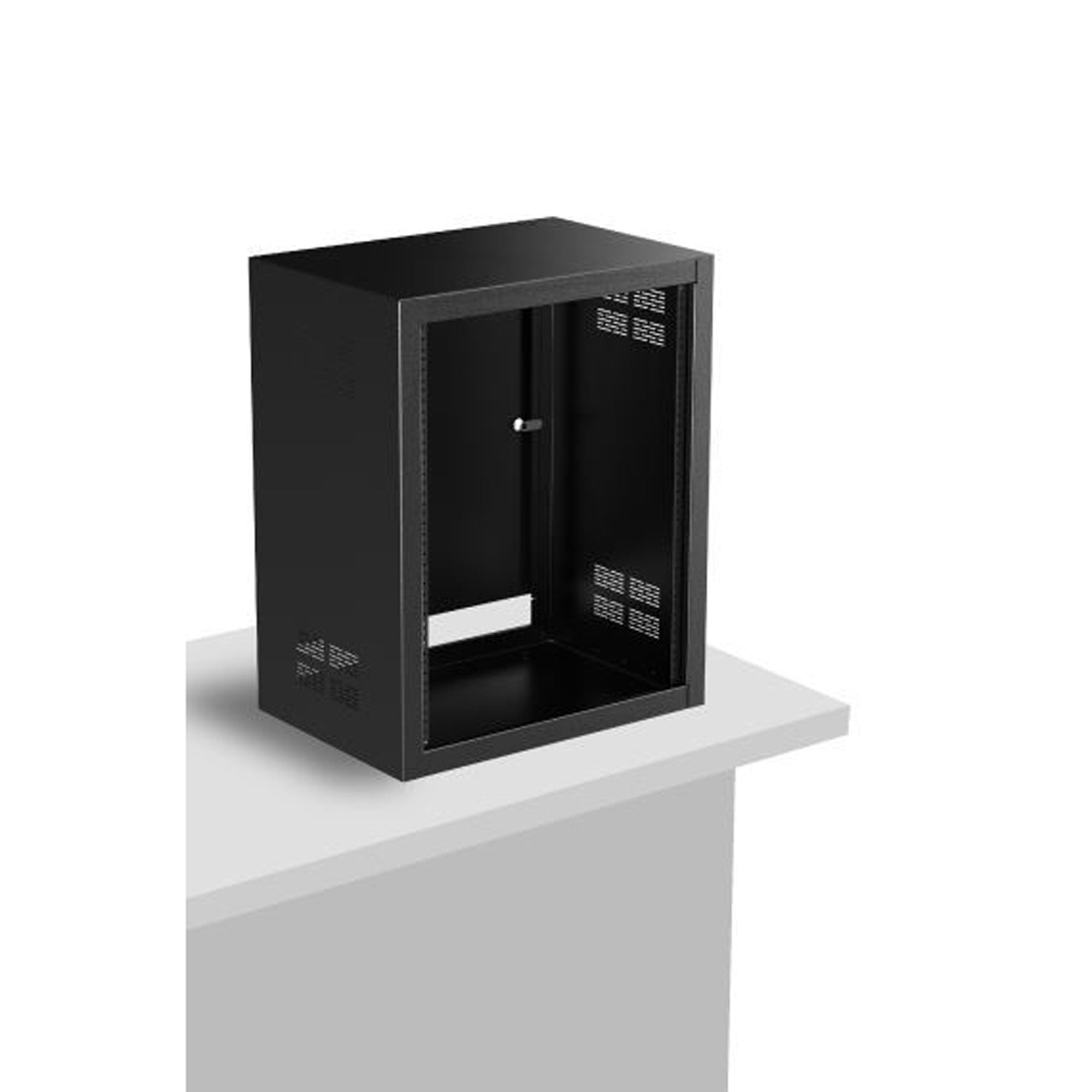

Welded & Assembled Desk Top Rack - 14 Space
The Atlas 414-15 provides desk-top access to (19") control and monitor equipment.
This model is constructed of 16-gauge CRS and includes one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel.

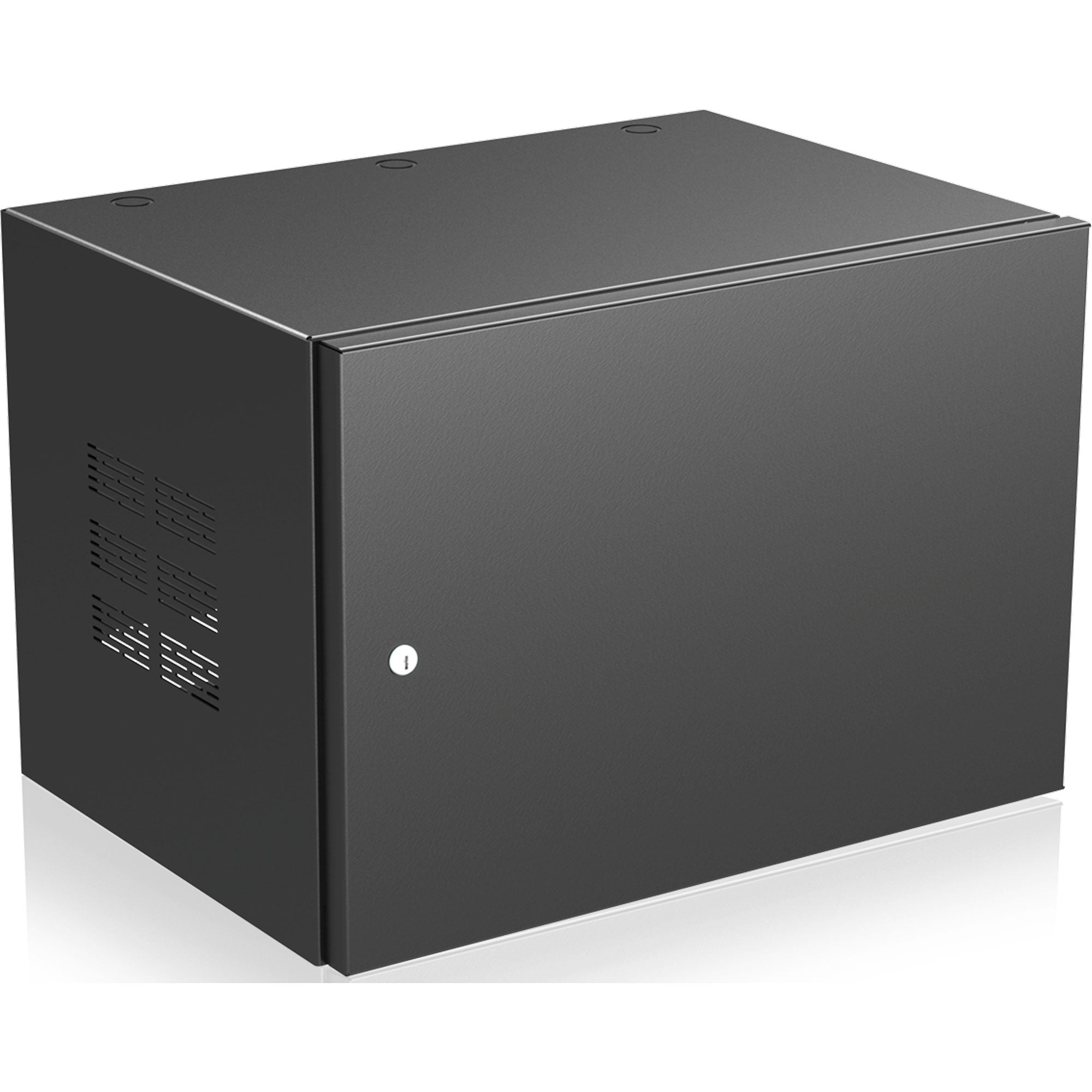

The 414-15 includes locking rear door with spring-loaded hinge, side vents and optional front door (SFD414) with self-tapping screws.
Inside (usable) dimensions are 17 3/4" W x 14 1/8" D.
Features:
- 11-Gauge CRS Tapped Mounting Rails
- 16-Gauge CRS Cabinet
- 5/8" - 5/8" - 1/2" EIA Standard Panel Mount Spacing
- Completely Assembled and All-Welded Construction
- Internal Louvers on Each Side
- Keyed Cylinder Lock on Rear Door
- Optional Front Surface Door Available with Right or Left-Hand Hinging Capability
- Spring-Loaded Hinge for Easy Removal of Rear Door
Specifications:
- RACK UNITS: 14
- HEIGHT: 27 3/4" (70.49 cm)
- WIDTH: 22 5/16" (56.68 cm)
- DEPTH: 15 3/8" (39.05 cm)
- SHIPPING WEIGHT: 52.00 lbs (23.59 kgs)
