Key Features
- Perforated Square Baffle
- For 8" (203mm) Loudspeakers
- Wall or Ceiling Mount
- Heavy-Gauge CRS Construction
Description

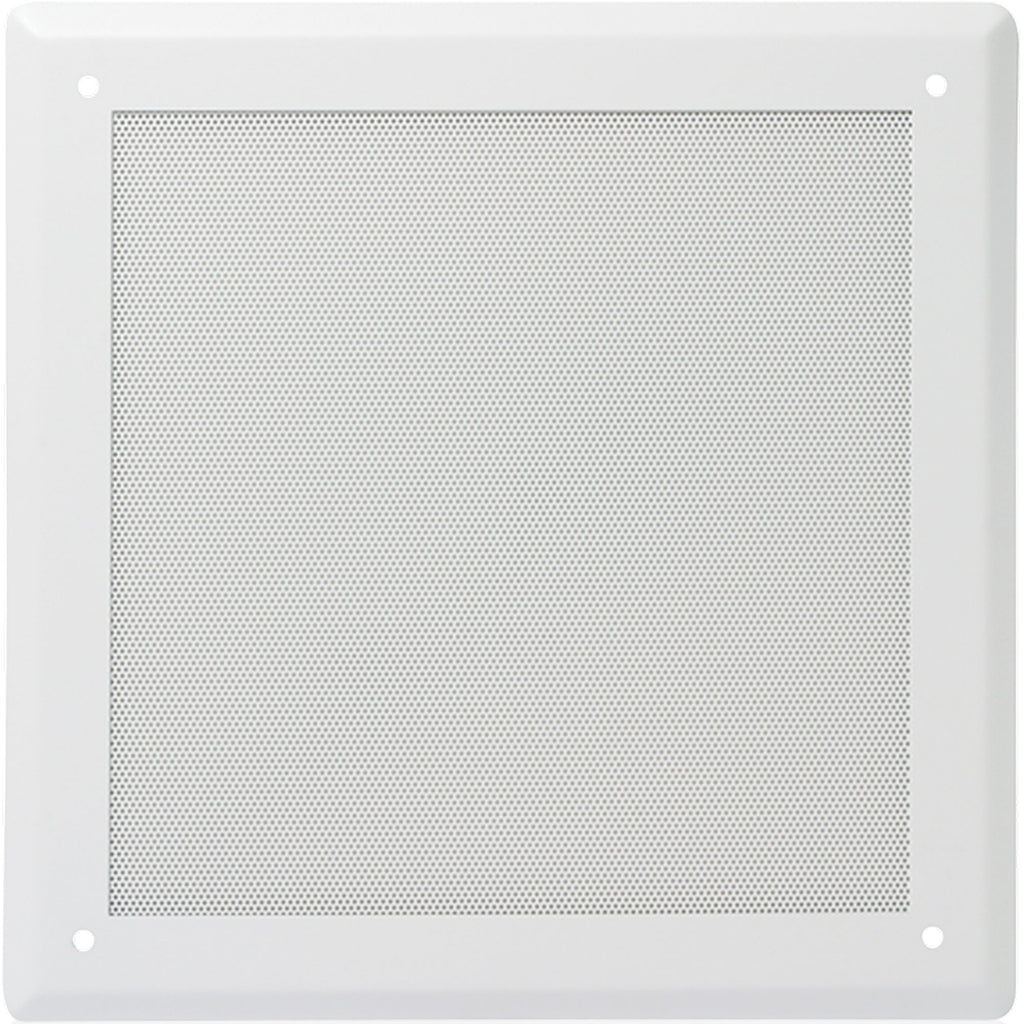

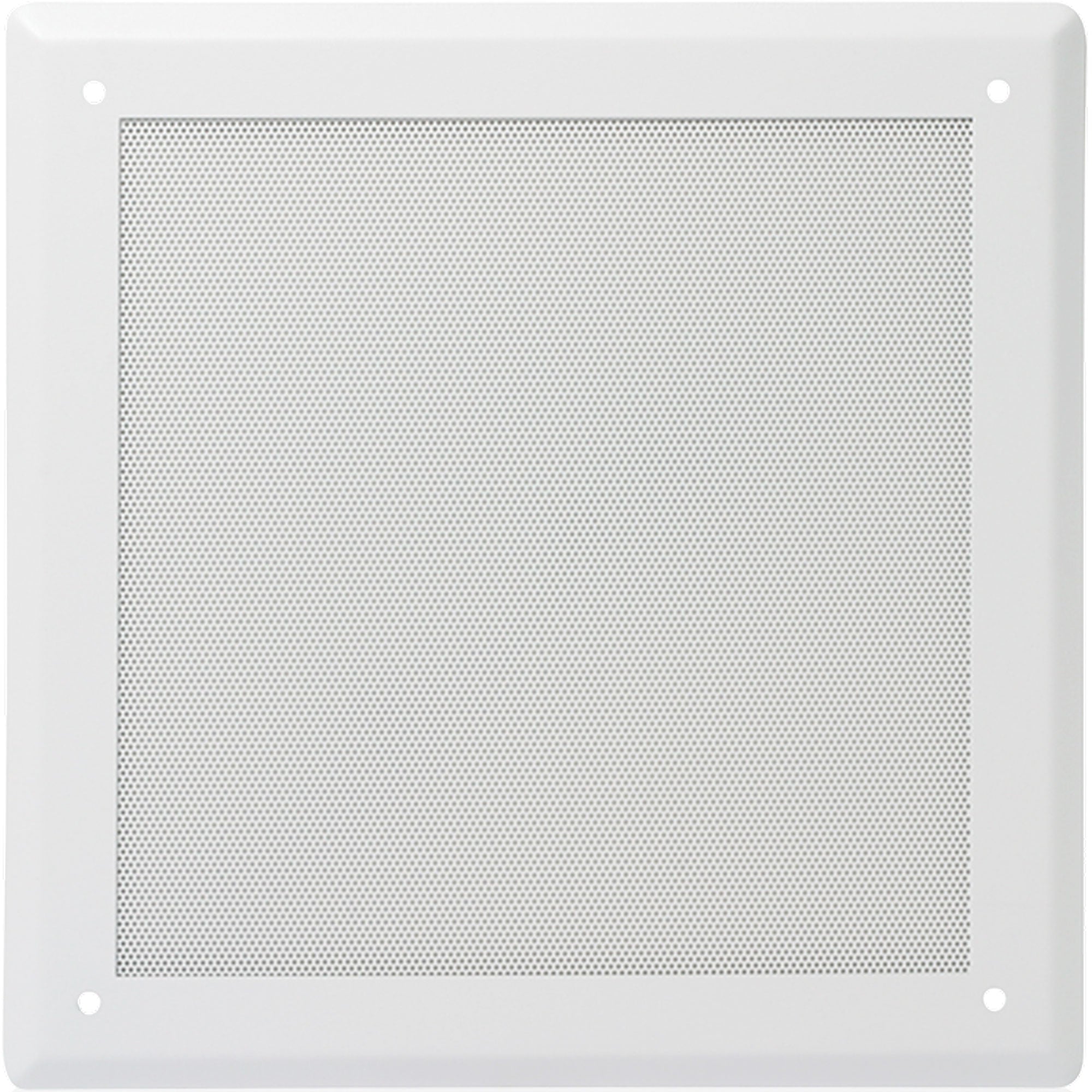

Perforated Loudspeaker Ceiling or Wall-Mount Baffle 8"
Model 170-8A. Popular ceiling baffle features a die-formed frame with shallow bevel and perforated screen. Separate loudspeaker mounting subplate (20-gauge CRS) provides extended "no leak" bass response. The design offers screw-mount installation with concealed loudspeaker mounting studs and accommodates standard 8" (203 mm) dia. loudspeakers. Unit is of two-piece CRS construction (18-gauge trim, 22-gauge perforated grille) with textured white epoxy finish.
Features:
- Attractive Models Feature Concealed Loudspeaker Mounting Studs
- Heavy-Gauge CRS Construction Guards Against Vibration and Rattle
- Suitable for Multi-Purpose Ceiling and Wall-Mount Applications
Specifications:
- SPEAKER SIZE: 8
- HEIGHT: 13 1/2" (34.29 cm)
- DEPTH: 1/4" (0.635 cm)
- SHIPPING WEIGHT: 3.50 lbs (1.59 kgs)
- SAFETY LISTED: 1480, 2043
Details
- Manufacturer: AtlasIED
- MPN: 170-8A
- Model Number: 170-8A
- UPC: 612079163960
