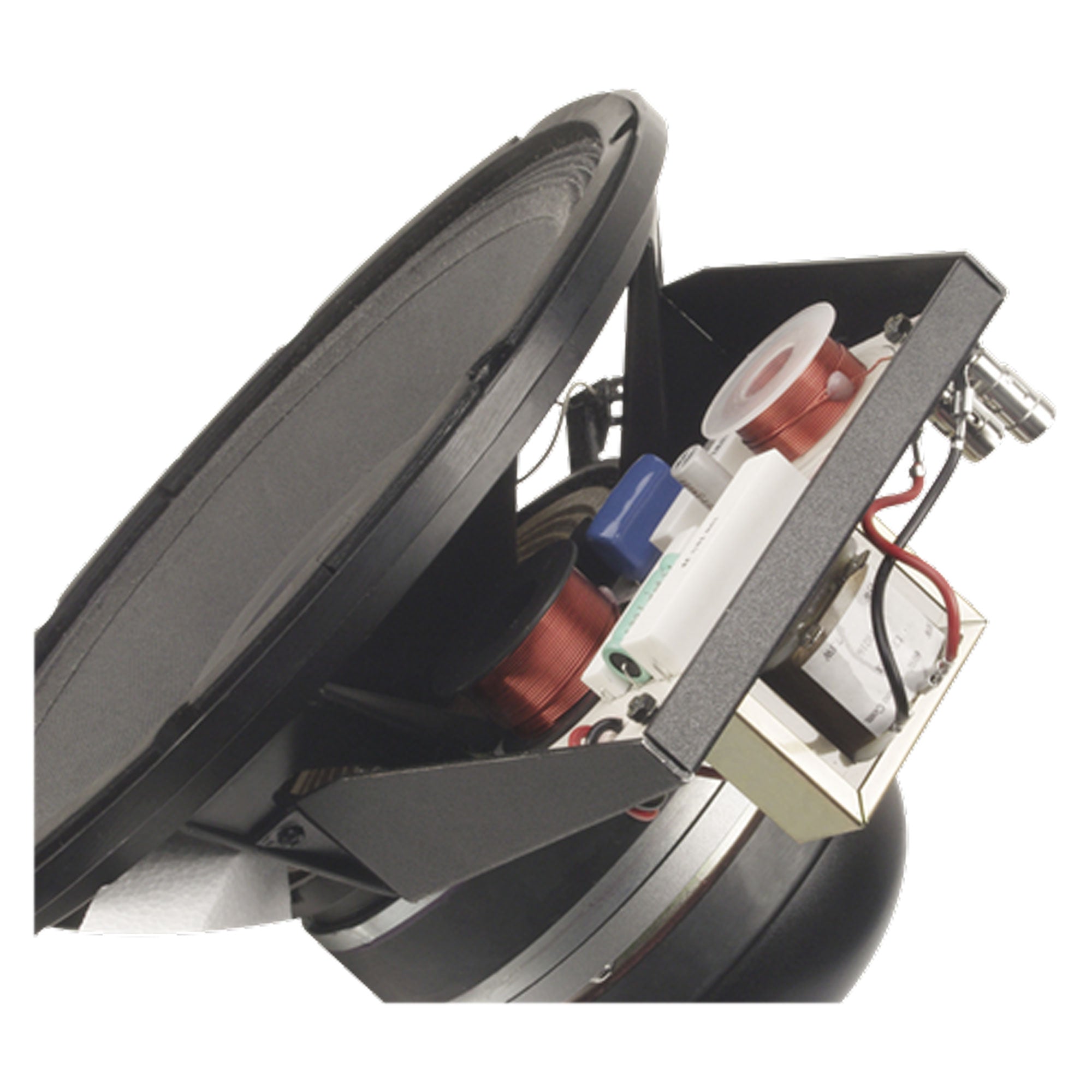

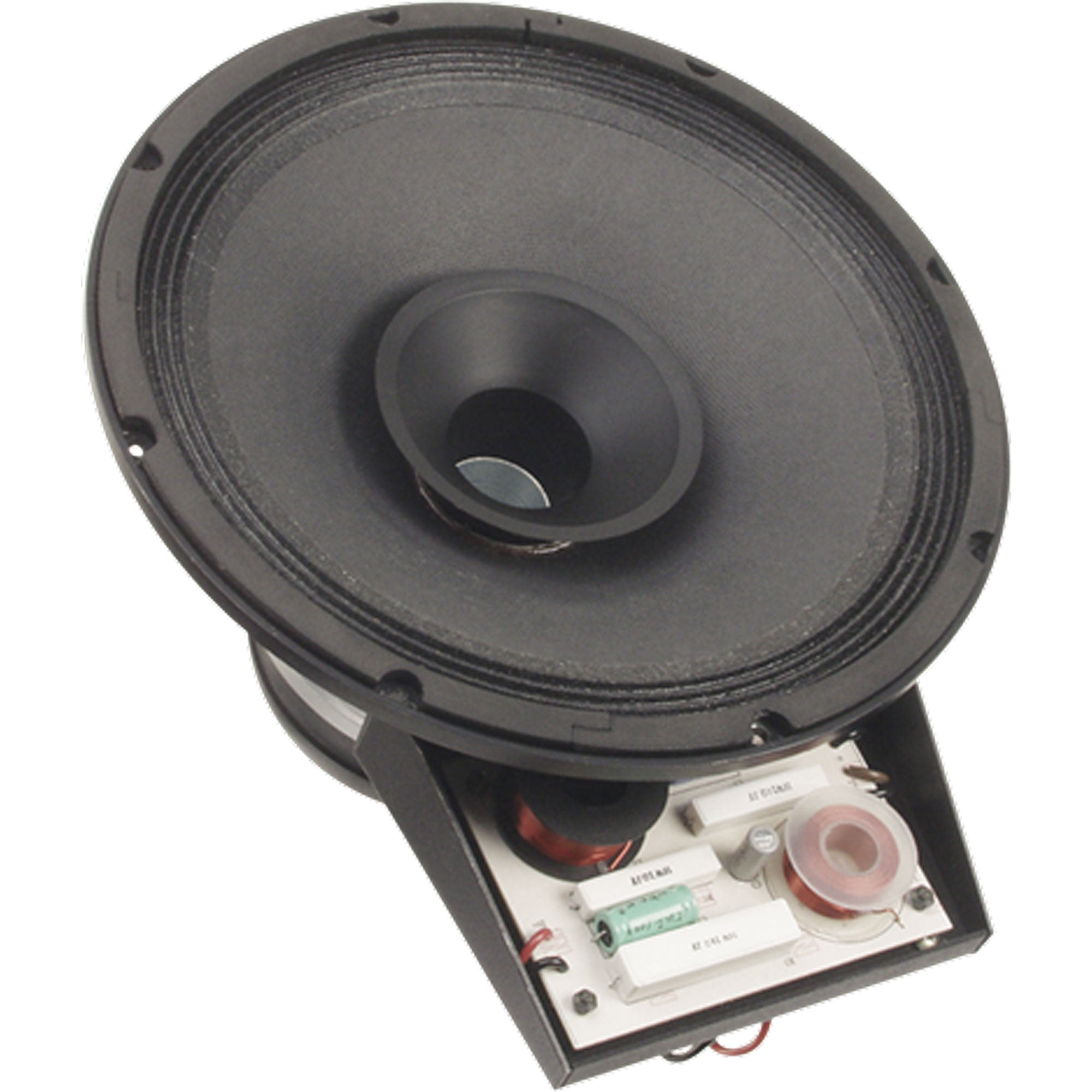

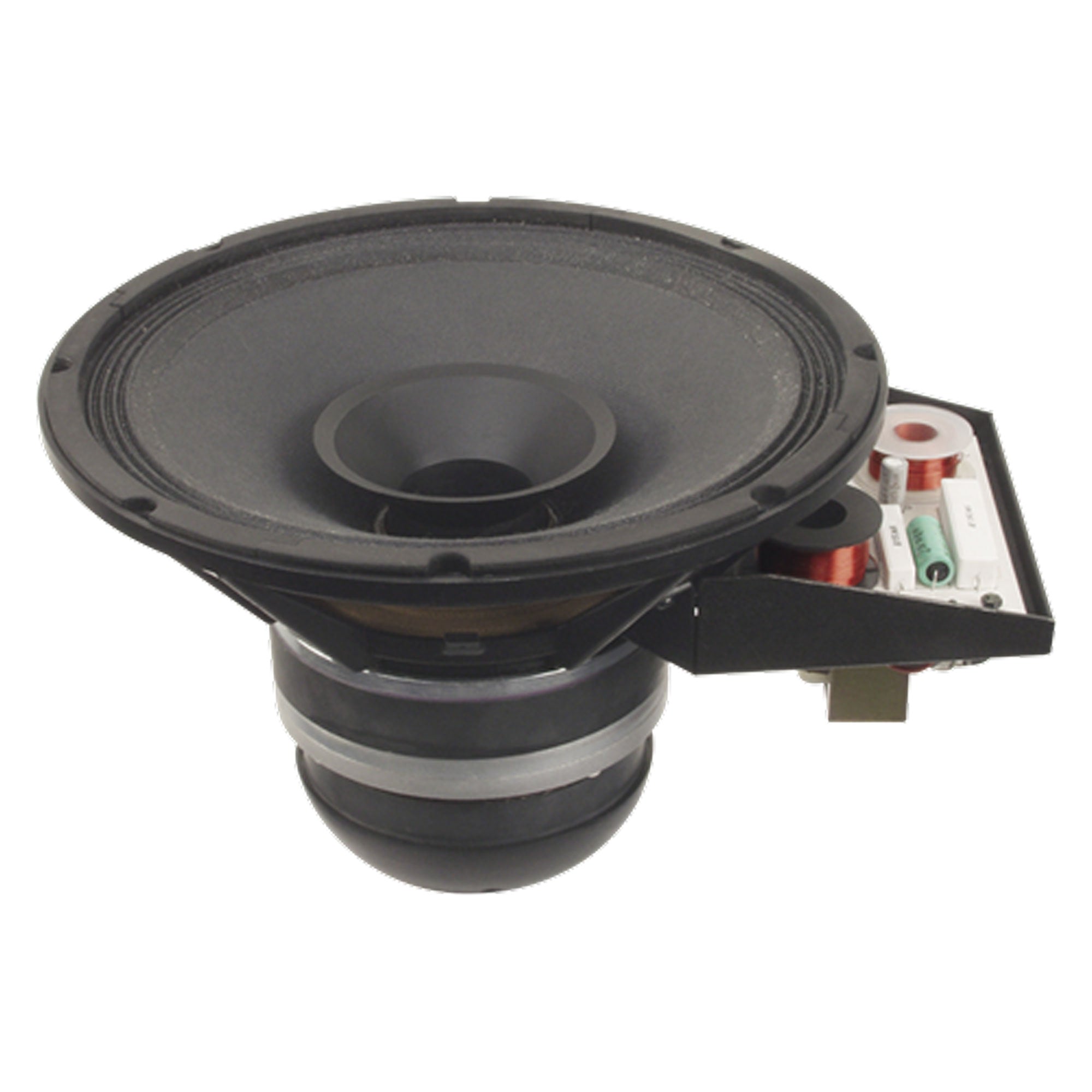

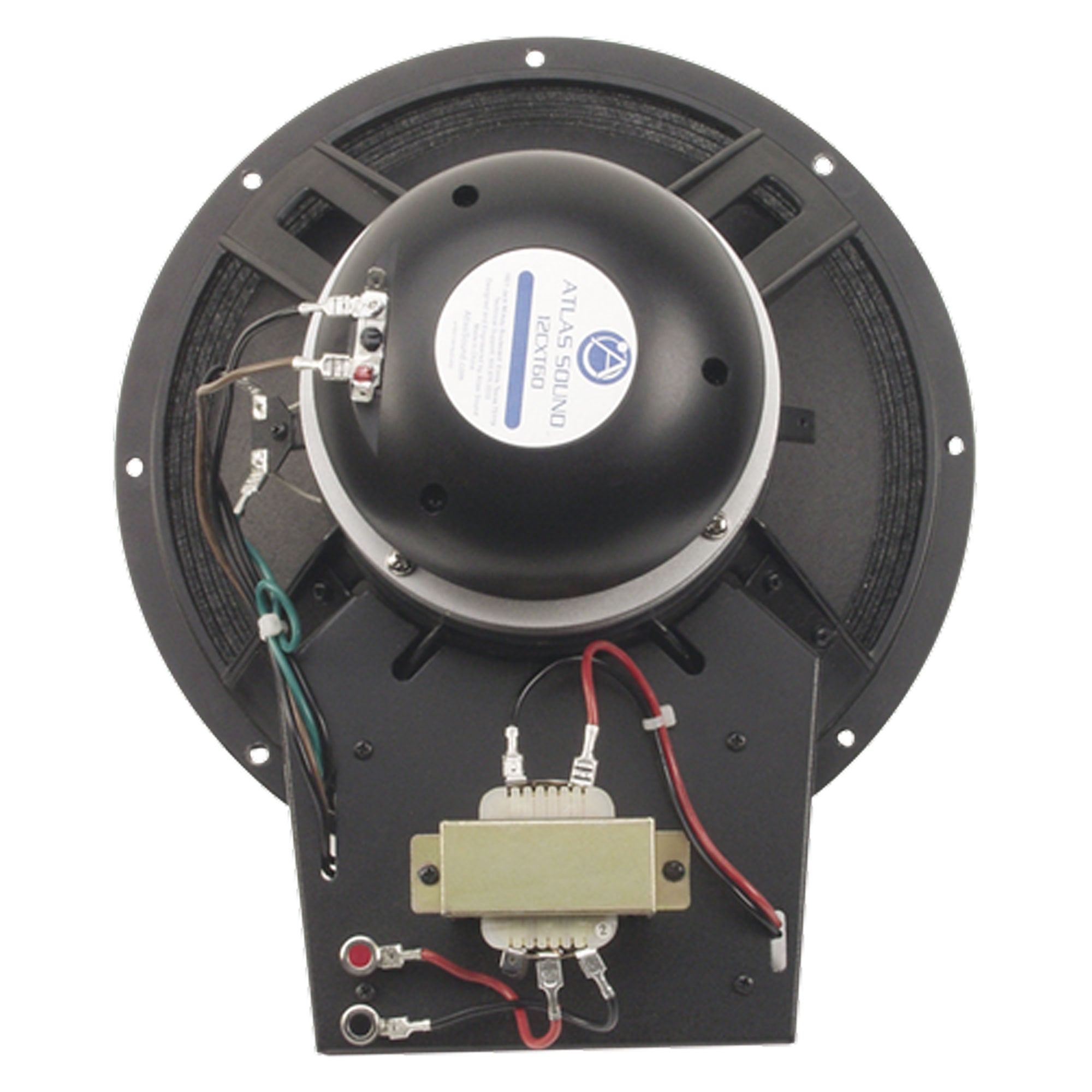

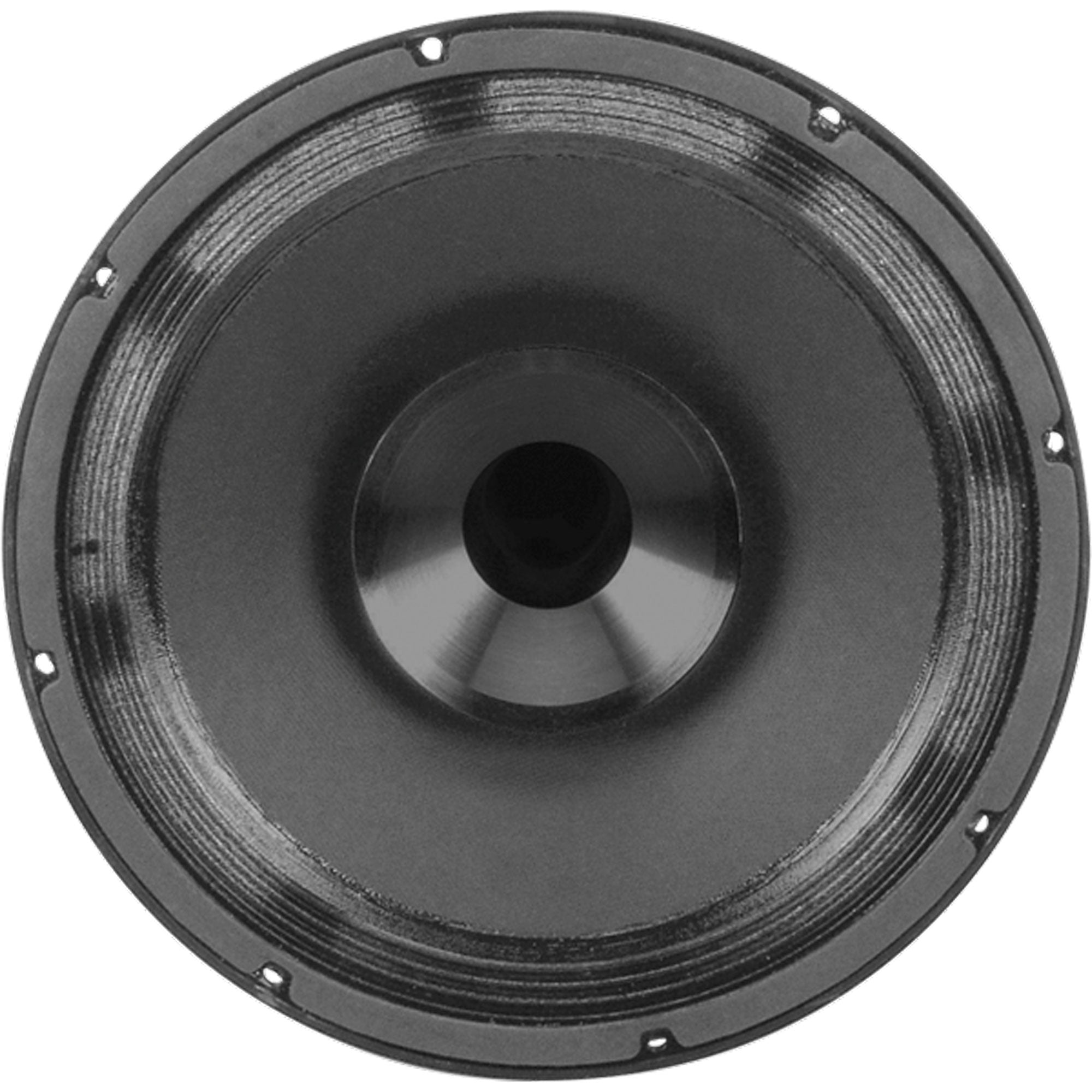

AtlasIED 12CXT60 12" Coaxial Compression Loudspeaker

12" Coaxial Compression Driver with 60-Watt 70V/100V Transformer

Model 12CXT60 is a 250 watt loudspeaker that combines a 12" diameter, low frequency transducer and a 1" exit, true compression driver. With the addition of a factory installed, high efficiency, 60W, 70.7/100V step down line transformer.

The unit features a curvilinear, treated paper cone for lower harmonic distortion and a built-in crossover network for proper frequency transition between the two reproducers.

Model 12CXT60 operates within a frequency response range of 45Hz-18kHz with a sensitivity of 99dB and a dispersion angle of 90° (-6dB/2kHz octave band).

Features:

• 1" Exit Compression Driver Coupled to a Specially Designed Conical Wave-Guide Horn
• 90 Degree Conical Dispersion (2 kHz Octave Band)
• High Efficiency Cone Woofer Optimally Matched to High Frequency Device via a Specially Designed Crossover to Insure Even Transition
• Perfectly Suited for Use with Atlas Sound "Q" Series Enclosures

Specifications:

• FREQUENCY RESPONSE: 45Hz - 18kHz
• SENSITIVITY: 95.5dB (1W/1m) Average
• POWER TAPS: 7.5, 15, 30, 60
• SPEAKER TYPE: Compression Driver Coaxial
• DISPERSION: 90°
• DEPTH: 8" (20.32 cm)
• SHIPPING WEIGHT: 27.00 lbs (12.27 kgs)
