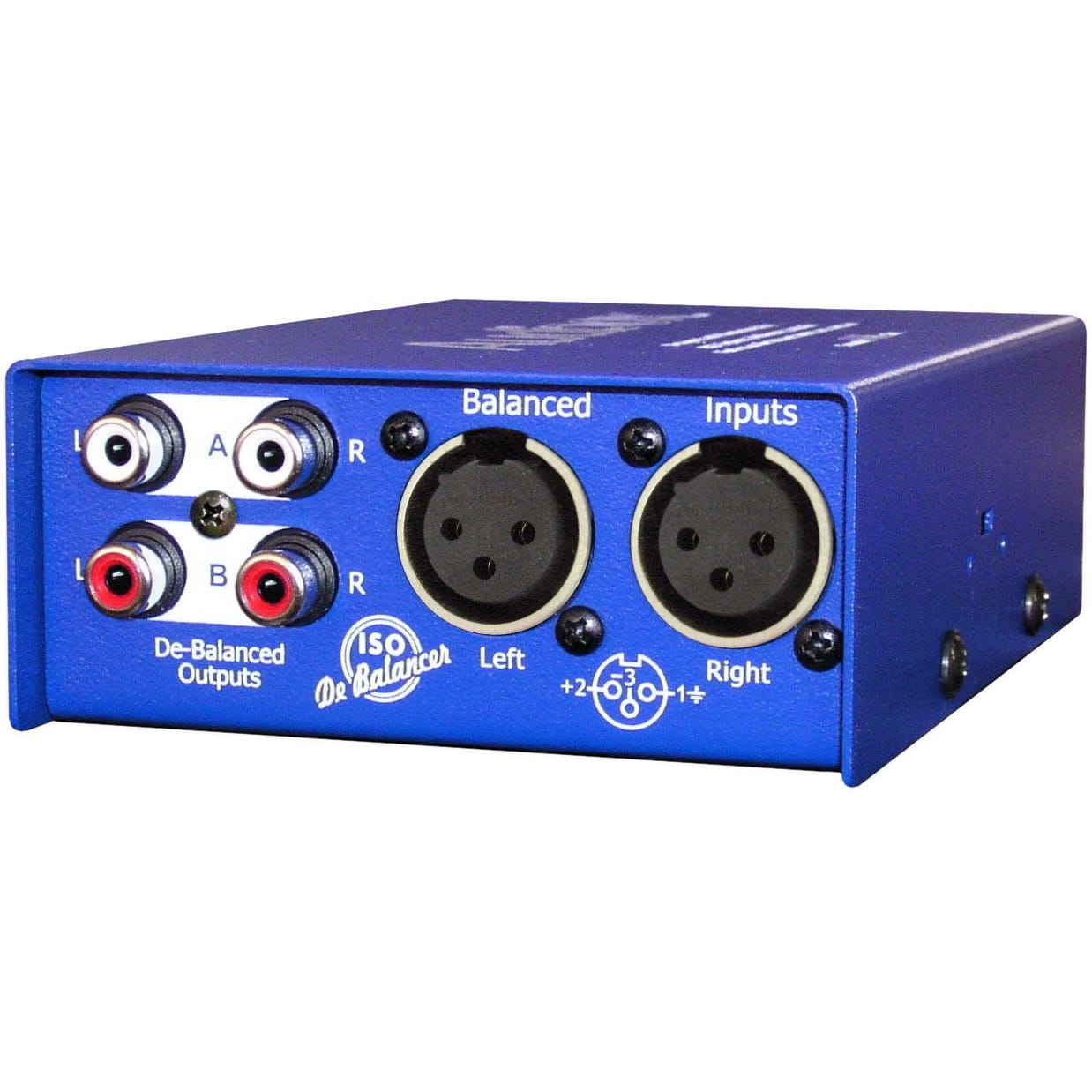

ARX IB-2 Iso De Balancer Balanced to Unbalanced Converter (XLR to RCA)

AudiBox Series Dual Channel Transformer Balanced to Unbalanced Converter, 2 x XLR-M Inputs to 2 x RCA Outputs

A Unique de-balancing unit, the De-Balancer will convert stereo XLR Balanced Low Impedance signals to Unbalanced RCA Low Impedance signals, to allow leads to run balanced from point A to point B and then be de-balanced for connecting to a high impedance/unbalanced input at the B end. This enables you to keep a balanced line all the way up to the input of an unbalanced unit, reducing hum, noise and interference pickup along the way. Transformer Ground isolation provides low-noise operation suitable for any application. Mounted in a heavy duty all steel chassis, and available in Dual Channel format only. Needs no power.

A Unique de-balancing box, the De-Balancer will convert stereo Balanced Low Impedance signals to Unbalanced Low Impedance signals, to allow leads to run balanced from A to B and then be de-balanced for connecting to a high impedance/unbalanced input at the B end

This enables you to keep a balanced line all the way up to the input of an unbalanced unit, reducing hum, noise and interference pickup along the way. Transformer Ground isolation provides low-noise operation suitable for any application

The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The De-Balancer is a totally passive device with no power requirements, making it a truly universal problem solver.

Security features include Kensington-type computer lock slot and optional bracket kit for under-table mounting.

Available in Dual Channel format only

Specifications:

• Input Impedance: 10K Ohms Balanced
• Output Impedance: 10K Ohms Unbalanced
• Input Level (max): +12dB
• Frequency Response: 20Hz - 20 KHz ± 0.5dB
• THD at Max Output: 0.2% 30 Hz - 20KHz
• Insertion Loss: 0.75dB @ 1 KHz (600 Ohm source)
• Input Connector: 3 pin female XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Chassis Ground connected to XLR Pin 1
• Output Connectors: Dual stereo RCA connectors
• Construction: All-steel powdercoated chassis, fibreglass PCB, ultra low noise audio transformer
