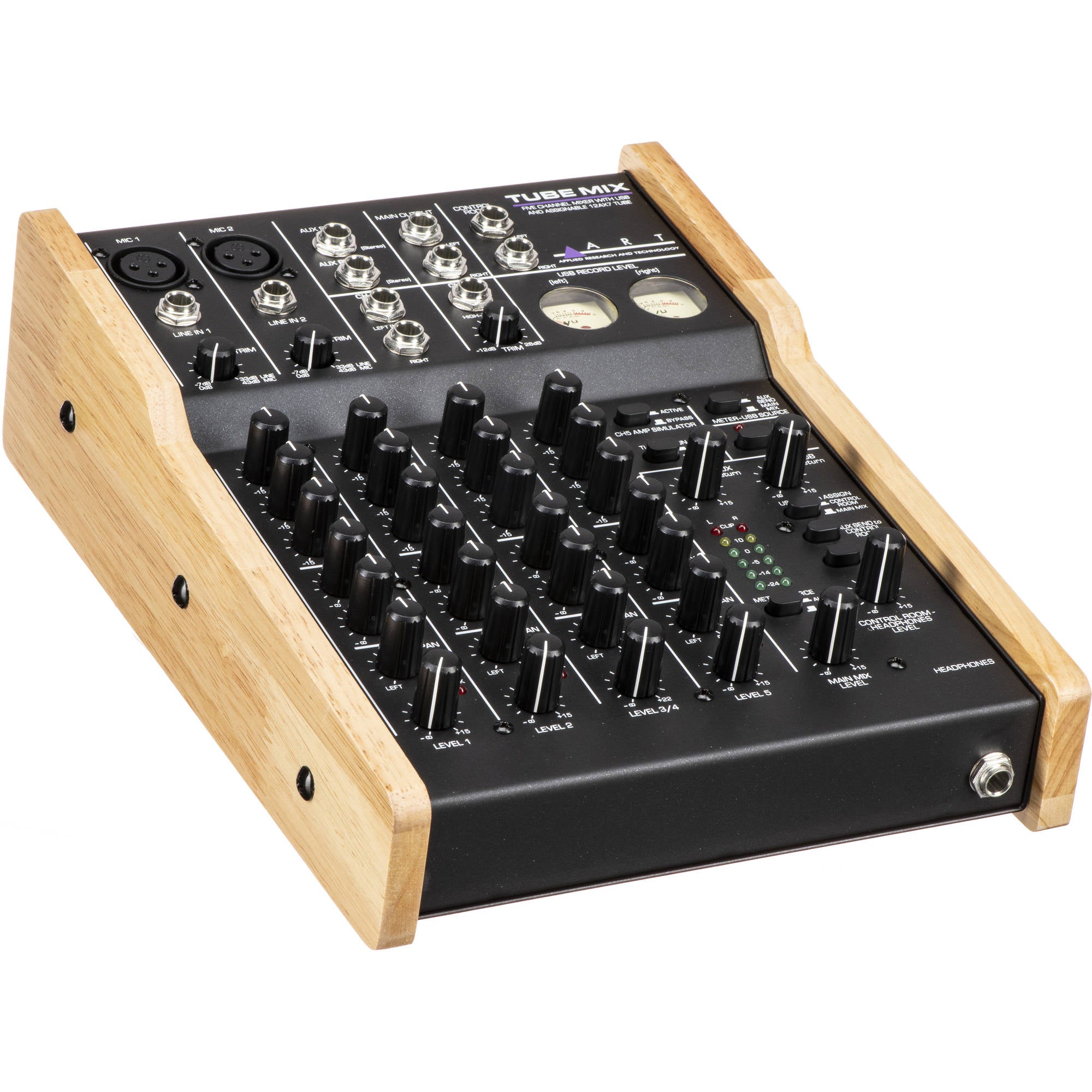

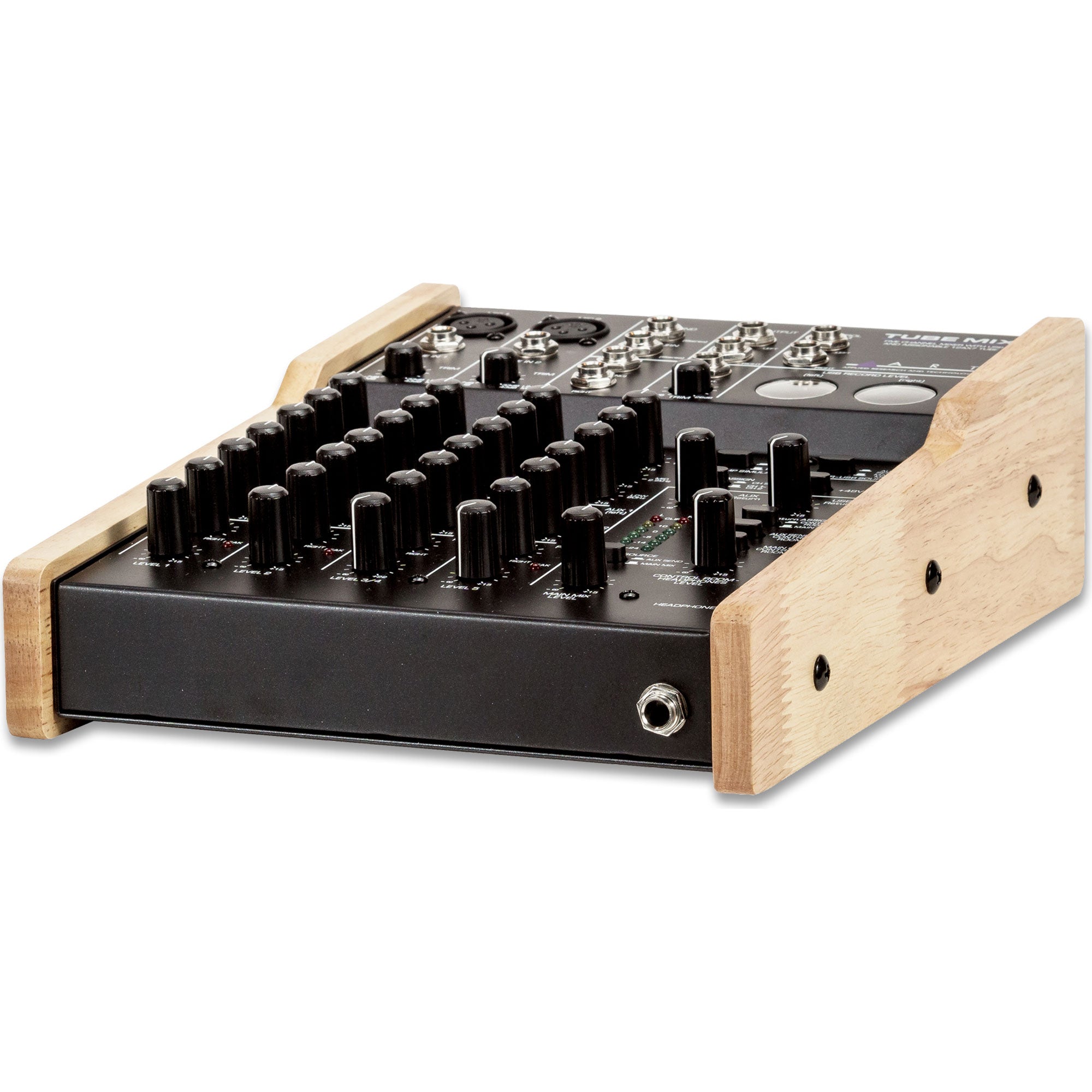

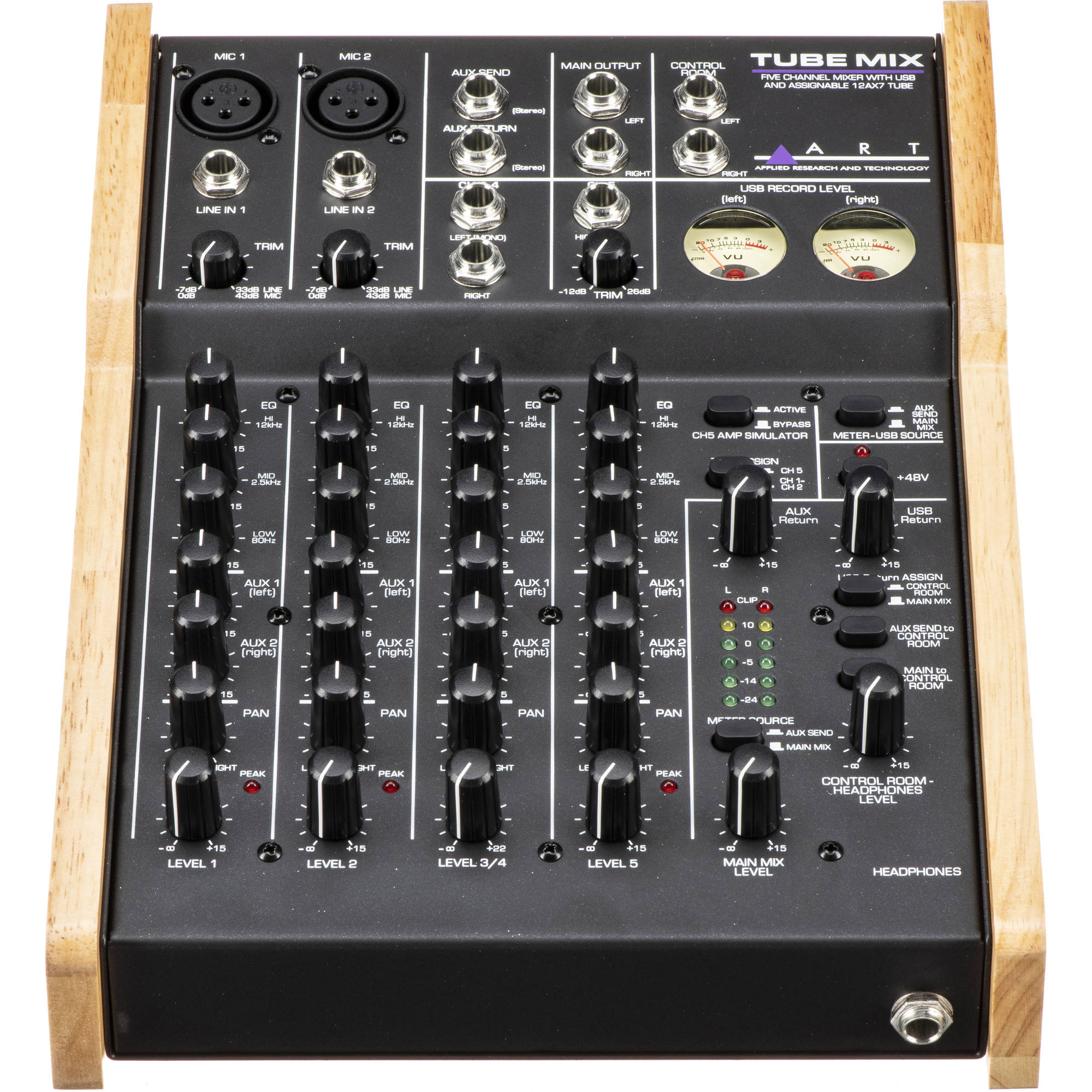

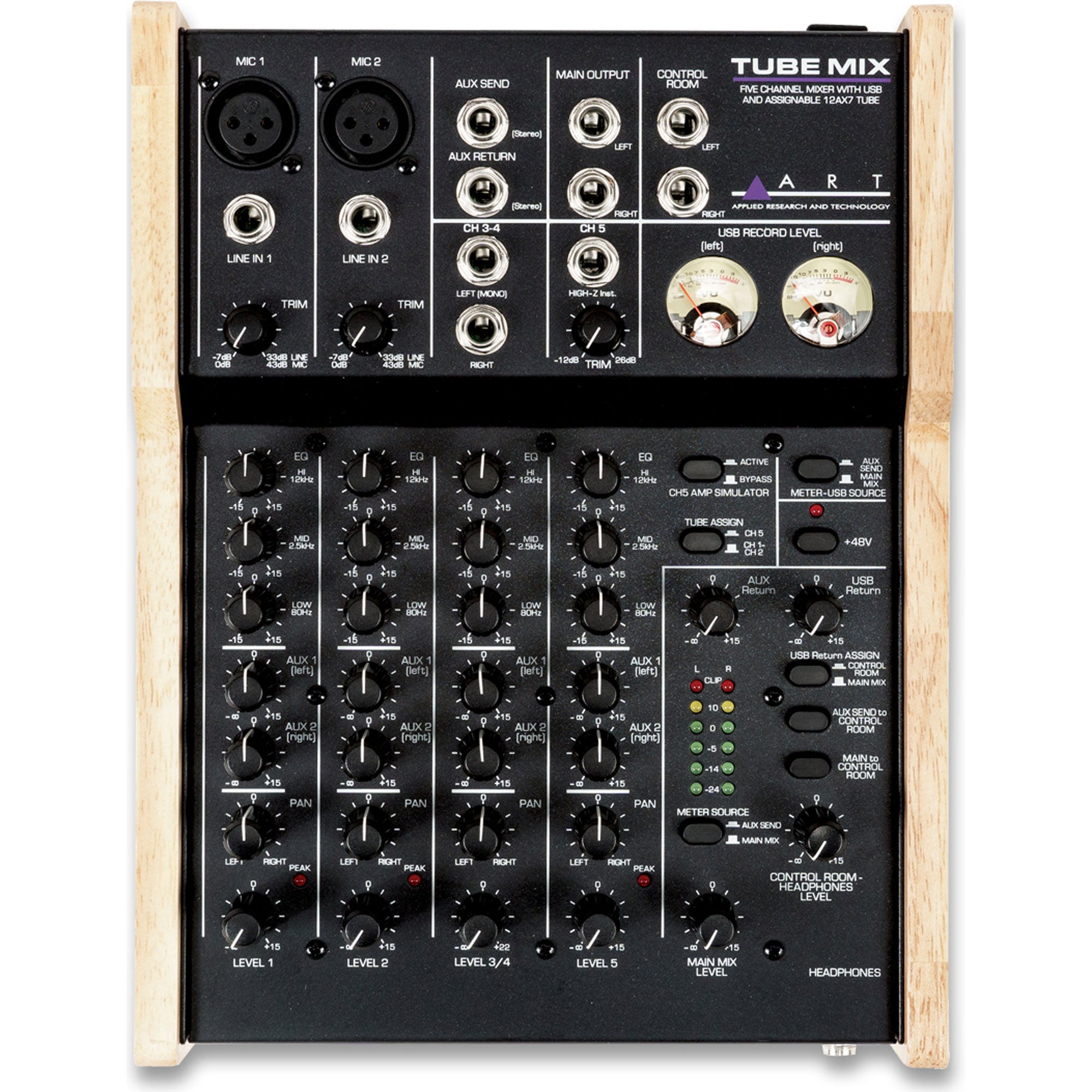

ART TubeMix 5-Channel Tube Mixer

5-Channel Mixer and USB 2.0 Audio Interface With Built-In 12AX7 Tube and Amplifier Simulation

The ART Tube Mix provides a compact versatile audio interface. The Mixer supports two mic inputs, one high Impedance Instrument input, and two line inputs simultaneously. The Tube can be assigned to act as a dual channel tube mic preamp, or stacked and applied to the Instrument input for added warmth and tone with guitar or bass.

TubeMix Applications:

• All input channels = fully featured with 3-band EQ, two aux sends, pan and level controls
• Select inputs include input trim control and clip indicators for optimum level setting
• High impedance instrument input has an amp simulation function
• Versatile output section allows separate stereo monitor mix on the main buss while recording the via aux buss, or vice versa if required
• Flexible Control Room/Headphone section allows routing to monitor the main mix, USB input and aux sends for maximum flexibility
• Authentic VU meters and wood side panels add to the great vintage look and feel of the USB TubeMix

Features:

• Fully Featured Tube Driven Five Channel Stereo USB Mixer
• Two Wide Dynamic Range Low Noise Mic Preamp Channels
• Dedicated High Impedance Instrument Input with Amp Simulator
• Integrated 12AX7 Tube can be Applied to Either Microphone or Instrument Inputs
• Switchable Low Noise +48V Phantom Power for Condenser Microphones
• Precise VU Meters and Wide Range LED Meters with Selectable Source
• Fully Featured Input Channels
• Flexible Control Room / Monitor Section
• USB 2.0 compliant. No special drivers needed with most modern versions of Windows, Mac OS, and Linux

Specifications:

• Input Impedance:
  Microphone: 3.5k Ω
  Line (CH1, CH2, CH3/4), 10k Ω
  CH5 (Inst.), 1M Ω
• Output Impedance:
  Main, Control Room (Balanced/Unbalanced), 150/100 Ω
  AUX Outputs, 150 Ω
  Headphones, 100 Ω
• Frequency Response: 20-100kHz + 1dB
• Maximum Input Level:
  CH1, CH2 (Mic), +9dBu
  CH1 CH2 (Line In), +20dBu
  CH3/4 (EQ Flat), +20dBu
  CH5 (EQ Flat), +16dBu
  AUX Return, +24dBu
• Maximum Output Level:
  Main, Control Room (Balanced, Unbalanced), +20dBu/+17dBu
  Aux Send, +20dBu
  Headphones, 100mW / Ch @ 300 Ω, 50mW /Ch @32 Ω
• Maximum Gain:
  LINE IN to Main output (balanced), +63dB
  CH 5 to Main output (balanced), 56dB
  CH3/4 to Main output (balanced), +30dB
• Equivalent Input Noise:
  Microphone (@max gain), 127dBu "C"wtd.
  Line (@max gain), -105dBu "C" wtd.
  Instrument (@ max gain), -112dBu "C" wtd.
• USB Computer Interface: USB class compliant plug-and-play Mac and PC interface
• A/D, D/A: 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
• Phantom Power: Switch selectable, +48V DC, filtered, current limited

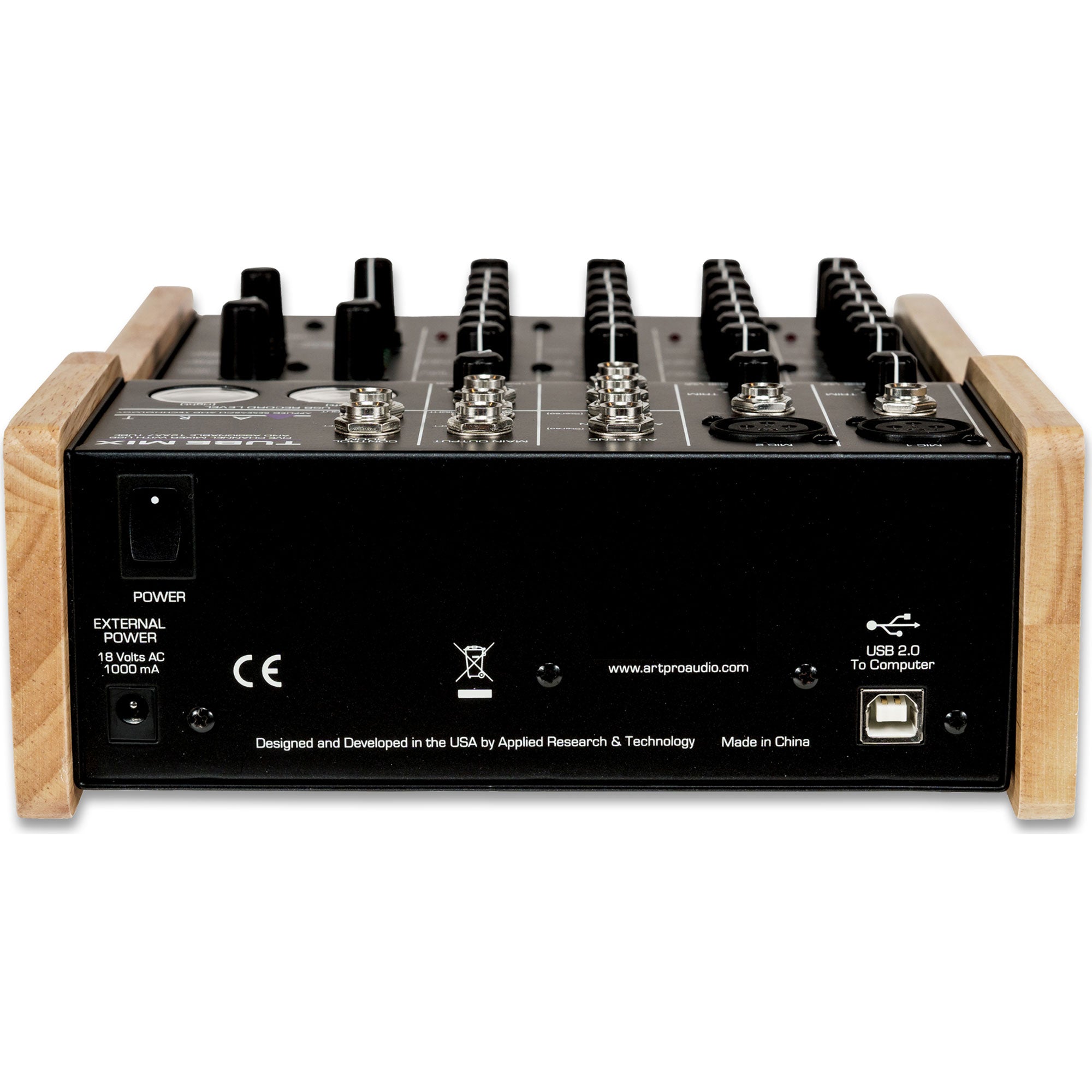

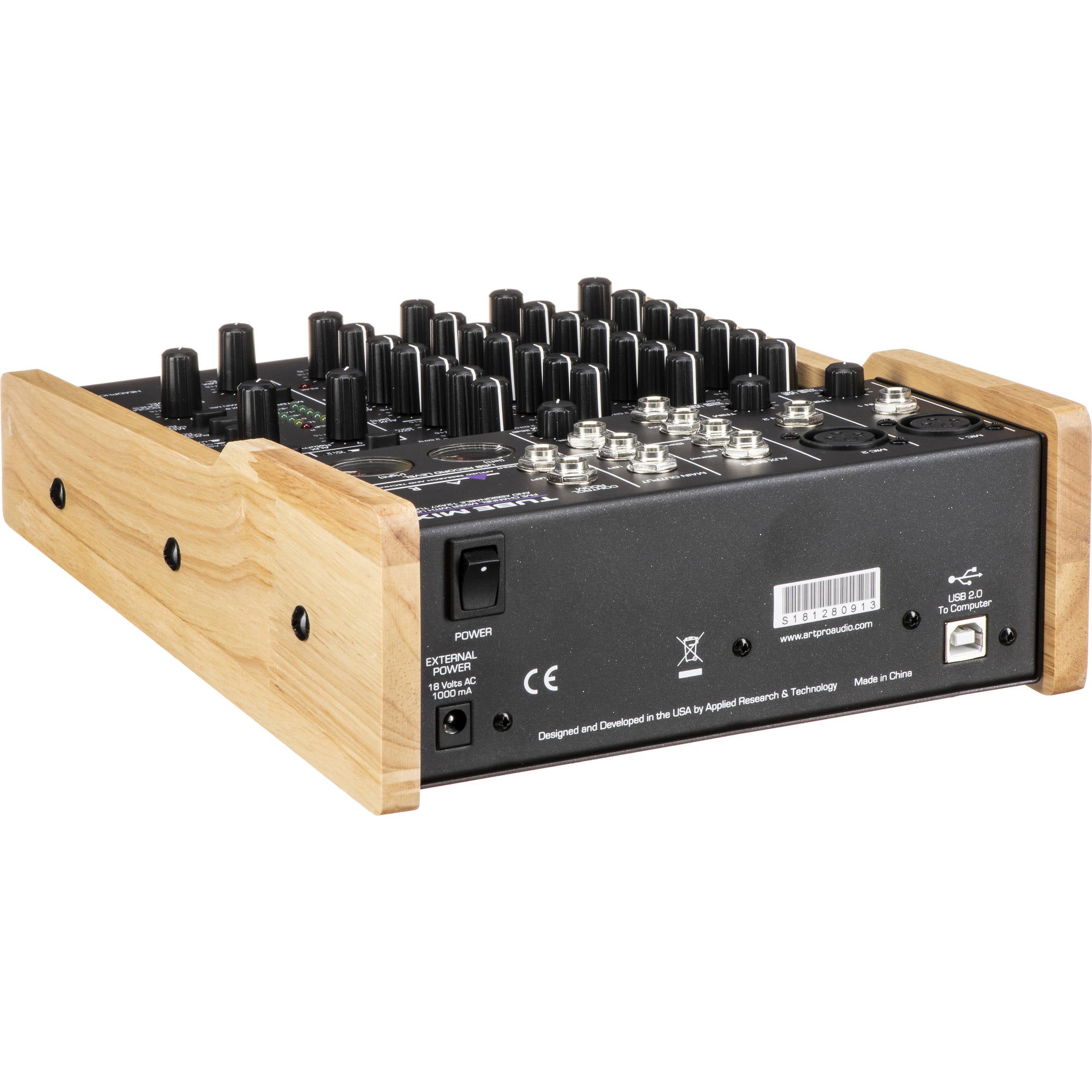

• Power Requirements: 18 VAC, 1000mA
• Dimensions: 3.3"H x 7.8"W x 10.4"D (84mm x 198mm x 265mm)
• Weight: 5.5 lbs (2.5 kg)
• Note: 0 dBu = 0.775Vrms
