Key Features
- 8 Sequenced Outlets, 1 Front Unswitched
- Powers Equipment On/Off in Sequence
- 0.5- to 2-Second Delay Range
- RFI/EMI Filter, Spike & Surge Protection
Description

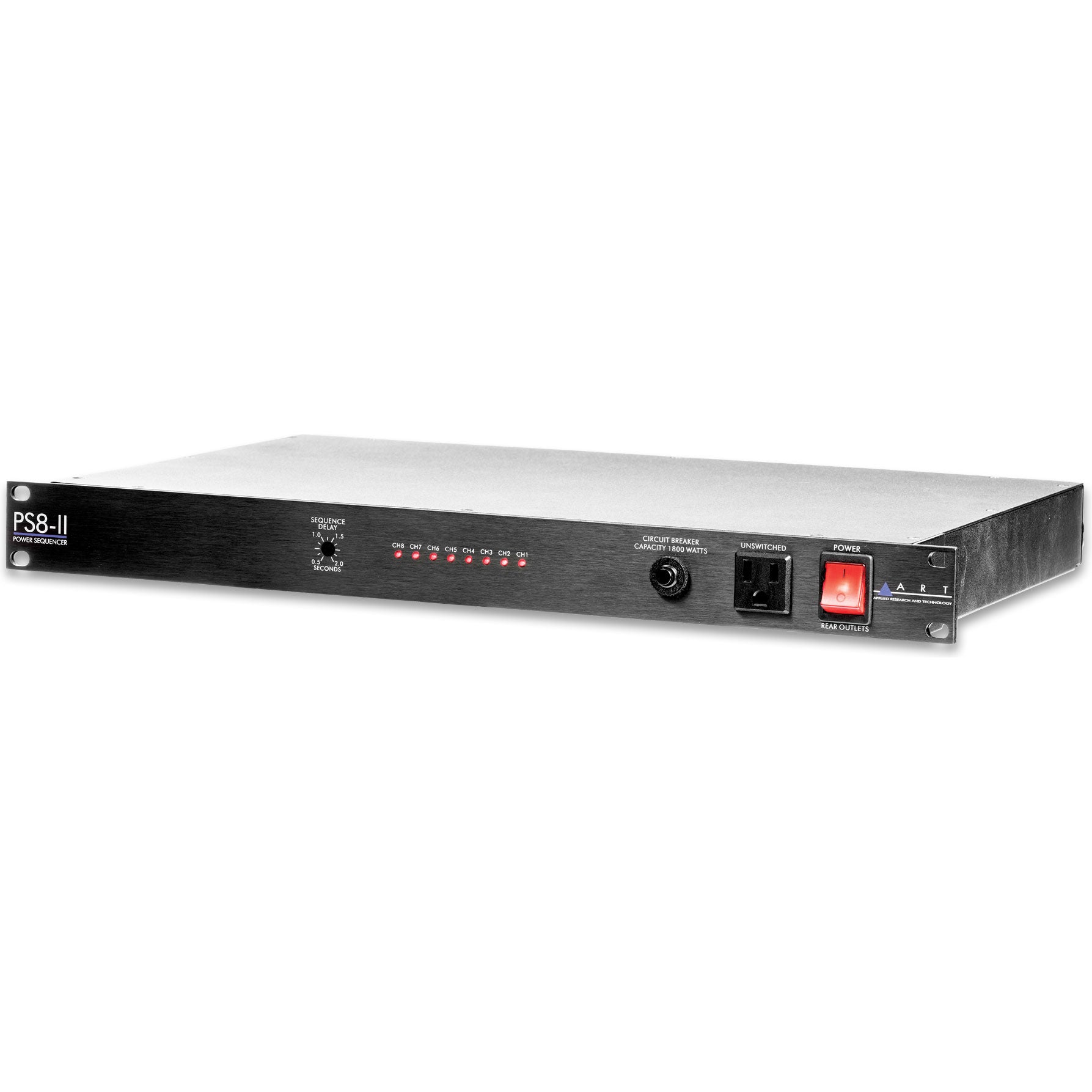

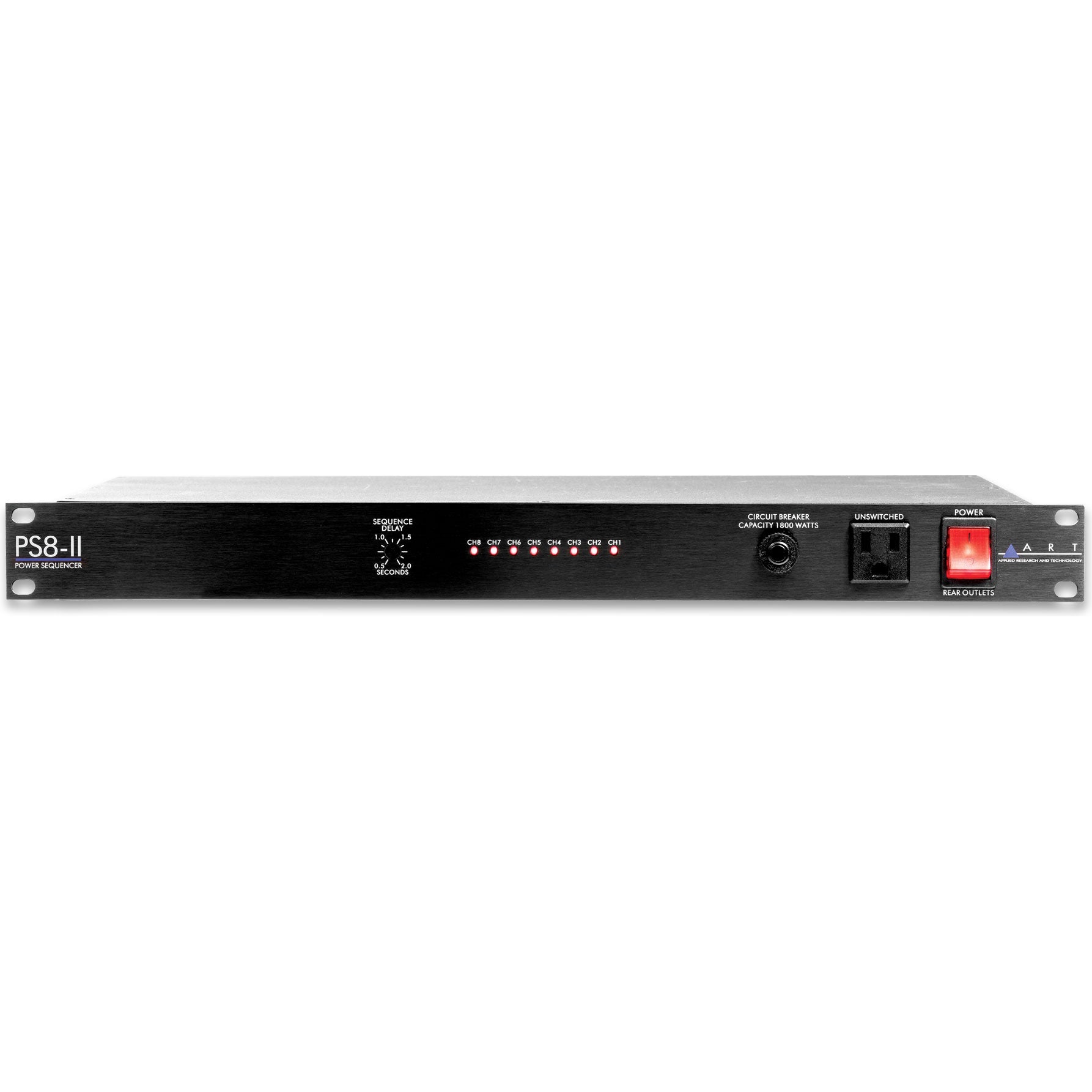

Professional Power Sequencer for Eight Rear AC Outlets
The ART PS8-II provides controlled power sequencing to eight rear AC outlets. Each output's power up / power down is delayed by a fixed amount determined by the front panel user definable Sequence Delay control. This allows you to control the power up and down sequence in a system to smooth out inrush currents and minimize turn-on transients that may damage sensitive equipment.
PS8-11 Applications:
- Full-featured power conditioner and fast acting breaker
- EMI and RFI filter, as well as offer surge and spike protection to protect your system
- By design it is ideal to sequence and therefore protect a wide range of equipment including sensitive tube preamps, powered speakers, large displays, or digital systems
Features:
- Adjustable Sequence Delay Range from 0.5 to 2.0 Seconds per Output
- Eight Individually Sequenced Outputs with Front Panel LED Indicators for Each
- Rear Mount Remote Control Terminal Block for Remote Sequence Control
- Front Panel Unswitched and Unregulated Output
- 1800 Watt Total Power Capacity
- Front Panel Master Breaker and Power Switch
- EMI and RFI Filtering
- Surge and Spike Protection
Specifications:
- Power Capacity: 1800 W
- Maximum Load: 15 Amps / 1800 W (@ 120 VAC)
- Outlets:

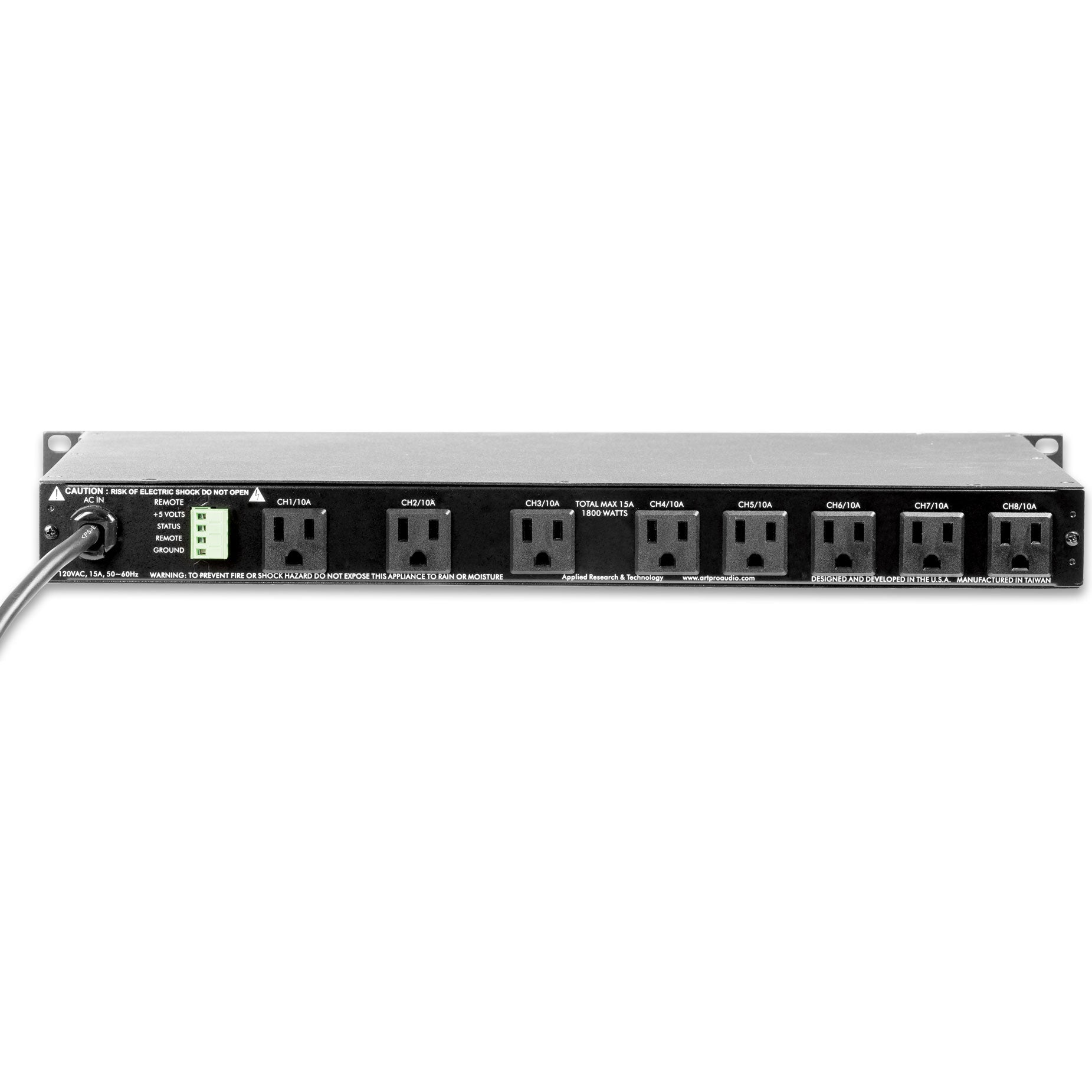

8 x Rear Mounted Individually Sequenced Outlets
1 x Front Mounted Unswitched - Delay Time: 0.5 to 2.0 Second Variable Pot
- Remote Switch: On/Off Function
- Remote Terminal: Rear Mounted 4-pin Euro Block Connector
- Line Filtering: RFI / EMI
- Power Requirements: USA - 105 to 125 VAC / 60 Hz
- (Export units configured for country of destination)
- Dimensions: 1.75"H x 19.0"W x 11.5"D (165mm x 482mm x 292mm)
- Weight: 9.2 lbs (4.2 kg)
