Antelope Audio Discrete 8 Oryx Portable USB-C Audio Interface

Antelope Audio SKU: ATP DISCRETE8ORYX
MPN: DISCRETE 8 ORYX UPC: 850041548142

Price:
Sale price$1,299.00
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • Uncompromising Sound Quality
  • World-Class Preamps
  • Synergy Core Real-Time FX
  • Advanced Signal Processing
  • Advanced Routing

Description

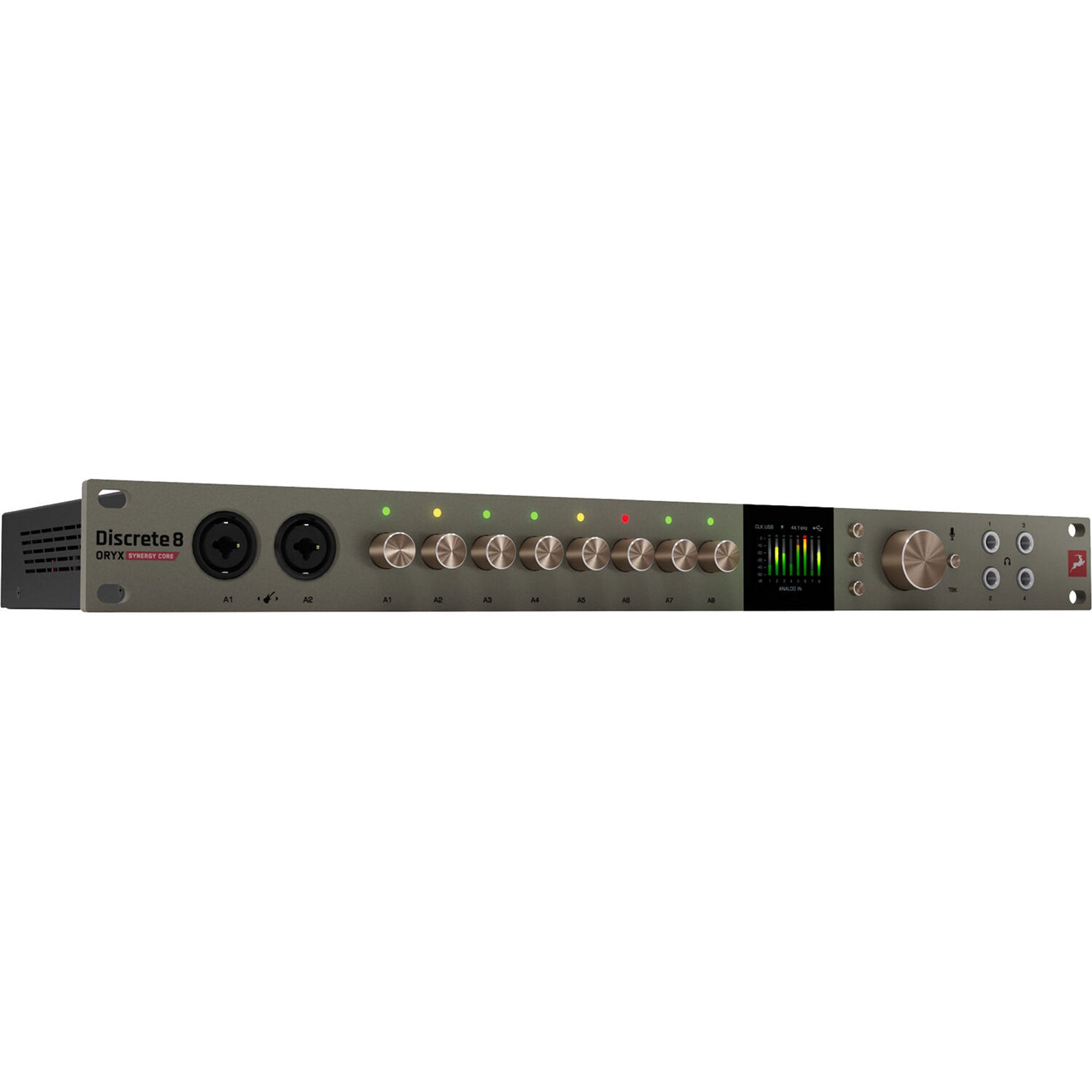

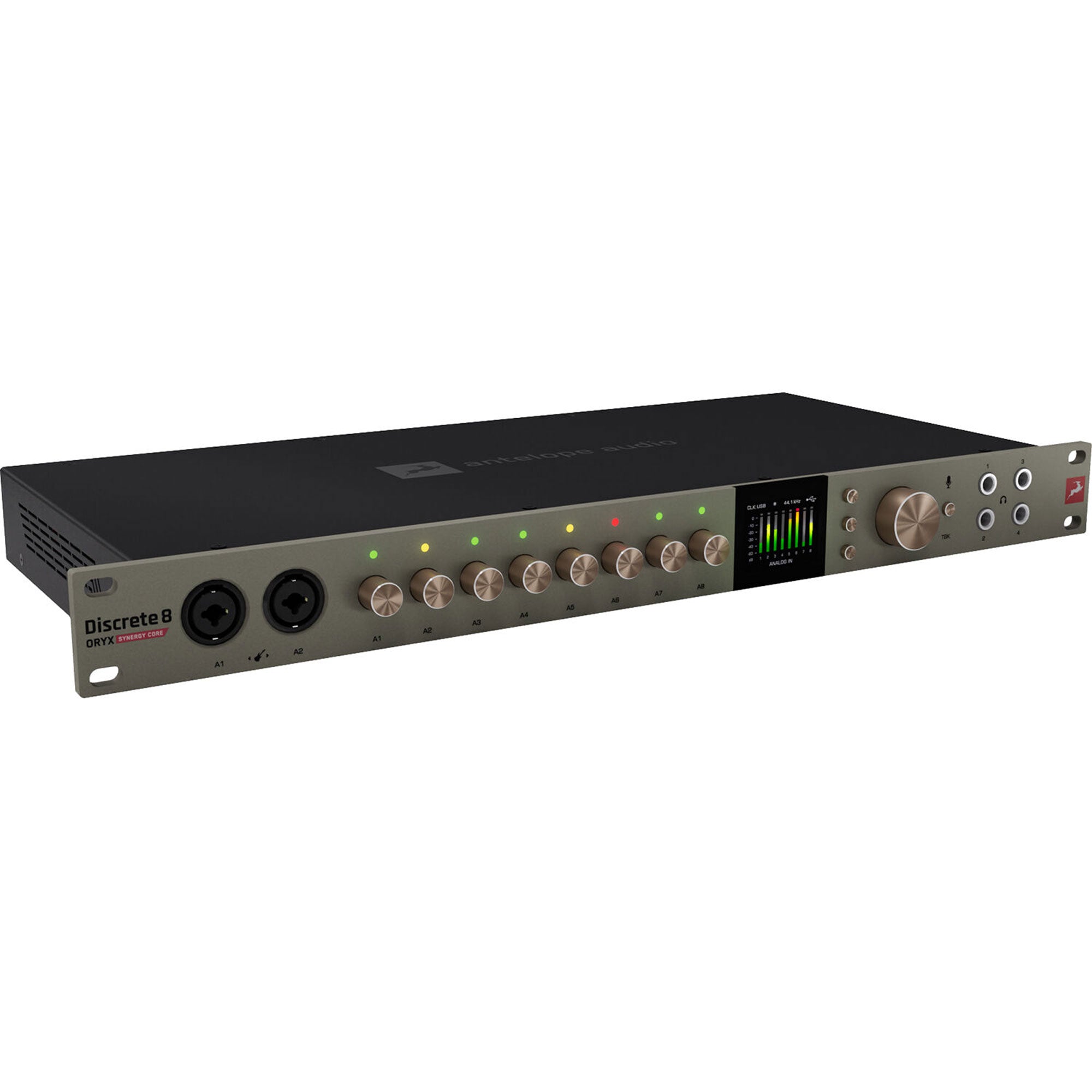

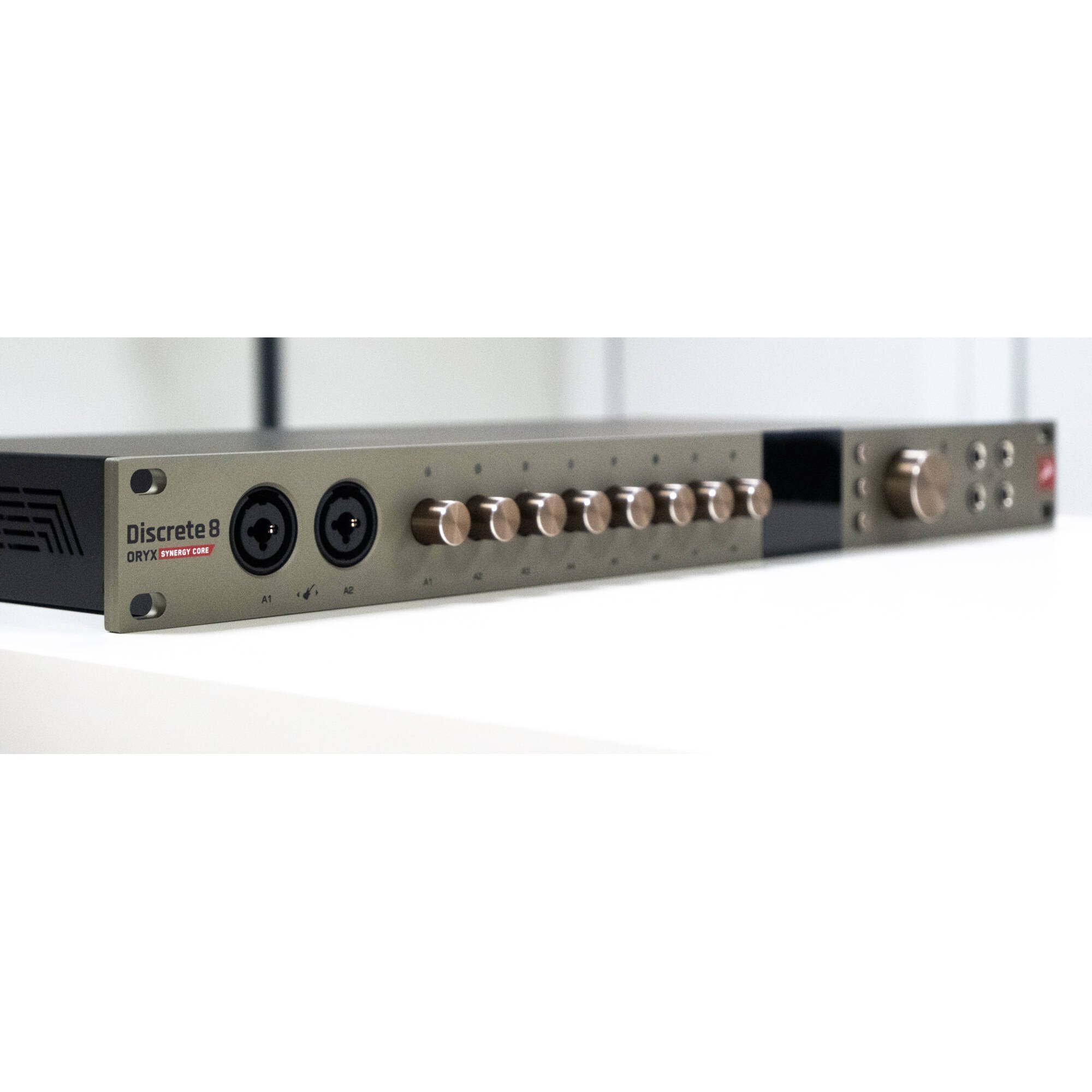

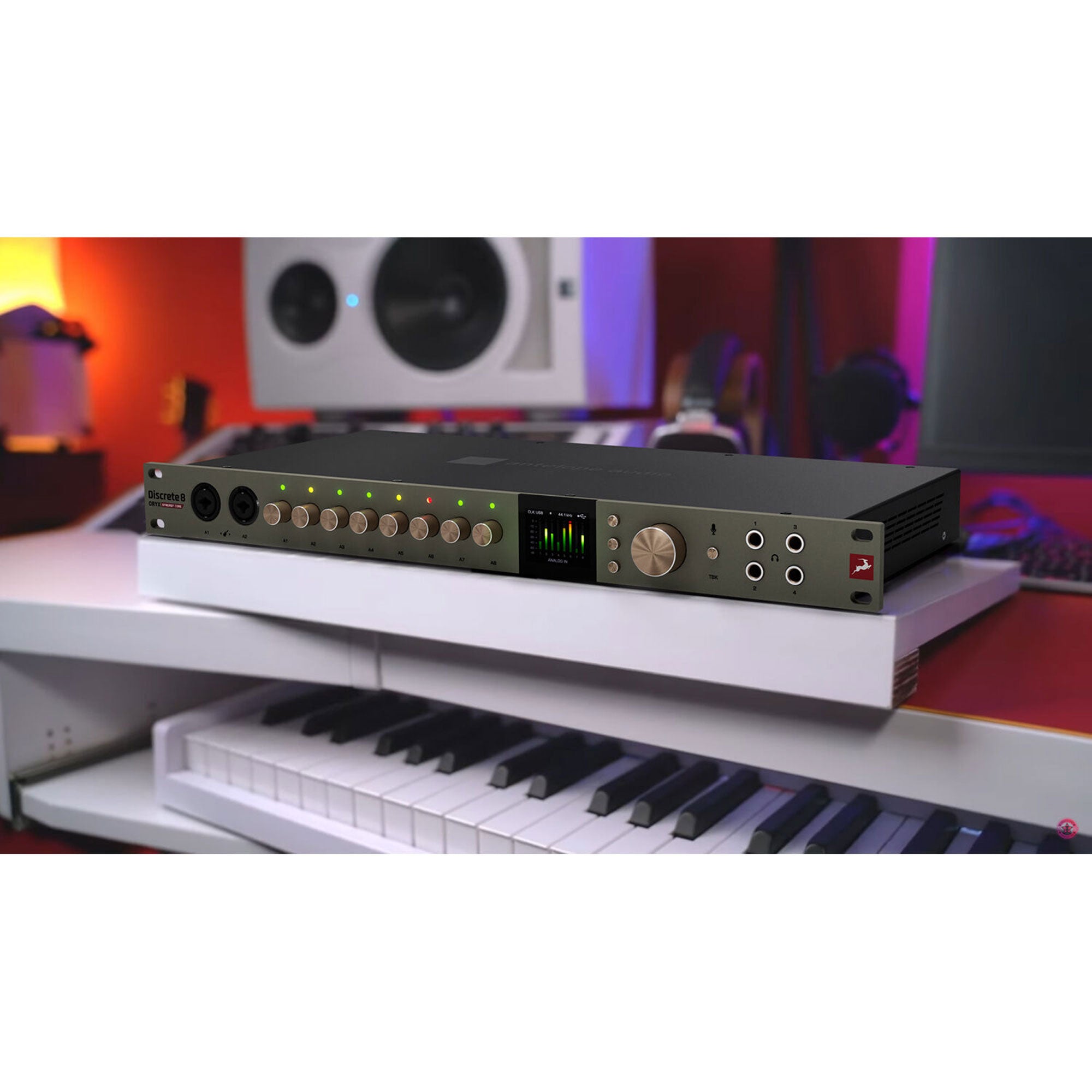

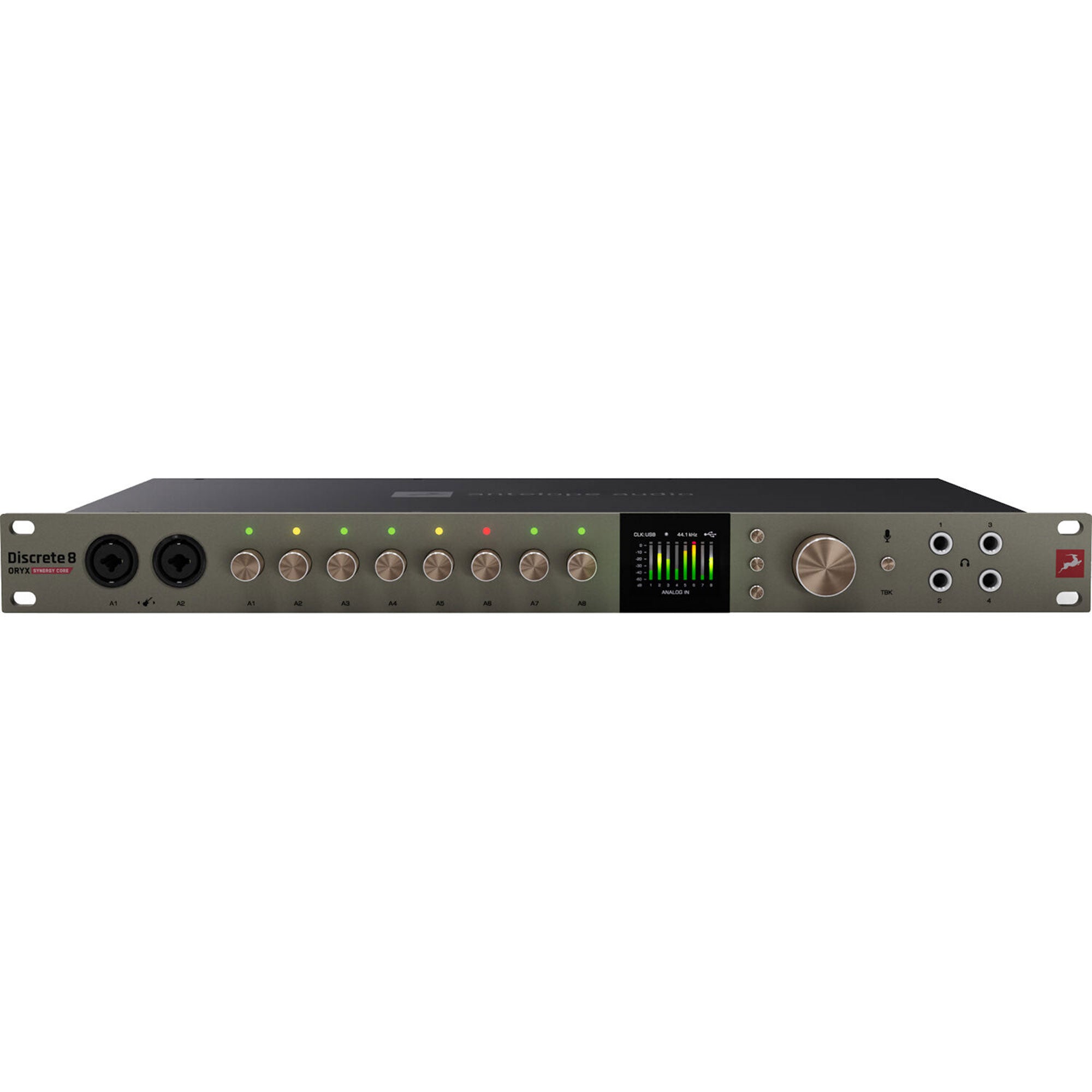

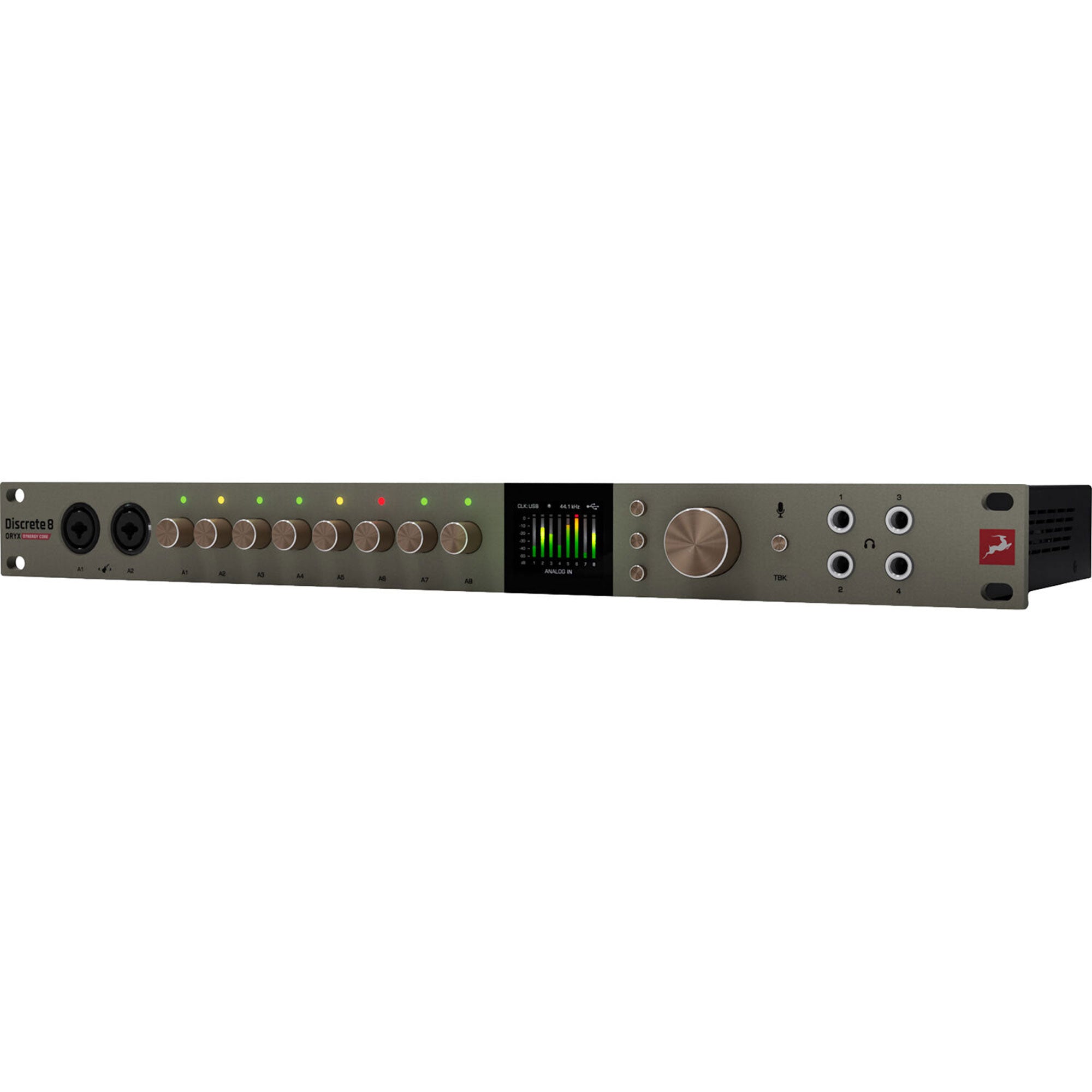

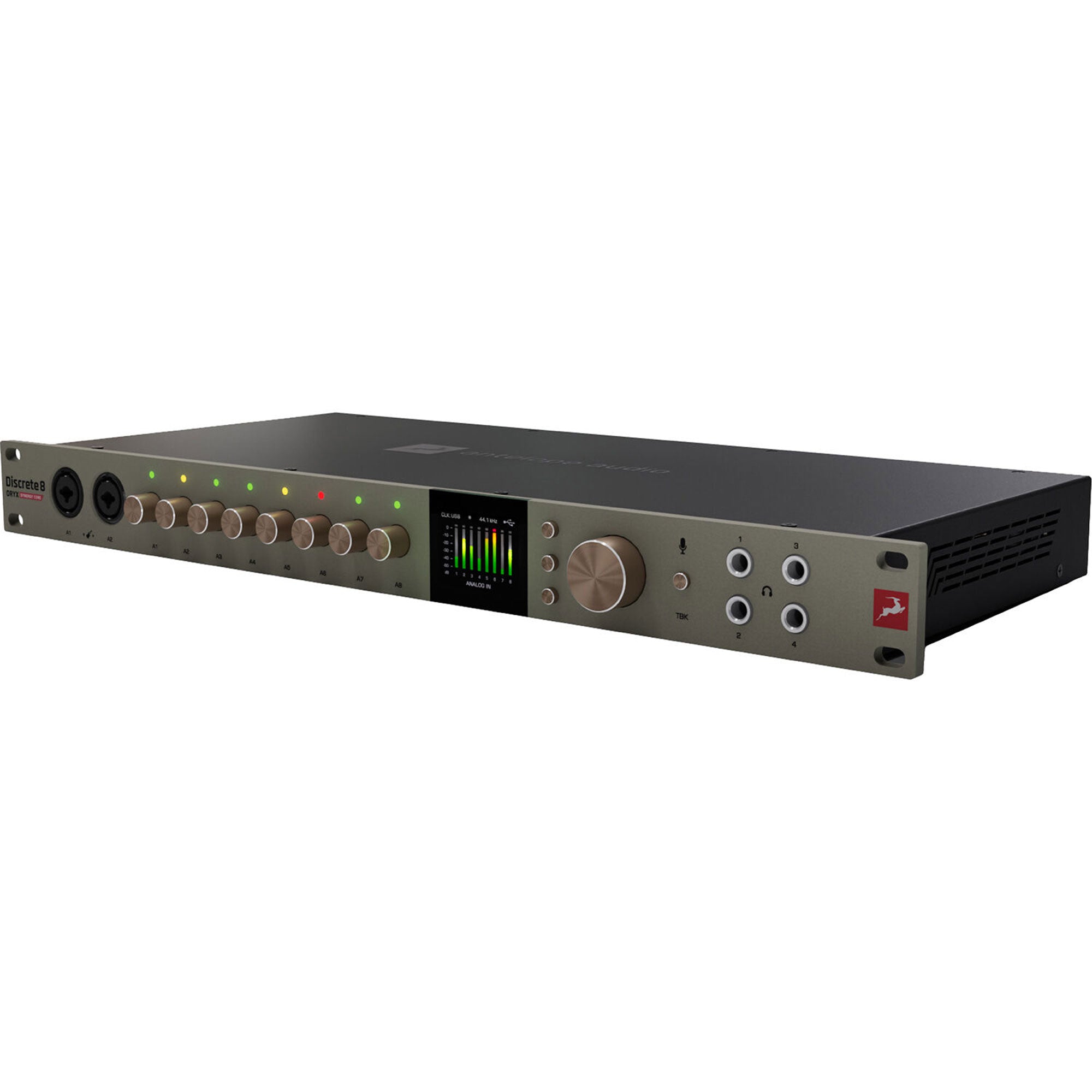

The Antelope Audio Discrete 8 Oryx Synergy Core combines eight microphone preamps, flexible analog and digital routing, four independent stereo headphone outputs, and onboard effects in a 1U USB audio interface. It suits multi-mic recording, performer cue mixes, and hybrid studios connecting external preamps, converters, and outboard equipment.

Eight preamps and flexible analog connections

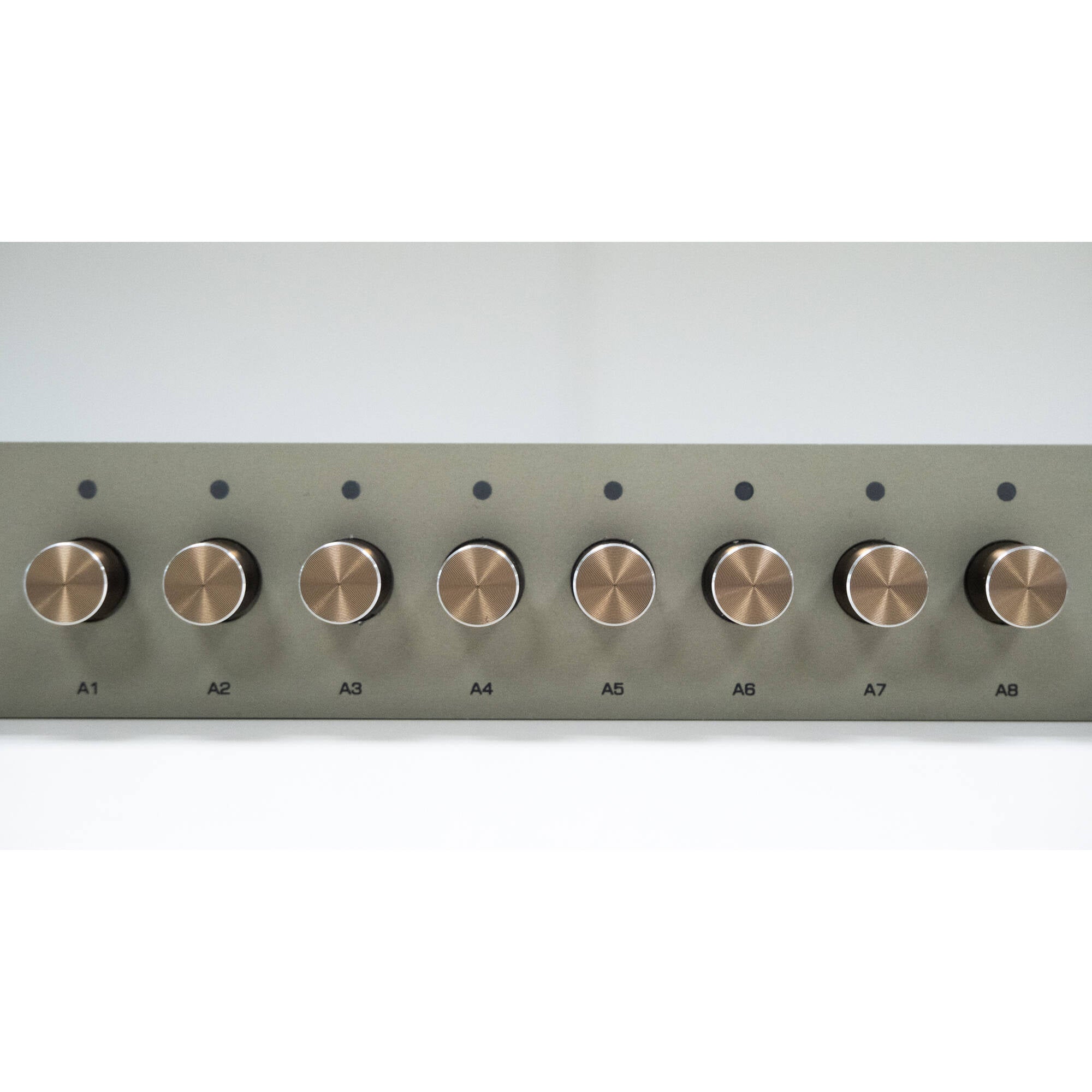

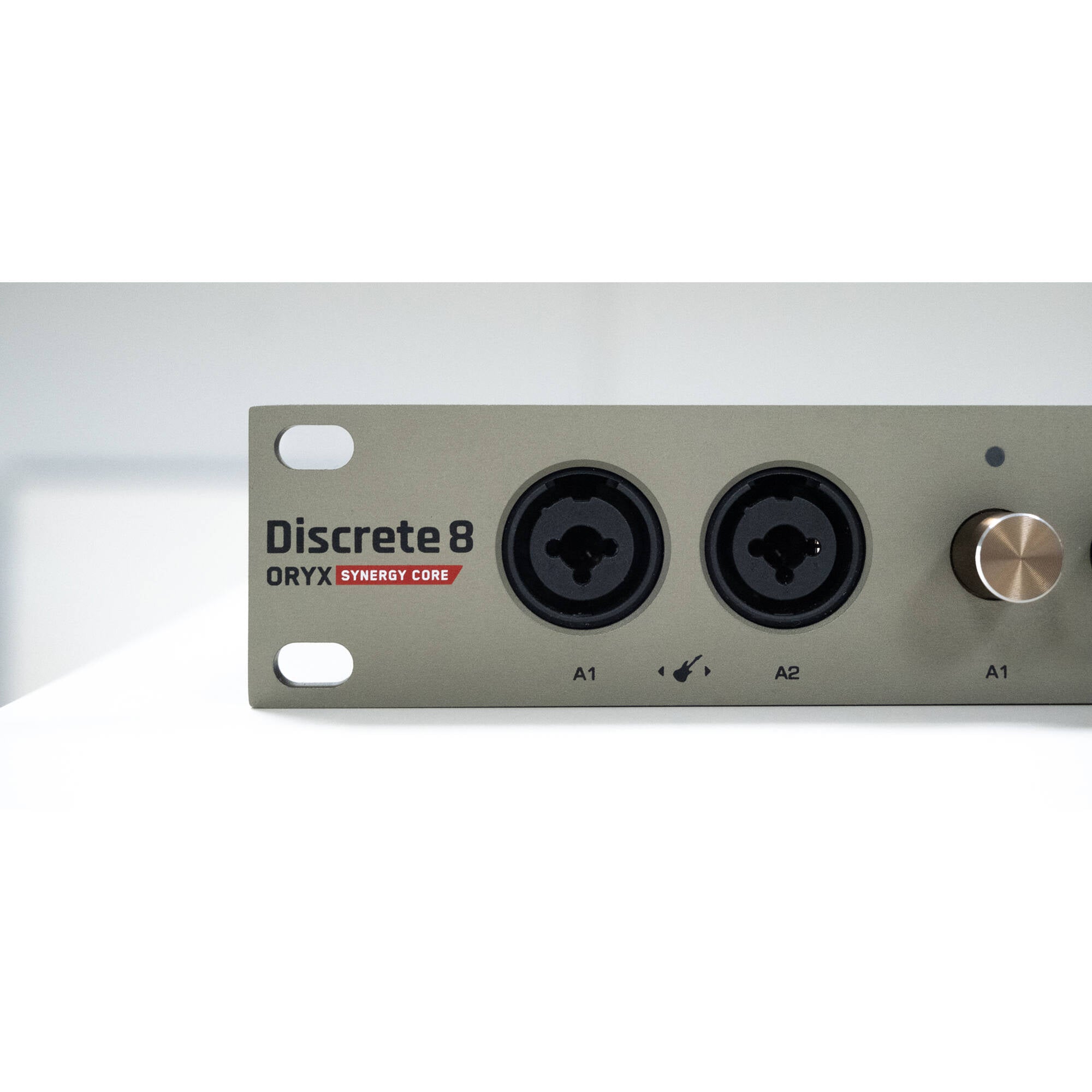

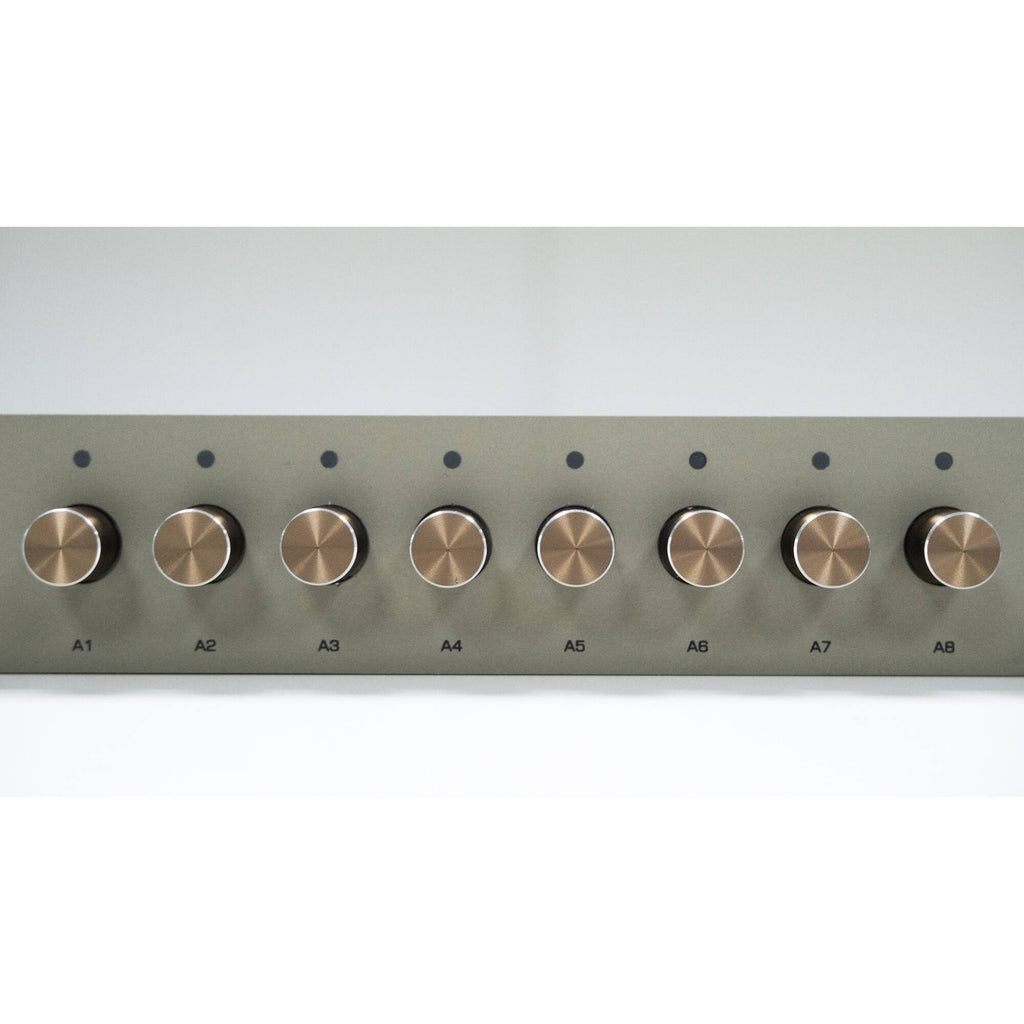

  • Eight discrete 6-transistor mic/line preamps with up to 75 dB gain and 48 V phantom power; two inputs also accept Hi-Z instrument signals
  • The eight mic/line combo inputs are the eight analog input channels, not an additional bank of eight dedicated line inputs

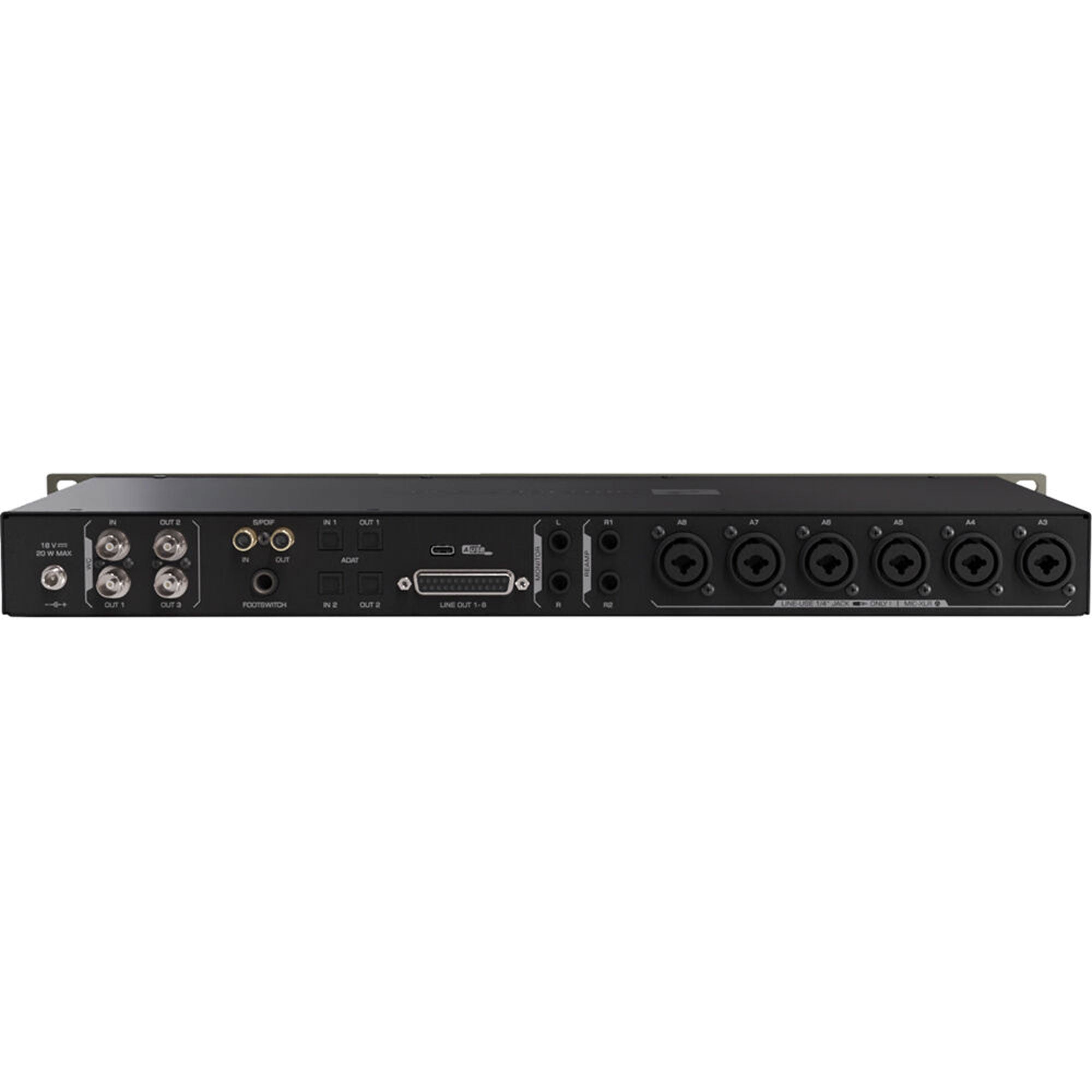

  • Eight DC-coupled line outputs over DB25, plus a dedicated stereo TRS monitor output
  • Two reamp outputs for sending instrument signals to amps; these can alternatively serve an additional stereo monitor pair
  • Four independently controlled stereo headphone outputs, with X-feed and headphone calibration options

USB connection and digital expansion

The Type-C connector uses the USB 2.0 protocol. Antelope provides macOS and Windows drivers, with an additional class-compliant mode for macOS. The interface uses an external power supply rather than relying on USB bus power.

Antelope describes the hardware's total connectivity as 26 × 38. This is not a promise of 26 × 38 USB recording/playback channels: the USB connection provides 24 channels of I/O. Two ADAT inputs and two ADAT outputs support up to 16 channels in each direction at 44.1/48 kHz; ADAT channel counts decrease at higher sample rates. S/PDIF adds two channels of input and output.

Monitoring, effects, and clocking

  • 37 included Synergy Core effects, processed onboard by 2 DSP chips and 1 FPGA
  • Direct monitoring with onboard effects lets performers monitor without a round trip through the computer's recording software; this is not a guarantee of zero system latency
  • Virtual patch bay, customizable routing presets, and monitor mixes
  • Built-in talkback microphone and footswitch control for dim/talkback functions
  • Standalone operation and front-panel color display
  • Word clock: one BNC input and three BNC outputs, with fourth-generation 64-bit AFC clocking
  • Recording and playback at up to 24-bit/192 kHz

The monitor D/A converter has a specified 130 dB dynamic range. The A/D and line-output D/A converters are specified at 121 dB dynamic range; these figures describe converter dynamic range, not preamp headroom.

In-the-Box Content:

  • Discrete 8 Oryx
  • Getting started guide
  • USB 2.0 type-C cable
  • USB type-C to type-A adapter
  • External power supply unit

Included Synergy Core Real-Time FX:

  • 2 Preamps (Gyraf Gyratec IX, BA-31)
  • 4 Equalizers (incl. VEQ-1A, VMEQ-5)
  • 5 Compressors & Limiters (incl. Stay-Levin, FET-A76, VCA160)
  • 22 Guitar Amps & Cabs (incl. Bluelux 1x12, Tube Guitar Amp)
  • 2 Special Processing Effects (Expander, Noise Gate)
  • 1 Reverb Effect (Auraverb)
  • 1 Guitar Tuner (A-Tuner)
  • Full list of effects:
  • Gyraf Gyratec IX - Dual Tube Mic Preamp with HPF
  • VCA160 - VCA Compressor / Limiter
  • Stay-Levin - Vari-Mu Tube Compressor
  • FET-A76 - FET Compressor / Limiting Amplifier
  • VEQ-1A - 2-Band Tube EQ
  • VMEQ-5 - 3-Band Tube Mid-Range EQ
  • X903 - VCA Compressor / Limiter
  • PowerFFC - Feed-Forward Compressor
  • Clear Q - Parametric EQ
  • Power EX - Expander
  • VEQ-HLF - Tube 2-Band HPF / LPF
  • Auraverb - Reverb
  • BA-31 - Germanium Mic Preamp
  • Power Gate - Noise Gate
  • A-Tuner - Guitar Tuner
  • Plexi 59 (UK) - Tube Guitar Amp
  • Bass SuperTube VR - Tube Guitar Amp
  • Darkface 65 (US) - Tube Guitar Amp
  • Top30 (UK) Bright - Tube Guitar Amp
  • Tweed Deluxe (US) - Tube Guitar Amp
  • Overange 120 (UK) - Tube Guitar Amp
  • BurnSphere (DE) Lead - Tube Guitar Amp
  • Marcus II (US) Lead - Tube Guitar Amp
  • Modern (US) CH3 - Tube Guitar Amp
  • Rock 75 (UK) - Tube Guitar Amp
  • Rock 22.10 (UK) - Tube Guitar Amp
  • Darkface 65 2x12 - 2x12 Guitar Cabinet
  • Top30 2x12 - 2x12 Guitar Cabinet
  • Modern 4x12 - 4x12 Guitar Cabinet
  • Green 2x12 - 2x12 Guitar Cabinet
  • Vintage 4x12 - 4x12 Guitar Cabinet
  • Green 4x12 - 4x12 Guitar Cabinet
  • Caliper 50 1x10 - 1x10 Guitar Cabinet
  • Bluelux 1x12 - 1x12 Guitar Cabinet
  • Clst 1x12 - 1x12 Guitar Cabinet
  • England 4x12 - 4x12 Guitar Cabinet
  • Bass Tube 1x15 - 1x15 Guitar Cabinet

Specifications:

  • ANALOG

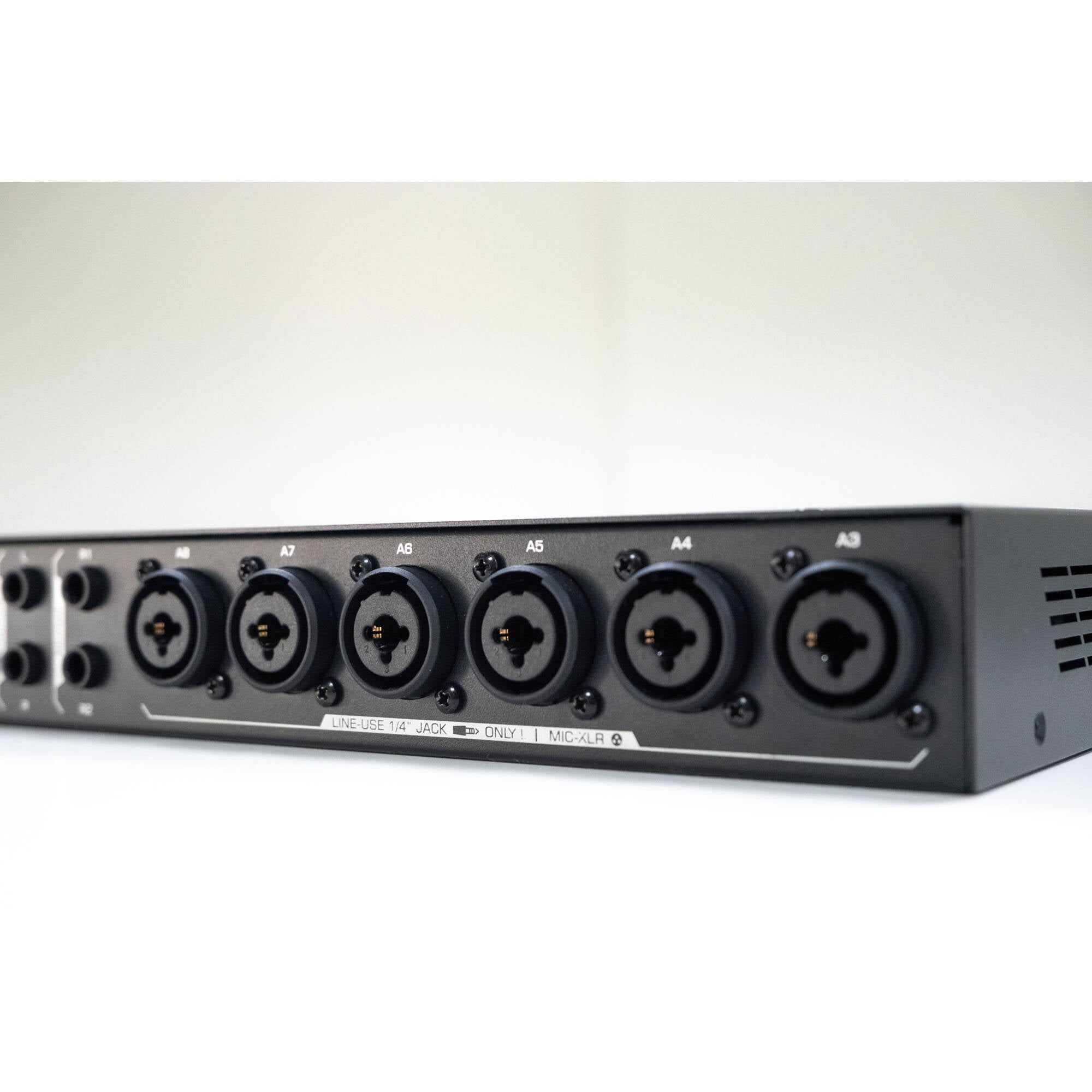

  • Analog Inputs:
  • 6 x Mic / Line Inputs
  • 2 x Mic / Line / Hi-Z Inputs
  • DC-Coupled
  • Analog Outputs:
  • 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
  • 2 x ReAmp Out on TRS 1/4 Jacks
  • 1 x Line Out (8 channels) on DB25, +20 dBu max
  • 4 x Stereo Headphone Outputs
  • Mic Preamp:
  • EIN: -128dBu (A-weighted)
  • Dynamic Range: 121 dB (A-weighted)
  • THD: -106 dB
  • Max input: +18 dBu
  • Max Gain: 75 dB
  • D/A Monitor Converter:
  • Dynamic Range: 130 dB
  • THD + N: -115 dB
  • A/D Converter:
  • Dynamic Range: 121 dB
  • THD + N: -112 dB
  • D/A Converters (Line Out):
  • Dynamic Range: 121 dB
  • THD + N: - 100dB
  • DC-Coupled
  • DIGITAL
  • Digital Inputs:
  • 2 x ADAT inputs (up to 16 channels at 44.1/48 kHz; fewer at higher sample rates)
  • 1 x S/PDIF
  • Digital Outputs:
  • 2 x ADAT outputs (up to 16 channels at 44.1/48 kHz; fewer at higher sample rates)
  • 1 x S/PDIF
  • USB 2.0 I/O: USB 2.0 Type-C connector
  • CLOCKING
  • Word Clock Input: 1 x Input @ 75 Ohms 3Vpp on BNC 32 - 192kHz
  • Word Clock Outputs: 3 x Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz
  • Clocking System:
  • 4th Generation Acoustically Focused Clocking
  • 64-bit DDS
  • Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192
  • OTHER
  • Operating Temperature: 0-50°C, 32-122°F
  • Weight - Unit (Approx): 3.1 kg/ 6.83 lbs
  • Dimensions - Unit (Approx):
  • Width: 483 mm / 19"
  • Height: 44 mm / 1.7"
  • Depth: 220 mm /8.6"
  • Weight - Box (Approx): 4.9 kg / 10.8 lbs
  • Dimensions - Box (Approx):
  • Width: 645 mm / 25.4"
  • Height: 100 mm / 3.9"
  • Depth: 340 mm / 13.4"
  • Power Consumption: 25 Watts
Details
  • Manufacturer:  Antelope Audio
  • MPN: DISCRETE 8 ORYX
  • Model Number: Discrete 8 Oryx
  • UPC: 850041548142
