Key Features
- Three Operating Modes
- Electronic Dimming 0-100%
- DMX-512 Protocol
- 3 Pin DMX In/Out
- powerCON In/Out
- UC IR Compatible
- Multi-Unit Power Linking
Description

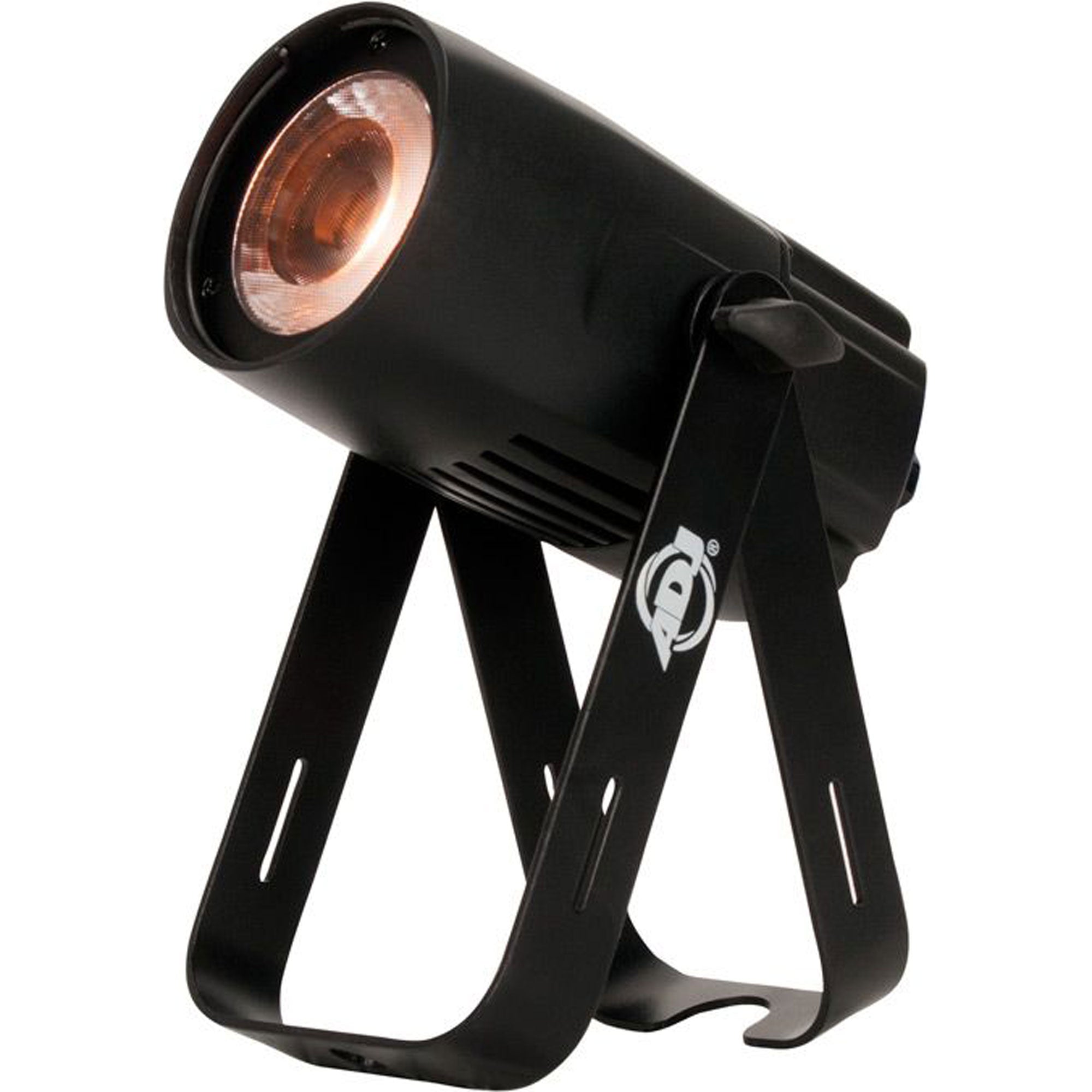

Compact Spot Fixture with a 15-Watt Warm White LED
The Saber Spot DTW is a compact spot fixture with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button LED display system on the rear panel. Its built-in ACL lens produces a 20-degree beam angle. It features a dim to warm effect that replicates a halogen-like dimming profile.
The Saber Spot DTW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.
Features:
- Three Operating Modes
- Electronic Dimming 0-100%
- DMX-512 Protocol | 3pin DMX In/Out Connections
- Three DMX Modes: 1 / 2 / 4
- ADJ UC IR compatible (Not Included) and Airstream IR compatible (Transmitter Not Included)
- Multiple Unit Power Linking
Specifications:
- Optical:
Light Source: 15-Watt Warm White LED
LED Life Expectancy: 10,000 Hrs
Beam Angle: 20-degrees

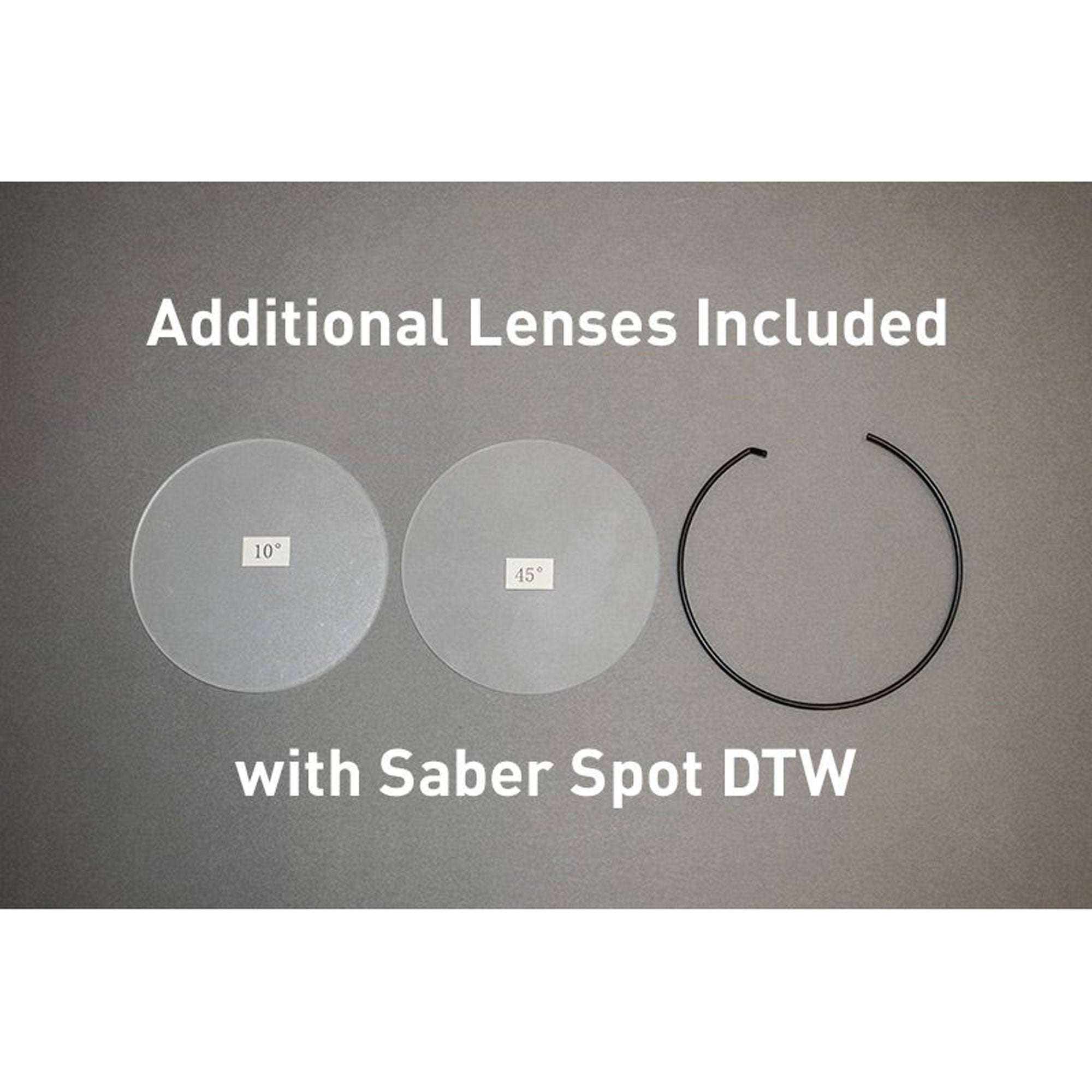

Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
Color Temperature (Full on): 3100K (Warm White); 1900K (Amber)
LUX: 726 @ 3M
CRI (Full on): 92 - Control:
3 DMX Channel Modes: 1, 2 or 4
4-button Digital Display for easy navigation
Electronic Dimming 0 - 100%
5 Dimming Curve modes
Dim to warm effect with Amber LED
Flicker Free (Refresh Rate: 3.6KHz)
Variable Strobe: 1-20Hz - Connections:

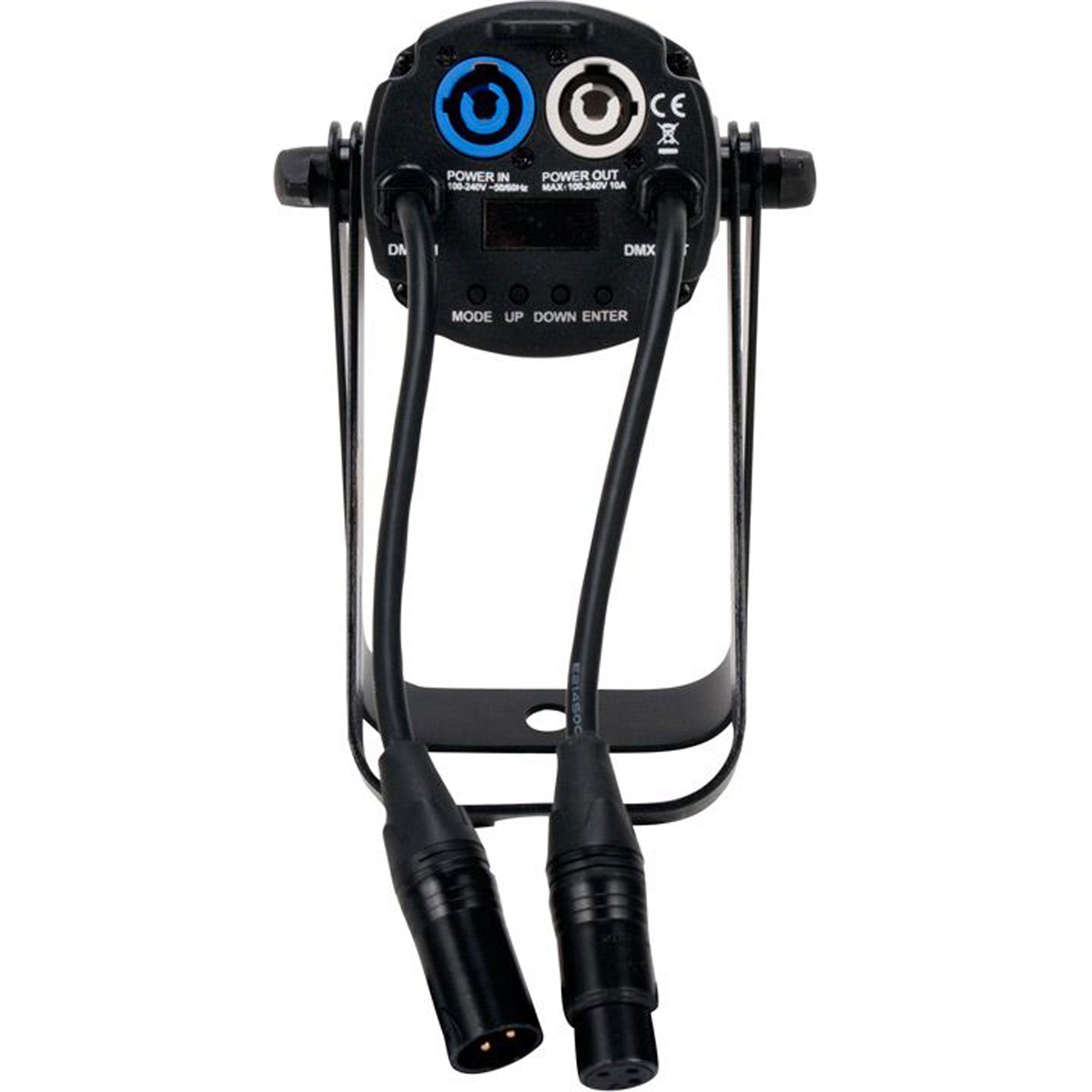

Power Input: powerCON
Power Pass through: powerCON
Daisy chain quantity: 33 fixtures (@120V); 71 fixtures (@230V)
Control: 3-pin DMX In/Out pigtails - Electrical:
Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
Power draw 120V 60Hz: 15W, 0.13 Amps
Power draw 220V 50Hz: 15W, 0.07 Amps
Power Consumption: 24W - Physical:
Dimensions (LxWxH): 3.5" x 6.75" x 3.5" / 88 x 170 x 87mm
Weight: 2.6 lbs / 1.2 kg.
Metal Black Housing - Certifications:
ETL Pending, UL, CE
IP 20: Dry area, No liquids
Includes:
- powerCON Cable
- 10 Degree & 45 Degree Frosted Lens
- Lens Retainer Ring
