Key Features
- 24 x 20" (60.96 x 50.80cm) Sheet
- 60° x 1° Beam Angle
- Shape or Smooth LED Lighting
- Fits Over Any LED Fixture
- Polycarbonate Sheets can be Cut
Description

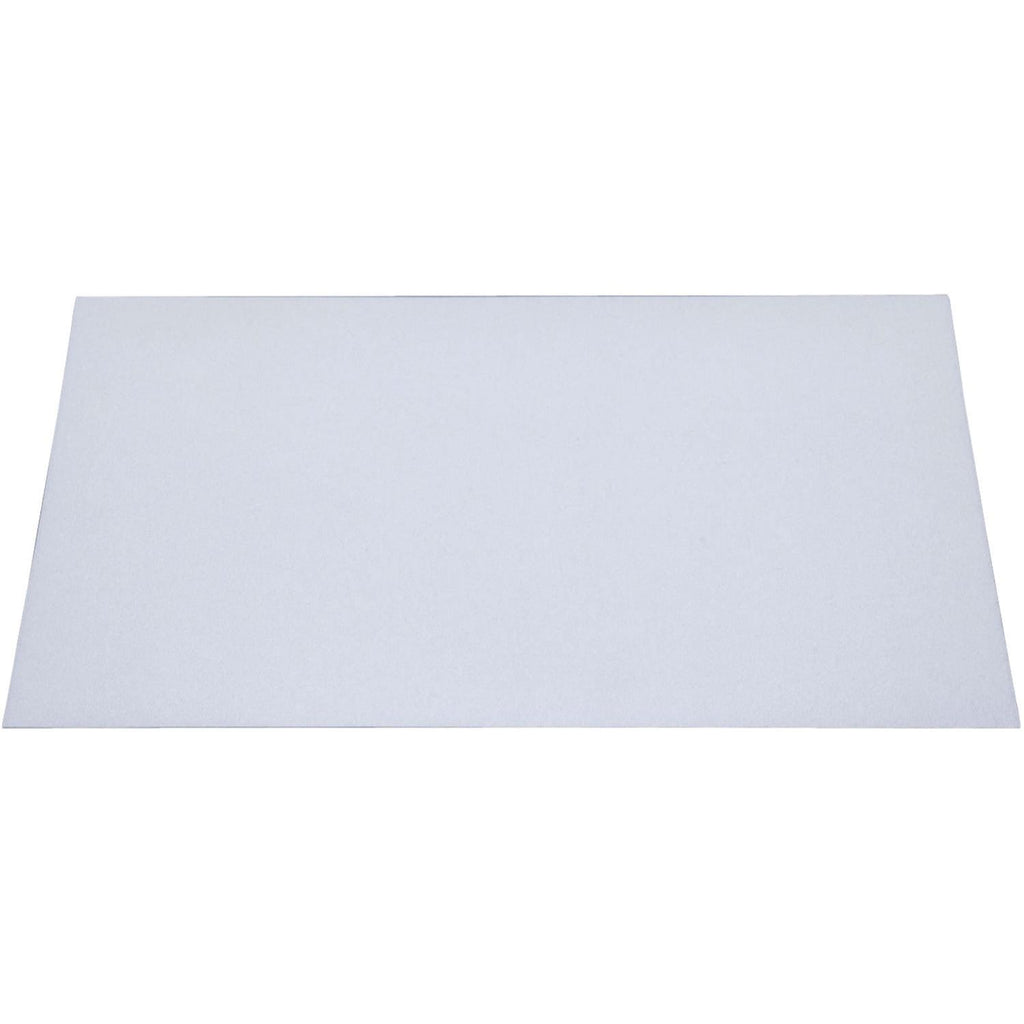

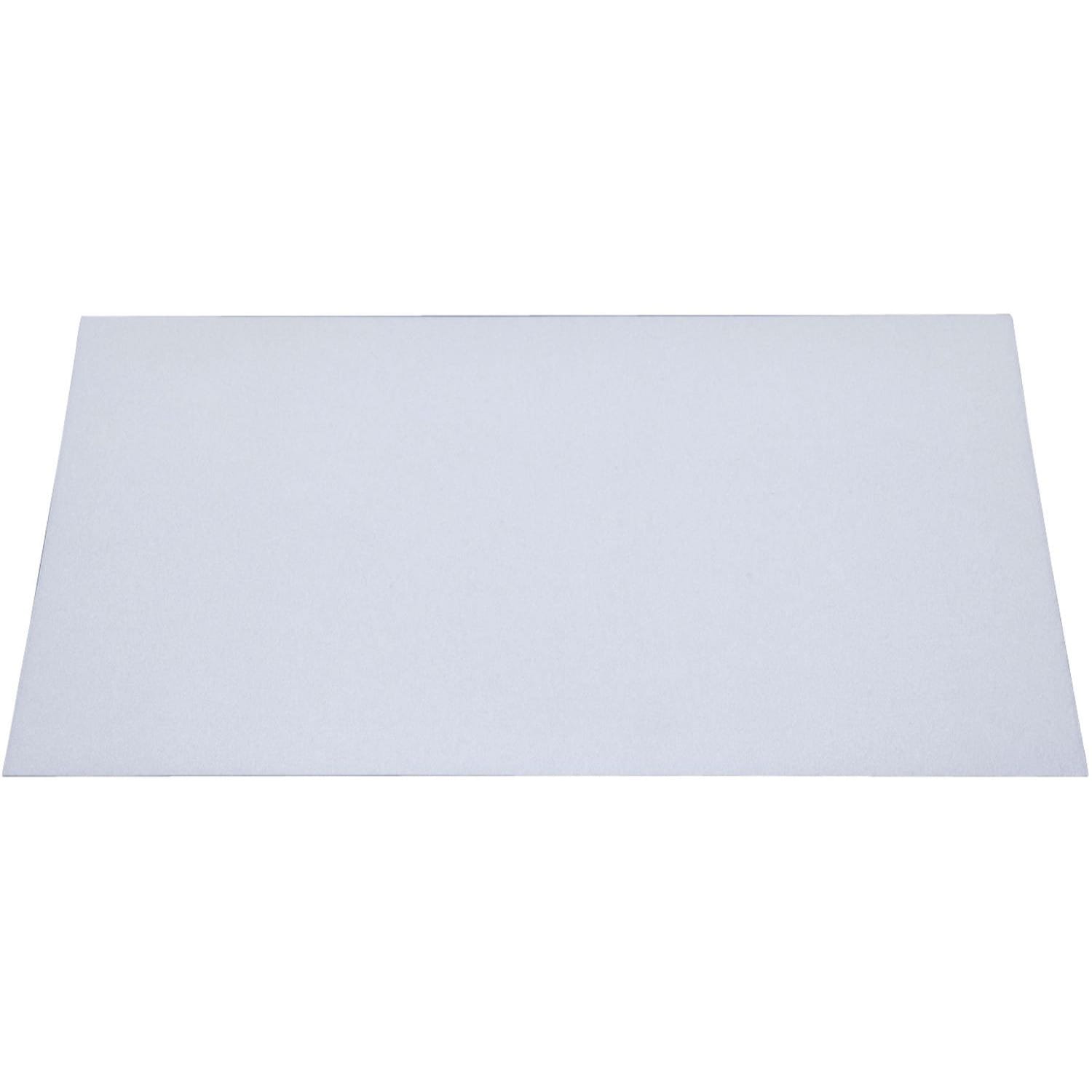

Lens Shape Filter, 60 x 1 Degree, 24" x 20" Sheet
The American DJ / Elation Professional LSF601-24 Light Shaping Filter is a polycarbonate 24 x 20" (60.96 x 50.80cm) sheet that may be cut and trimmed to fit any Par can or Brick style LED lighting fixture. The sheet is intended to transmit (focus) up to 92% of the light, shaping it to the desired effect you want. Create wide wall washes or more linear lighting effects.
Specifications:
- 24 x 20" (60.96 x 50.80cm)
- Beam Angle: 60° x 1°
- Temperature Range: 30°C to 100°C @ 240 hrs or -40°C to 500°C
- Humidity: >95% ± 5% RH @ 24 hrs
- General:
- Effective Angular Output: (light source angle) + (LSF angle)
- Transmission Efficiency Circular: 0.2° to 20° = 90% 20° to 80° = 85% / Elliptical: = 85%
- Transmission: 400nm to 1600nm
- Spectral Range or 200nm to 1500nm
- Brightness Uniformity = 85%
